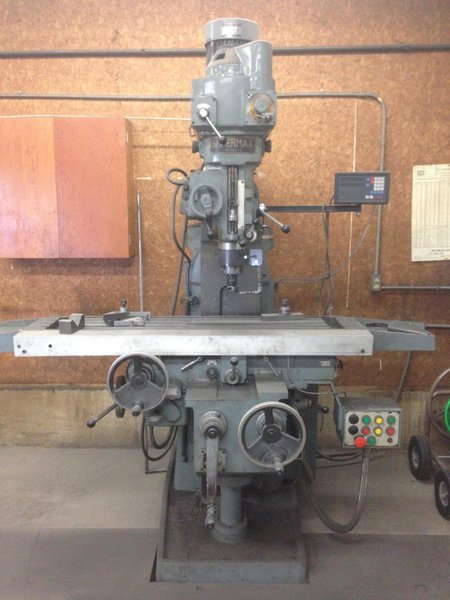

5HP SUPERMAX RAM TYPE VERTICAL MILLING MACHINE: STOCK #64117
Brand
Not specified
Category
Type
Model
5
Stock #
64117
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL .................................. 30577 MODEL ................................... SUPERMAX SERIES 2 YEAR .................................... 1985 TABLE WORK SURFACE ...................... 51" X 11" LONGITUDINAL TABLE TRAVEL ............... 39-3/8" CROSS TABLE TRAVEL ...................... 12" VERTICAL TABLE TRAVEL ................... 18" LONGITUDINAL & CROSS FEEDS .............. (12) 1/2 - 23-3/4 IPM LONGITUDINAL & CROSS RAPID FEEDS ........ 118 IPM VERTICAL RAPID FEED ..................... 31-1/2 IPM SPINDLE SPEEDS, VARIABLE ................ 75-4220 RPM SPINDLE TAPER ........................... 30 MM QUICK CHANGE QUILL STROKE ............................ 5-1/2" SPINDLE FEEDS ........................... .0015, .003 & .005 IPR HEAD INCLINE ANGLE, LEFT & RIGHT ........ 45 DEGREES SPINDLE NOSE TO TABLE, MAXIMUM .......... 22-3/4" COOLANT ................................. YES SPINDLE MOTOR ........................... 5HP 2-AXIS NEWALL DIGITAL READOUT (5) 30 MM QUICK CHANGE TAPER CUTTER HOLDERS |
