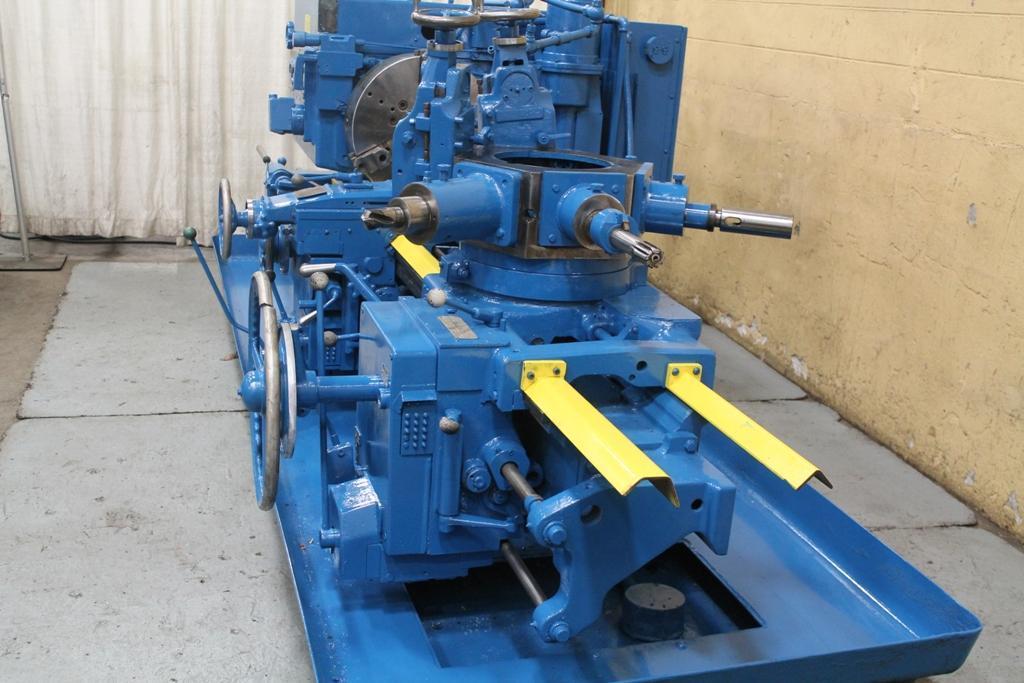

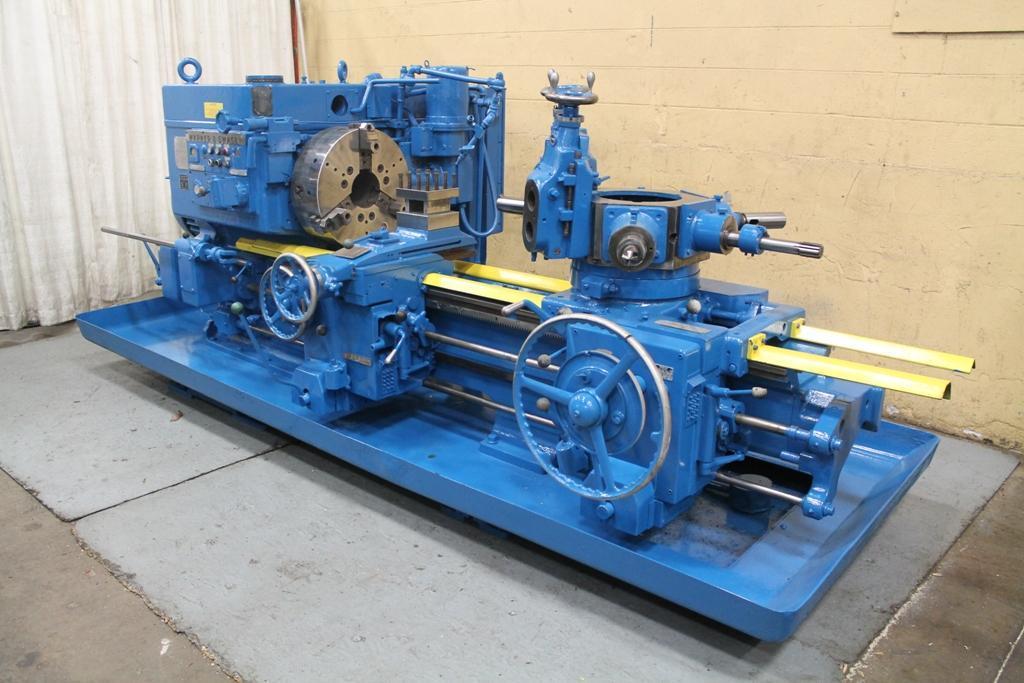

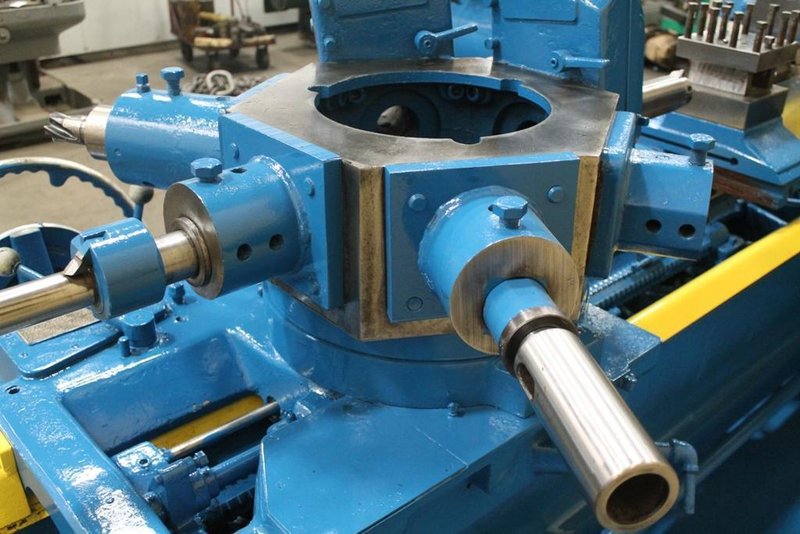

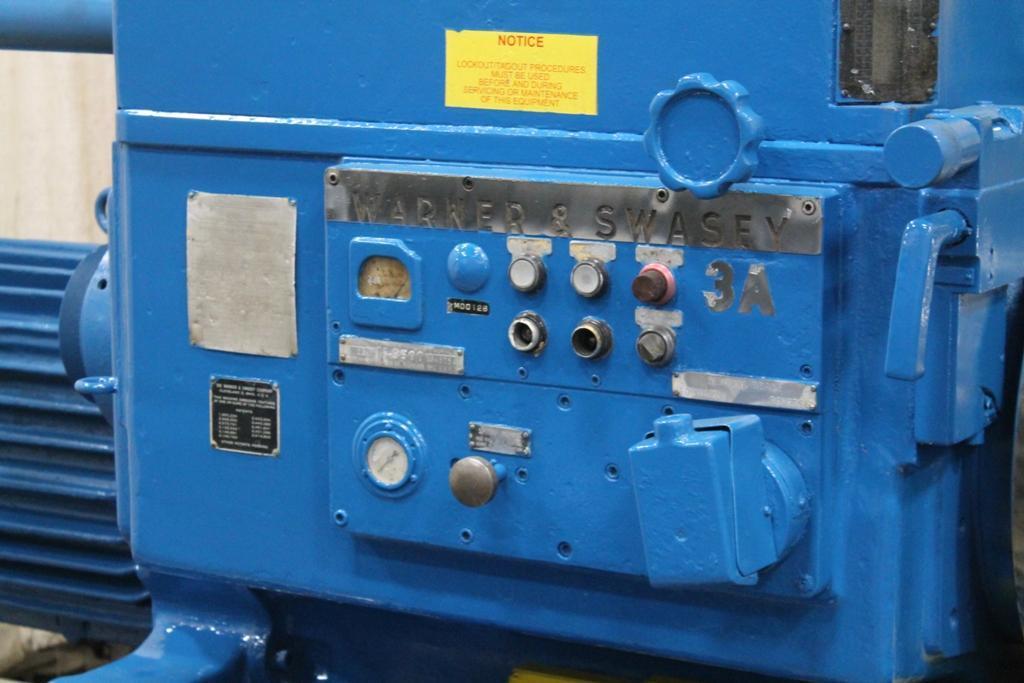

3A WARNER & SWASEY SADDLE TURRET LATHE: STOCK #63578

Model
3A
Stock #
63578
Year
Not specified
Condition
Not specified
Location
Not specified

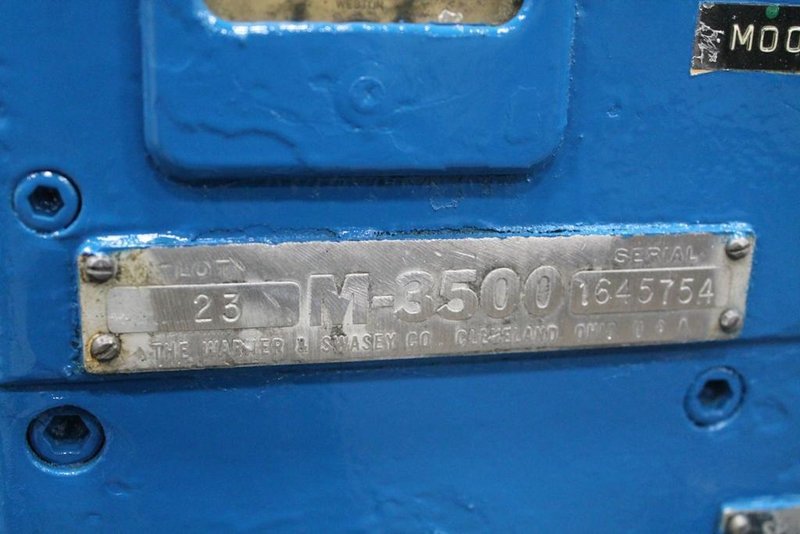

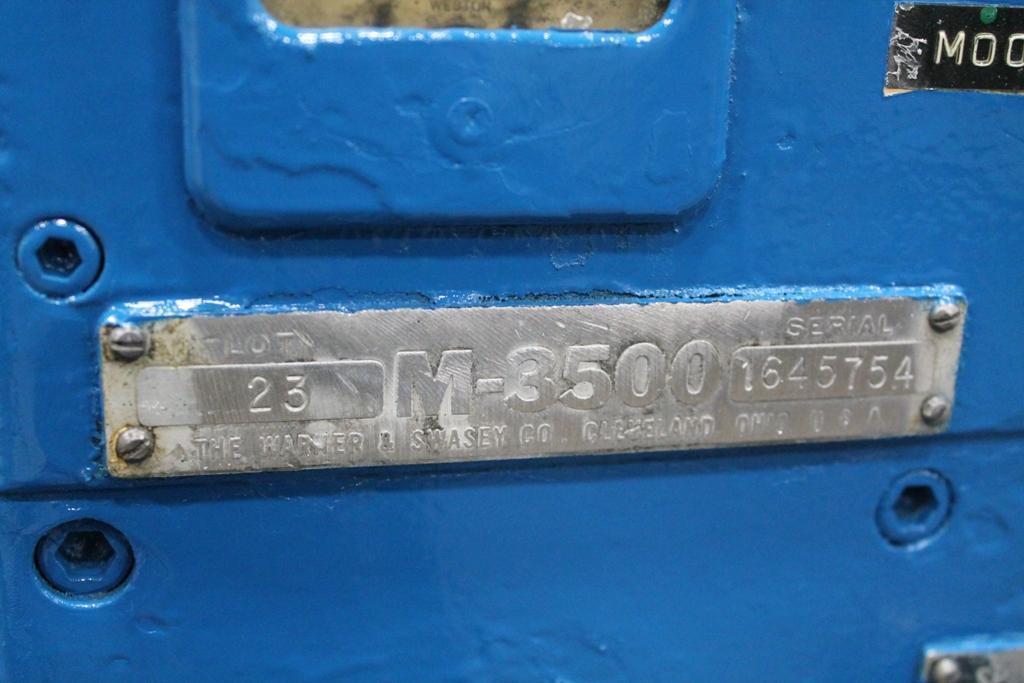

SERIAL ................................. 1645754
MODEL .................................. 3A (M-3500) SQUARE HEAD
SWING OVER BED (MAX.) .................. 24-1/2"
SWING OVER CARRIAGE HORN ............... 18"
SPINDLE NOSE TO TURRET (MAX.) .......... 58-3/4"
SPINDLE HOLE ........................... 6-1/4"
SPINDLE SPEEDS ......................... (32) 12 TO 851 RPM

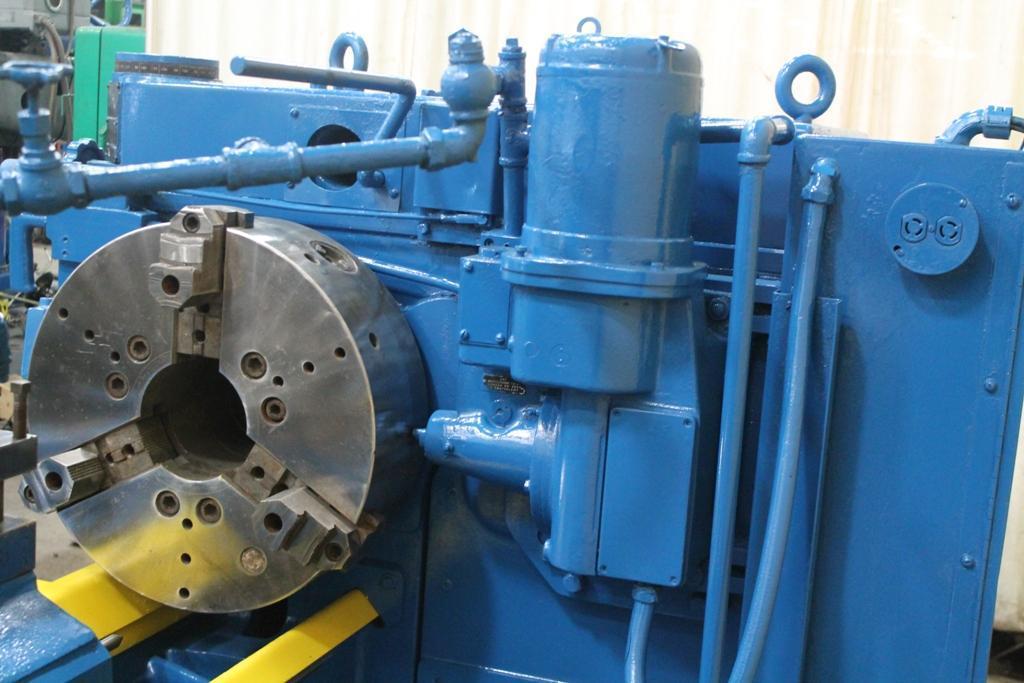

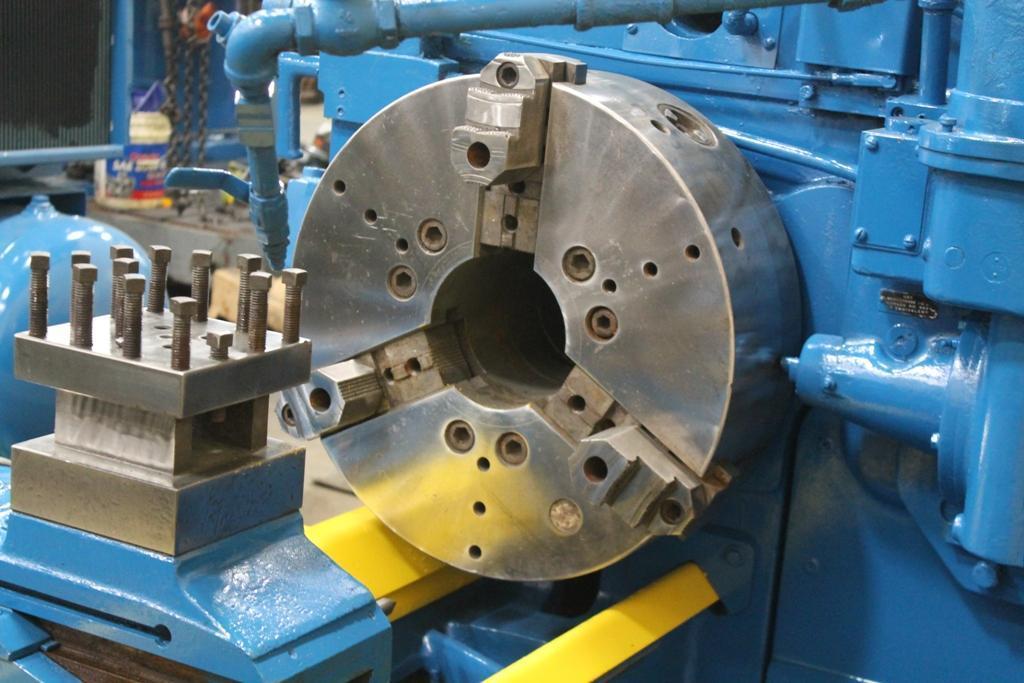

CHUCK .................................. 21" 3 JAW
POWER CHUCK WRENCH ..................... YES
CARRIAGE LONGITUDINAL FEEDS ............ (16) .005 TO .167 IPR
CARRIAGE CROSS FEEDS ................... (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS .............. (16) .005 TO .167 IPR
TURRET CROSS FEEDS ..................... (16) .003 TO .096 IPR
MAXIMUM LENGTH TURNED .................. 44-1/4"

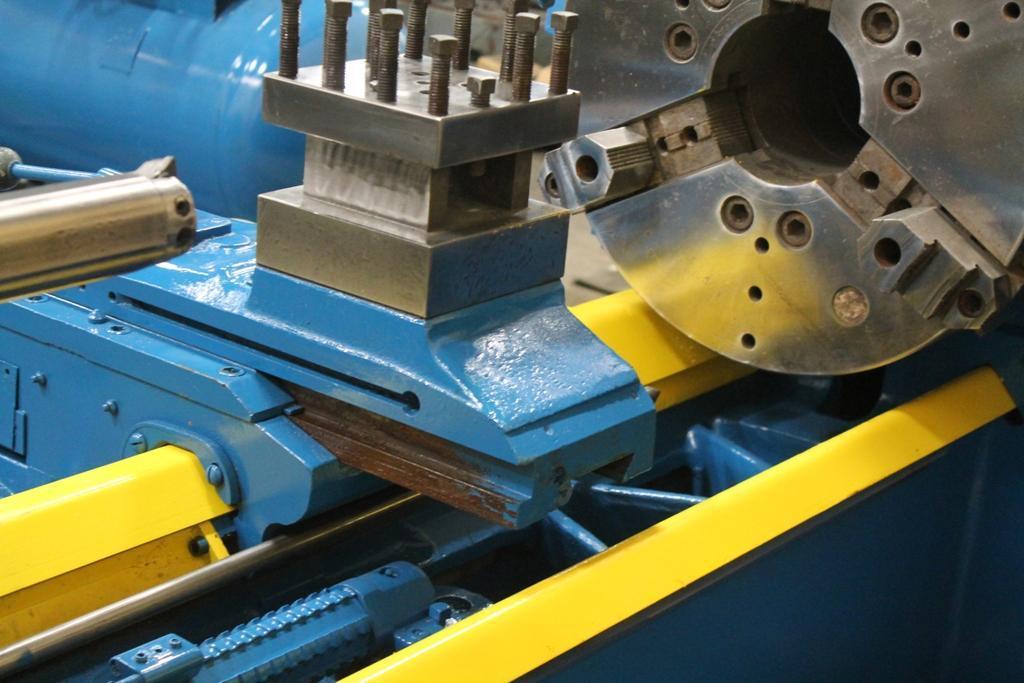

ADJUSTABLE TOOL HOLDERS ................ 2
FLANGE TOOL HOLDERS .................... 4
COOLANT WITH CHIP PANS ................. YES

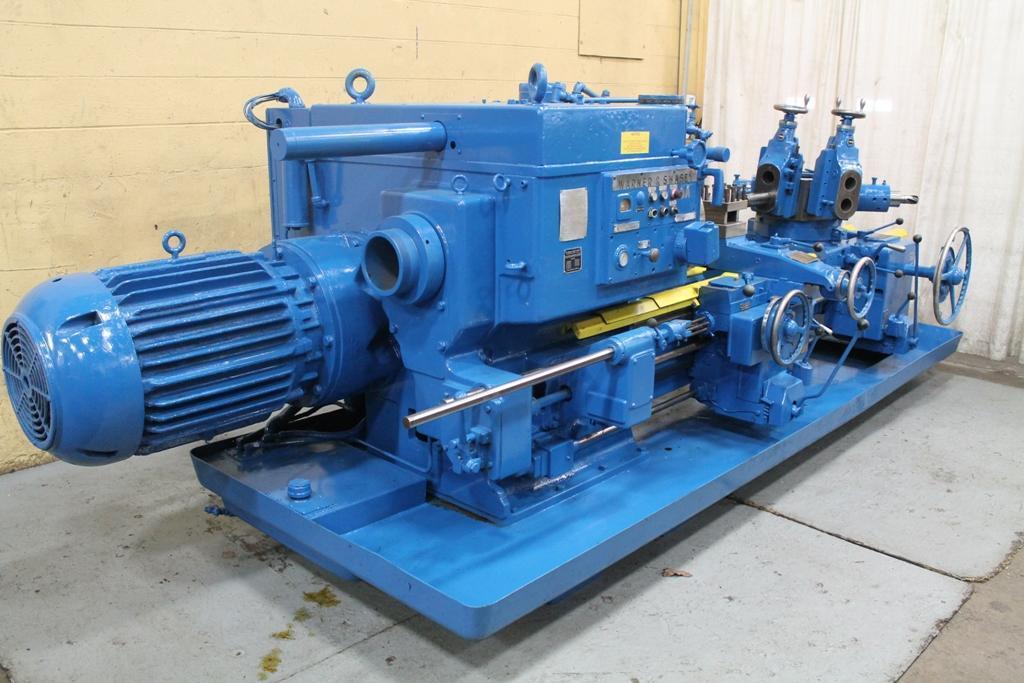

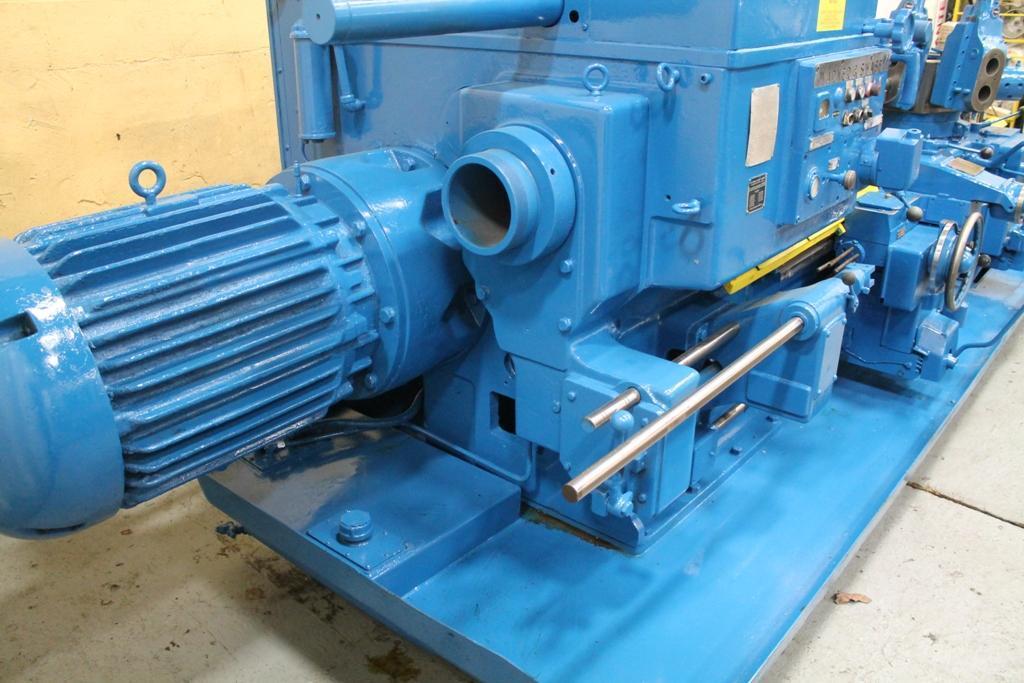

MOTOR .................................. 60 HORSEPOWER
