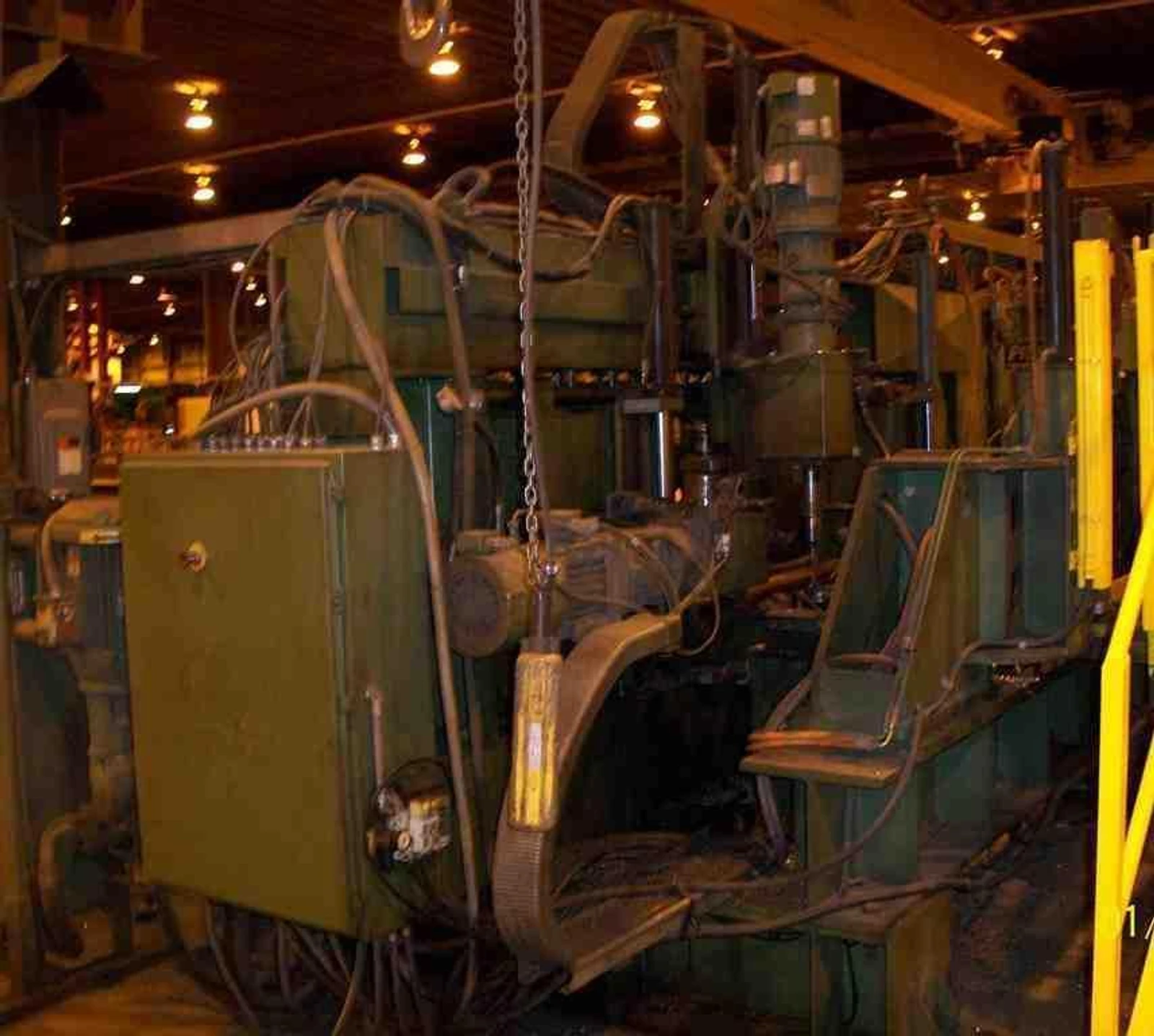

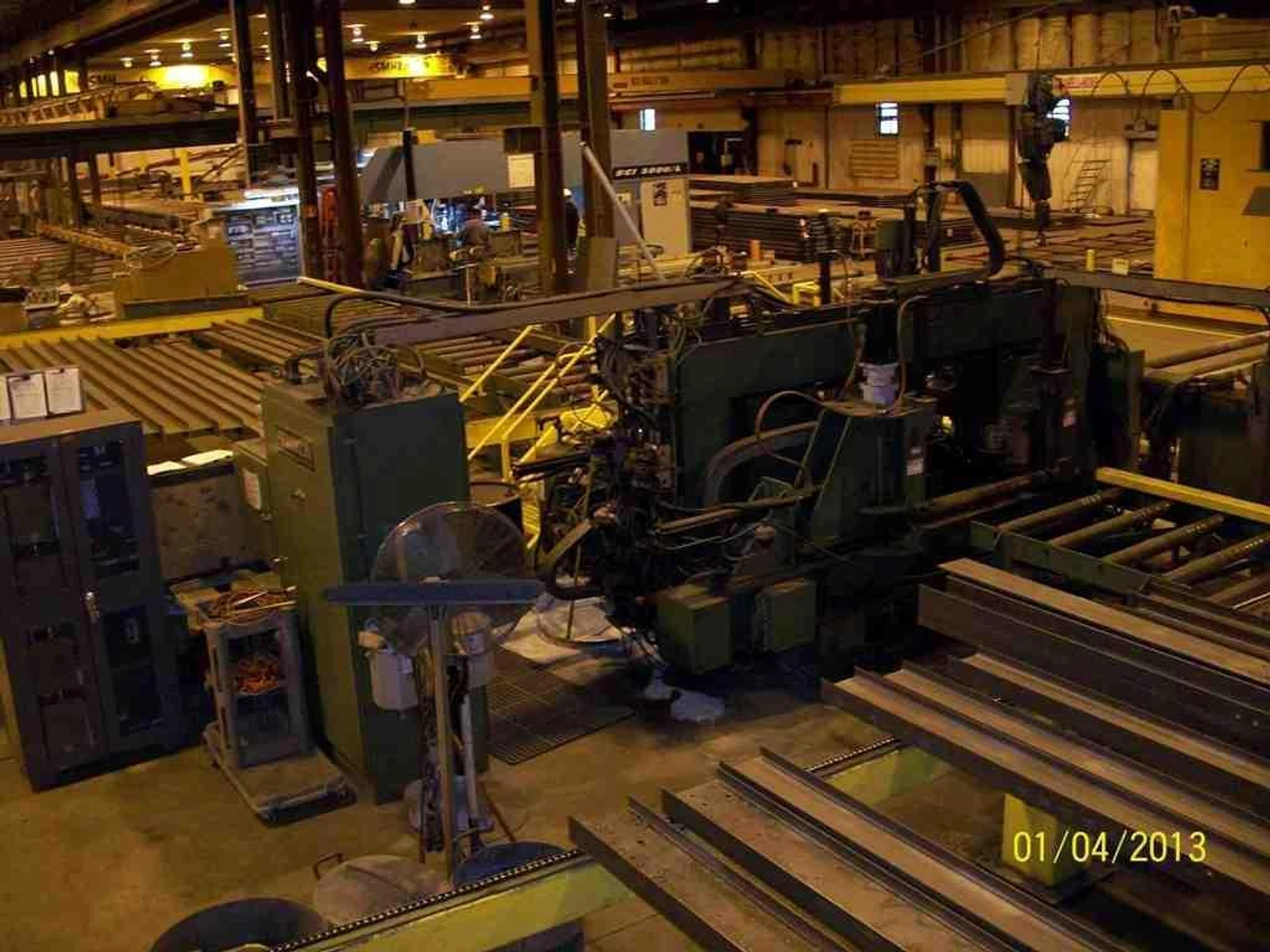

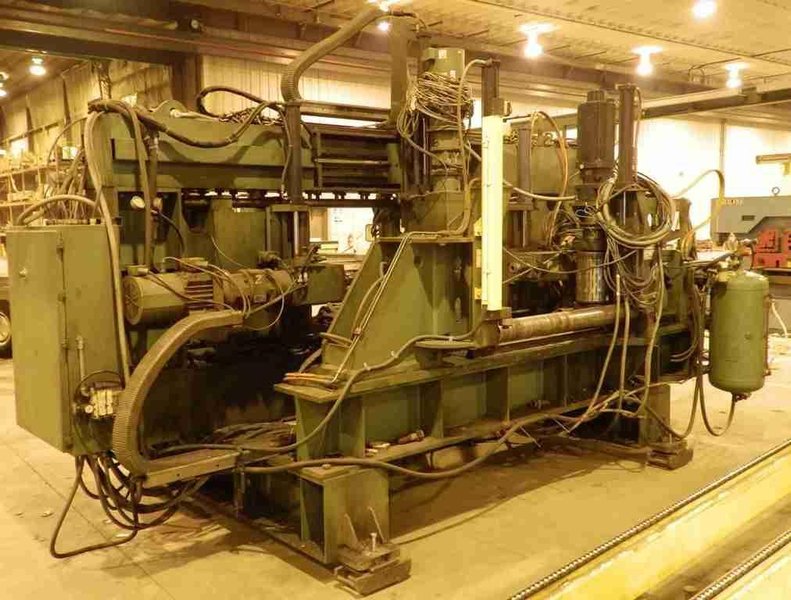

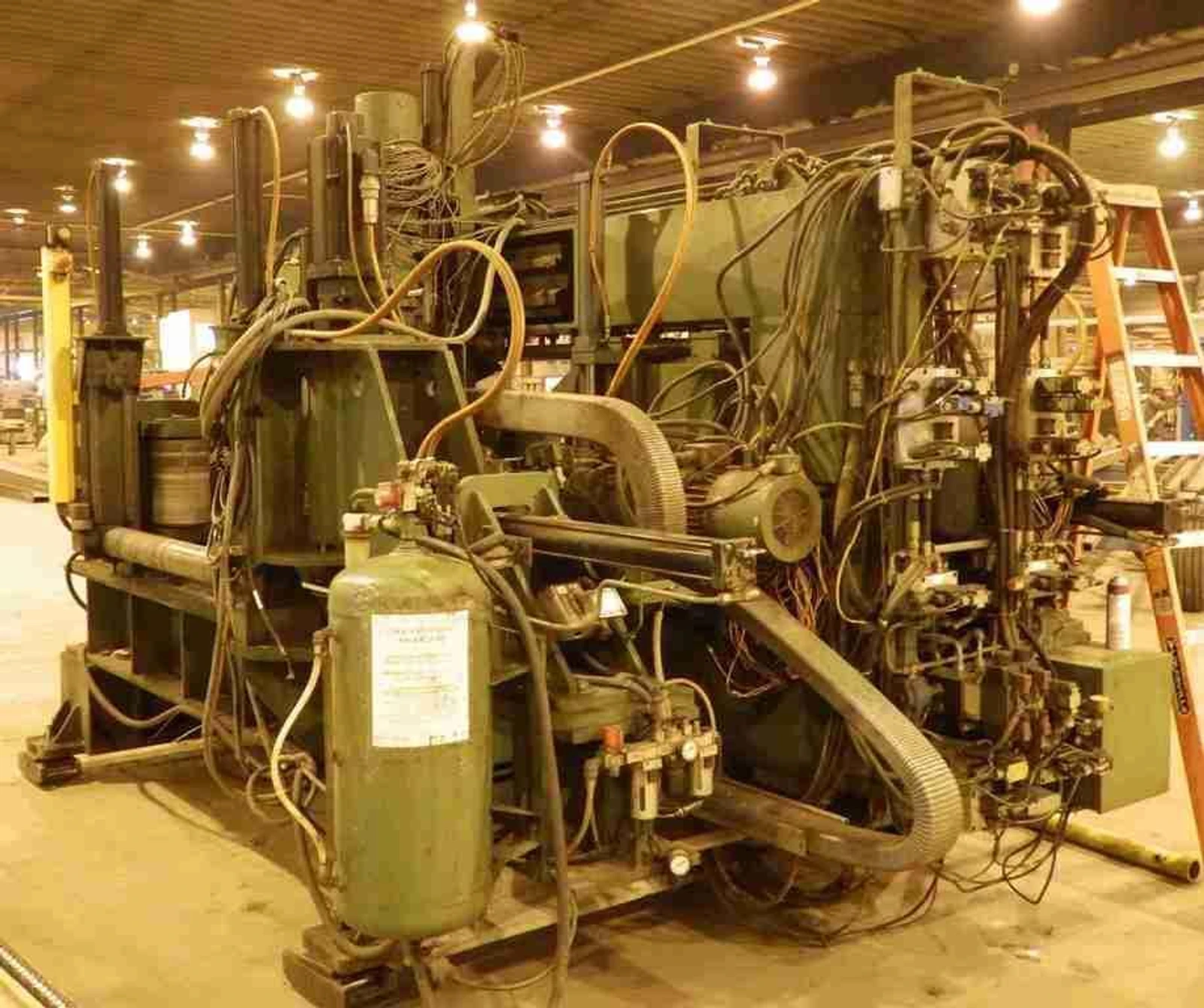

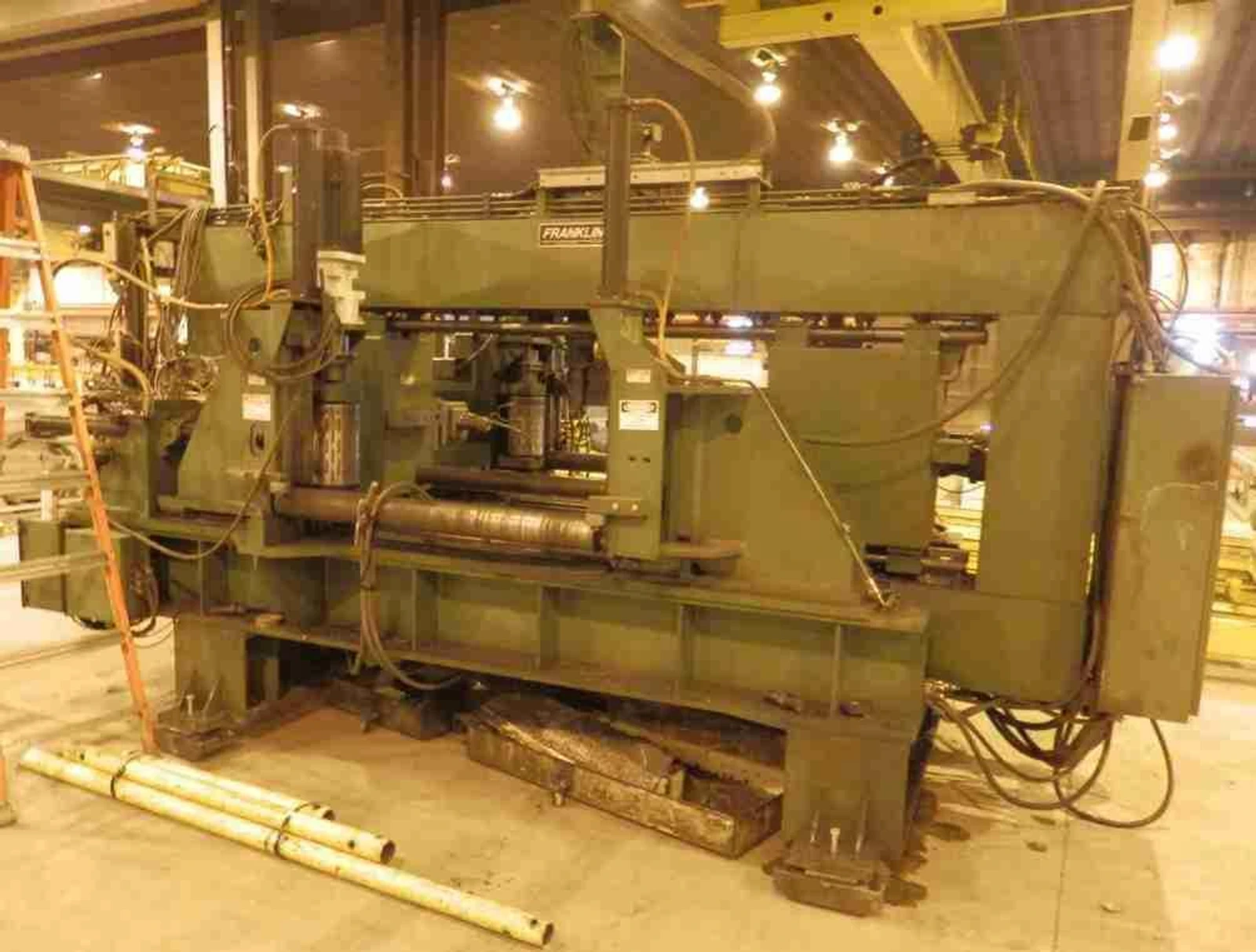

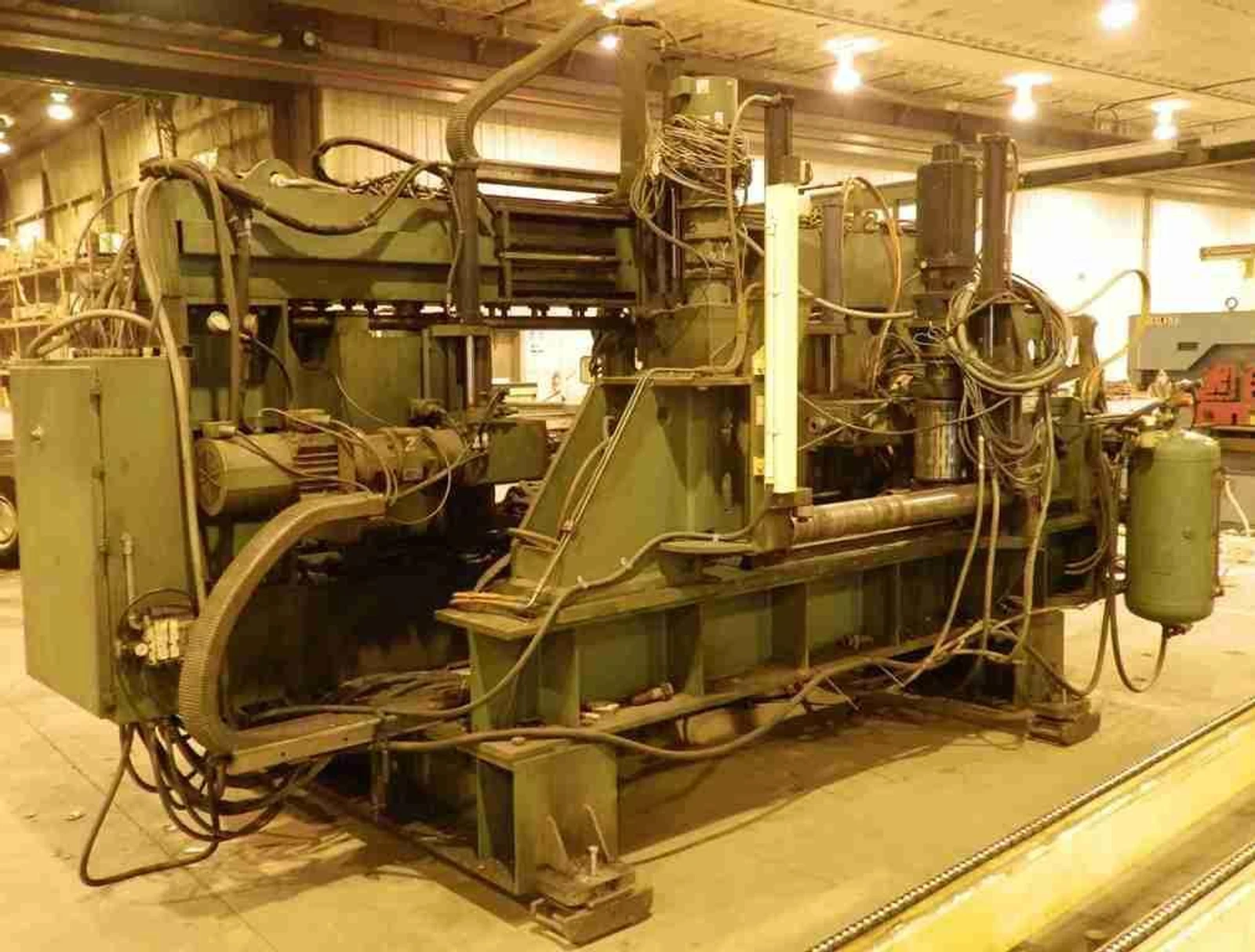

1-9/16' x 40' #HD-145 FRANKLIN CNC 3-SPINDLE DRILL LINE: STOCK #62388
Brand
Not specified
Category
Model
3 SPINDLE
Stock #
62388
Year
Not specified
Condition
Not specified
Location
Ohio
|

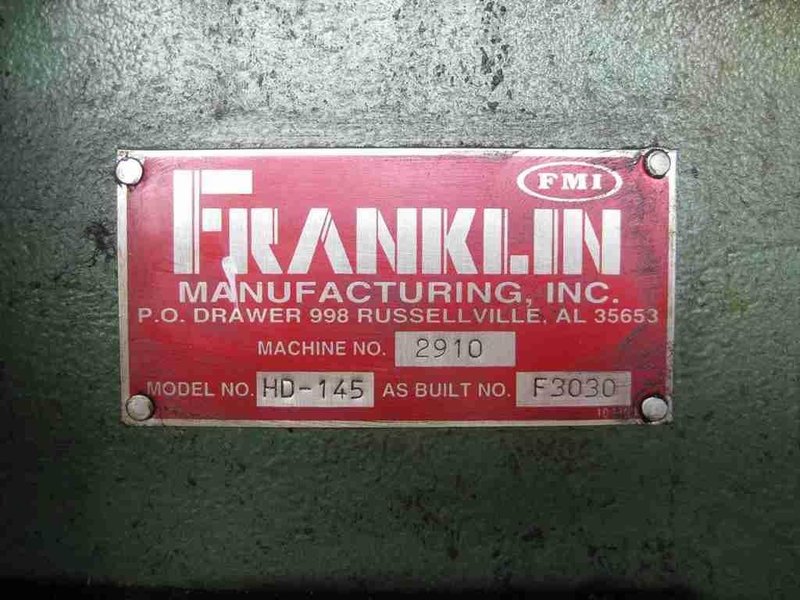

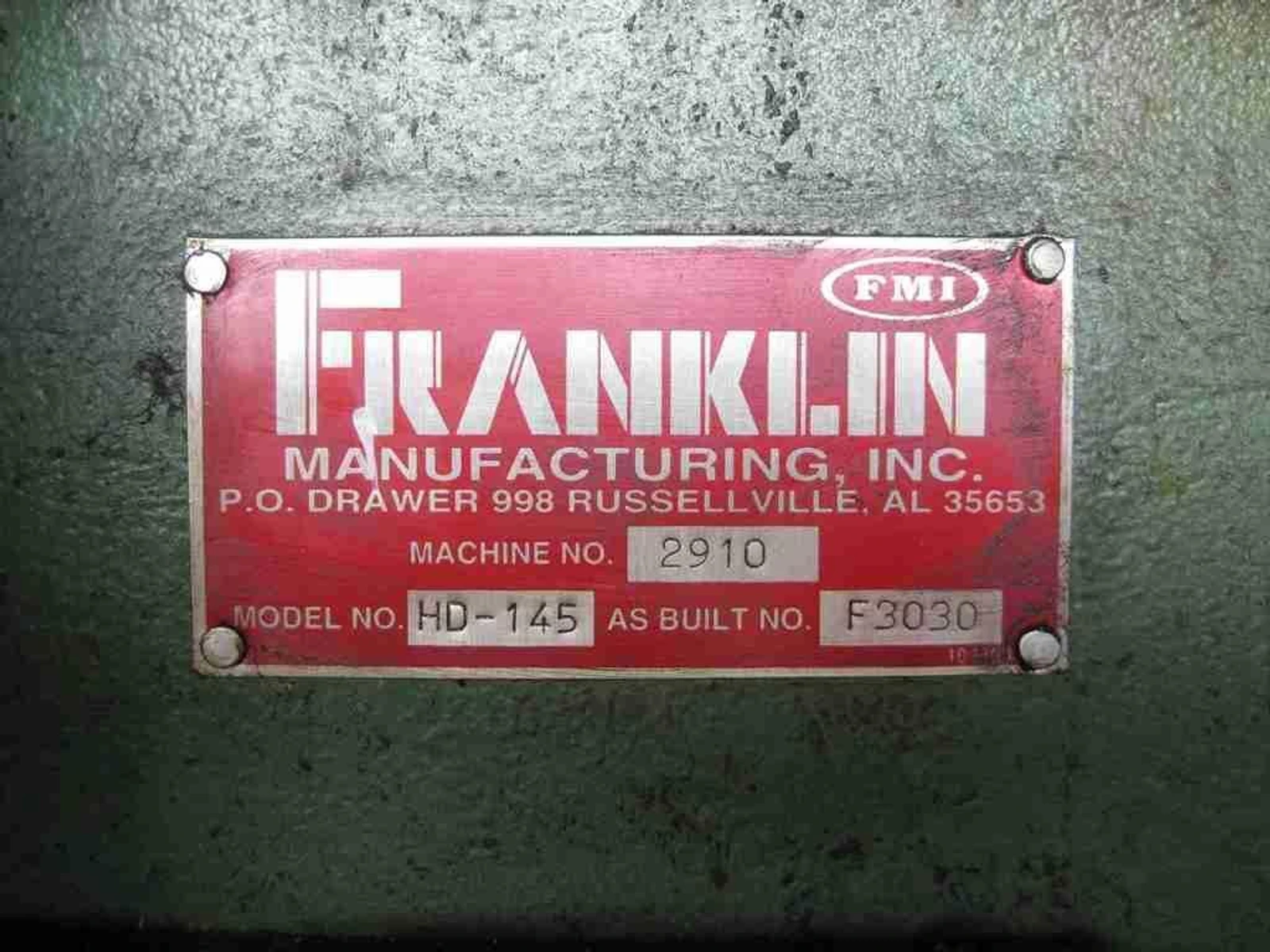

SERIAL ......................................... 2910 MODEL .......................................... HD-145 YEAR OF MFG .................................... 1989 YEAR OF REBUILD ................................ 2006 DRILL CAPACITY (WEB) ........................... 1-9/16" (#4 MORSE) DRILL CAPACITY (FLANGES) ....................... 1-9/16" (#4 MORSE) MAXIMUM BEAM WITH/FOOT ......................... 300 LBS MAXIMUM BEAM DEPTH ............................. 40" MINIMUM BEAM DEPTH ............................. 6" BEAM FEED RATE IN X-AXIS (MAXIMUM) ............. 100 FPM RAPID ADVANCE (WEB) ............................ 420 IPM RAPID ADVANCE (FLANGES) ........................ 420 IPM RETRACT SPEED (WEB AND FLANGES) ................ 420 IPM SPINDLE MOTORS (AC VARIABLE) ................... 10 HP MOTOR CAPACITIES (HYDRAULIC) .................... 3 @ 12 HP DRILL FEED RATES (CNC CONTROLLED & MONITORED) ... 0-30" IPM DRILL SPEEDS .................................... 0-1,800 RPM CROSS FEED CONVEYOR LENGTH ...................... 18' TO BACK OF CONVEYOR INFEED CONVEYOR LENGTH .......................... 40' OUTFEED CONVEYOR LENGTH ......................... 40' CONVEYOR HEIGHT ................................. 30" EQUIPPED WITH: THRU SPINDLE COOLANT LINEAR TRANSDUCER POSITION FEED BACK FRANKLIN HD-532-20 HP HYDRAULIC POWER UNIT FRANKLIN HD-532-20 HP HYDRAULIC POWER UNIT PROGRAMMABLE INDUSTRIAL CONTROLLER SYSTEM COOLANT SYSTEM FOR THE HIGH PRESSURE MIST COOLANT THROUGH THE BIT DUAL AXIS PINCH ROLL DRIVE FOR INFEED & OUTFEED MEASURING MAXIMUM X AXIS SPEED ............................ 130 FPM |
