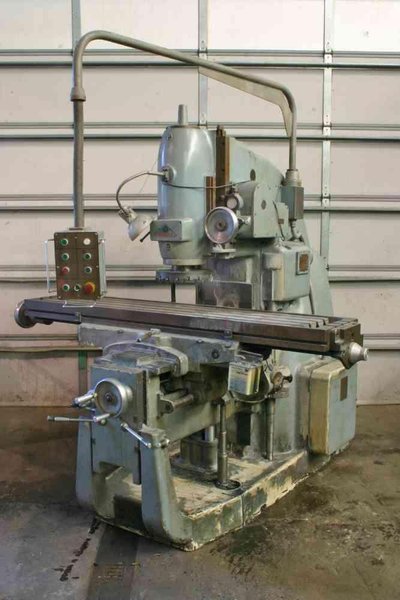

POLAMCO MODEL #4 VERTICAL MILL: STOCK #52634
Brand
Not specified
Category
Type
Model
4
Stock #
52634
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ............................. 1 3004-964-28 MODEL .............................. FYA41M AREA OF TABLE ...................... 78" X 15-3/4" SPINDLE SPEEDS ..................... (21) 28 TO 1300 RPM LONGITUDINAL FEEDS ................. (32) 1/2 TO 42 IPM CROSS FEEDS ........................ (32) 3/8 TO 31-5/8 IPM VERTICAL KNEE FEEDS ................ (32) 1/4 TO 20 IPM VERTICAL RAM FEEDS ................. (16) 1/4 TO 80 IPM LONGITUDINAL TRAVEL ................ 41-3/4" CROSS TRAVEL ....................... 14-3/16" VERTICAL KNEE TRAVEL ............... 13-13/16" VERTICAL RAM TRAVEL ................ 5-1/2" DISTANCE SPINDLE NOSE TO TABLE ..... 0" MIN, 20" MAX DEPTH OF THROAT .................... 18-1/2" TAPER IN SPINDLE ................... #50 NS RAPID TRAVERSE ..................... 99 IPM SPINDLE MOTOR, HORSEPOWER .......... 15 |
