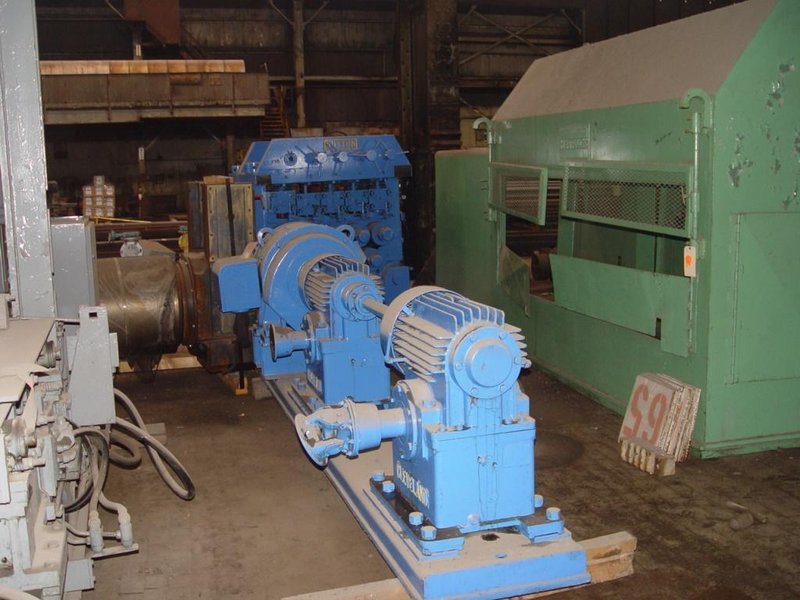

4” (100 MM) SUTTON TWO-PLANE MODEL #3 - 2-1/2L SHAPE STRAIGHTENER: STOCK 13896
Brand
Category
Model
4" 3 2-1/2L
Stock #
13896
Year
Not specified
Condition
Used
Location
Ohio
|

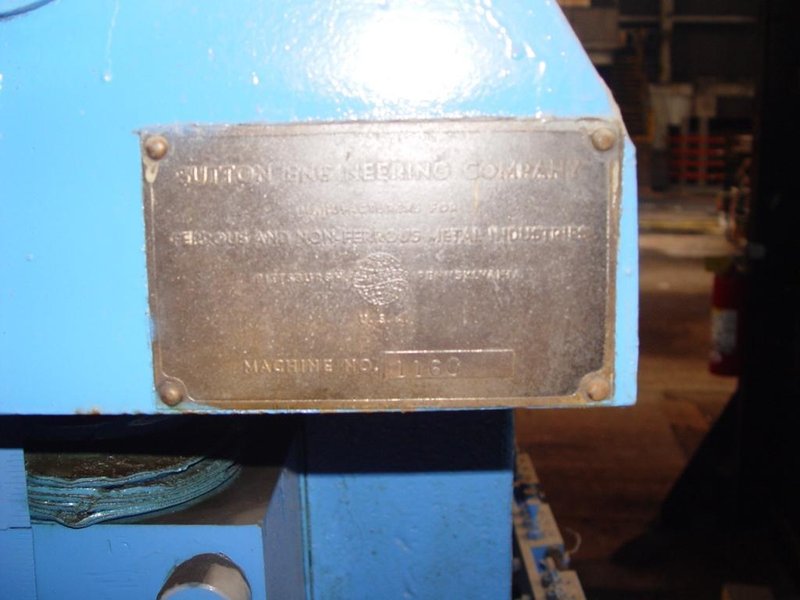

SERIAL NO.: 1160
AGE: 1963
MODEL NO.: 3 - 2-1/2 L
GENERAL SPECIFICATIONS:
TYPE: TWO PLANE
(SEPARATE HORIZONTAL & VERTICAL UNITS WITH COMMON DRIVE)
CAPACITY: ¼” X 1” TO 1-1/2” X 4” FLATS (19 MM X 25 MM TO 38 MM X 100 MM)
3/8” TO 1-1/4” HEX (9 MM TO 32 MM)
3/8” TO 1-1/2” SQUARES (9 MM TO 38 MM)
LENGTH: 12' MINIMUM

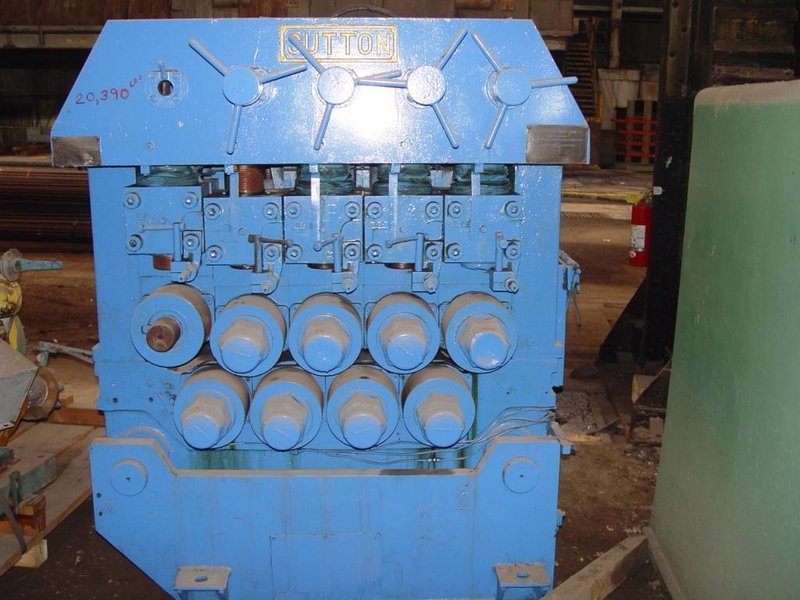

CONFIGURATION: 5 OVER 4 HORIZONTAL ROLLS

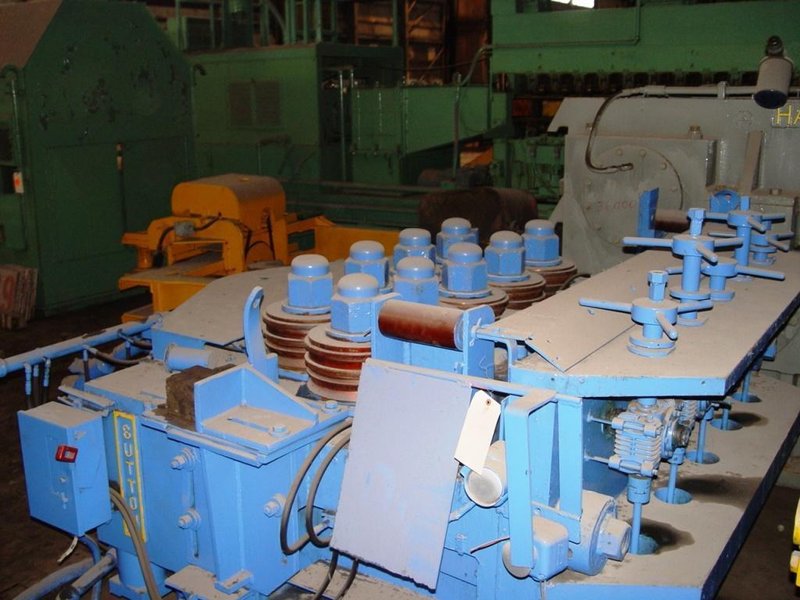

5 SIDE BY SIDE 4 VERTICAL ROLLS
NOMINAL ROLL DATA:

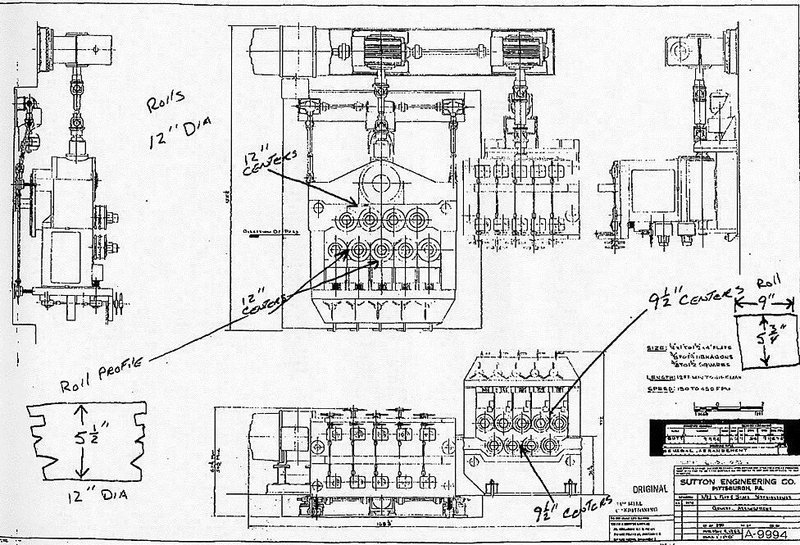

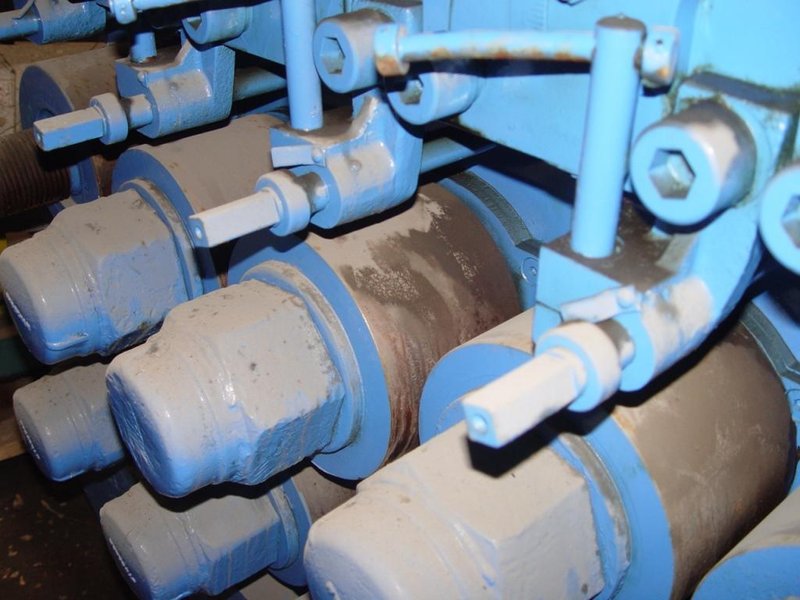

HORIZONTAL: 9” DIA. X 5.75" FACE X 9.5” ROLL CENTERS (225 X 145 X 240 MM)

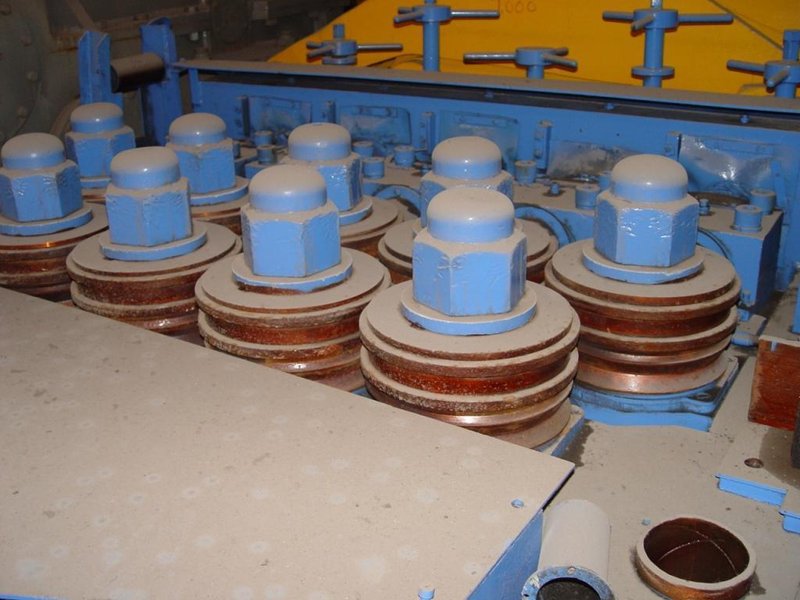

VERTICAL: 12” DIA. X 5.5" FACE X 12” ROLL CENTERS (300 X 140 X 300 MM)
SPEED: 150 TO 450 FPM
DIRECTION OF TRAVEL: LEFT TO RIGHT (VIEWED FROM OPERATORS SIDE)

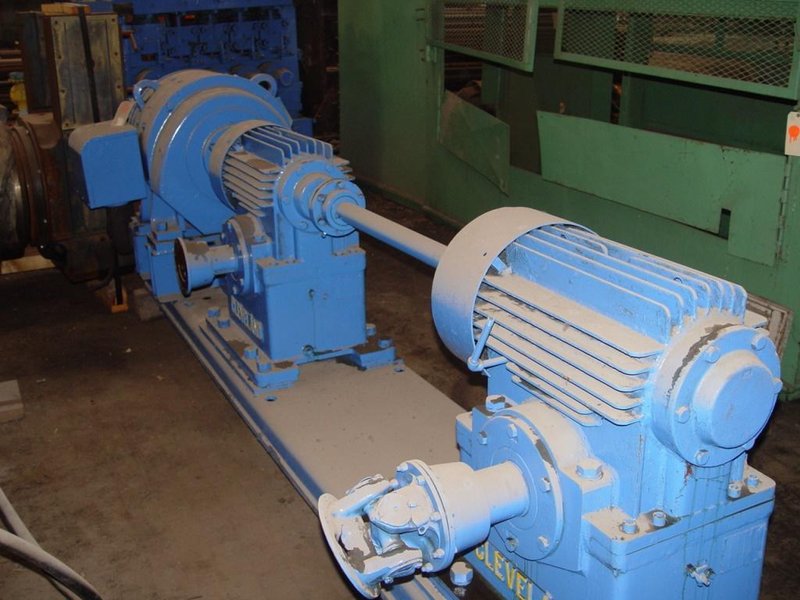

DRIVE: 60 HP, 240VOLT DC MOTOR
COMMON GEARBOX FOR HORIZONTAL AND VERTICAL MACHINES
FEATURES: SPARE ROLLS

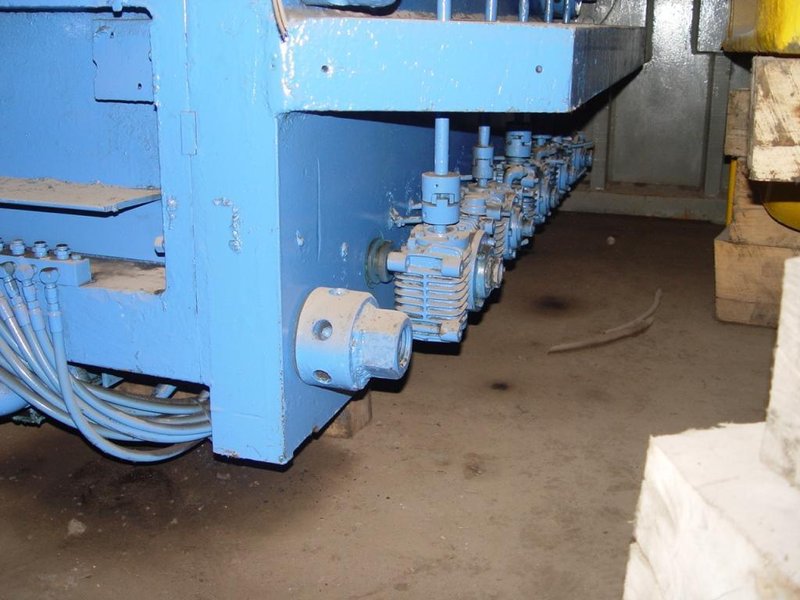

ELEVATION JACKS HYDRAULIC SYSTEM

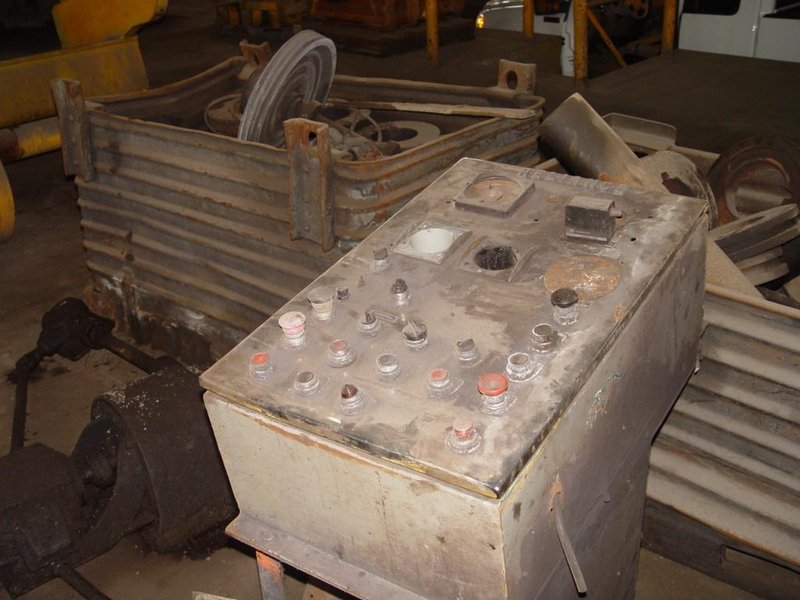

OPERATOR'S PANEL |
