MEECO HD3 12-12 TPVC TWO PLANE BAR & SHAPE STRAIGHTENER (14535)
Brand
Category
Model
HD3 12-12 TPVC TWO PLANE
Stock #
14535
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Width Of Workpiece | 4 inches |
| Max Thickness Of Workpiece | 1 inches |
|
MEECO MODEL HD3 12-12 TPVC TWO PLANE BAR & SHAPE STRAIGHTENER

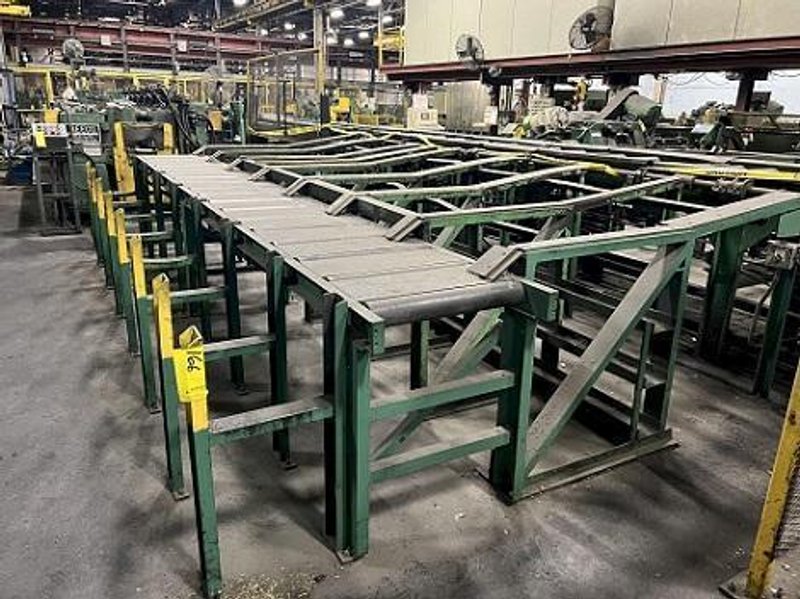

Stock # 14535 BAR RANGE (STEEL C1018) HEX..........1/2" TO 2-1/2" SQUARE........1/2" TO 2-1/2" FLAT...........1" X 4" ANGLE.........3-1/2" X 3-1/2" X 3/8" SPEED............180 FT/MIN TOTAL NUMBER OF ROLLS ... 24 (12 VERTICAL, 12 HORIZONTAL) 6 VERTICAL HEADS, MOTORIZED CENTER ADJUSTMENT, 6 IDLER ROLLS CENTER GUIDE 6 HORIZONTAL HEADS, MOTORIZED CENTER ADJUSTMENT, 6 IDLER ROLLS MOTOR DRIVE .......50 HP, 1200/1800 RPM DRO ON IDLE ROLLS AUTOMATIC BAR MARKER AMPCO LINED GUIDES RUNOUT TRANSFER TABLE CHAMFERING MACHINE DUST COLLECTOR **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
|
