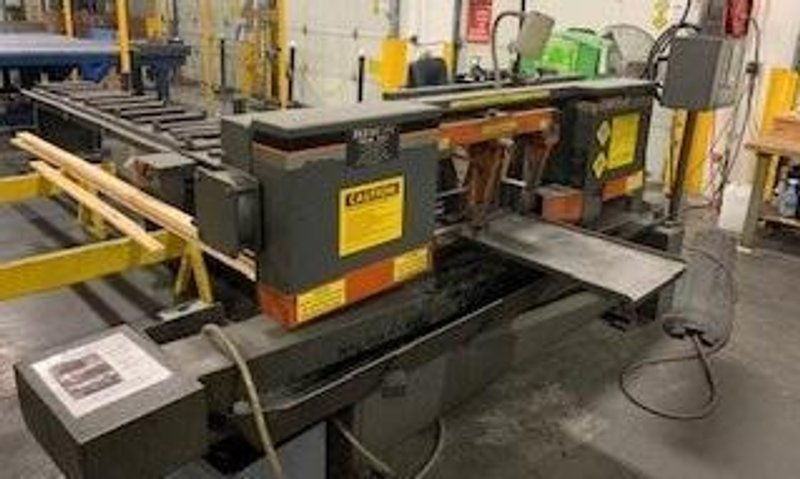

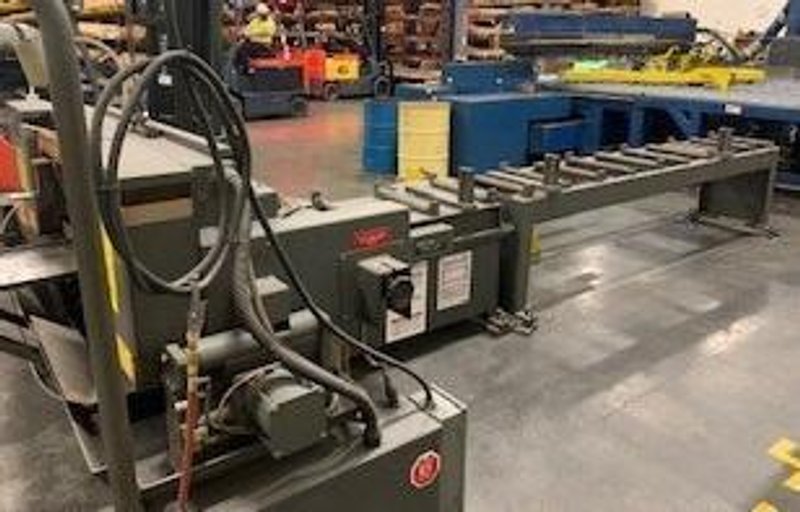

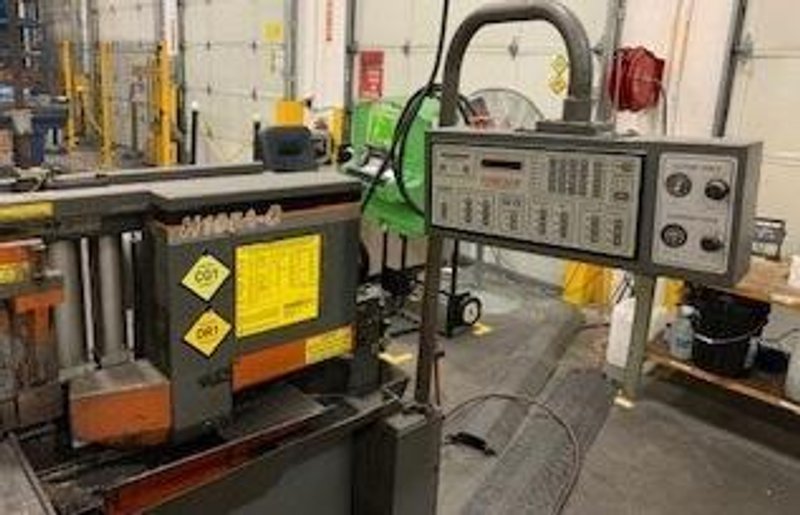

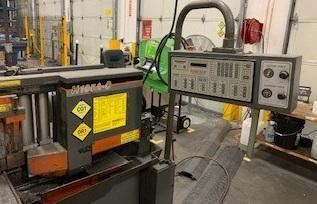

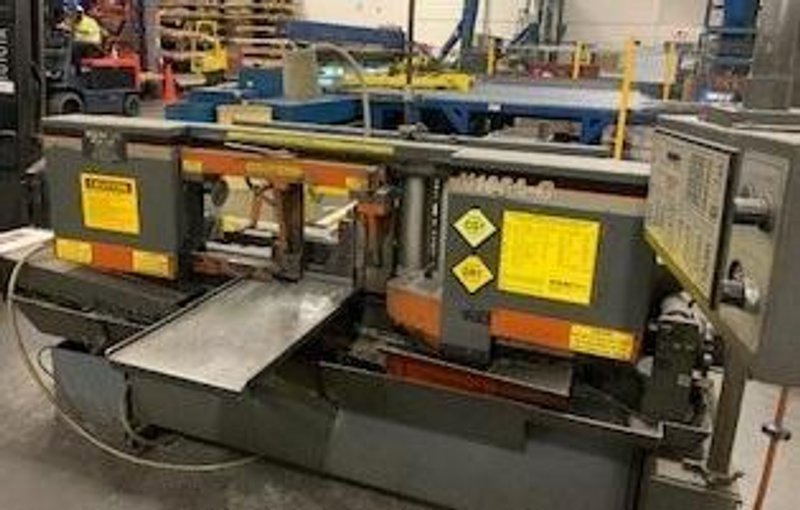

14" x 16" HEM MODEL H105A-C AUTOMATIC HORIZONTAL BAND SAW
Brand
Category
Type
Model
H105A-C
Stock #
2312
Year
2008
Condition
Very Good
Location
Ohio
| Rect-Cap (H) | 14 inches |
| Rect-Cap (W) | 16 inches |
|
Horizontal Pivot: H105A-C
Capacity: 16″ W x 14″ H
Bar-feed: 0-24″ (Stroke Air – Multiple Index)
Blade: 15’0″ x 1.25″ x .042″
Motor: 7.5 HP
Operation: Automatic
STANDARD FEATURES
2 Hold Down Fixtures
24″ Solid Discharge Table – Bolts to Saw
Adjustable Clamping Force
Adjustable Cutting Force
Adjustable Feed Rate
Adjustable Main & Feed Vise
Air Powered Blade Tension
Blade Brush
Broken Blade Indicator
Carbide Blade Guides
Chip Auger System
Computer Controlled Feed System
Cut Watcher System
Easy View Console – All Function Control
Flood Coolant System w/ Wash-Down Hose
Manual Guide Arm Adjustment
Push Button Blade Speed w/ LED Readout
Safety Guards
Vertical Alignment Roller on Feed
220V/440V/3PH Electrical Motor Requirement
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
OPTIONAL FEATURES
10′ Idle Roller Stock Table
3rd Holding Vise on Feed
5′ Idle Roller Stock Table
Interlocking Vise Jaws
Outboard Powered Vise on Discharge
Reduced Capacity Top Clamp – Feed Vise
Reduced Capacity Top Clamp – Main Vise
Spray Mist Lubrication |
|
