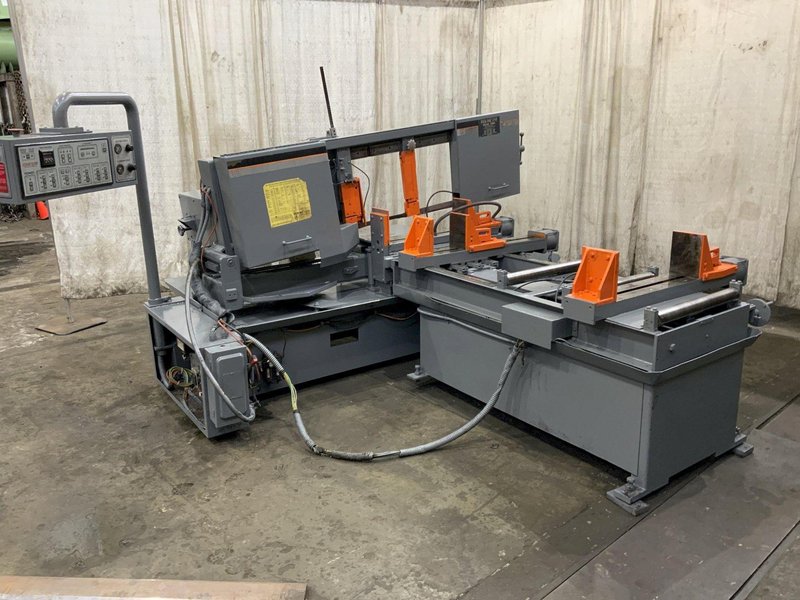

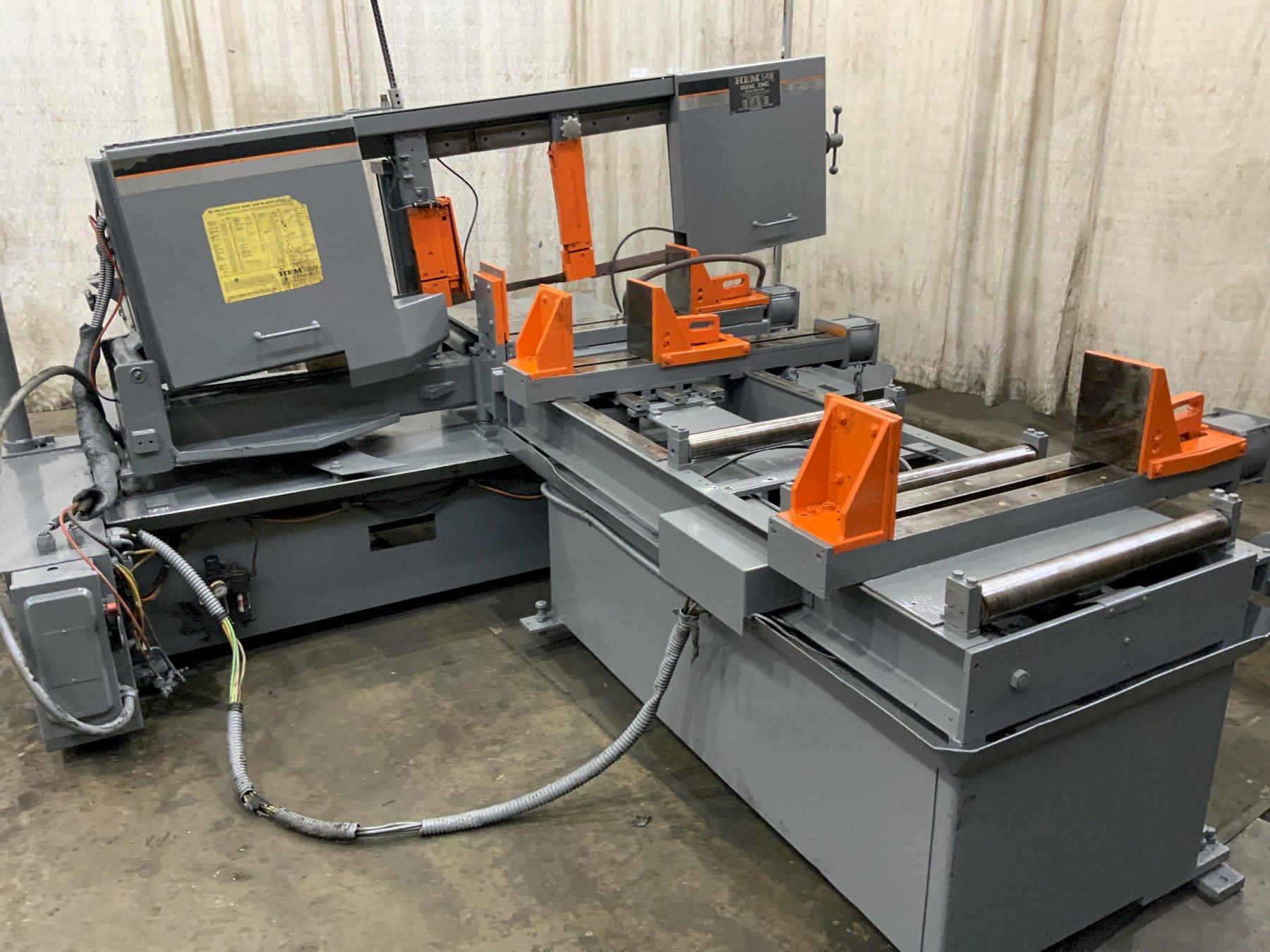

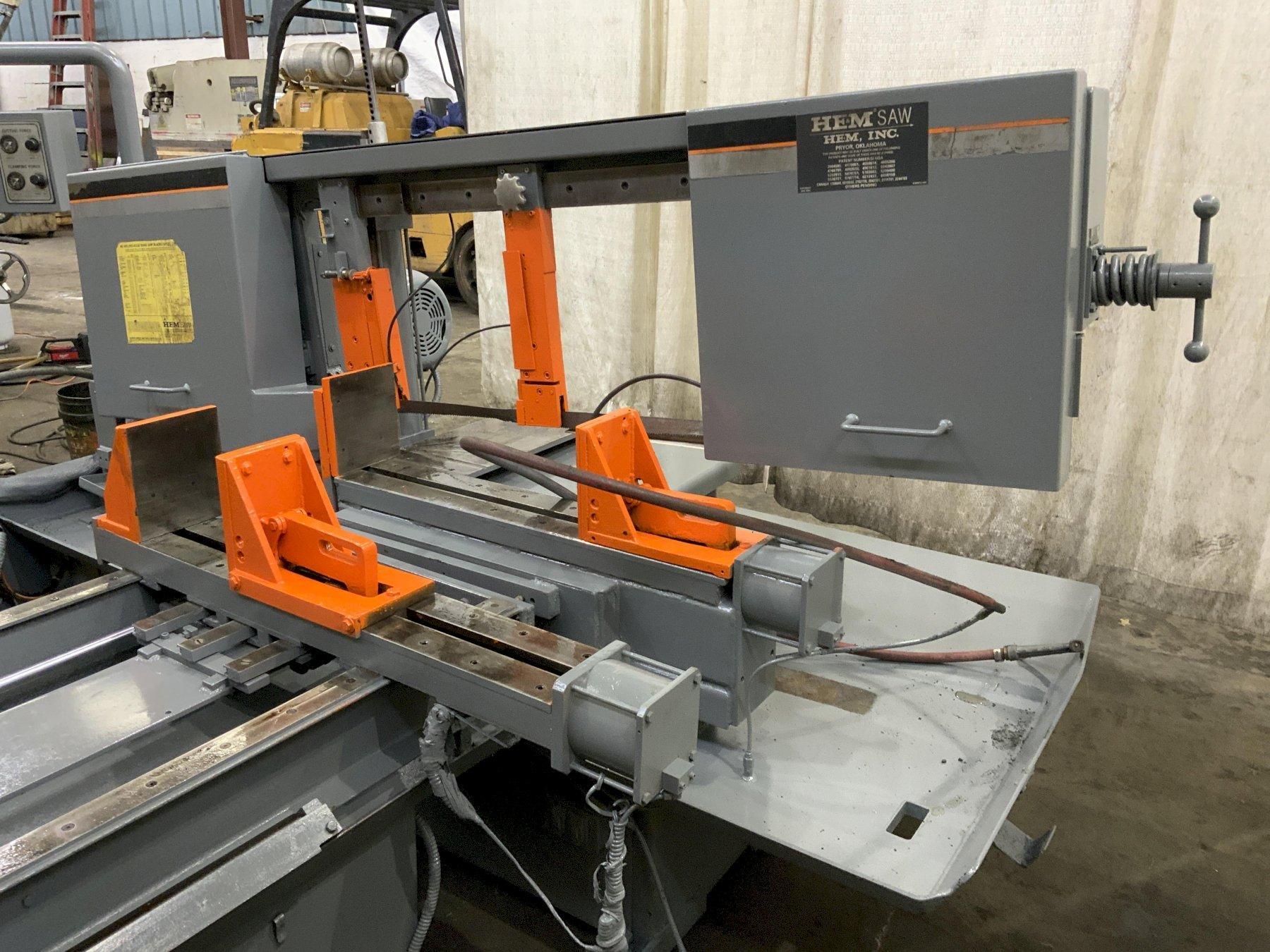

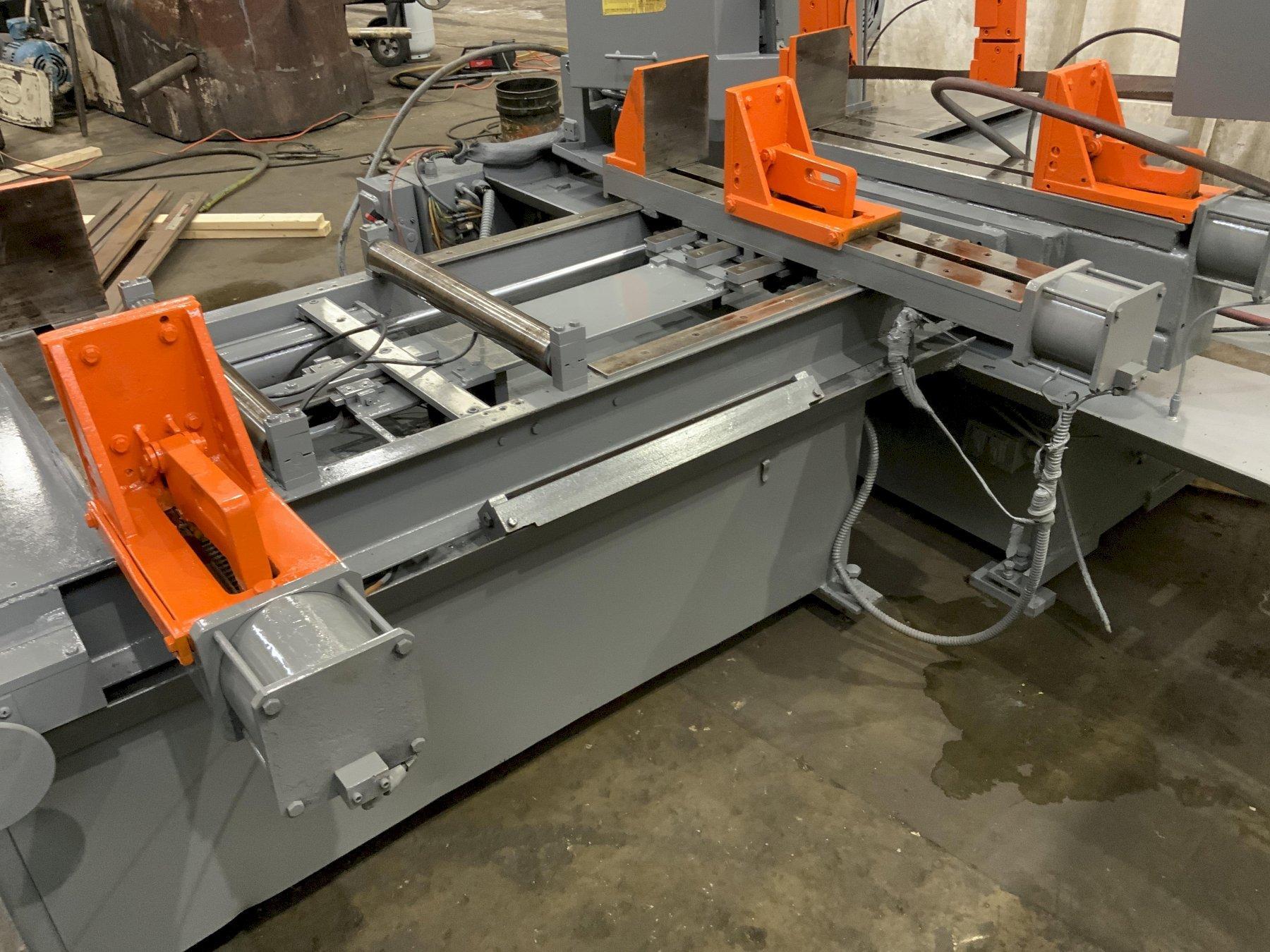

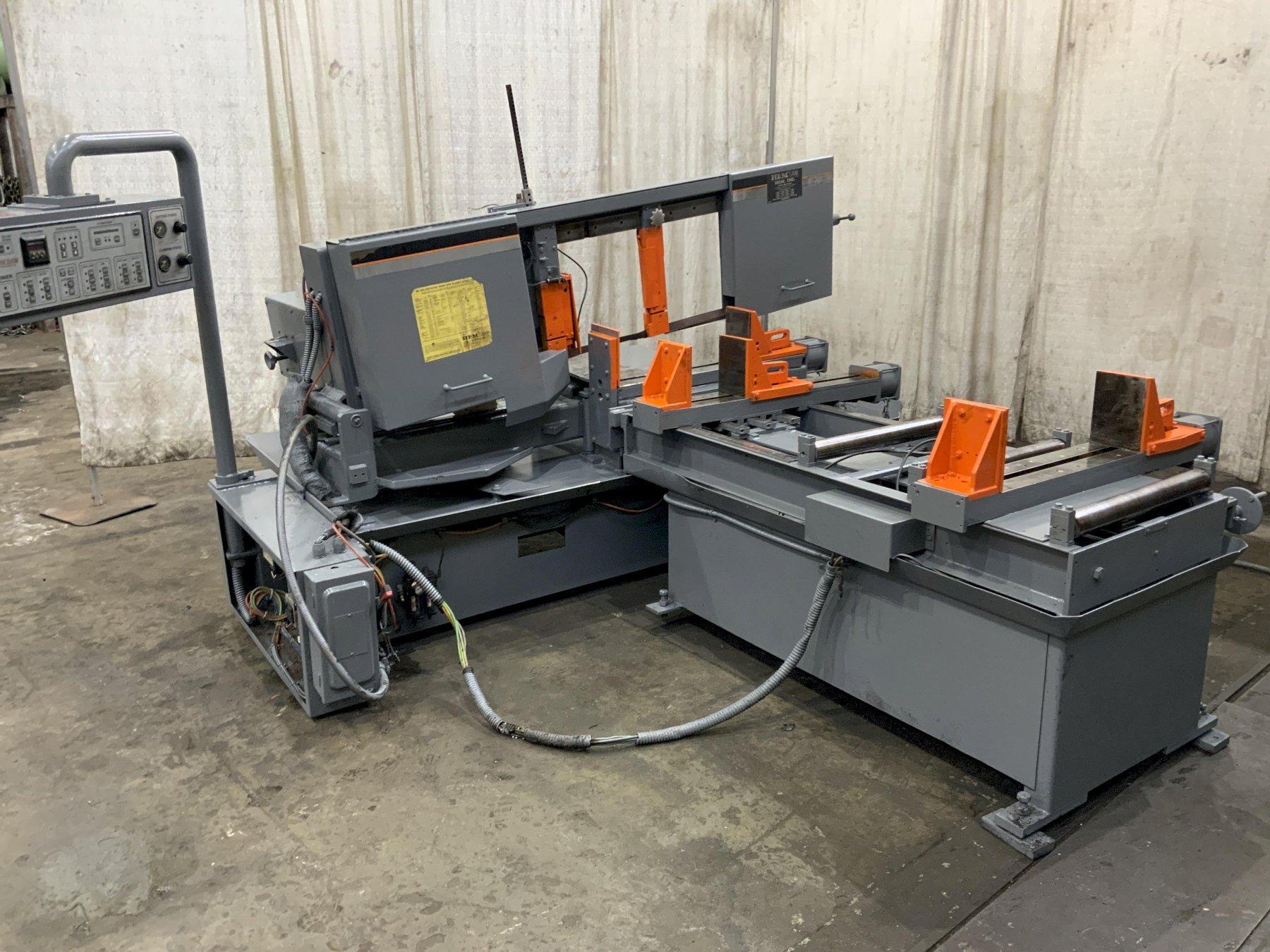

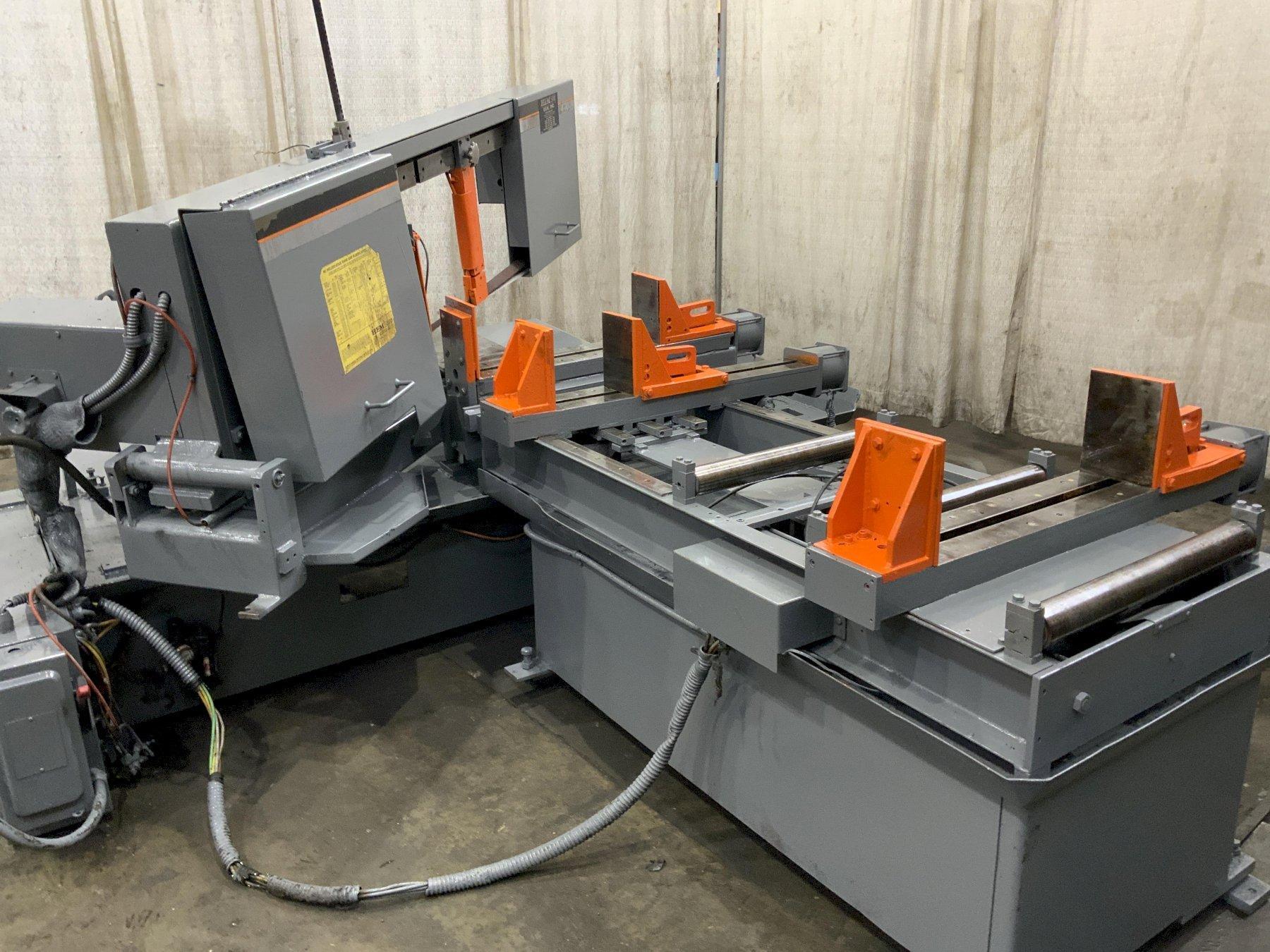

16" X 22" HEM MODEL # CYCLONE AUTO-4, HORIZONTAL BAND SAW: STOCK #80684

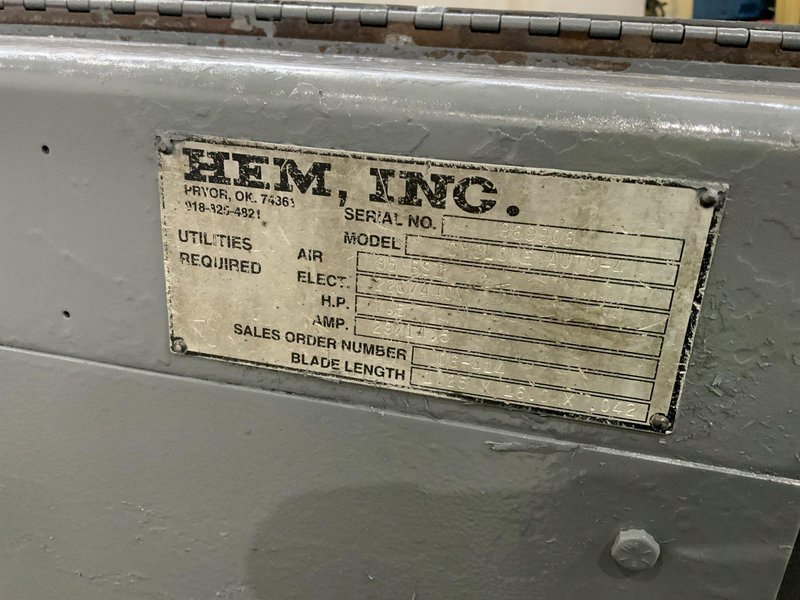

SERIAL ............................. 969906

MODEL .............................. CYCLONE A-4

YEAR NEW ........................... 2006

CAPACITY RECTANGLES @ 90 DEGREES ... 22" W X 16" H

CAPACITY RECTANGLES @ 45 DEGREES ... 15" X 16"

CAPACITY ROUNDS .................... 16"

MITERING ........................... 0 TO 60 DEGREES

BAR FEED STROKE .................... 0" TO 24"

MULTIPLE INDEXING .................. 4

BLADE SPEEDS ....................... 60 TO 300 FPM

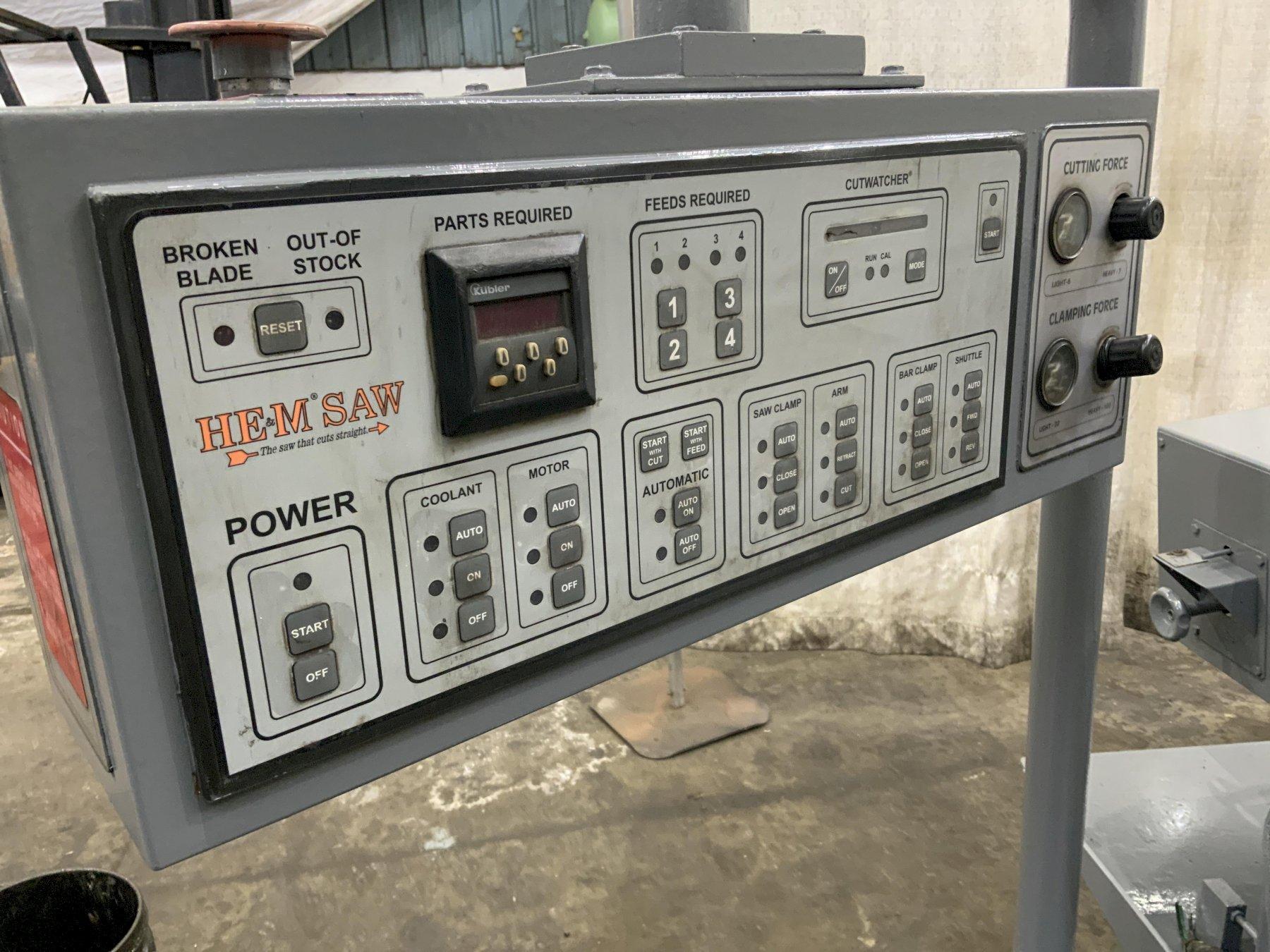

PART COUNTER ....................... YES

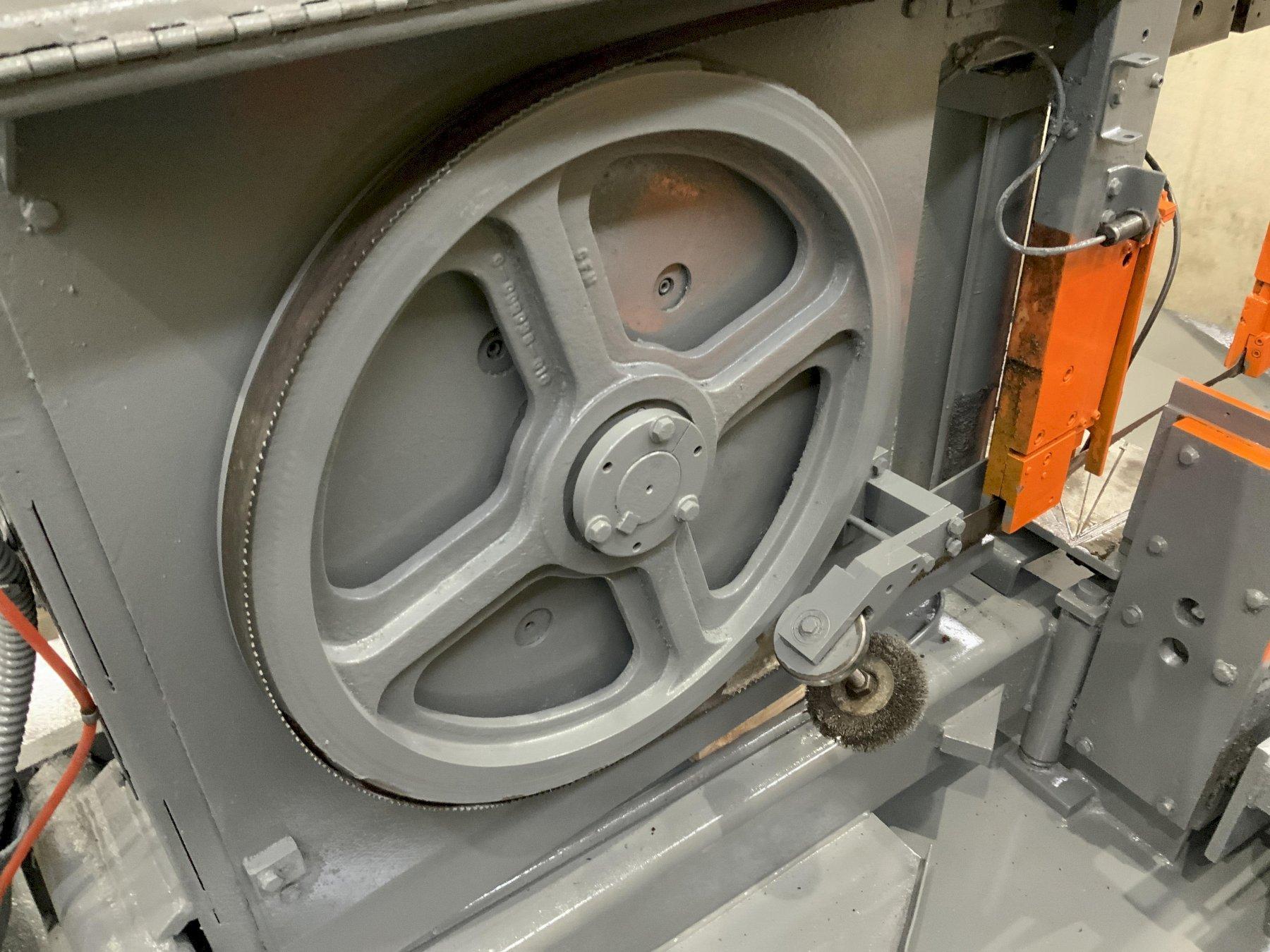

BLADE DIMENSION .................... 16' X 1-1/4" X .042"

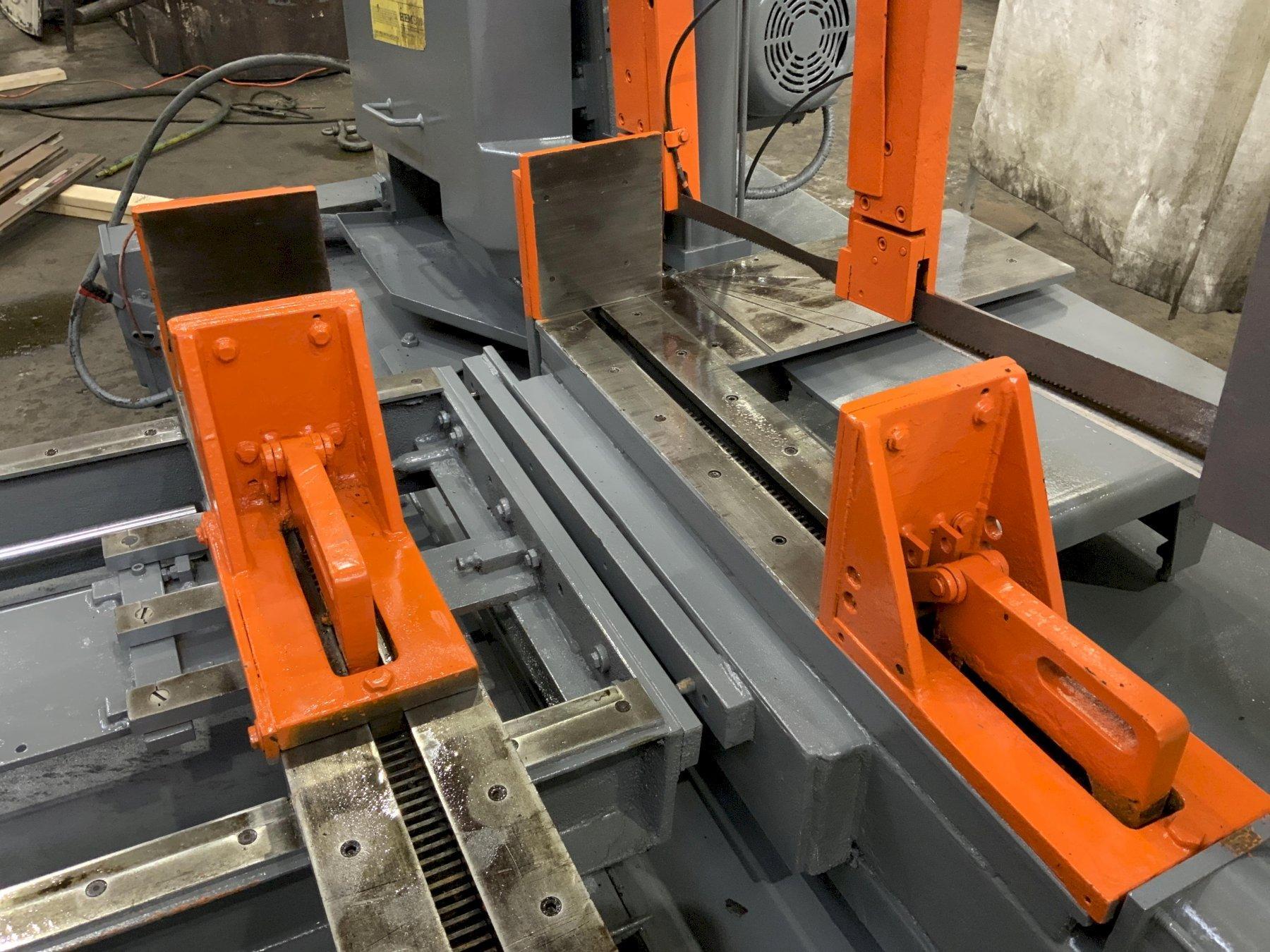

CLAMPING PRESSURE .................. 0 TO 1000 LB

BLADE TENSION ...................... VARIABLE

BLADE FEED RATE .................... VARIABLE

CUTTING PRESSURE ................... VARIABLE

AUTOMATIC CYCLE .................... YES

STOCK INFEED TABLE ................. 6'

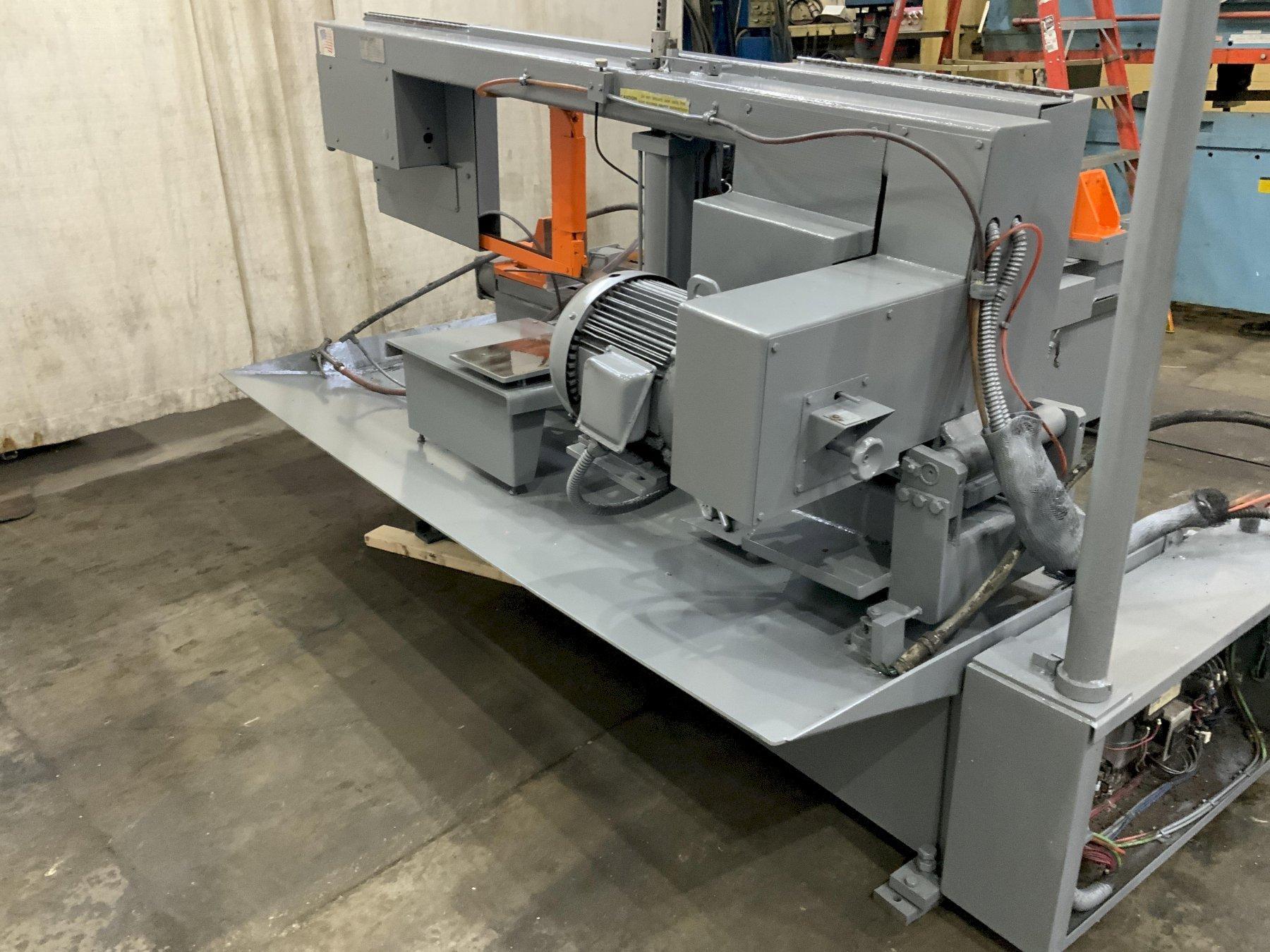

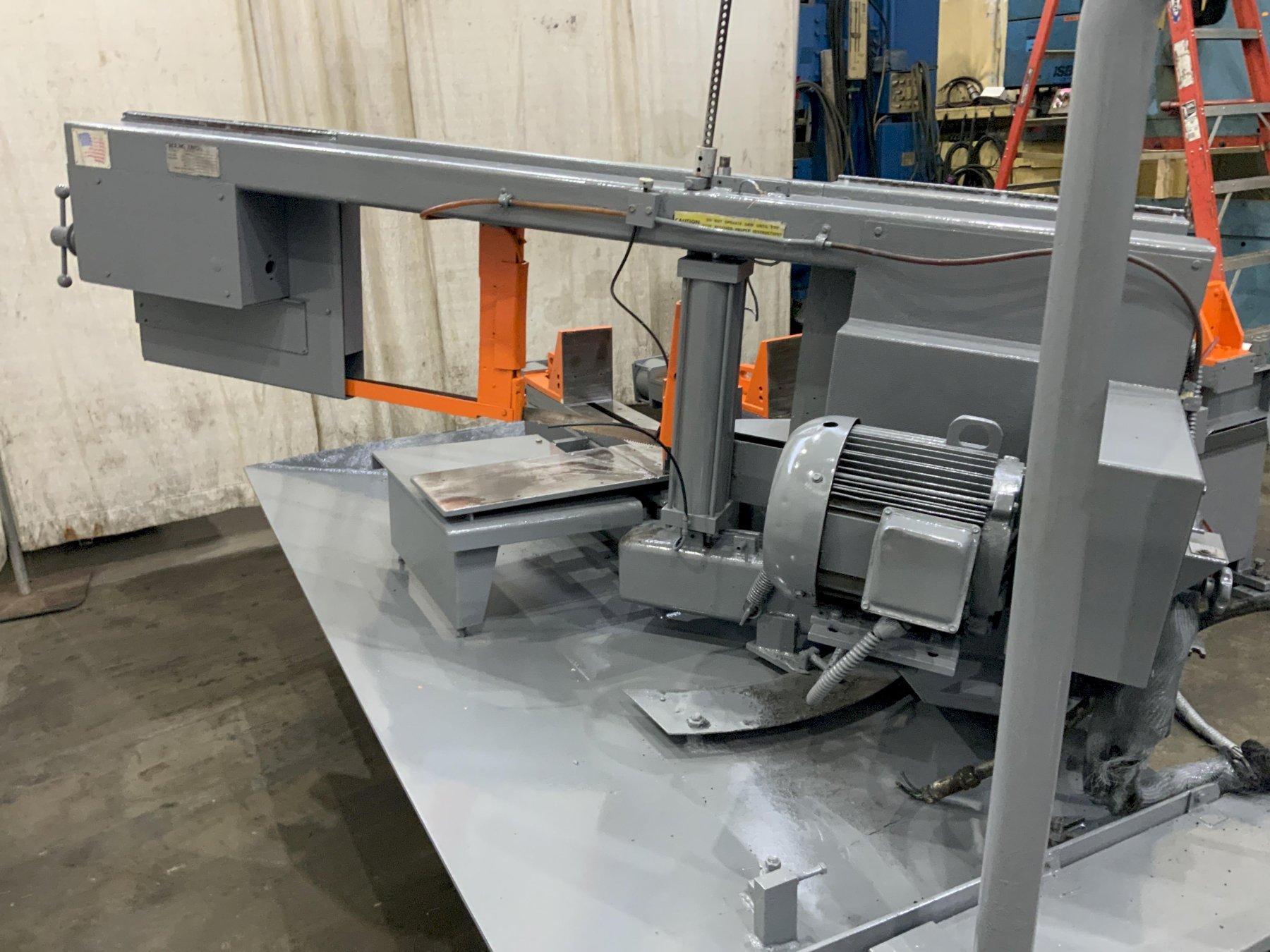

MOTOR HORSEPOWER ................... 7.5
