COMPLETE STEEL BEAM MANUFACTURING PLANT (13774)


 MACHINE# 13774

 SPECIFICATIONS:

 FOR SALE: A COMPLETE FORMING AND WELDING LINE FOR THE MANUFACTURE OF STEEL
 BEAMS CAPABLE OF MAKING THE FOLLOWING PRODUCTS TO ASTM A 769/A769 STANDARDS:

 WEB HEIGHT : 4" TO 18" (100 - 457mm)

 FLANGE WIDTH : 1 7/8" TO 12" (47.625 - 305mm)

 WEB THICKNESS : 3/32" TO 1/4" (2.38 - 6.35mm)

 FLANGE THICKNESS : 1/8" TO 3/8" (3.175 - 9.5mm)

 WELDING SPEED : 25 FPM TO 92 FPM (7.62 - 28 m/Min.)

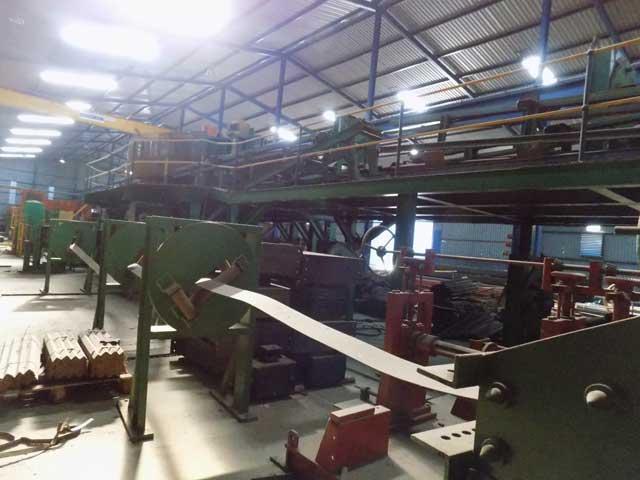

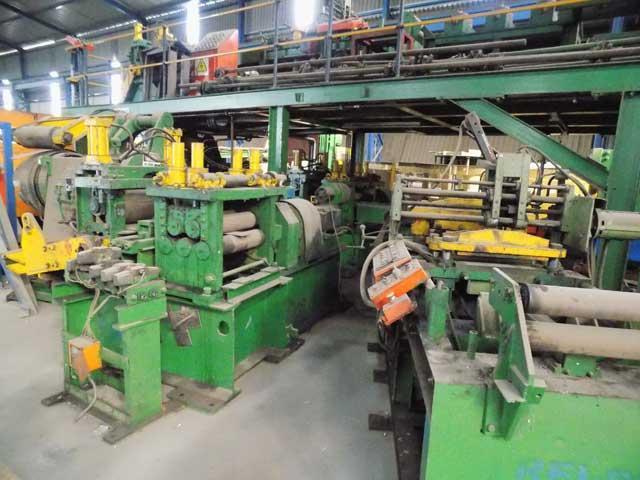

 THE PLANT INCLUDES:

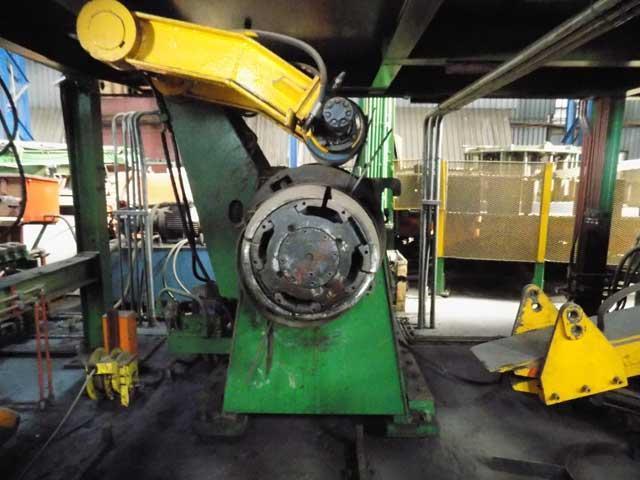

 UPPER - LOWER FLANGE UNCOILERS
 UPPER - LOWER FLANGE END WELDERS

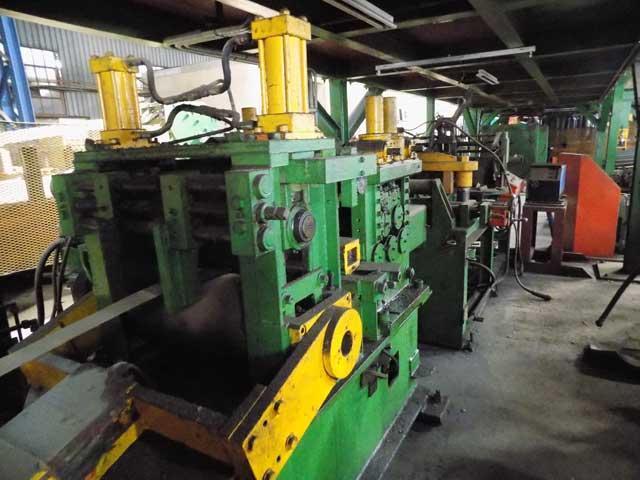

 UPPER - LOWER EDGE CONDITIONERS

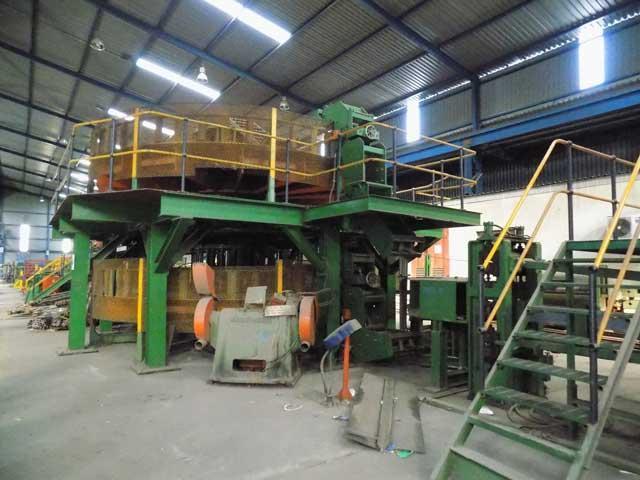

 ACCUMULATOR
 TWIST SECTION

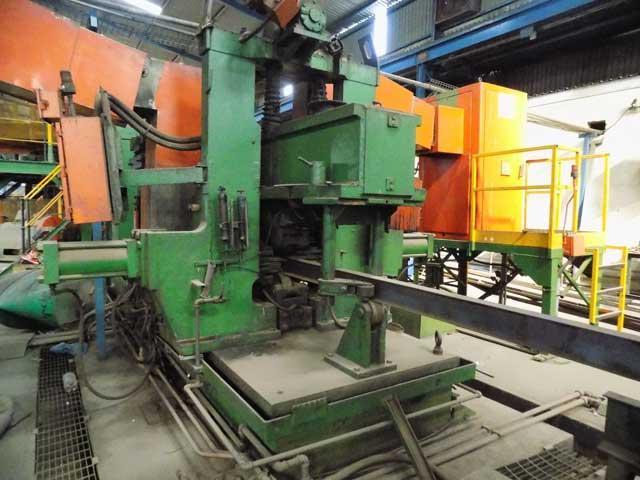

 THERMATOOL HF WELDER
 FRICTION CUTOFF (60" DIA. BLADE)

 THE THERMATOOL HIGH FREQUENCY WELDER USES THE "T" WELDING TECHNIQUE.
 THE PLANT IS FULLY INSTALLED.
 DRAWINGS AND MANUALS ARE INCLUDED.
 APPROX. COST TO DISMANTLE AND CONTAINERIZE: $130,000.00 USD.
 APPROX. NUMBER OF CONTAINERS REQUIRED: 40 x 40 FT. (12m) CONTAINERS.

  ** SPECIFICATIONS SUBJECT TO REVISIONS **

  ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

  ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
