REROLLING MILL OPERATION (14390)

REROLLING MILL OPERATION
Stock # 14390

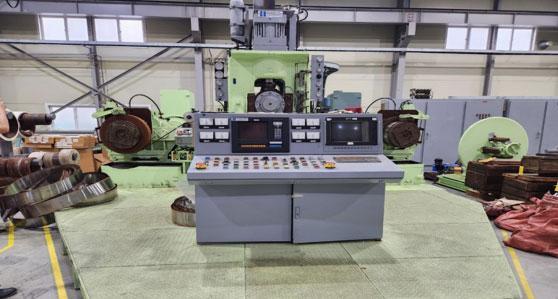

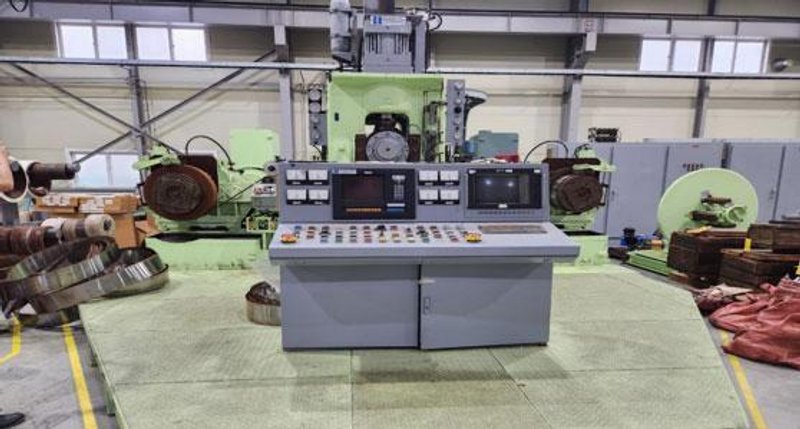

1. 12-Hi SENDZIMIR REVERSIBLE MILL LINE(CUPPER)

    Maker     Farrel USA    12Hi Sendzimir Mill Waterbury
    Manufacture date
    Production Capacity    50~60ton/month
    Upgradation    2017
    Type    Reversible
    Strip width (Min/Max.)    100/215mm
    Input Thickness Range    0.01~5tmm
    Ouput Thickness Range    0.01~5tmm
    Speed(Max.)    70m/min.
    Roll Separation Force    100~110ton
    Coiler Tension(POR/ETR/DTR)
    Input Coil Id/Od    400~900mm
    Output Coil(ID/OD)    400~900mm
    Coil Weight (Max.)    0.8~1ton
    Work roll dia (Max./Min)    21.5mm
    Work roll face length    267mm
    Back-up roll dia (Max.    119.86mm
    Roll Bending    Hydraulic
    Coolant System    Emulsion/neat boil
    Coolant Wiping System
    Electrical and Automation    PLC,SCADA,etc.
    thickness Measurement type    Contact method
    AGC
    Roll Change    W.R -> after1pass change

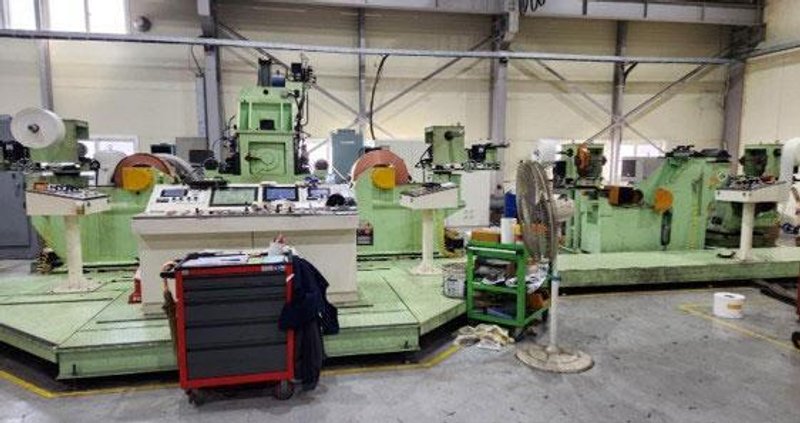

2. 4-Hi REVERSIBLE MILL LINE LINE

    Maker     Ruesch    4Hi Mill
    Manufacture date
    Production Capacity
    Type    Reversible
    Strip width (Min/Max.)    76/304mm
    Input Thickness Range    0.127~3.0tmm
    Ouput Thickness Range    0.127~3.0tmm
    Speed(Max.)    40~90m/min.
    Roll Separation Force
    Coiler Tension(POR/ETR/DTR)
    Input Coil Id/Od    1,066mm
    Output Coil(ID/OD)    1,066mm
    Coil Weight (Max.)    1.814ton
    Work roll dia (Max./Min)    127mm
    Work roll face length
    Back-up roll dia (Max.    406mm
    Roll Bending
    Coolant System    Emulsion/neat boil
    Coolant Wiping System
    Electrical and Automation    PLC,SCADA,etc.
    Main motor    125hp/350~1,050rpm
    Reel motor    30hp/400~1,600rpm
    thickness Measurement type    Contact method
    Roll Change    W.R -> after1pass change

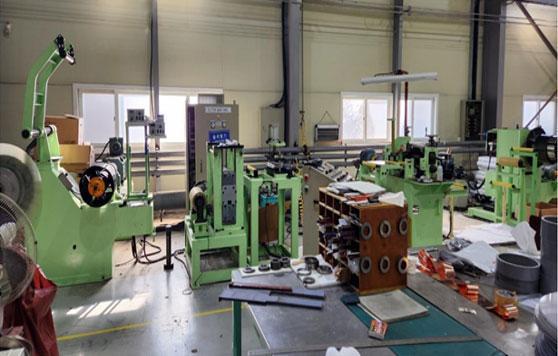

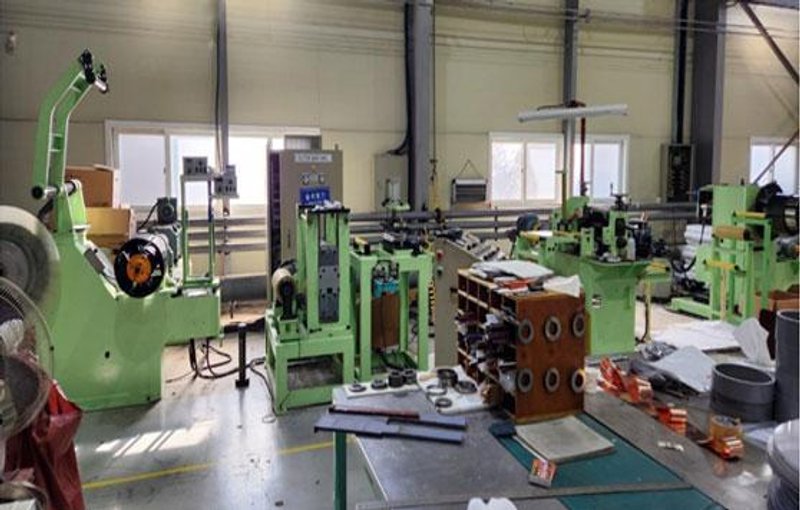

    3. SLITTER LINE

    Manufacturer
    Manufacturing Year
    Production Capacity    50~60ton/month
    Slitter Head Type    Double eccentric
    Input Strip width(Max. /Min)    250mm
    Slit Width    3~200mm
    Nos of Slits
    Thickness Range    0.02~0.3mm
    Speed(Max.)    70m/min.
    Coiler Tension
    Input Coil ID/OD    400~1,000mm
    Output Coil ID/OD    400~1,000mm
    Coil Weight(Max)    07~1.0ton
    Provision of Lamination    ok
    Thickness of Lamination    0.01~0.08
    Type of Lamination    Plastic
    Motor Details
    Electrical (PLC, SCADA etc)

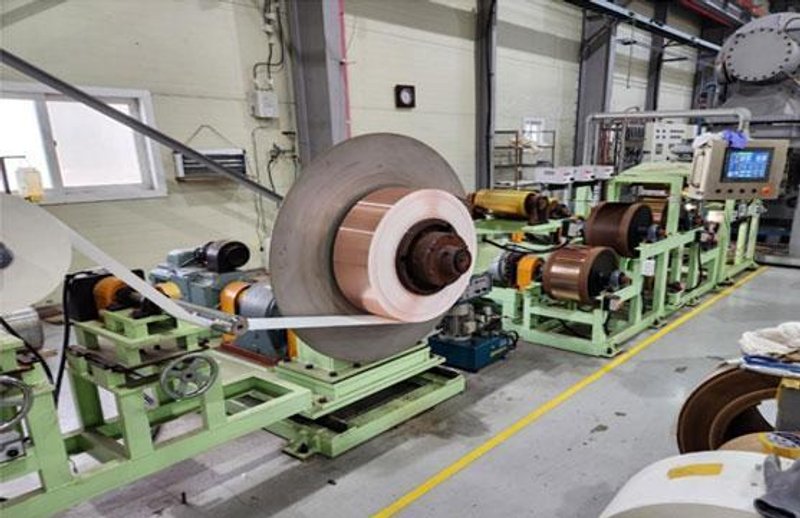

4. BATCH ANNEALING LINE

    Maker    K-tech-Korea
    Manufacturing Year    2019
    Production Capacity    50ton/month
    Type    Continuous    Batch type annealing line
    Process Stations in continous line
        Degreasing-Annealing-Pickling line-
    Passivation arrangement
    Passivation agent
    Thickness range    0.02~0.08mm
    Speed    50m/min.
    Coil tension(ETR/DTR)    1~100kg
    Input coil ID/OD    400mm
    Output coil ID/OD    400mm
    Coil weight    1.2ton
    Annealing Temp.    1,200C°
    Cycle time(Heating, Socking & Cooling)
    Variation in hardness after annealing
    Achievable output hardness range
    Electric(PLC,SCADA etc)
    Temperature control    300~1,200C° PID control
    Furnace energy    LNG
    Total power    150KVA

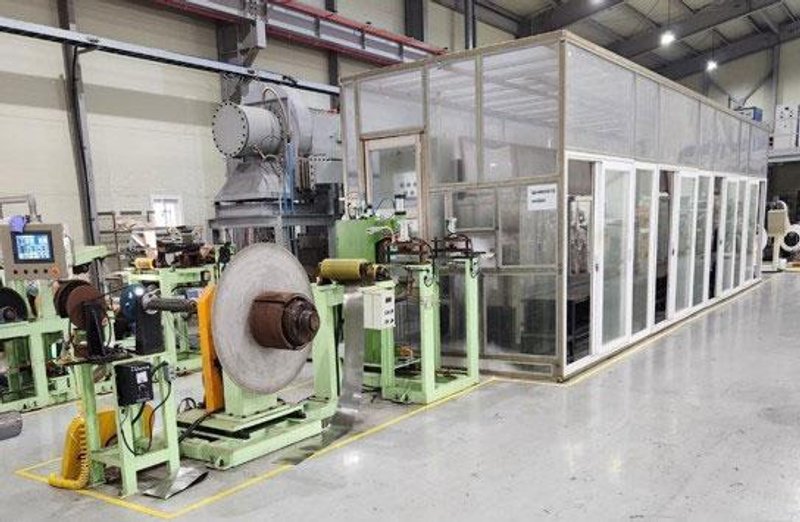

5. DEGREASING LINE

    Maker    Shinil ultrasonic/Jeil TG    Korea
    Manufacturing year    2019
    Production Capacity    50ton
    Degreasing Agent    BCS-5000
    Passivation Arrangement
    Passivation Agent
    Thickness Range    0.02~0.8mm
    Speed(Max.)    30m/min.
    Coiler Tension (ETR/DTR)    1~100kg
    Input Coil ID/OD    400mm
    Output Coil ID/OD    400mm
    Coil Weight(Max.)    1.2ton
    Cleaning Process Stations
    Ultrasonic Generator Power    1.8kw
    MOC of Tanks        SS/FRP
    Total Connected Power    68KVA
    Motor Details
    Electrical(PLC, SCADA,etc)

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
