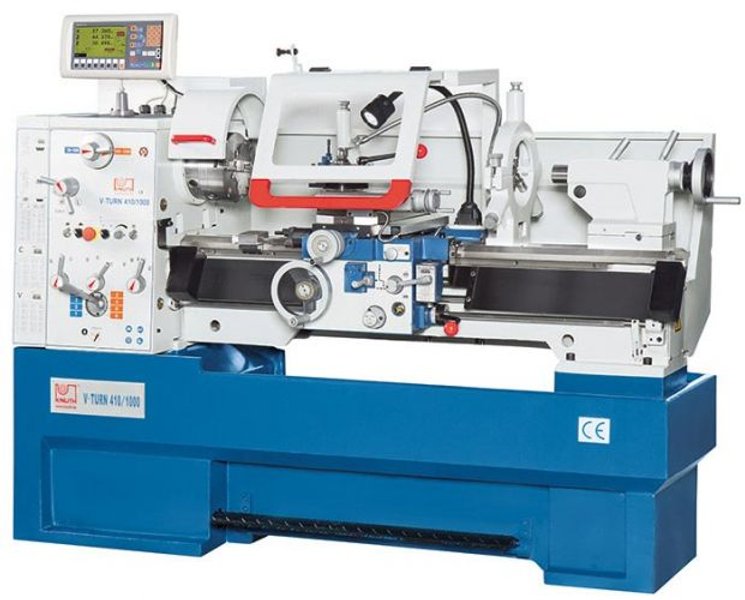

V-Turn 410/1000 | V-Turn 410/1500 |
Working Area | Center width | 39.37 in | 59.06 in | Center height | 8 in | Turning diameter over bed | 15 in | Turning diameter over gap bridge | 23 in | Turning-¯ over support | 10 in | Gap bridge length | 10 in | 7 in | Bed width | 10 in | Travels | Travel X-axis | 8.3 in | Travel Z1-axis | 6 in | Swing range of top slide | ± 45¡ | Headstock | Speed range, high | 550 - 3,000 rpm | Speed range, low | 30 - 550 rpm | Spindle bore | 2 in | Spindle mount | Camlock D1-6 | Spindle taper | MT 6 | Feed | Feed X-axis | 0.00098 - 0.03346 in/R | Feed Z-axis | 0.00197 - 0.06693 in/R | Tapping | Tapping, metric | (39) 0.2-14 mm | Tapping, diametric | (21) 8-44 DP | Tapping, module | (18) 0.01 - 0.14 in | Tapping, withworth | (45) 2-72 TPI | Tailstock | Tailstock quill diameter | 2 in | Tailstock taper | MT 4 | Tailstock quill stroke | 5 in | Tailstock traverse adjustment | ± 0.5 in | ± 0.5 in | Drive Capacity | Motor rating main drive | 7.4 Hp | Measures and Weights | Overall dimensions (length x width x height) | 77x40x52 in | 97x40x52 in | Weight | 2,640 lbs | 3,960 lbs |

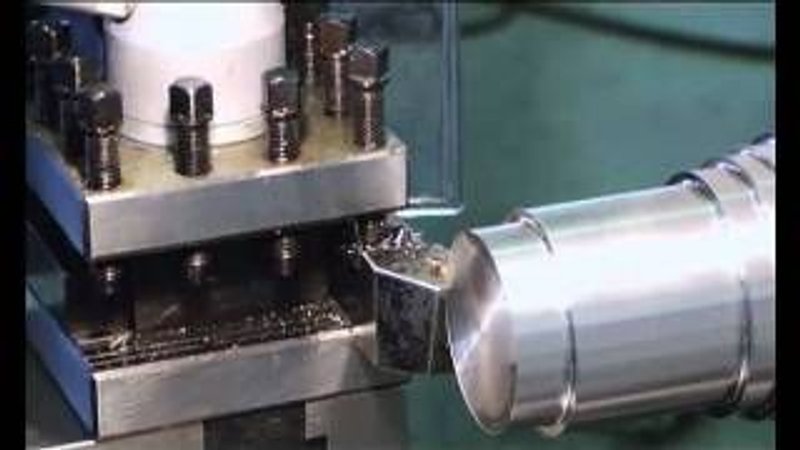

- Constant speed: during face turning, the spindle speed automatically adapts to the changing workpiece diameter Ð the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes
- A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
- Wide, hardened and ground guideways ensure superior turning results and long life
- Large spindle bearings and high-precision headstock ensure excellent concentricity
- Headstock gears and shafts are hardened and ground for quiet operation und constant speed
- 7 Hp headstock motor ensures powerful machining
- Spindle speeds are infinitely variable from 30 to 550 and 50 to 3000 rpm
- Micrometer and turret stop are included
- Integrated central lubrication at the support for low maintenance
- The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function
- Incl. 3-axis position indicator with integrated spindle speed display, fully assembled
3-axis position indicator - More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
- 3-axis position indicator
- 4-jaw face plate chuck ¯ 10 inch
- face plate (13" diam.)
- change gears
- quick-change tool holder head WB
- quick change tool holder WBD 25120
- coolant system
- steady and follow rests
- turret stop
- micrometer stop
- chip tray
- fixed splash guard (wall)
- protective shield for support
- chuck guard
- foot brake pedal
- LED work lamp
- thread gauge
- operating tools
- operator instructions
|
