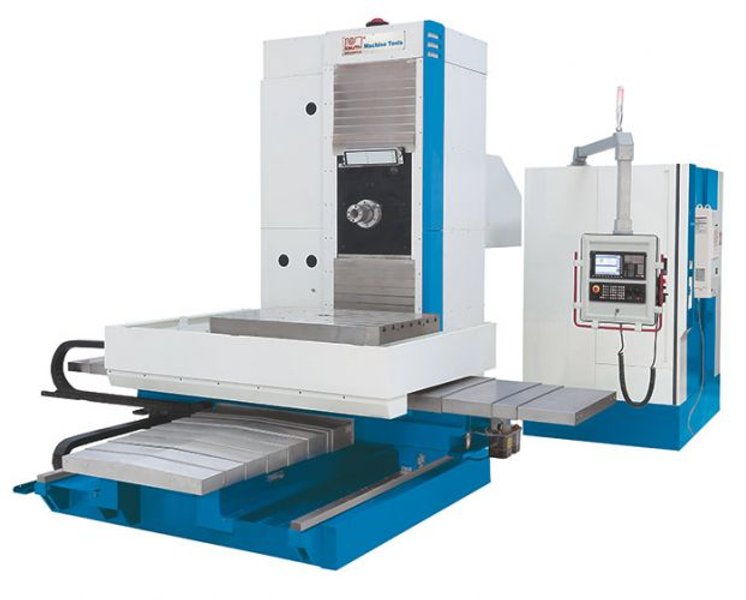

KNUTH MODEL BO T 130 CNC DRILLING MACHINE

Brand
KNUTH
Category
Drilling Machines
Type
Drill Units
Model
BO T 130
Stock #
16314
Year
Not specified
Condition
New
Location
Not specified
  BO T 130 CNCBO T 130 L CNC
Working Area
Drilling capacity1.97 in
Counterbore diameter (max.)10 in
Table set up area53x39 in
Table load capacity11,000 lbs
Spindle center-to-table distance0 - 47 in
Number of T-slots7 positions
T-slots, width0.9 in
T-slots, spacing4.9 in
Table indexing5 deg
Travels
Travel X-axis51.2 in63 in
Travel Y-axis47 in
Travel Z-axis47 in
Travel W-axis22 in
Headstock
Speed range(2) 12 - 1,200 rpm
Spindle diameter5 in
Spindle Torque (max.)13,275 ft.lb.
Spindle mountBT 50
Facing slide speed4 - 125 rpm
Rapid Feed
Rapid Feed X-axis393.7 in/min
Rapid Feed Y-axis393.7 in/min
Rapid Feed Z-axis393.7 in/min
Rapid feed W-axis197 in/min
Rapid feed B-axis0.22 in/min
Feed
Feed X-axis0 - 79 in/min
Feed Y-axis0 - 79 in/min
Feed Z-axis0 - 79 in/min
Feed W-axis0 - 79 in/min
Accuracies
Positioning accuracy X-axis0.00157 in
Positioning accuracy Y-axis0.00157 in
Positioning accuracy W-axis0.00157 in
Positioning accuracy Z-axis0.00157 in
Repeatability X-axis0.00079 in
Repeatability Y-axis0.00079 in
Repeatability T-axis0.00079 in
Repeatability W-axis0.00079 in
Work table rotation accuracy10 "
Work table repeatability4 "
Drive Capacity
Main motor rating23 / 27 Hp
Measures and Weights
Overall dimensions (length x width x height)280x260x142 in280x276x142 in
Weight38,500 lbs40,700 lbs

  • The large, heavily ribbed box-column base is made of premium cast-iron to ensure stability and rigidity even under very heavy machining loads

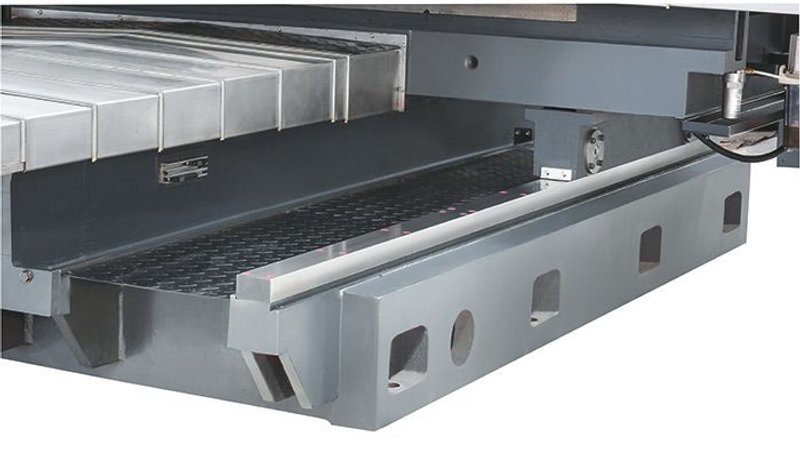

  • The massive machine frame features wide guideways is design for table loads up to 5.5 tons
  • The rotating setup table allows flexible 4-sided machining of workpieces without changing the setup
  • The rotary table can be locked in 4 positions with high positionally precision and features manual clamping fixtures
  • The powerful 25/29 HP motor ensures constant torque across the entire speed infinitely range
  • The Siemens 828D CNC-ensures high productivity and precision during production
  • Excellent functional interaction between hardware and software ensure high dynamics, while motors and drive technologies provide the necessary precision
  • Telescoping stainless steel covers protect the guides from chips and dirt
  • Precision preloaded ball screws in all axes ensure high accuracy with low wear and maintenance
  • Easy maintenance due to standard central lubrication system
  • Optionally, the machine can be equipped with a tool changer and a controlled indexing rotary table

  • Siemens 828D control
  • electronic hand-wheel
  • manual rotary table with 4-position indexing
  • RS-232 interface
  • work lamp
  • central lubrication
  • operator manual
