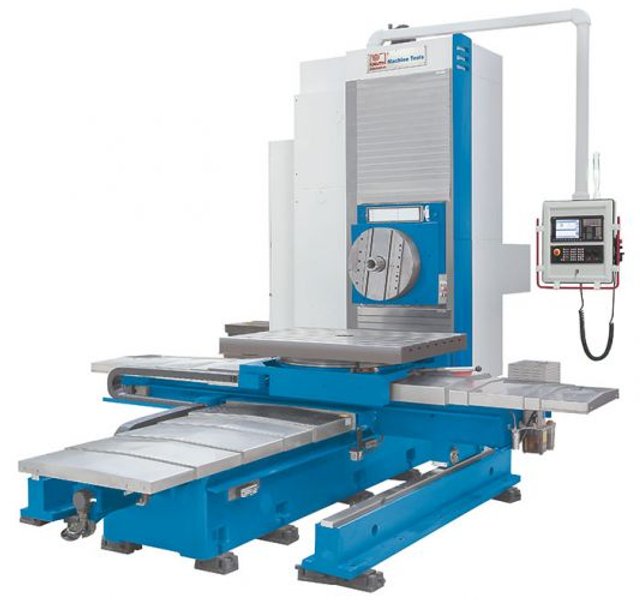

BO T 110 CNC | BO T 110 L CNC |
Working Area | Drilling capacity | 1.97 in | Counterbore diameter (max.) | 9 in | Facing slide working diameter (max.) | 31 in | Table set up area | 52x40 in | Table load capacity | 11,000 lbs | Spindle center-to-table distance | 0 - 36 in | Number of T-slots | 7 positions | T-slots, width | 0.9 in | T-slots, spacing | 4.9 in | Table rotation range | 4 x 90¡ | Travels | Travel X-axis | 47.2 in | 70.9 in | Travel Y-axis | 35 in | 47 in | Travel Z-axis | 51 in | Travel W-axis | 22 in | Facing slide travel | 5 in | Headstock | Speed range | (2) 12 - 1,100 rpm | Spindle diameter | 4 in | Spindle Torque (max.) | 9,735 ft.lb. | Spindle mount | BT 50 | Facing slide speed | 4 - 125 rpm | Rapid Feed | Rapid Feed X-axis | 393.7 in/min | Rapid Feed Y-axis | 393.7 in/min | Rapid Feed Z-axis | 393.7 in/min | Rapid feed W-axis | 197 in/min | Rapid Feed U-axis | 5 in/min | Feed | Feed X-axis | 1 - 39 in/min | Feed Y-axis | 1 - 39 in/min | Feed Z-axis | 1 - 39 in/min | Feed W-axis | 1 - 39 in/min | Facing slide feed | 0 - 3 in/min | Accuracies | Positioning accuracy X-axis | 0.00157 in | Positioning accuracy Y-axis | 0.00157 in | Positioning accuracy W-axis | 0.00157 in | Positioning accuracy Z-axis | 0.00157 in | Repeatability X-axis | 0.00079 in | Repeatability Y-axis | 0.00079 in | Repeatability T-axis | 0.00079 in | Repeatability W-axis | 0.00079 in | Work table rotation accuracy | 12 " | Drive Capacity | Motor rating main drive | 20.1 Hp | Measures and Weights | Overall dimensions (length x width x height) | 217x121x115 in | 217x150x130 in | Weight | 29,700 lbs | 35,200 lbs |
- The state-of-the-art machine frame is constructed of premium cast-iron to ensure stability and rigidity even under very heavy machining loads

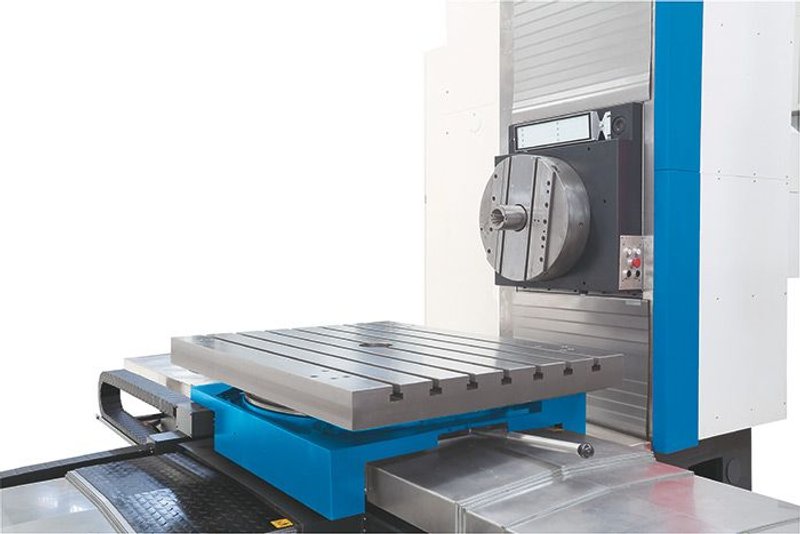

- 4-side machining is supported by a manually rotated setup table that can can be locked with high precision in 4 positions
- The rotary table features a large table center support area that can handle workpiece weights up to 5.5 tons
- Spindle and facing slide speeds can be quickly adjusted via an infinitely variable rpm control
- Siemens 828D control and drives guarantee high productivity, wide functionality and maximum precision
- Excellent functional interaction between hardware and software ensure high dynamics, while motors and drive technologies provide the necessary precision
- Precision preloaded ball screws in all axes ensure high accuracy with low wear and maintenance
- The powerful 20/ 25 HP motor ensures constant torque across the entire speed infinitely range
- Telescoping steel cover protects the guides from chips and dirt
- Easy maintenance due to standard central lubrication system
- Rotary table with controlled positioning are available as an option
- Siemens 828D control
- electronic hand-wheel
- manual rotary table with 4-position indexing
- RS-232 interface
- work lamp
- central lubrication
- operator manual
|
