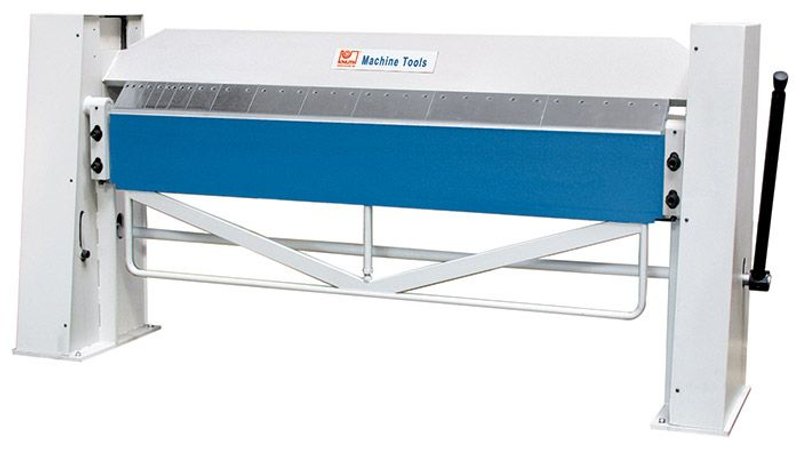

KNUTH MODEL SBS E MANUAL FOLDING MACHINE

Brand
KNUTH
Category
Bending & Forming Equipment
Type
Folding Machines
Model
SBS E
Stock #
16258
Year
Not specified
Condition
New

Location

Not specified
  SBS E 2020/2,0SBS E 2540/1,5SBS E 3020/1,2
Working Area
Working length80 in100 in119 in
Plate thickness (max.)0.08 in0.06 in0.05 in
Working height36 in
Male Die
Stroke4.7 in
Bending Die
Bending angle (max.)135 deg
Adjustment range for A axis1 in
Measures and Weights
Overall dimensions (length x width x height)111x34x52 in131x29x60 in150x29x60 in
Weight2,255 lbs2,750 lbs3,047 lbs

  • The series has a rugged, very robust design and is impressively easy to handle while delivering maximum accuracy.
  • All models of this series have a hardened, segmented male die.
  • Segments can be removed individually, so all sides of the basin can be bent
  • Adjustable angular stop for the production of angular small batches
  • A manually adjustable rear gauge is available as an option
No files or videos to display
