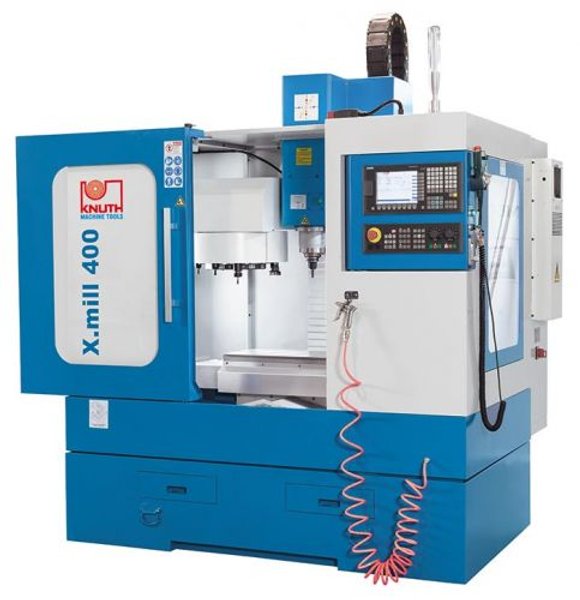

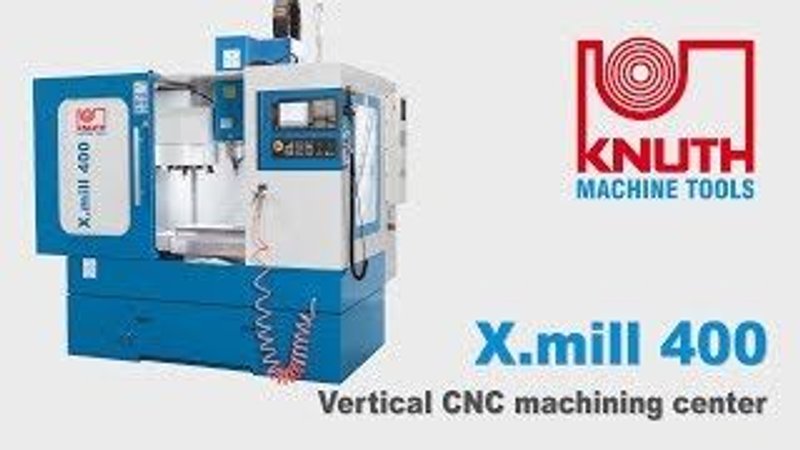

KNUTH "X.MILL 400" CNC VERTICAL MACHINING CENTER

Name: New KNUTH X.mill 400 For Sale 16221
Brand: KNUTH
SKU: 16221
Availability: PreOrder

Brand

KNUTH

Not specified

Working Area
Table dimensions	24x12 in
Table load capacity	330 lbs
Number of T-slots	3 positions
T-slots, width	0.6 in
T-slots, spacing	3.9 in
Spindle nose-to-table surface distance	4 - 23 in

Headstock
Spindle speed	8,000 rpm
Spindle mount	BT 40

Accuracies
Positioning accuracies	0.0008 in
Repeatabilities	0.0004 in

Measures and Weights
Overall dimensions (length x width x height)	83x75x97 in
Weight	4,840 lbs

Part No.	181359

Reliable, compact machining center with extensive equipment for streamlined, cost-effective series productions
Massive cast-iron machine body integrates many years of experience and state-of-the-art technology
All axes move on premium, fully enclosed linear guideways and precision ball screws and are driven by dynamic servo-motors
The premium spindle unit features a large tool mount and a spindle oil cooler, which are of great advantage in continuous operations
Fast rapid feeds and rugged horizontal tool changer allow for efficient machining with minimum downtime
The totally enclosed work space features a large door and side doors for easy access, safety and cleanliness

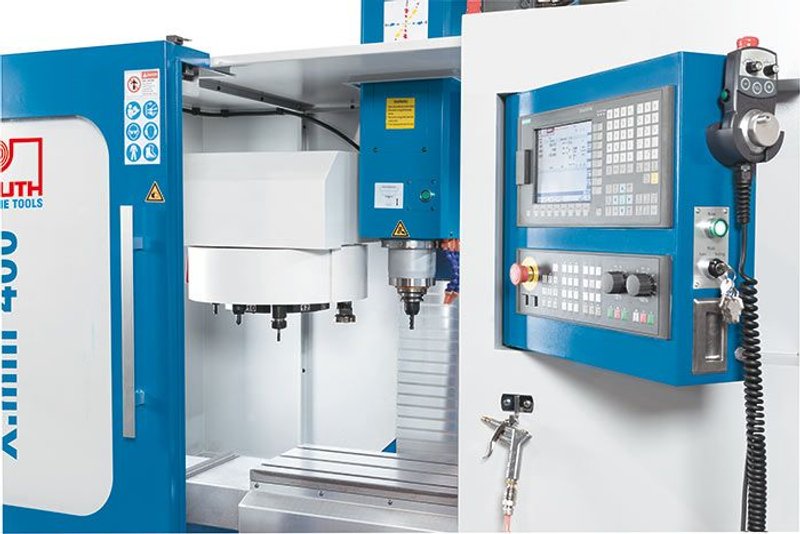

Siemens 808D control: cost-effective, easy to handle, superior reliability backed by worldwide service
Electronic hand-wheel simplifies machine set-up
The automatic central lubrication system ensures proper lubrication of all lube points

SINUMERIK 808D ADVANCE -- the perfect solution for modern standard machines
CNC and drive communicate via a high-speed bus to ensure efficient positioning control plus high precision and optimum cutting performance
This is topped by a guaranteed superior price/performance ratio
This globally leading CNC technology provides high performance and power for the control of standard lathes
In combination with a new generation of spindle and axis drives, the SINUMERIK 808D ADVANCE with 8.4" LCD provides an innovative ready-to-use digital CNC solution for modern standard machines

Advantages - Digital solution provides higher precision:

Increased overload capacity supports a faster acceleration and deceleration of machine tools
Constant cutting speeds result in an increased surface quality of the workpiece

Increased ruggedness:

During heavy machining operations, an automatic spindle torque adjustment will help protect machining tools and spindle systems.
The SINAMICS features a wide voltage range to prevent machine shut-downs during poor voltage supply conditions. This will significantly reduce machine down-times.

Increased operator comfort:
