Working AreaTable dimensions | 30x14 in | Table load capacity | 1,100 lbs | Number of T-slots | 3 positions | T-slots, width | 0.7 in | T-slots, spacing | 3.9 in | Spindle nose-to-table surface distance | 2 - 22 in | TravelsTravel X-axis | 25.2 in | Travel Y-axis | 16 in | Travel Z-axis | 20 in | HeadstockSpindle speed | 10,000 rpm | Spindle throat | 17 in | Spindle mount | BT 40 | Rapid FeedRapid Feed X-axis | 1,417.32 in/min | Rapid Feed Y-axis | 1,417.32 in/min | Rapid Feed Z-axis | 944.88 in/min | FeedWork feed X-axis | 0 - 197 in/min | Work feed Y-axis | 0 - 197 in/min | Work feed Z-axis | 0 - 197 in/min | Tool HeadNumber of tool stations | 12 positions | Tool ¯ | 2 (4) inch in | Tool length (max.) | 8 in | Tool weight max. | 11 lbs | Tool-changing time chip/chip | 9 sec | Tool-change time tool/tool | 7 sec | AccuraciesPositioning accuracies | ± 0.0001 inch in | Repeatabilities | ± 0,00008 inch in | Drive CapacityMotor rating main drive | 14.8 Hp | Main drive, continuous load | 10.06 Hp | Measures and WeightsOverall dimensions (length x width x height) | 91x71x91 in | Weight | 9,240 lbs |

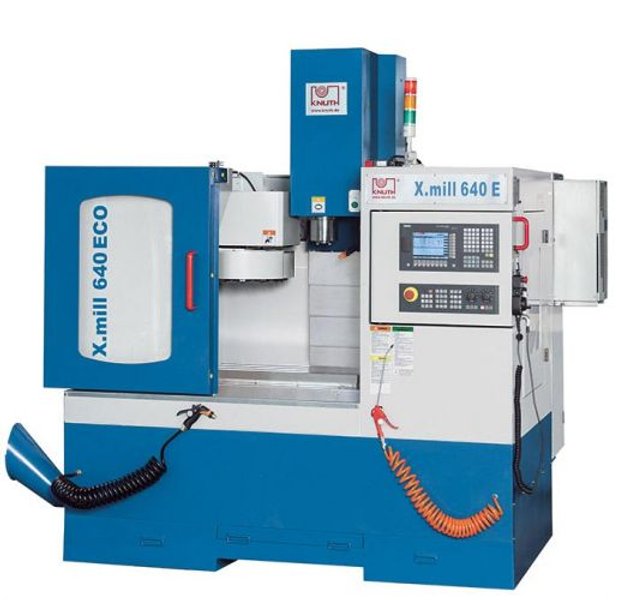

- Reliable, compact machining center with extensive equipment for streamlined, cost-effective series productions
- Premium linear guides and powerful servo drives on all axes
- Solid cast-iron machine body serves as foundation for high precision at high travel speeds, and powerful chip removal
- Totally enclosed work space with side doors ensures maximum safety and flexibility
- Siemens 808D Advanced TTL control:
cost-effective, easy to handle, superior reliability backed by worldwide service, including software for external programming
- Standard electronic hand-wheel
- Automatic central lubrication system
Compact and User-friendly solution for milling applications Highlights - Easy to use, dialog-guided user interface
- Comprehensive bandwidth of technology cycles
- High performance and precision
- The CNC SINUMERIK 808D Milling comes preconfigured and is perfectly suited for standard milling machine applications. The SINUMERIK 808D Milling features the Advanced Surface smart motion control from the SINUMERIK MDynamics technology suite. Also included is the Look Ahead function, which allows optimum speed control to ensure superior surface quality.
SINUMERIK Operate BASIC - Easy, intuitive user interface with dialog-guided user support. The menu structure of the completely updated Sinumerik Operate Basic has been closely adapted to the larger Sinumerik Operate system's menu
SINUMERIK programGUIDE BASIC - The "programGuide Basic" simplifies programming by adding graphically supported cycle masks and a practical contour calculator
SINUMERIK MDynamics - Includes the new Advanced Surface functionality for smart motion control - ensures perfect workpiece surfaces combined with significantly reduced machining times
What makes the Siemens 808D so great? - Self-explanatory use and powerful CNC functions ensure highest workpiece precision and short machining times
- Allows re-using of part programs from other controls that support ISO code
- DIN and ISO programming code can be alternated within one program
- The USB port at the front panel provides a connector for USB memory sticks for easy transfer of parts programs and tool data during everyday operation
- Just as the high/end Siemens CNCs, this series features ergonomically designed rotary override switches
- Microswitch keys of the membrane keyboard ensure excellent tactility
Precision and Productivity - Calculations are performed with 80-Bit NanoFP accuracy without any internal rounding errors
- The 808D comes with the intelligent MDynamics motion control, including smart "Look-Ahead" function for optimized speed guidance - allowing increased productivity and perfect surface quality
- The 808 series features powerful computing capacity and advanced technology cycles for superior performance

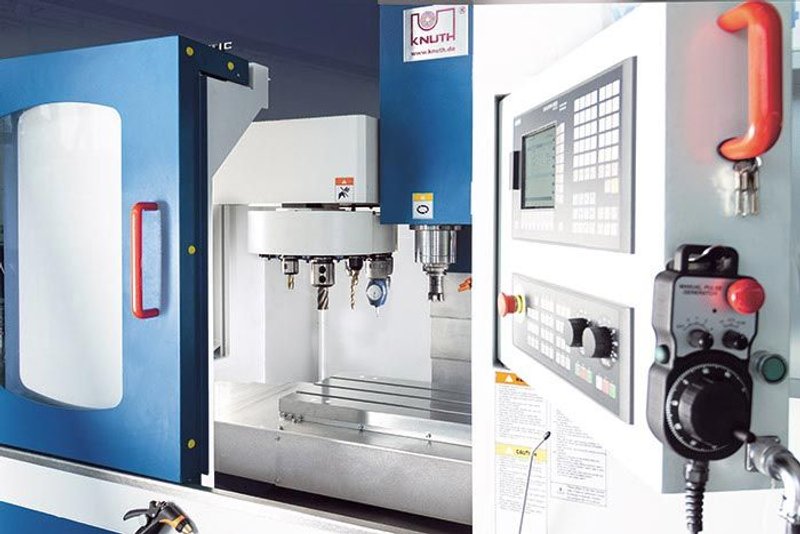

- Siemens 808D control
- electronic hand-wheel
- spiral chip conveyor
- servo drive for all 3 axes
- 12-station tool changer
- control cabinet with heat-exchanger
- totally enclosed work space
- work lamp
- tilted chip tray
- automatic central lubrication
- operating tools
- operator instructions
|
