12 Stand 25.00" x 4.00" B & K Rollformer

12 Stand 25.00" x 4.00" B & K Rollformer

Name: 12 Stand 25.00" x 4.00" B & K Rollformer
Brand: B & K
SKU: 2097
Availability: InStock

Brand

B & K

Location

Ohio

Specifications
Files & Videos

Roll Diameter	4 inches
Number Of Stands	12

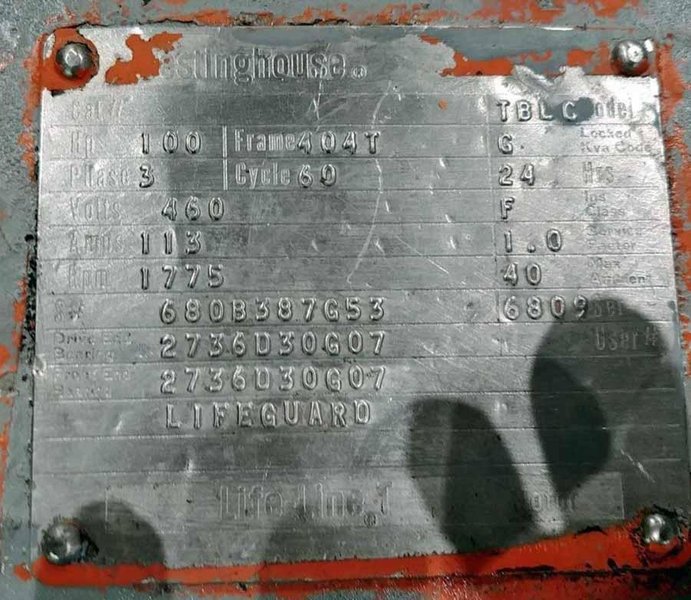

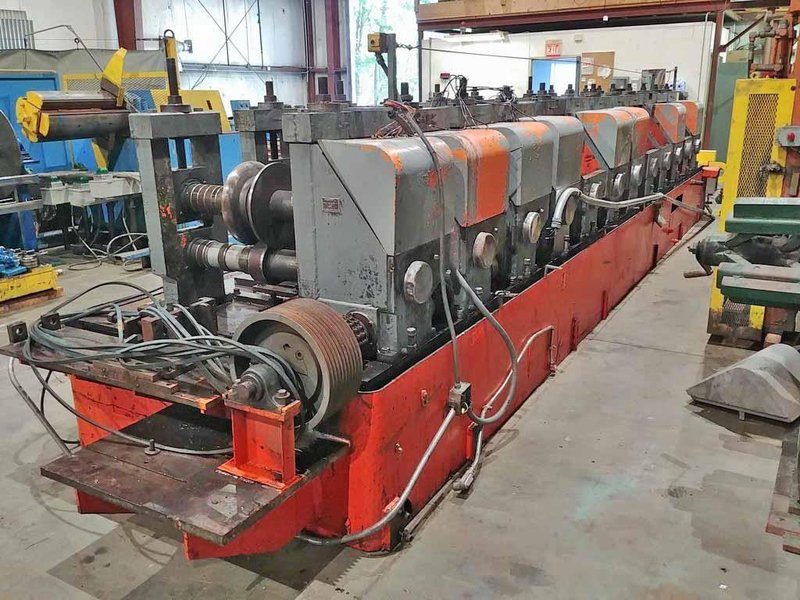

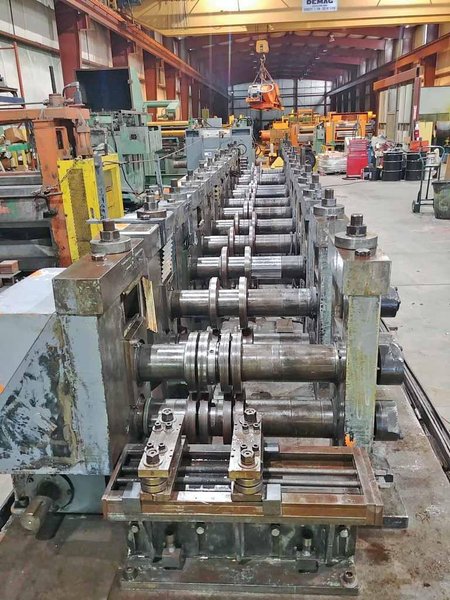

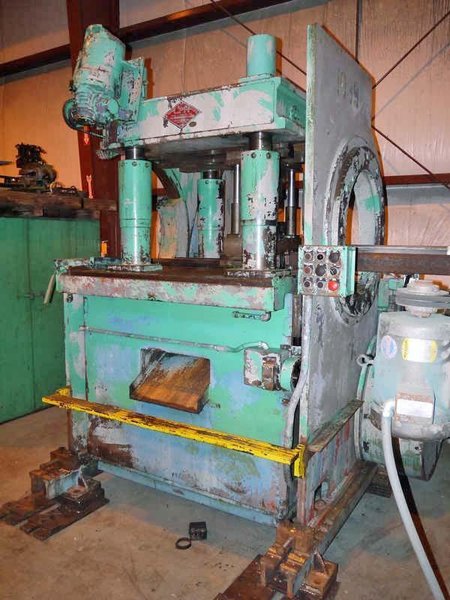

-Coil Car: Dahlstrom Model: 2SCL Capacity: 15,000 LBS. Lift: 12" Travel: 48" Table: 42" x 41" Wheel Drive: Reliance Gearmotor 1 HP AC Motor, 1535 RPM, 220/440 V, 3 PH Raise/Lower Drive: 3 HP AC Motor, 220/440 V, 3 PH Overall Dimensions: 57" x 50" x 35" Table Height Weight: 2,000 Lbs. -Uncoiler: Dahlstrom Model: 15H-30 1925 Capacity: 15,000 lbs. Coil I.D. Range: 19" - 25" Hydraulic Expansion Mandrel Length: 30" 4 Leaf Mandrel Hydraulic Motor Threading Drive Self-Contained Hyd. Power Unit 3 HP AC Motor, 1725 RPM, 208/220/440 Volt, 3 PH Dimensions: 90" L x 46" W x 86" High Weight: 8,000 Lbs. -Peeler/Straightener: B & K Model 455-26F S/N: 101 Hydraulic Actuated Peeler Table Entry Driven Pinch Rolls 27" W x 5.625" Dia. Rolls Hydraulic Cylinder Loaded 5 Roll Flattener: 2 over 3 Design 4.50" Dia. x 27" Face Rolls Independent Parallel Adjustment on 2 Top Rolls 5 HP AC Drive Motor, 1800 RPM, Right Angle Reducer w/50:1 Ratio Line Speed: 45 - 135 FPM -Rollformer: B&K Number of Stands: 12 Spindle Diameter: 4.00" Roll Space: 25" Horizontal Centers: 24" Vertical Adjustment: 5.50" (8.25" - 13.75") Distance from Bed to Center of Bottom Spindle: 11" Passline Height: 40" 100 HP Westinghouse AC Motor, 1775 RPM, 460 V Gear Driven Machine Entry Edge Guides Overall Size: 336" L x 79" W x 71" High 40,000 Lbs (approx.) 20 HP Reliance AC Motor 1760 RPM, 220/440 V, 60 HZ. Belt driven to the flywheel Air Clutch and Brake (Mill is presently Tooled for a "G" Shape Channel) -Alpha 150 Ton Cut-Off Model: S2-150-24-24 4 Post Mechanical Cut-Off Capacity: 150 Ton Bed Size: 52.5" x 52.5" Distance Between Posts: 24.25" Approx. Speed: 300 FPN Stroke: 8" Approx. Strokes Per Minute: 30 Approx. Pass Line Height:57"
