14/16 STAND X 4” X 48" B&K R PANEL RAFTED #3346

Brand
Model
Not specified
Stock #
3346
Year
Not specified
Condition
Good
Location
Ohio

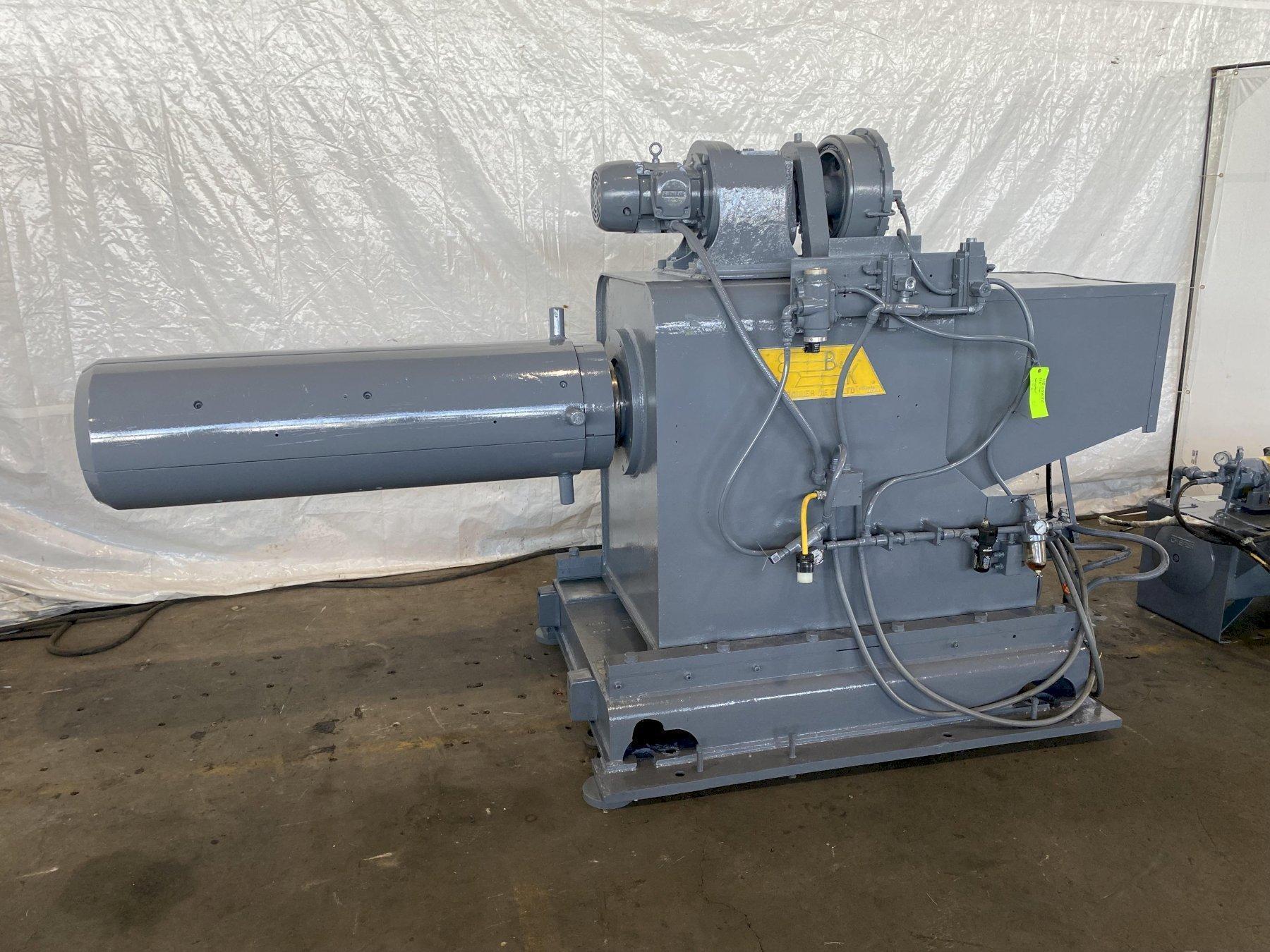

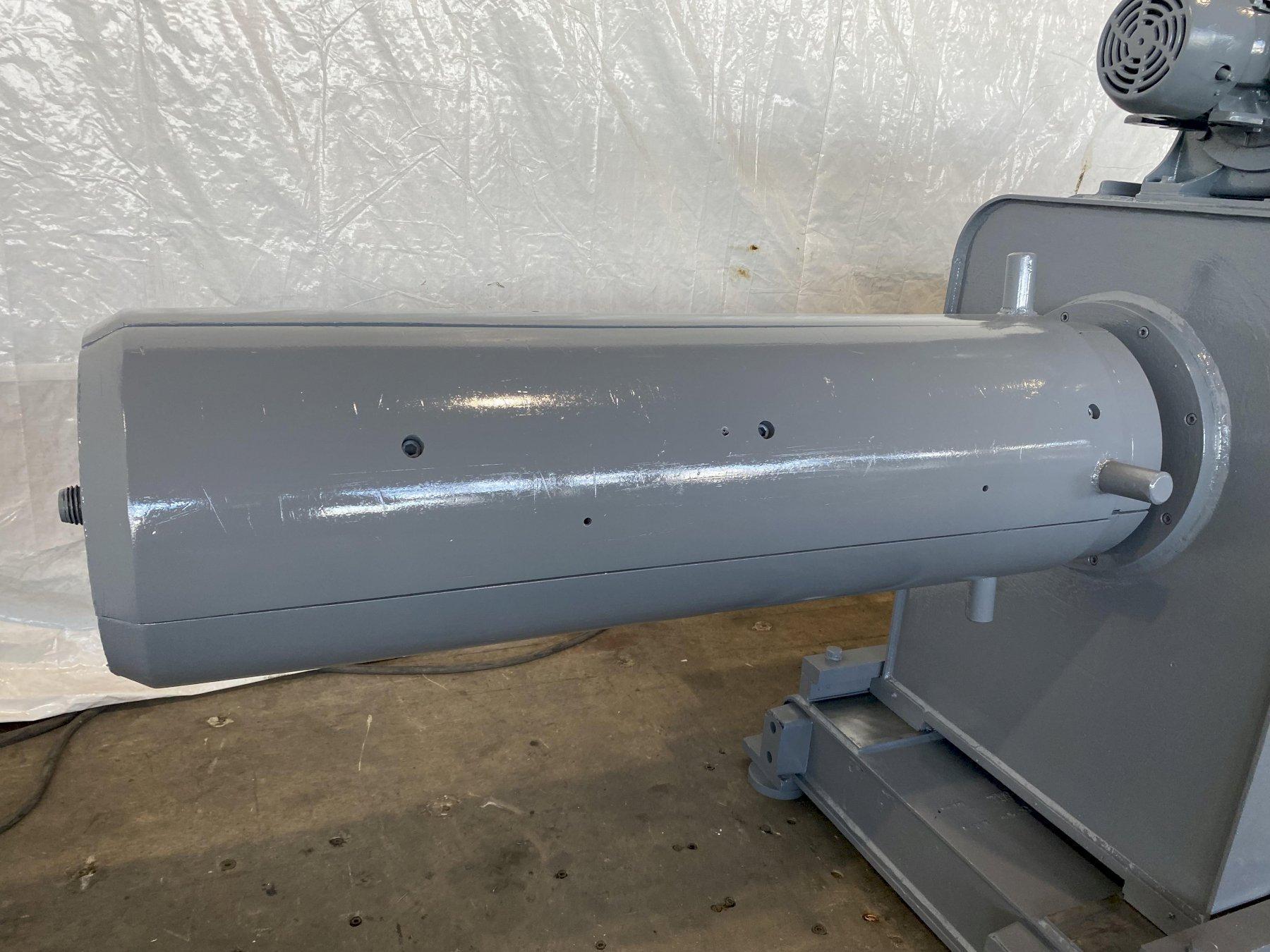

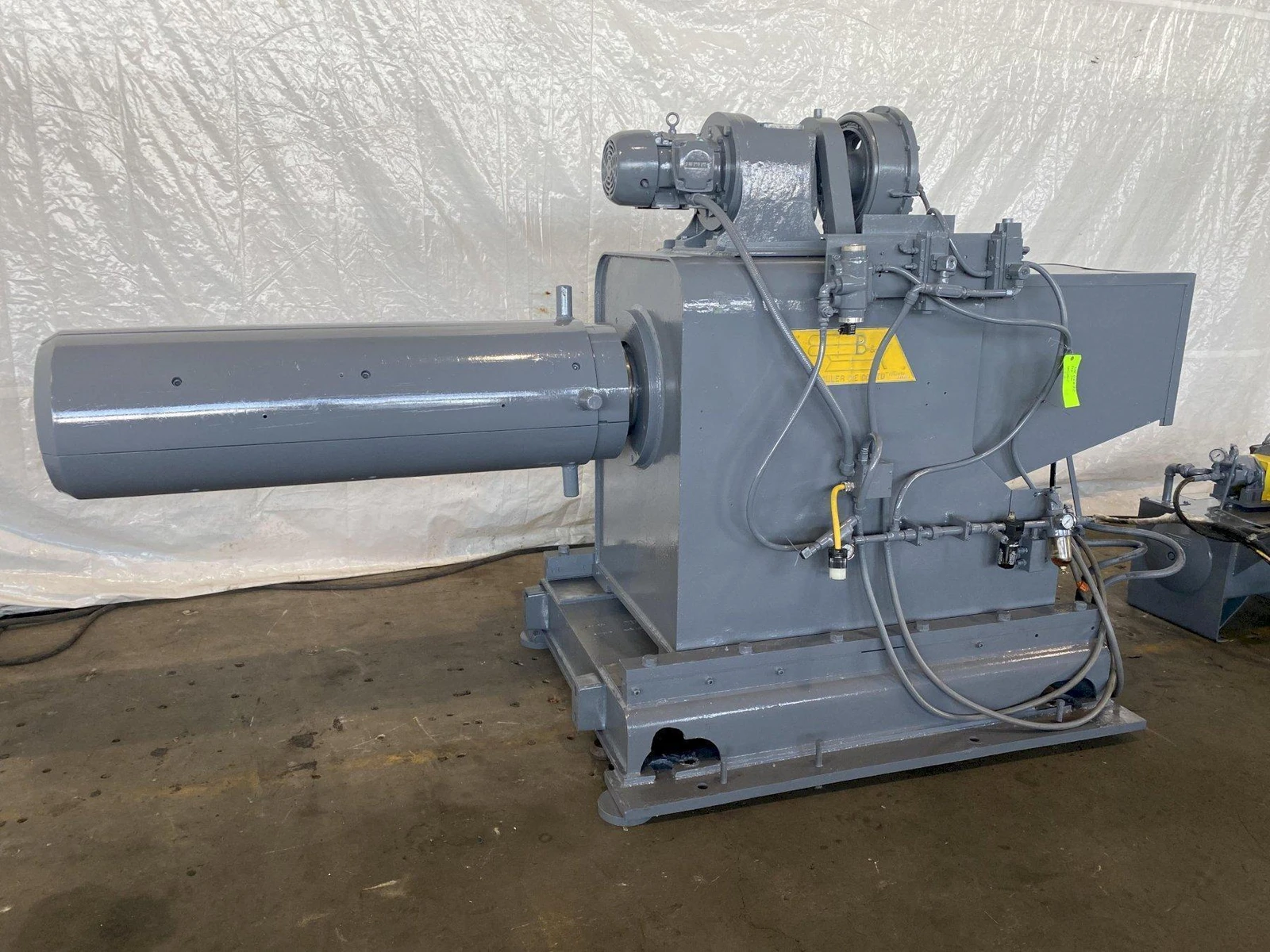

UNCOILER:
MAKE.................................: B&K
SERIAL...............................: 118
MODEL................................: 20UMKII
CAPACITY.............................: 20,000 LBS
MAX LENGTH...........................: 48"
MAX COIL O.D.........................: 60"
COIL I.D.............................: 14" - 20"
DRIVE MOTOR HP.......................: 3 HP
DRIVE MOTOR RPM......................: 1750
DRIVE REDUCTION RATIO................: 60:1
COIL CAR.............................: YES

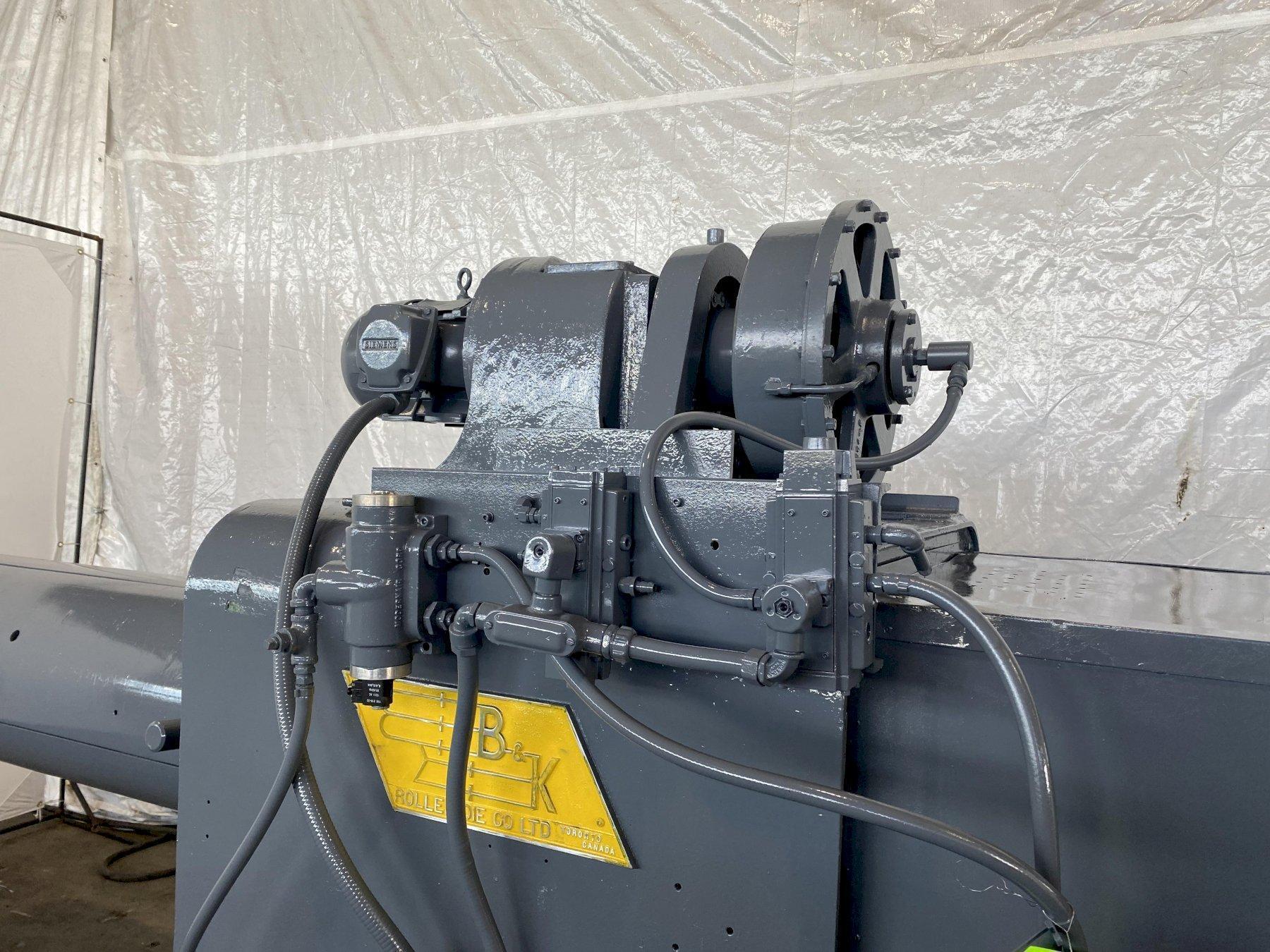

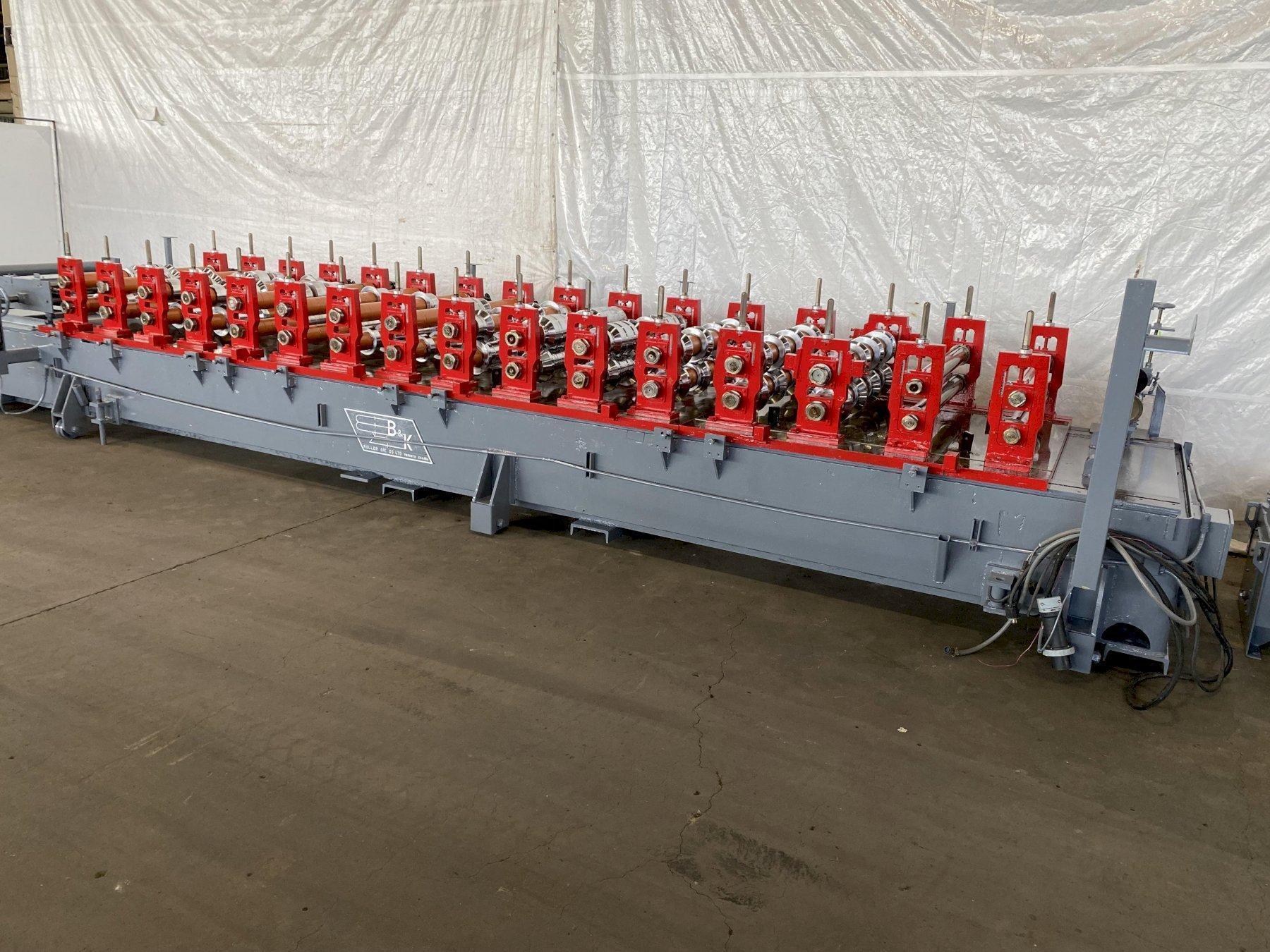

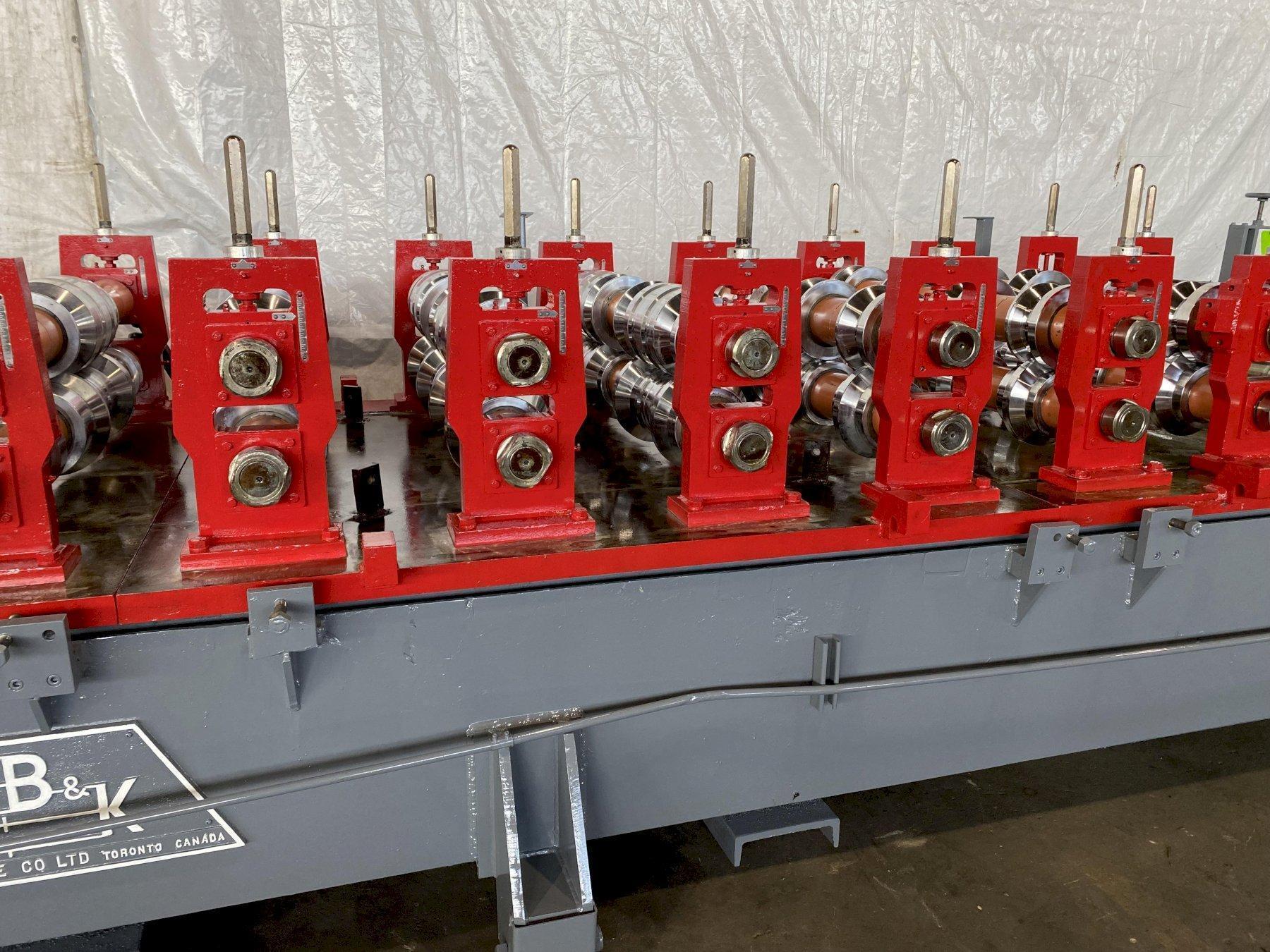

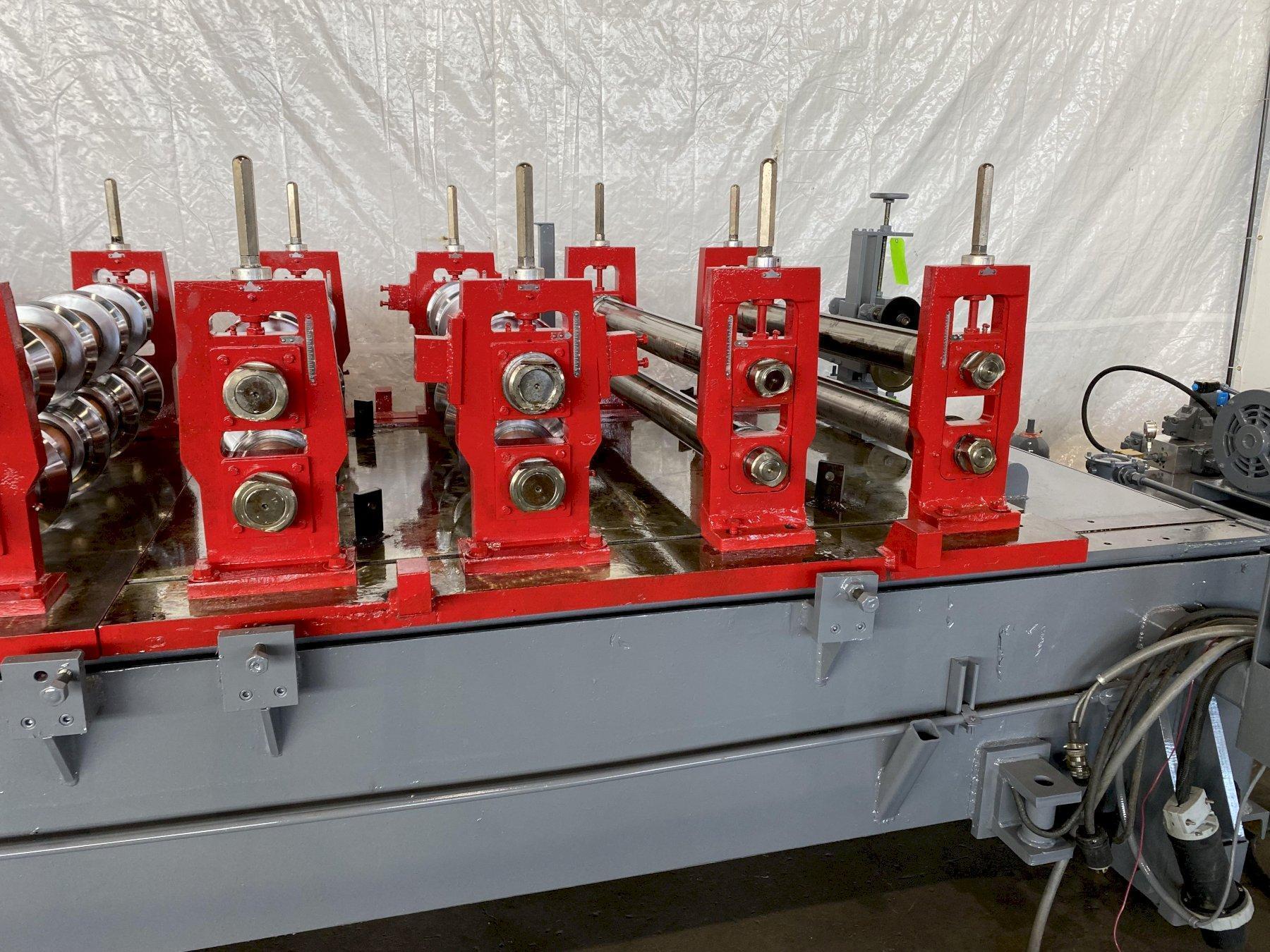

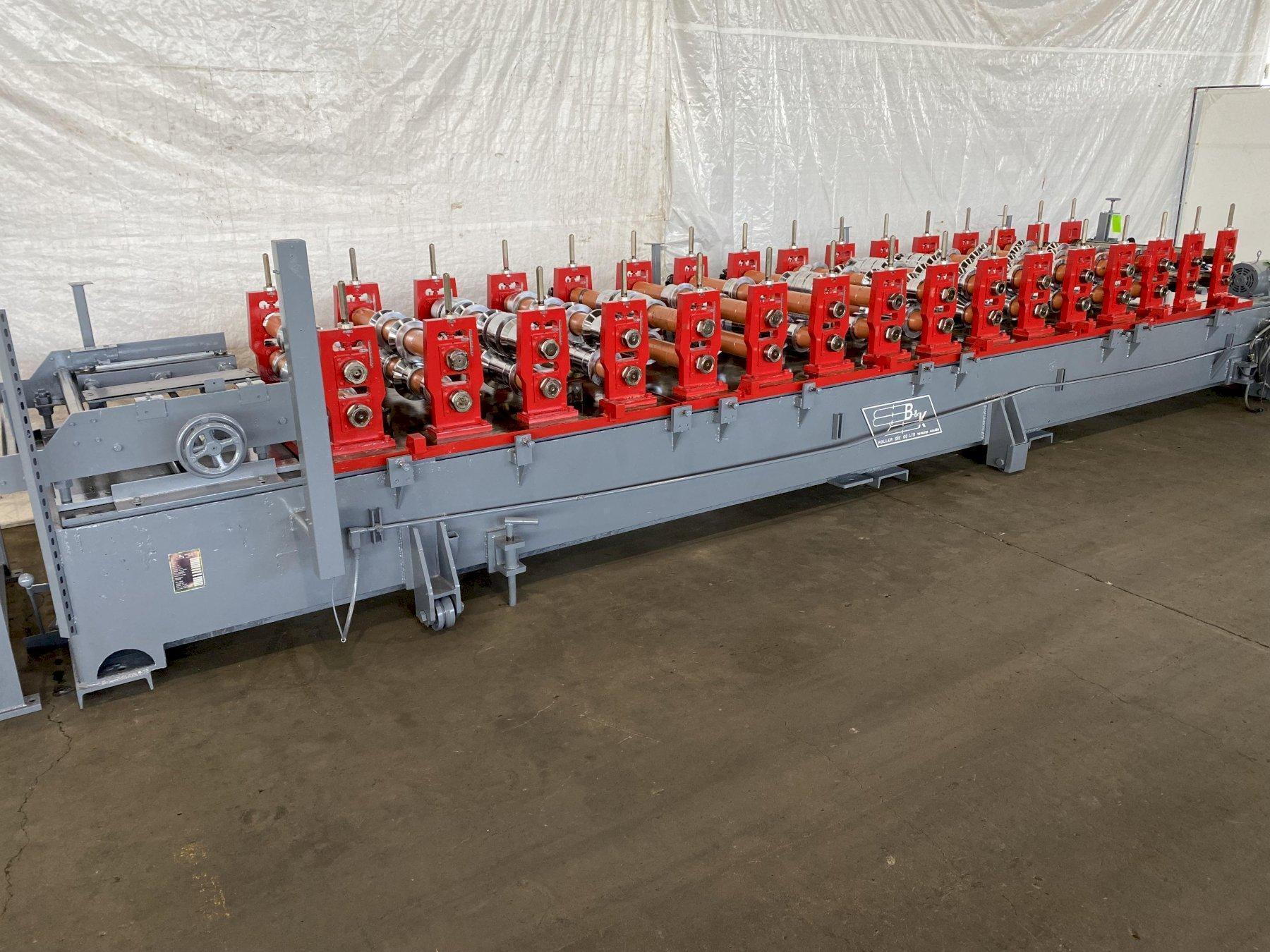

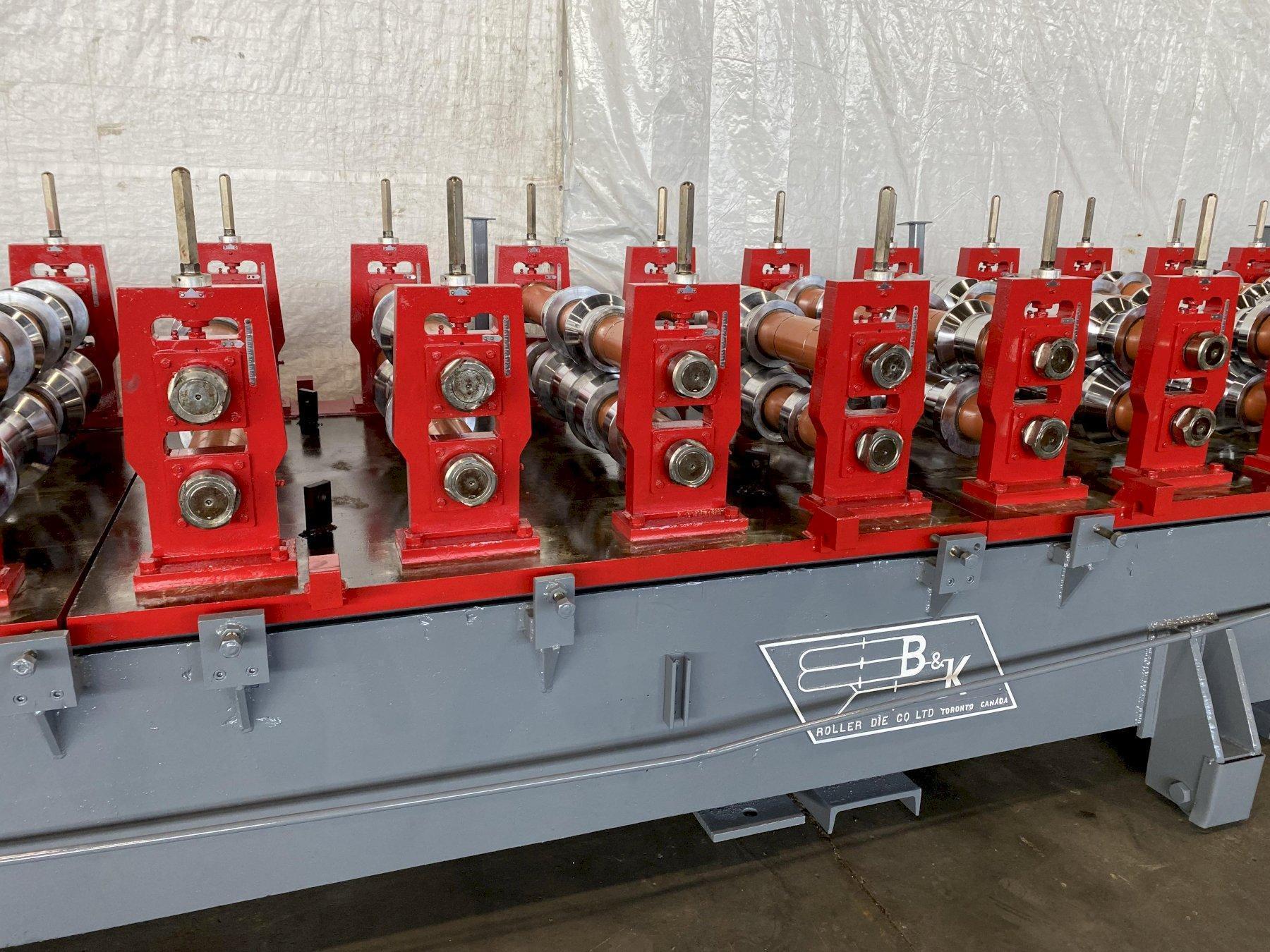

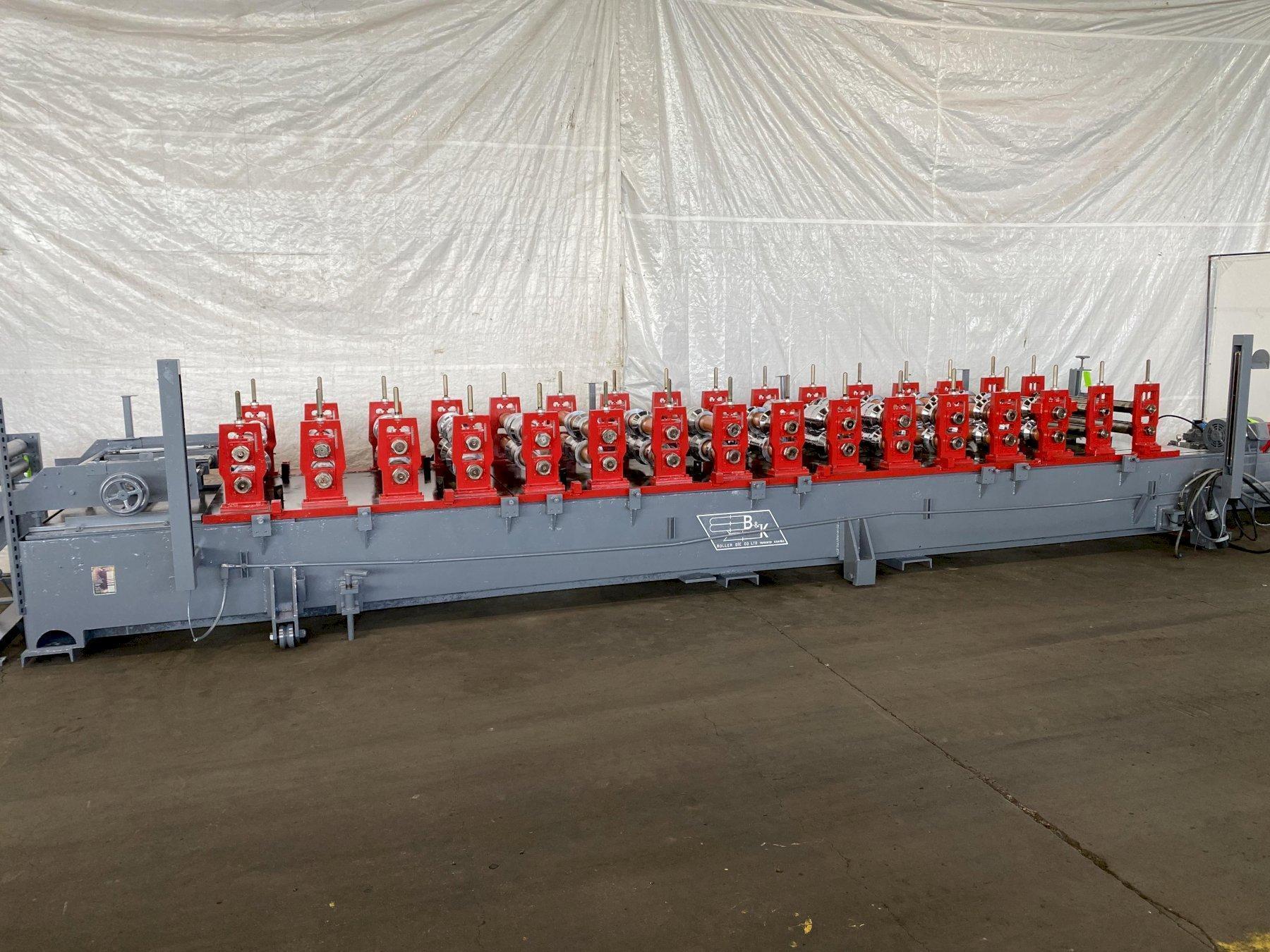

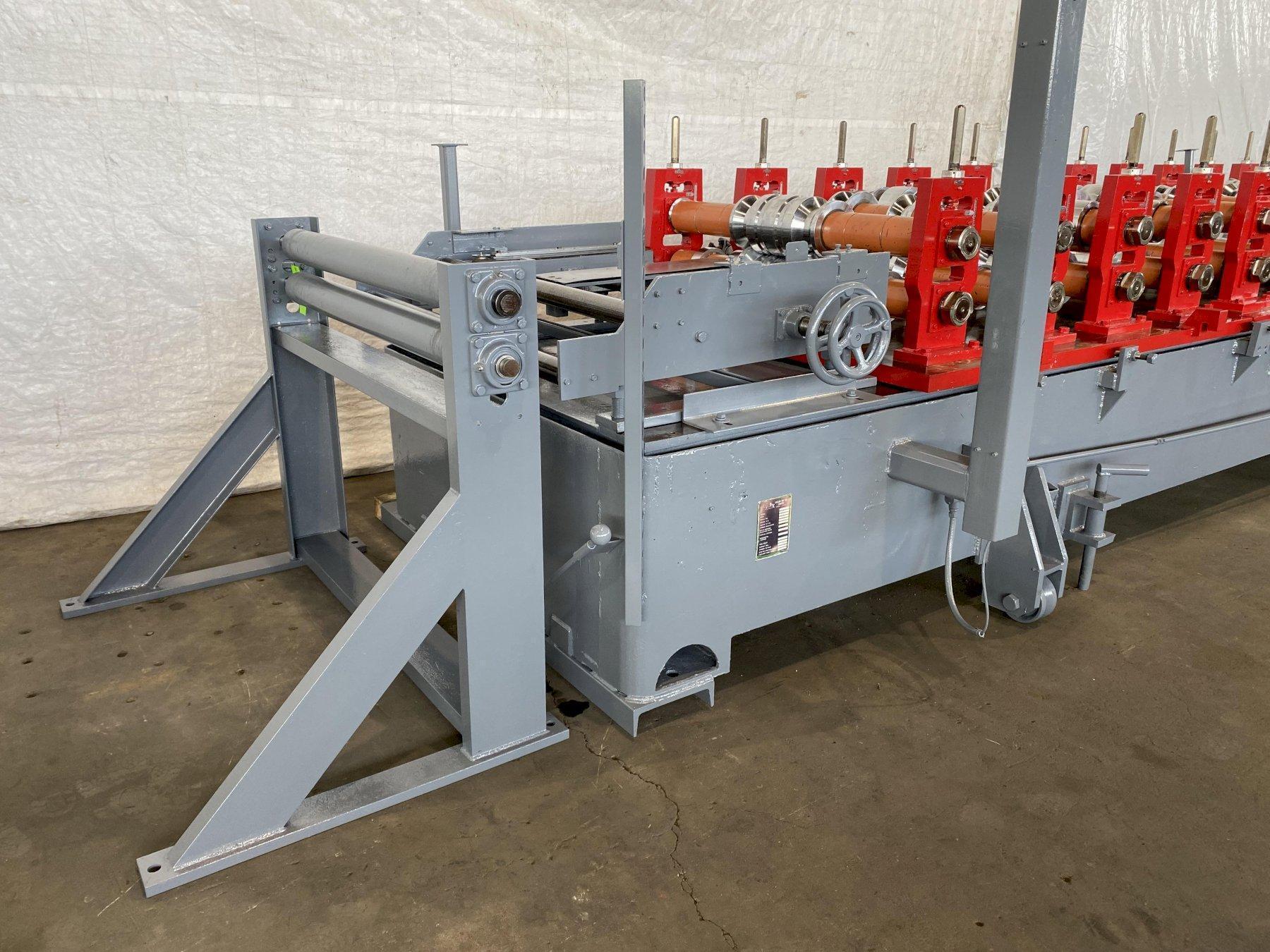

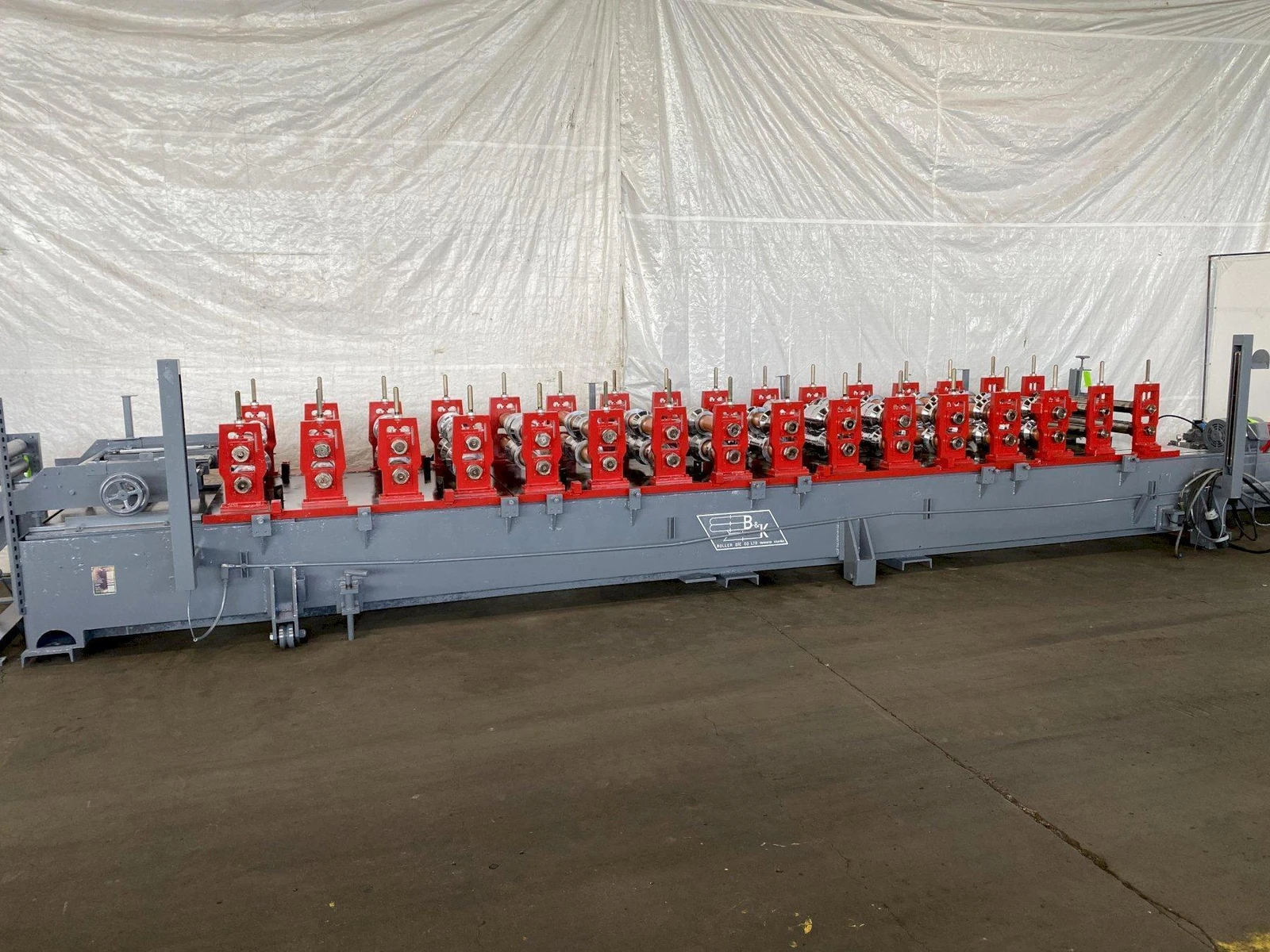

ROLLFORMER:
MAKE.................................: B&K
SERIAL...............................: 100
MODEL................................: 2-1/2 BU
# OF STANDS..........................: 16
ARBOR DIAMETER.......................: 4"
ROLL SPACING.........................: 48"
HORIZONTAL CENTERS...................: 18"
VERTICAL ADJUSTMENT..................: 5" - 10"
EQUAL GEARING........................: YES

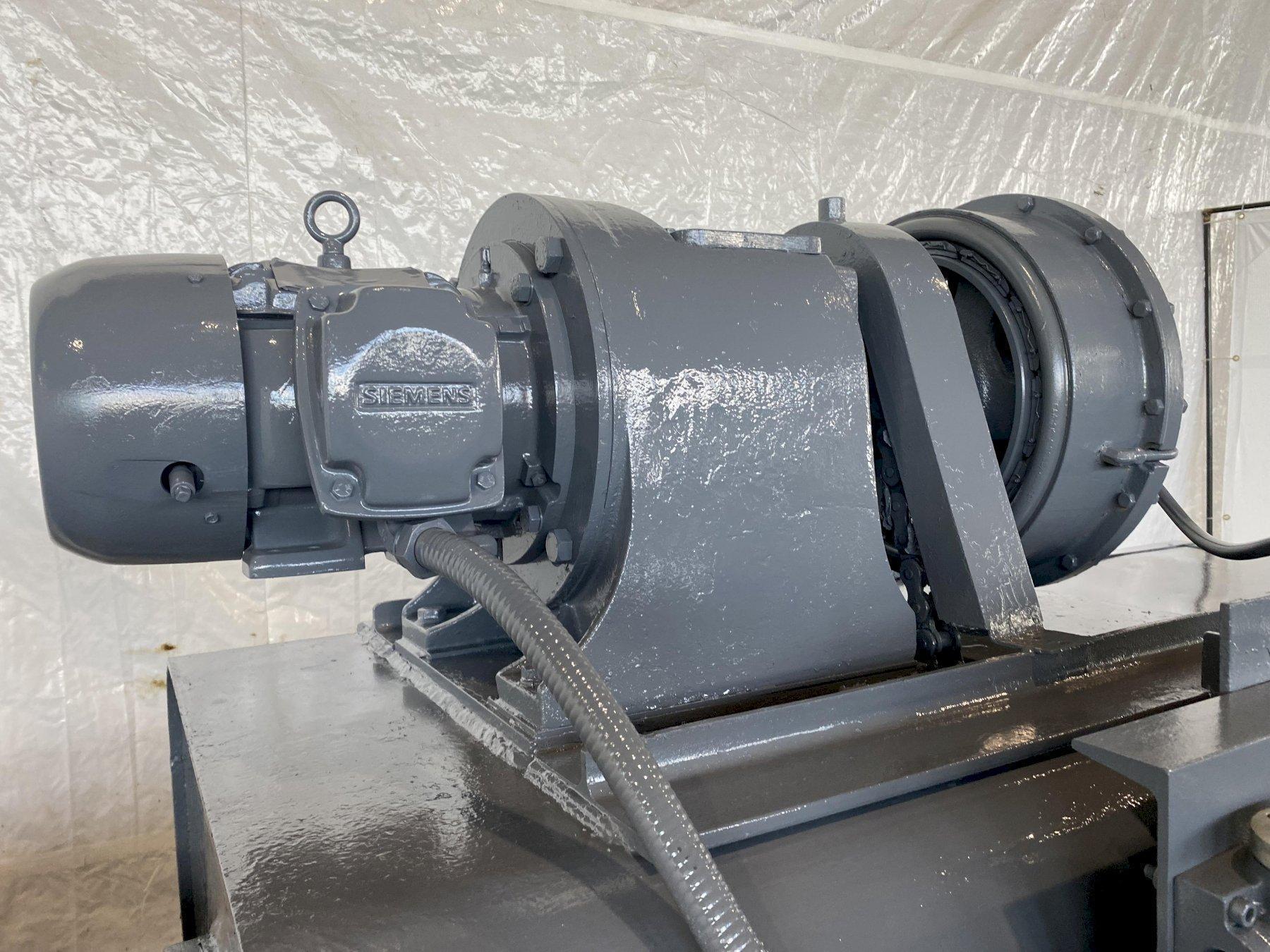

HP...................................: 50
MOTOR RPM............................: 0:1700
SPINDLE GEAR RATIO...................: 1:1
DRIVE HOUSING REDUCTION RATIO........: 7.2:1
BASE TO BOTTOM OF SPINDLE............: 6"

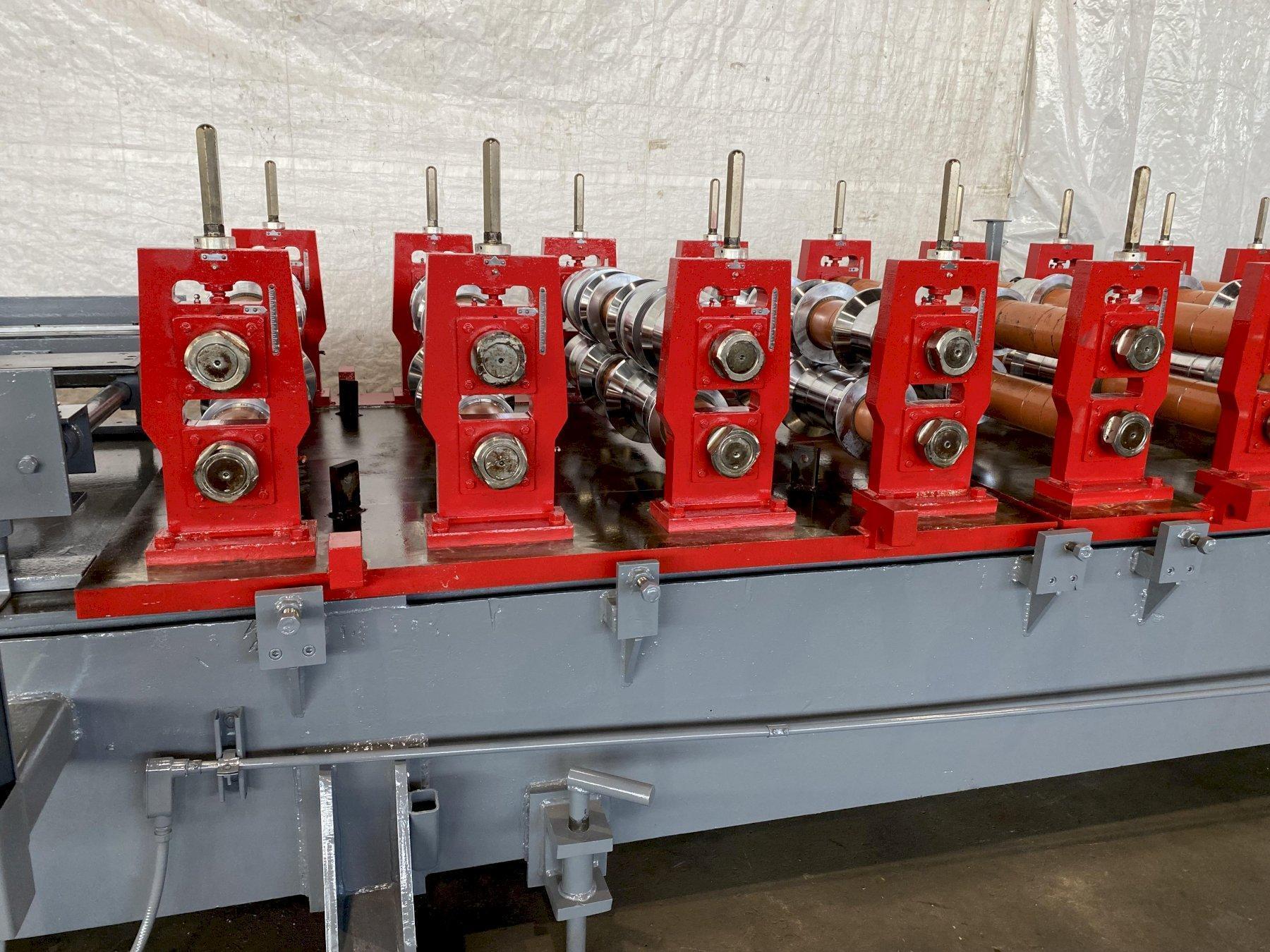

RAFTED:
4 SETS OF 4 BRADBURY RAFTS. W.O. 21955

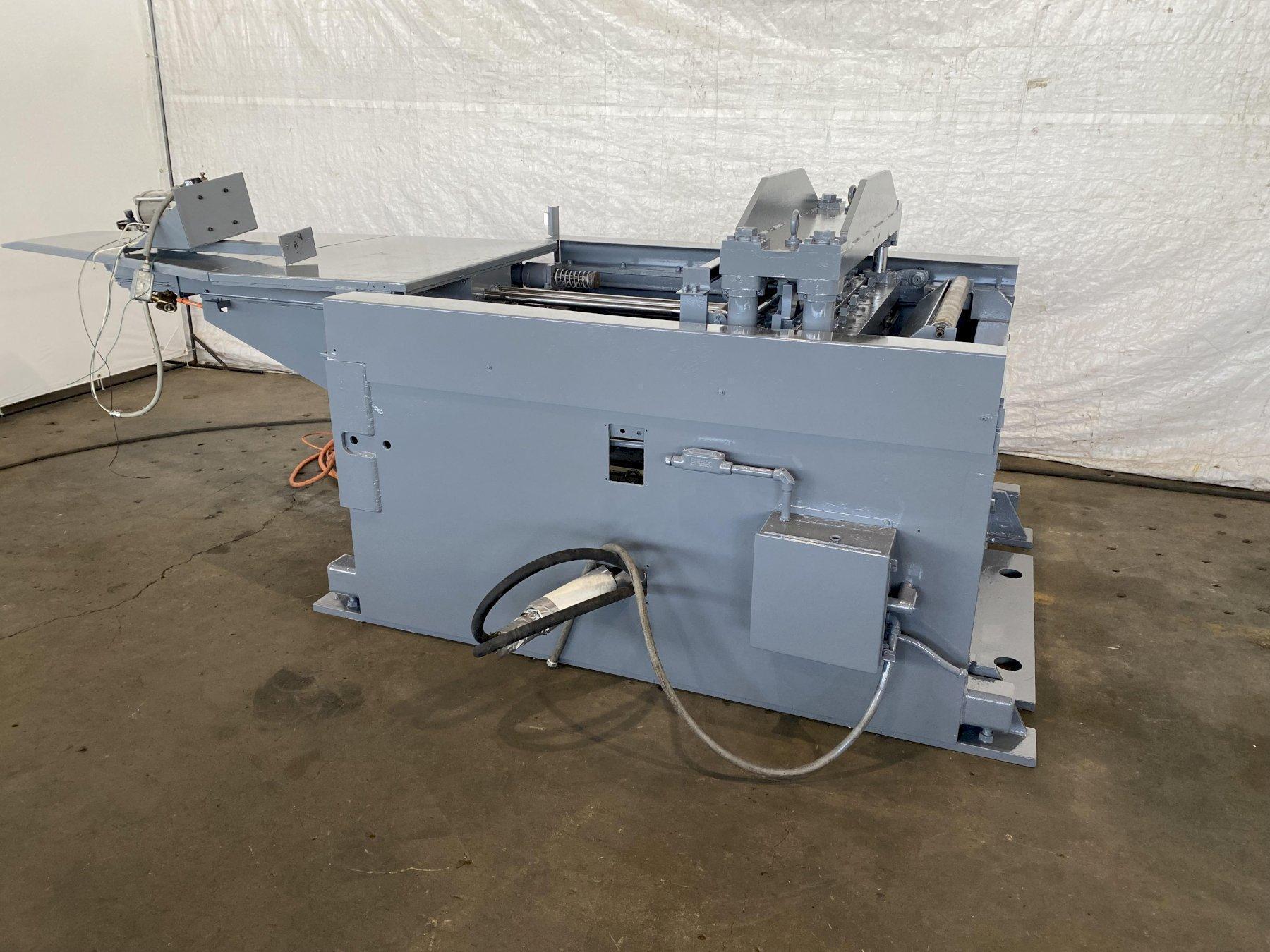

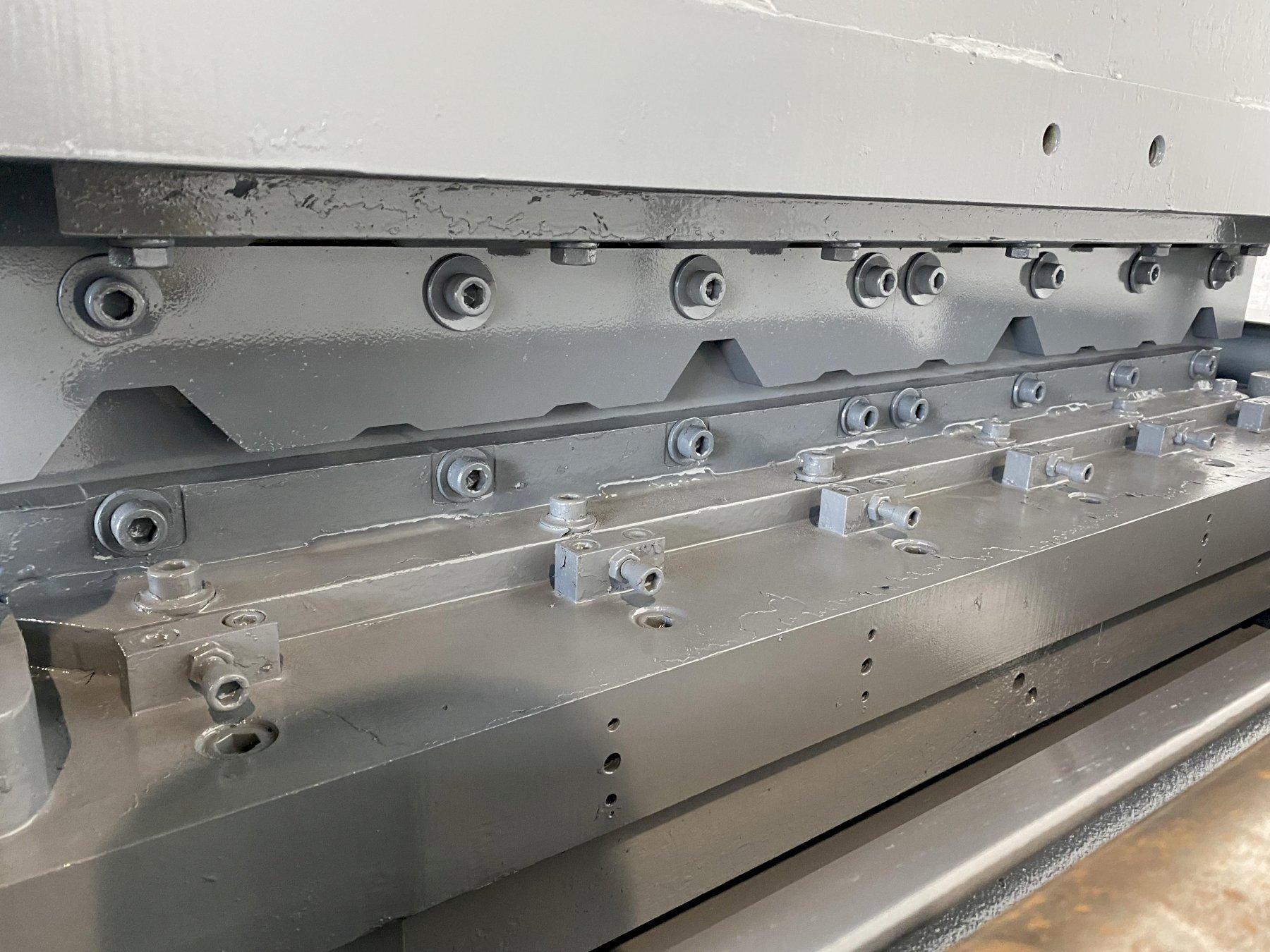

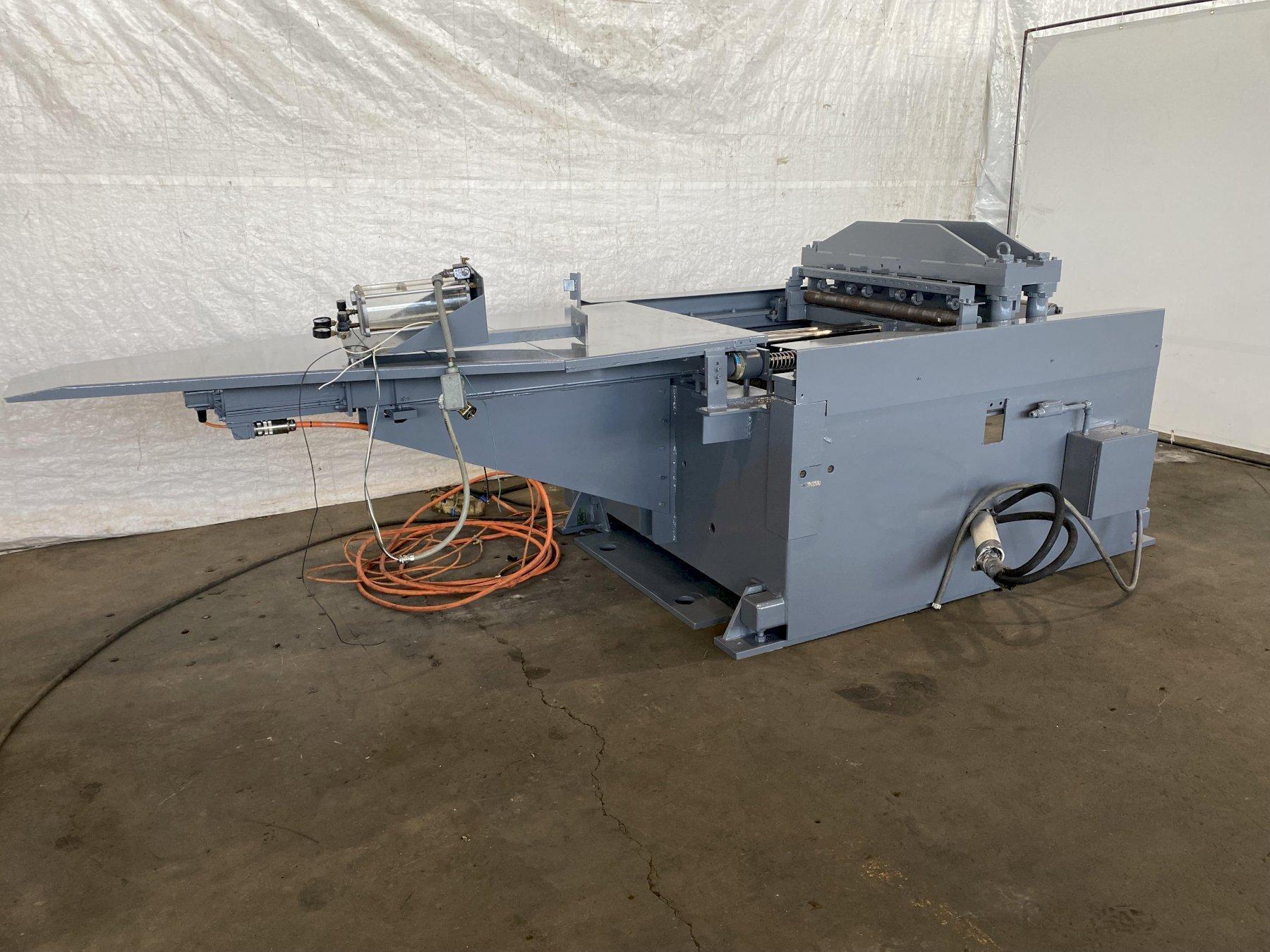

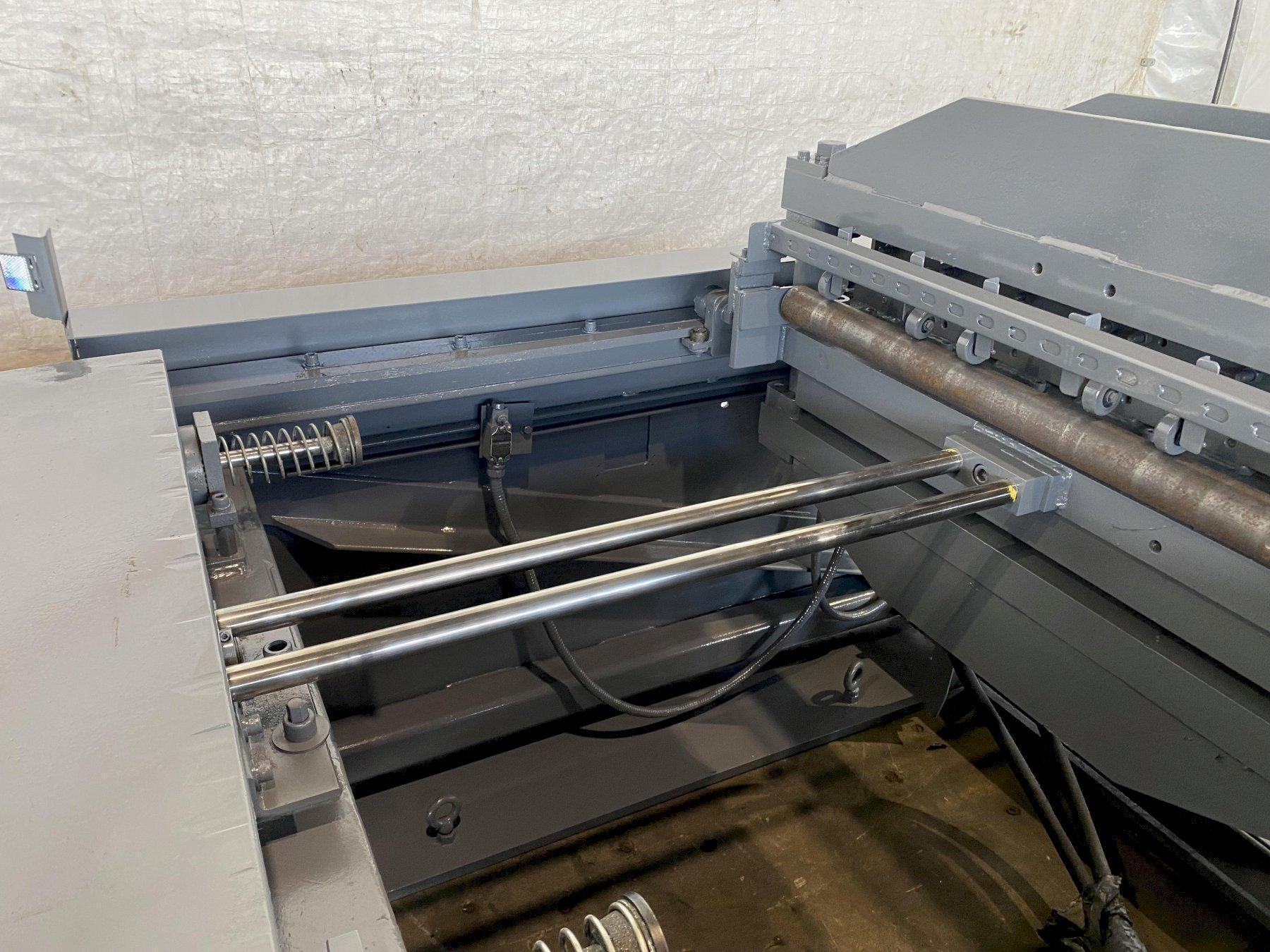

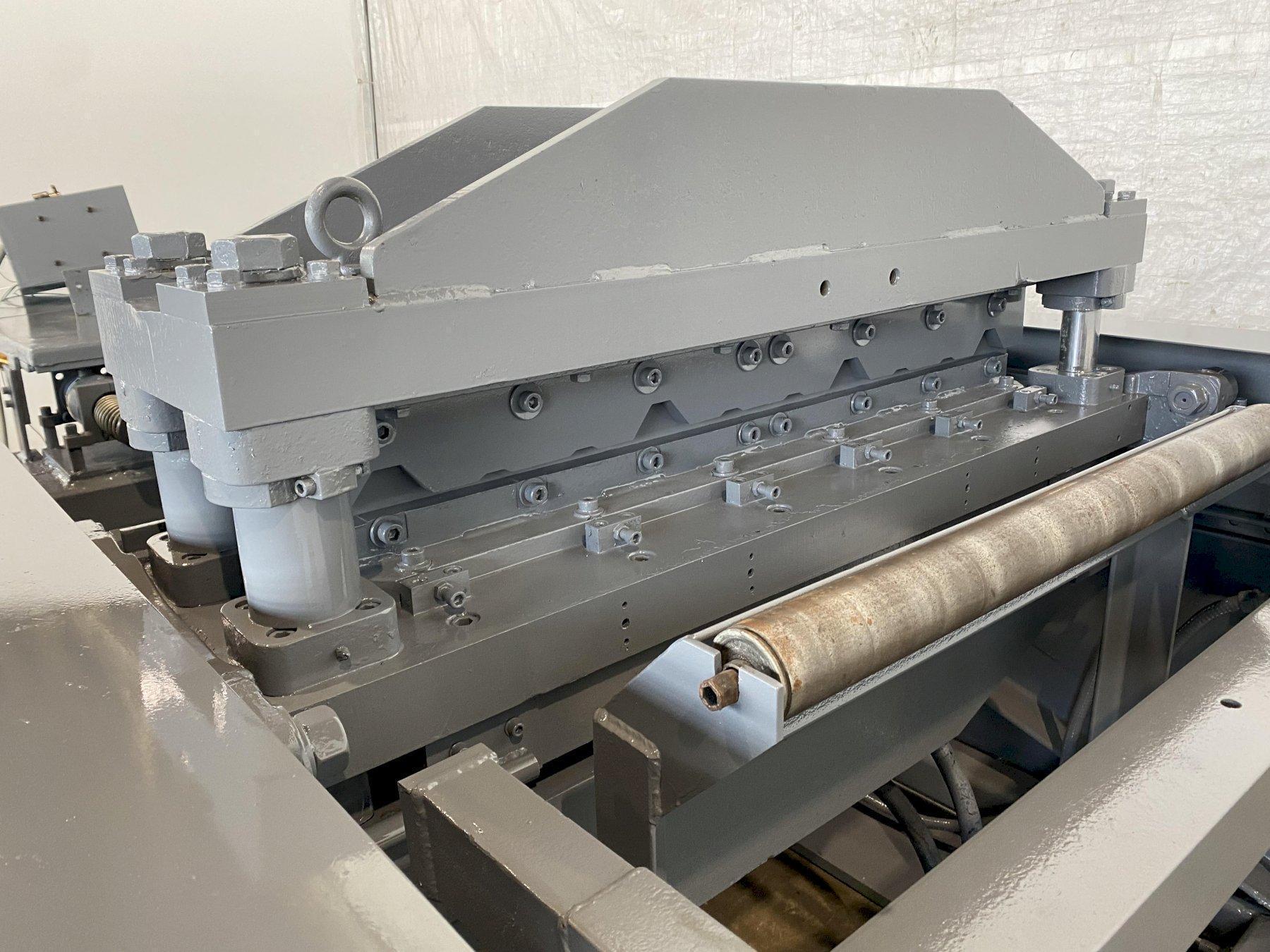

FLYING SHEAR WITH AC SERVO ACCELERATOR

MACHINE IS SET UP FOR 36" R PANEL

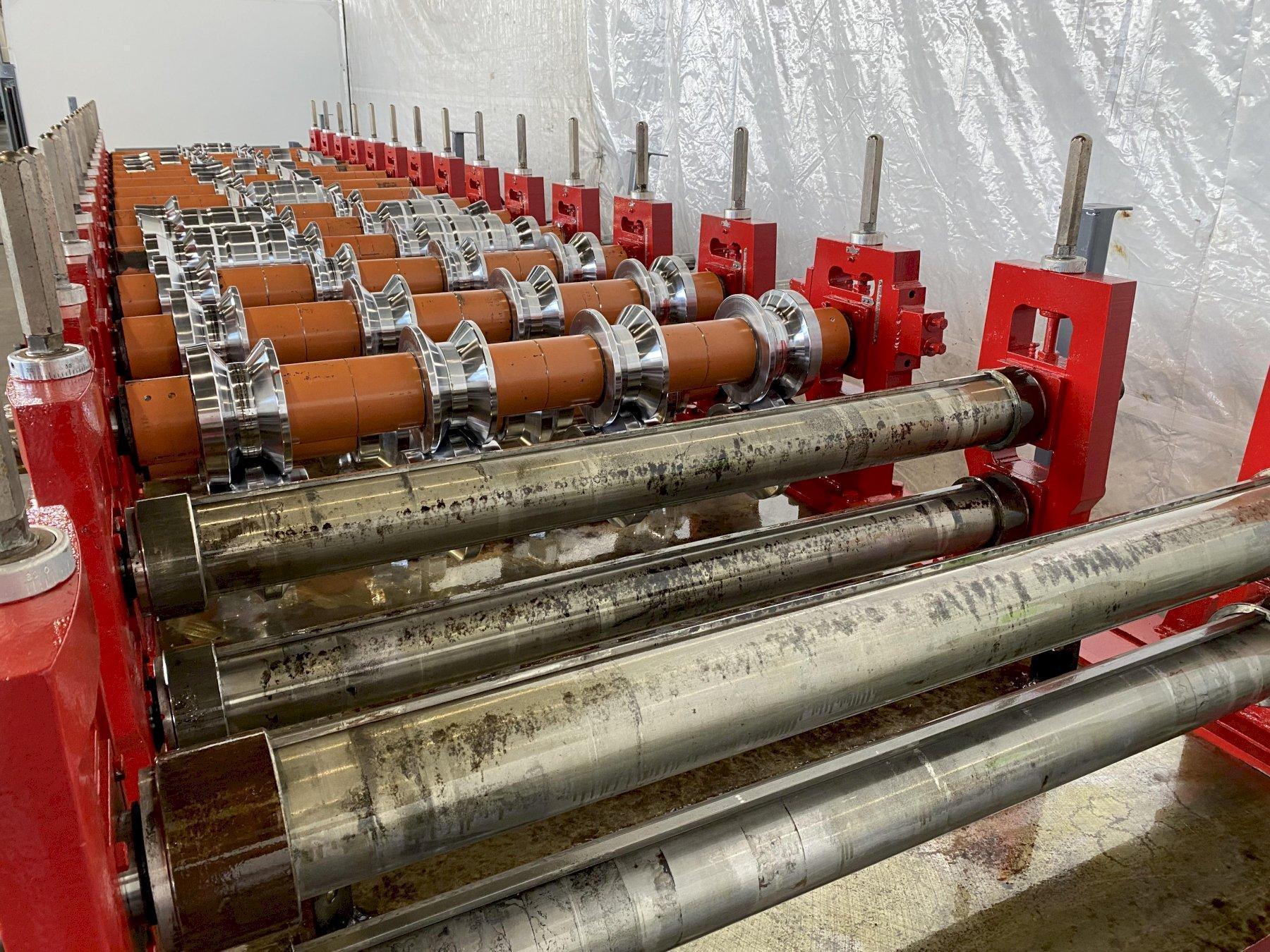

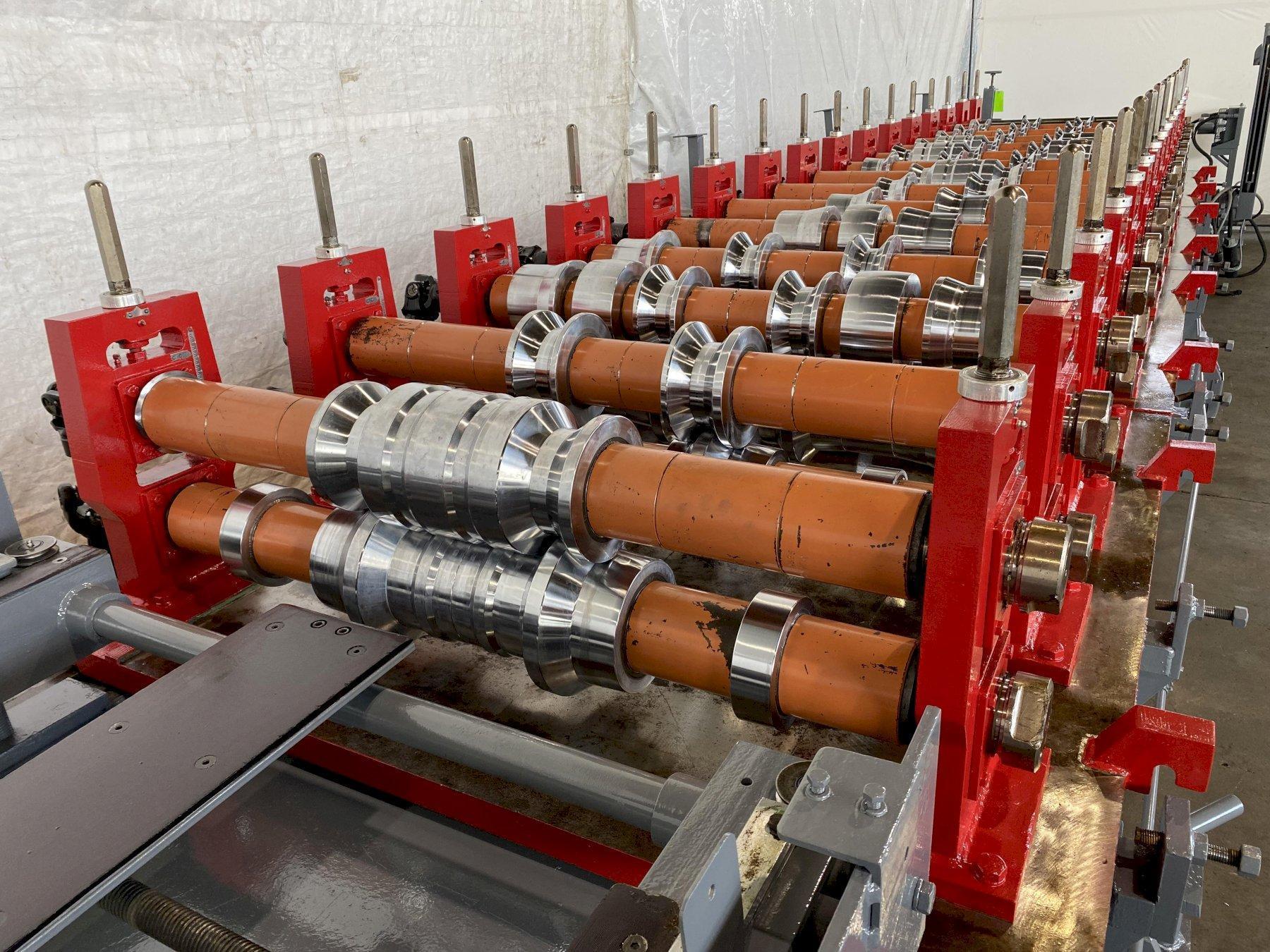

BRADBURY TOOLING W.O. B011484

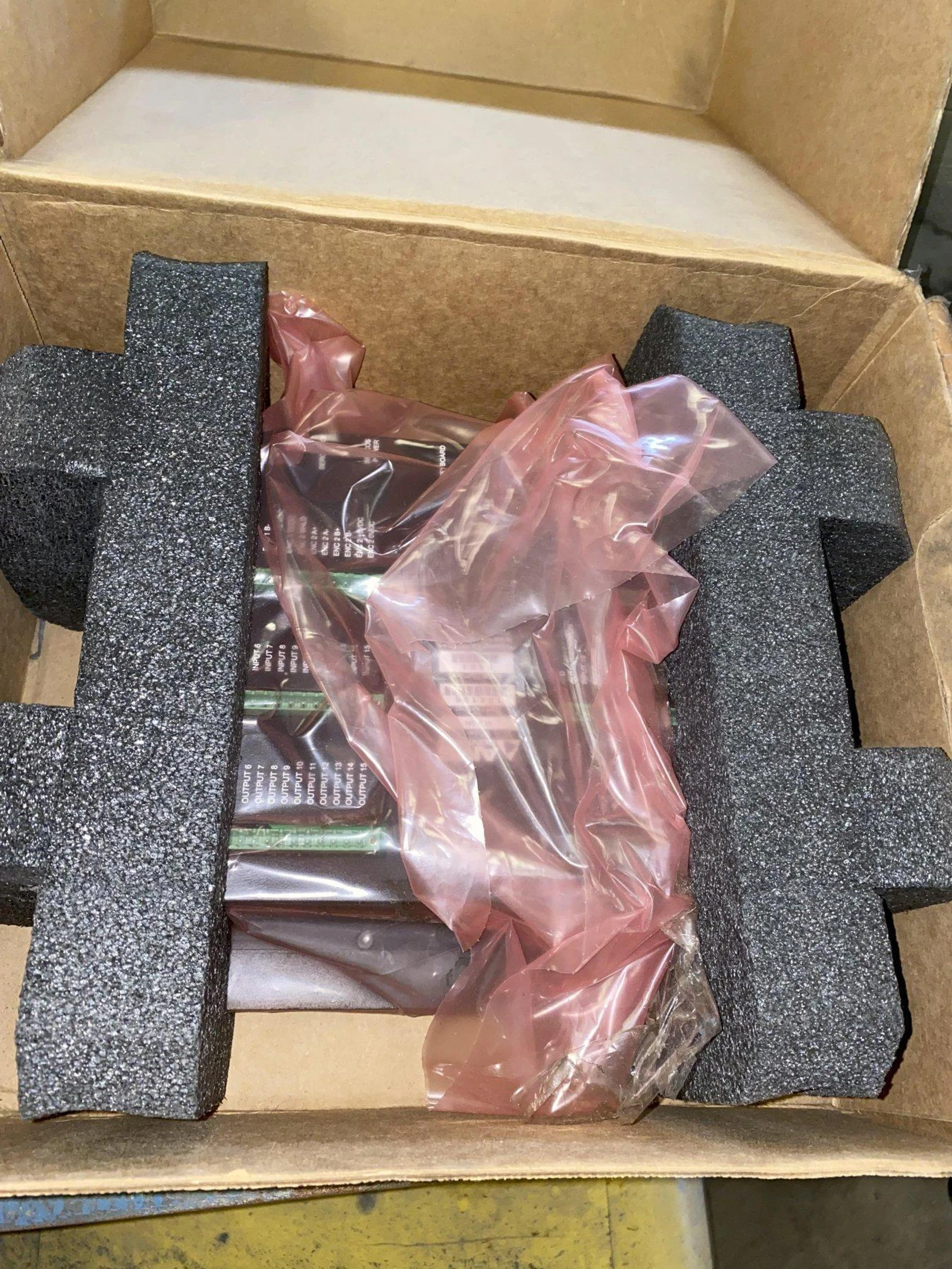

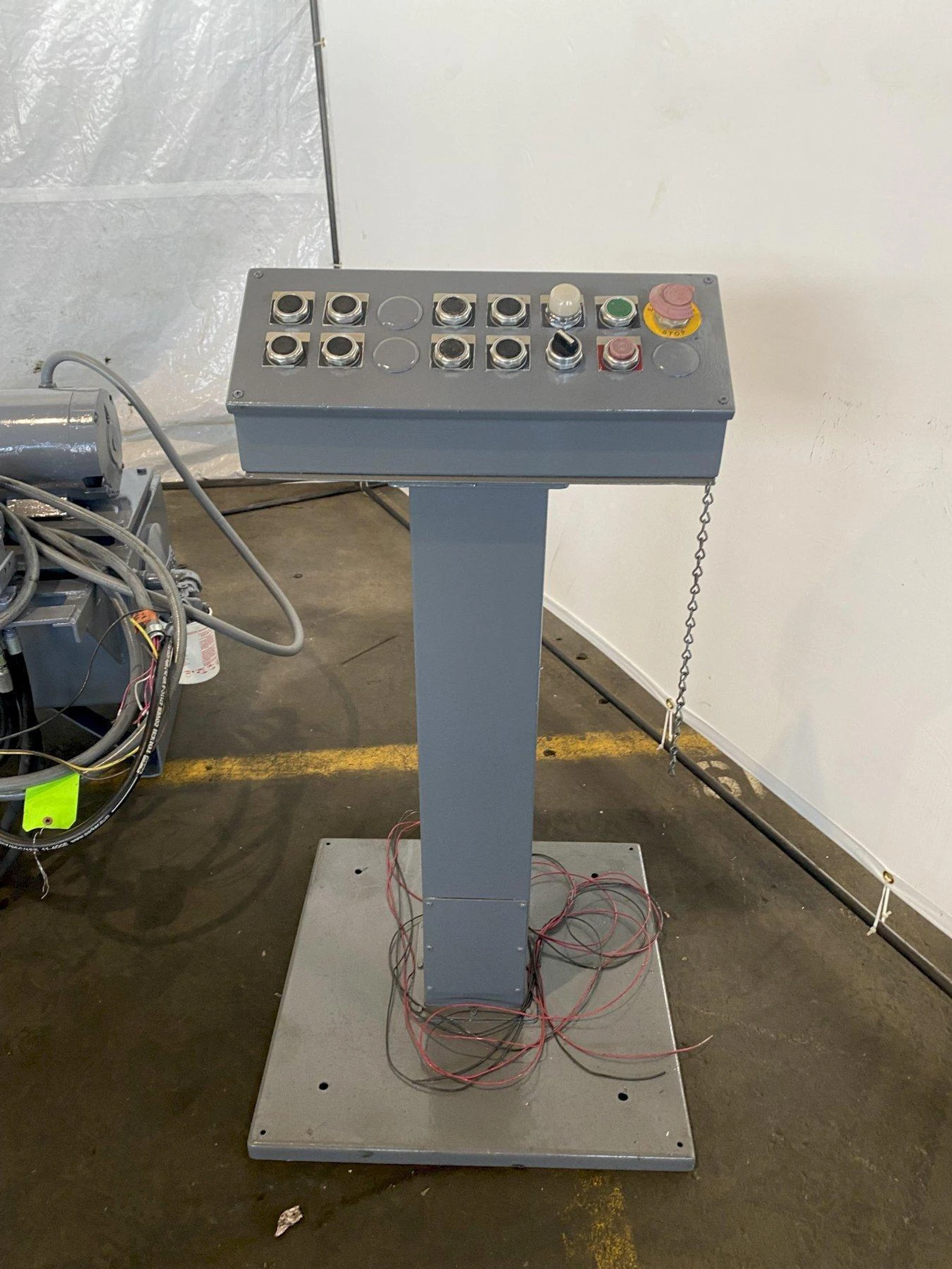

AMS DIGITAL CONTROLLER
