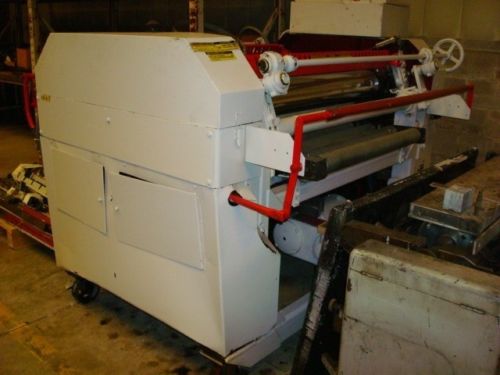

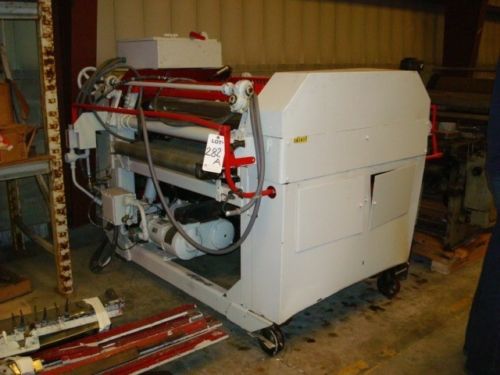

Roll Coater, Black Brothers, 44" Wide
Brand
Type
Model
Not specified
Stock #
871
Year
Not specified
Condition
Used
Location
Not specified
|
-Series 300 -44" Wide Combination Roll Coater? -38" Passline Height? -For applying a variety of protective coatings to printed metal sheets. -Upper Elevator with 0 to 3" Opening -Air Cylinders to raise and lower top rolls and control downward pressure on stock. -Direct Coating Section: Coating Roll: 8.750" OD, 40 Durometer Rubber Covered, Ground Smooth Doctor Roll: 6.50" OD, 5CG Chrome Plated & Ground Single Handwheel Doctor Roll Adjustment Lower Infeed Roll: 7.50" OD, 50 Durometer Rubber Covered, Ground Smooth -Reverse Coating Section: Reverse Wiping / Coating Roll: 6.50" OD, 5CG Chrome Plated and Ground Air Loaded Scraper Blade Doctor Roll: 6.5" OD, 5 CG Chrome Plated and Ground Air Loaded Scraper Blade for operation as Reverse Doctor Single Handwheel Doctor Roll Adjustment Lower Outfeed Roll: 7.50" OD, 50 Durometer Rubber Covered, Ground Smooth (with Horizontal Adjustment) Single Handwheel Adjustment for each Coating Section, each with roll Opening Indicator. -Variable Speed Drives: 1.50 HP, 30-150 FPM for Coating and Feed Rolls 1.50 HP, 30-150 FPM for Reverse Wiping / Coating Roll -Electrics: 230 V, 3 PH, 60 HZ -Includes Maintenance Manual |
