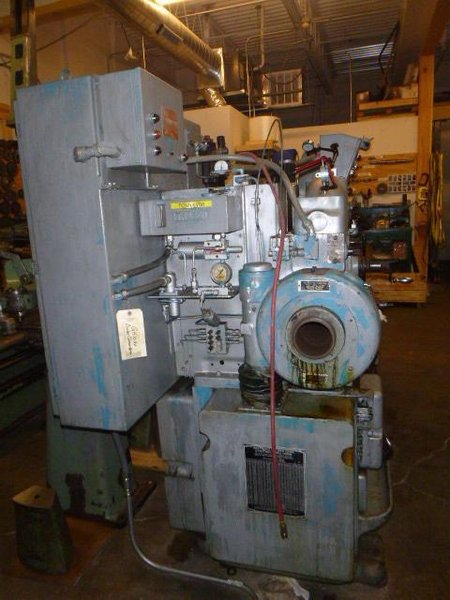

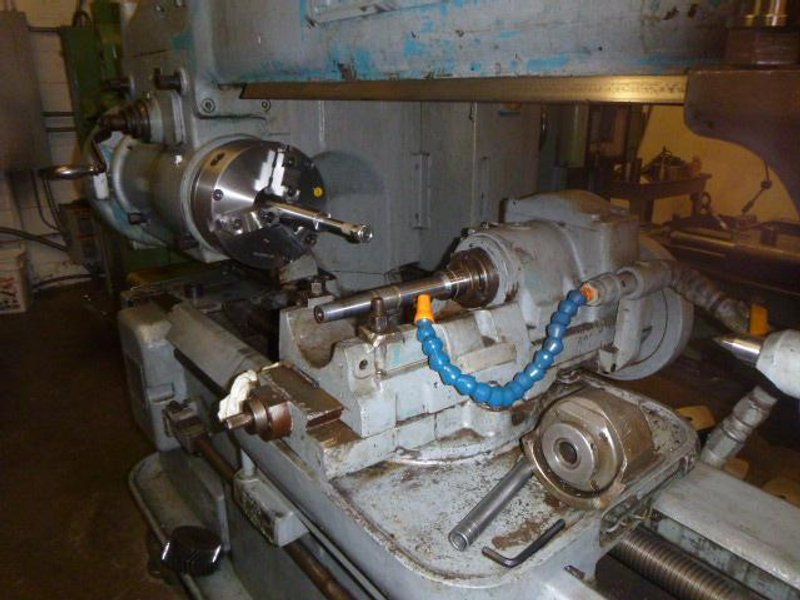

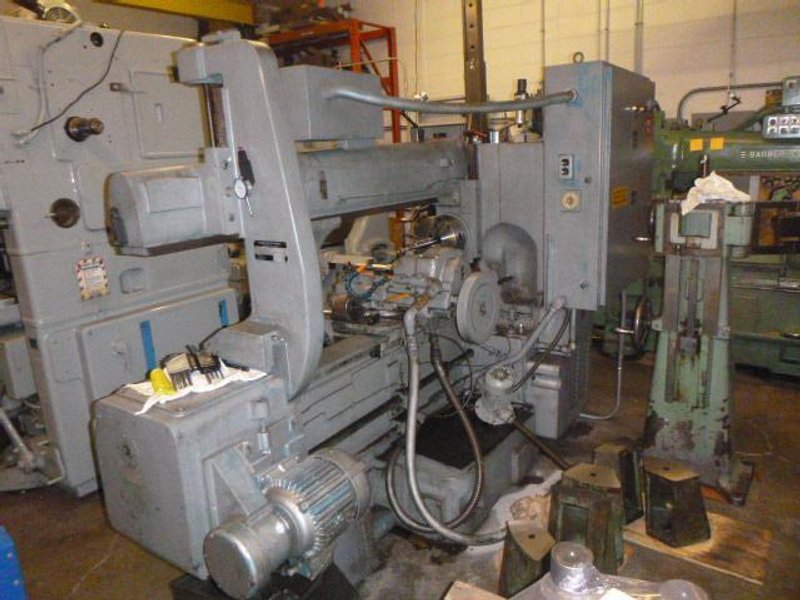

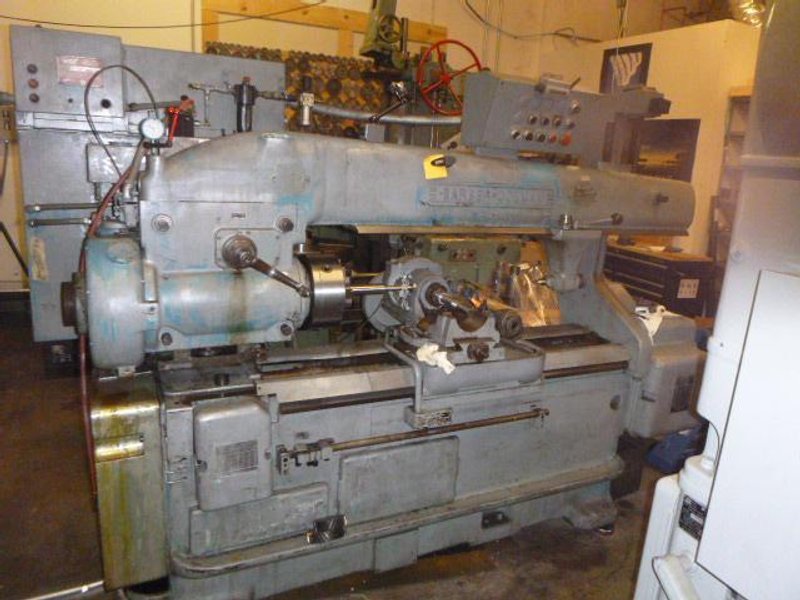

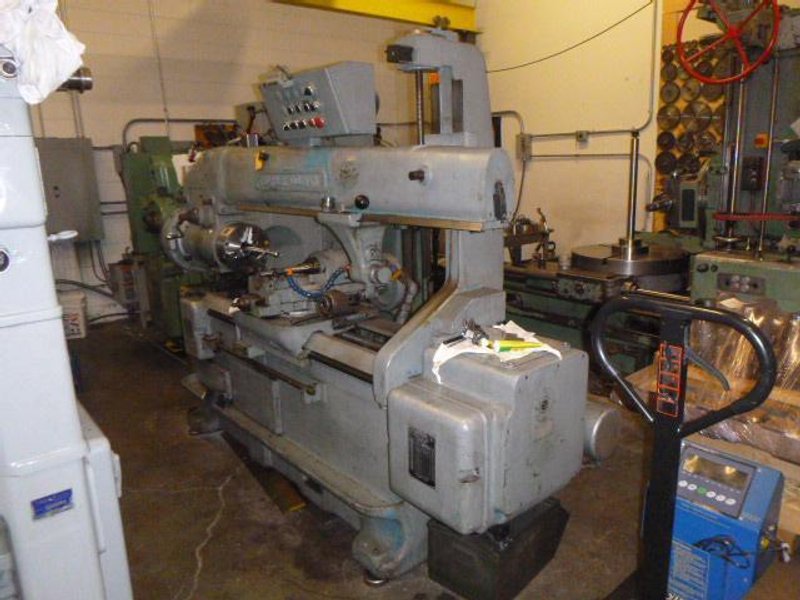

No. 16-36 Barber-Colman Universal Gear Hobber
Brand
Category
Type
Model
16-36
Stock #
GH1044X
Year
1972
Condition
Used
Location
Illinois
| Capacity In Steel, 1 Cut | 6 DP (4.2 Mod) |
| Max. Rated Work Diameter | 16 inches |
| Max. Travel Of Hob Carriage | 36.5 inches |
| Max. Distance Work Spindle Face To Tail Center | 64 inches |
| Max. Work Spindle To Centerline Of Hob Spindle | 39.5 inches |
| Min. Work Spindle To Centerline Of Hob Spindle | 3.5 inches |
| Max. Dist. Of C/L Work Spindle To C/L Hob Spindle | 9.5 inches |
| Min. Dist. Of C/L Work Spindle To C/L Hob Spindle | 0.5 inches |
| C/L Of Work Spindle To Bottom Of Overarm | 8 inches |
| Max. Hob Diameter | 5 inches |
| Diameter Of Work Spindle Bore | 4.125 inches |
| Max. Swivel Angle Setting (Left Or Right) | 45° |
| Hob Speed Range | 59 - 246 RPM |
| Hob Arbor, Straight | 1.25 inches |
| Max. Index Worm Speed | 1500 RPM |
| Approximate Weight | 7000 pounds |
|

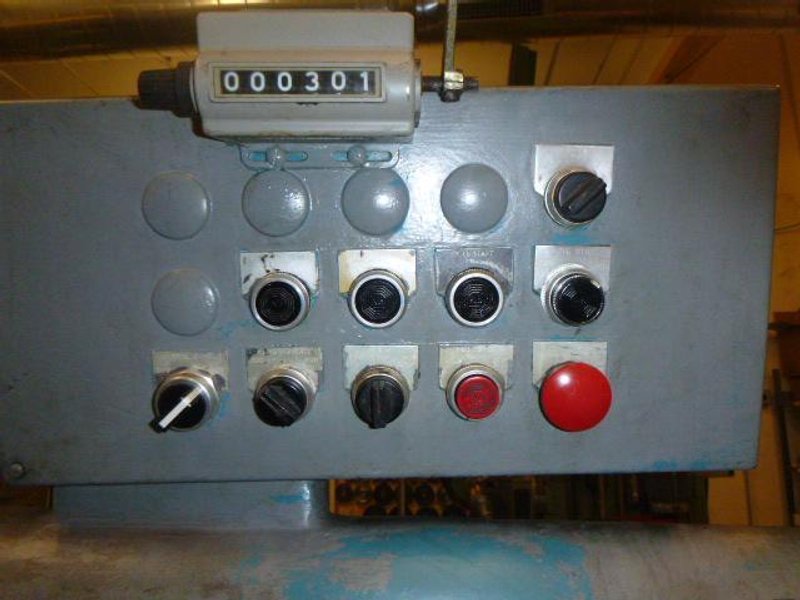

Motor Driven With 5 HP, 3 Phase, 60 Cycle AC Main Drive Motor. 2 HP, 3 Phase, 60 Cycle AC Rapid Traverse Motor. 1 HP, 3 Phase, 60 Cycle AC Hydraulic Pump Motor. 3 Phase, 60 Cycle AC Motor For The Lube Pump and Coolant Pump. With Electrical Control Cabinet, Dwell Timer, Hob Rotation Selector And Operators Control Panel. Presently Wired For 3/60/480V Operation. The 16-36 Barber-Colman appears to be in very good condition and can be inspected under power in the Chicago Area at your convenience. |
|
