100 TON HSI DOWNACTING HYDRAULIC SPOTTING PRESS, 50" STR, 78" DLO, 100" LR X 42" FB BA, TILT DOWN RAM, TILT UP BOLSTER

PRELIMINARY SPECIFICATIONS

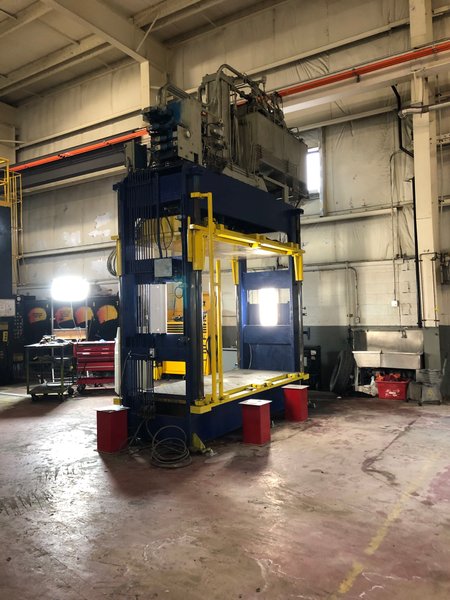

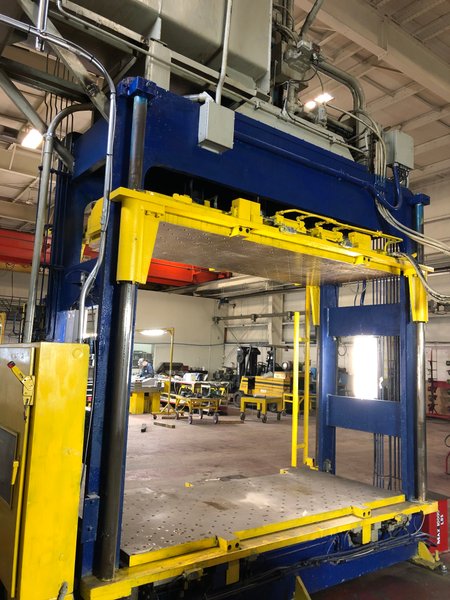

HSI DOWNACTING HYDRAULIC SPOTTING PRESS
EQUIPPED WITH TILT DOWN RAM & TILT UP BOLSTER
WELDED FRAME CONSTRUCTED WITH (2) 3-1/2" DIA. GUIDE BARS
FLOOR STANDING

100 TON CAPACITY
50" STROKE
78" DAYLIGHT OPENING
100" LR X 42" FB BED AREA
100" LR X 42" FB RAM AREA

EQUIPPED WITH

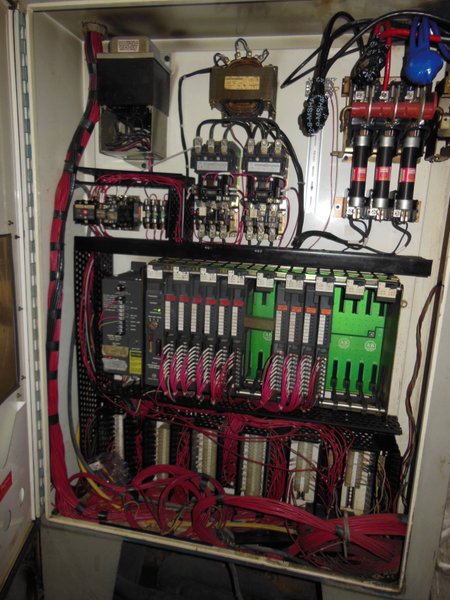

ALLEN-BRADLEY PLC-2 PROGRAMMABLE CONTROLLER
OPERATOR CONTROL CONSOLE
TILT DOWN RAM 45 DEGREE
TILT UP BOLSTER 45 DEGREE
BOLSTER PLATE WITH TAPPED HOLES
RAM WITH TAPPED HOLES

22" FROM FLOOR TO TOP OF BOLSTER PLATE

APPROX O.A. DIMENSIONS  60" FB X 152" LR X 205" H

AVAILABLE FOR INSPECTION UNDER POWER IN PLANT BY APPOINTMENT!
VERY NICE PRESS WITH THE FLIP OUT RAM & BOLSTER OPTION!

Specifications Subject To Verification; Subject To Prior Sale and Price Changes
We encourage your personal inspection of this machine on our floor, available immediately!
