PRELIMINARY SPECIFICATIONS

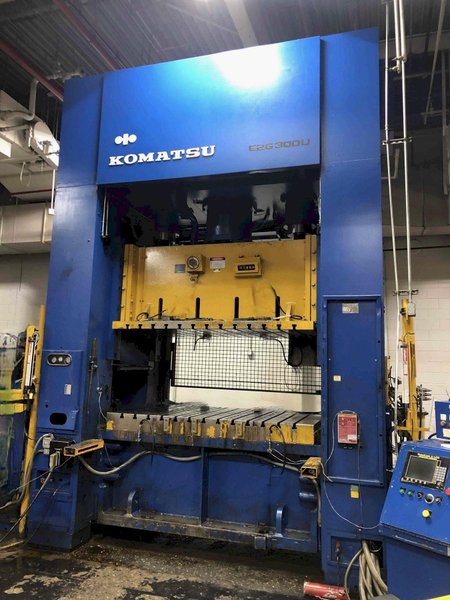

KOMATSU STRAIGHT SIDE PRESS
MODEL: E2G300U
S/N: 10092
YEAR: 1988
14.2" STROKE (360 mm)
28.3" DIE HEIGHT (S.D.A.U.) (719 mm)
10.2" SLIDE ADJUSTMENT (260 mm)
86.6" LR X 55.1" FB SLIDE AREA (2200 mm X 1400 mm)
86.6" LR X 55.1" FB BOLSTER AREA (2200 mm X 1400 mm)
12-40 SPM VARIABLE
EQUIPPED WITH

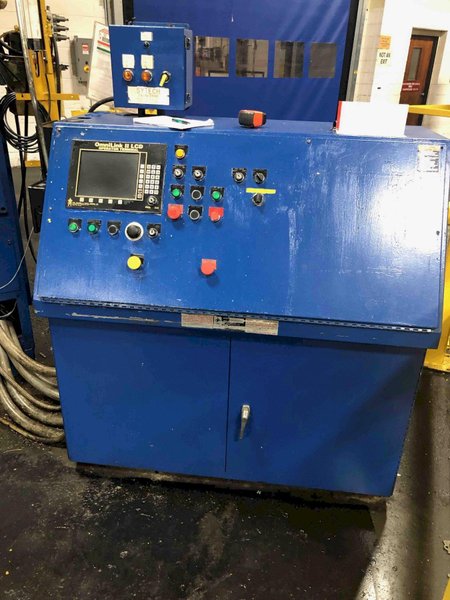

KOMATSU PRESS CONTROL CONSOLE
OMNILINK II PRESS OPERATOR TERMINAL
HYDRAULIC OVERLOAD (RAM) PRESS CONTROL T-STAND
SHADOW 8 WINTRISS LIGHT CURTAINS
36" W X 40" H WINDOWS
7" THICKNESS T-SLOTTED BOLSTER
T-SLOTTED SLIDE BOLSTER
PRESS MANUAL OMNILINK II MANUAL APPROX. O.A. DIMENSIONS 12' LR X (7' FB AT BASE), X (12'6" AT TOP) X 18'-6" H
ESTIMATED WEIGHT 125,000 LBS
CAME OUT OF RUNNING SERVICE, WELL MANINTAINED!
AVAILABLE FOR INSPECTION UNDER POWER, CALL FOR APPOINTMENT!
**Specification Subject To Verification: Subject To Prior Sale & Price Change!
We encourage your personal inspection of this machine, available immediately! |
