PRELIMINARY SPECIFICATIONS

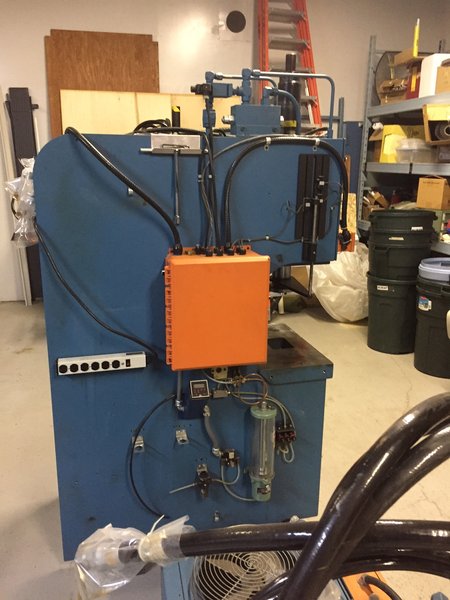

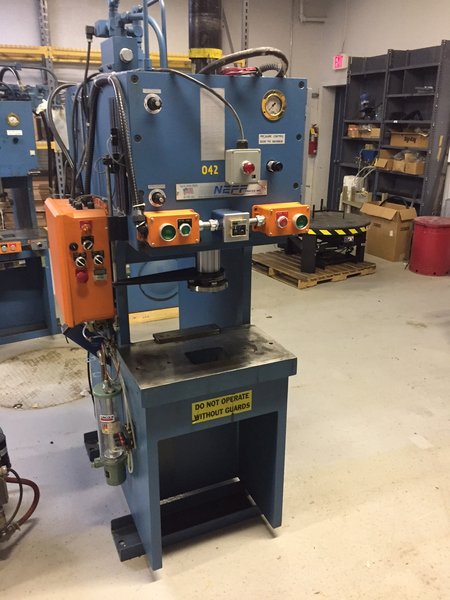

NEFF C-FRAME HYDRAULIC DOWN ACTING PRESS
OPEN BACK FRAME
S/N P9800

25 TON CAPACITY
6" STROKE
12" DAYLIGHT
8" THROAT
23.5" LR X 12.5" FB BED AREA
4.40" X 6" CUT OUT BOTTOM BOLSTER

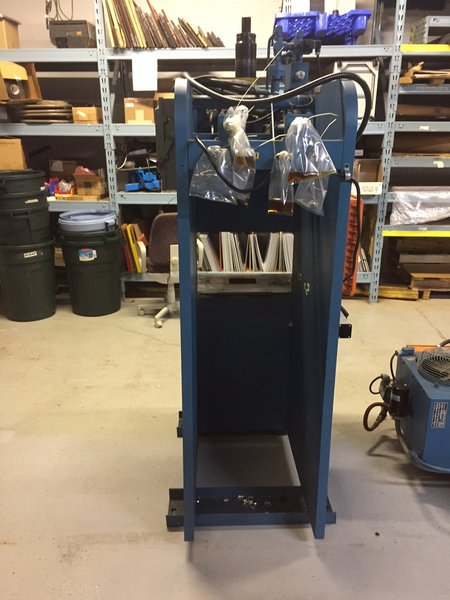

19.5" OPEN BACK FRAME

EQUIPPED WITH

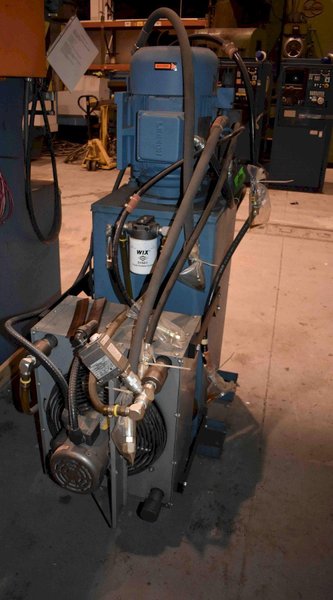

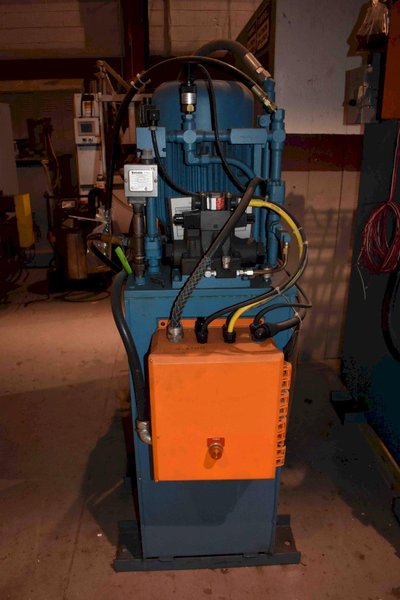

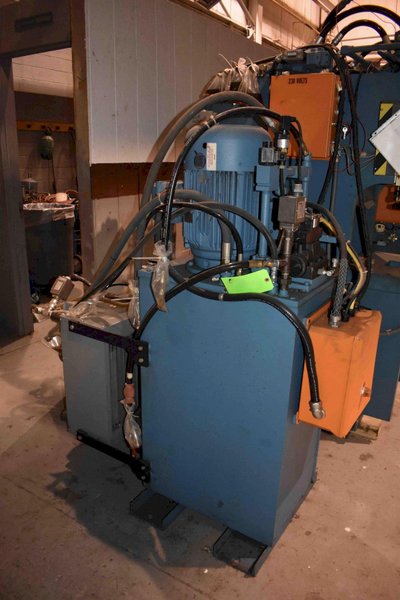

MOTOR, ELECTRICS, & HYDRAULIC PACKAGE

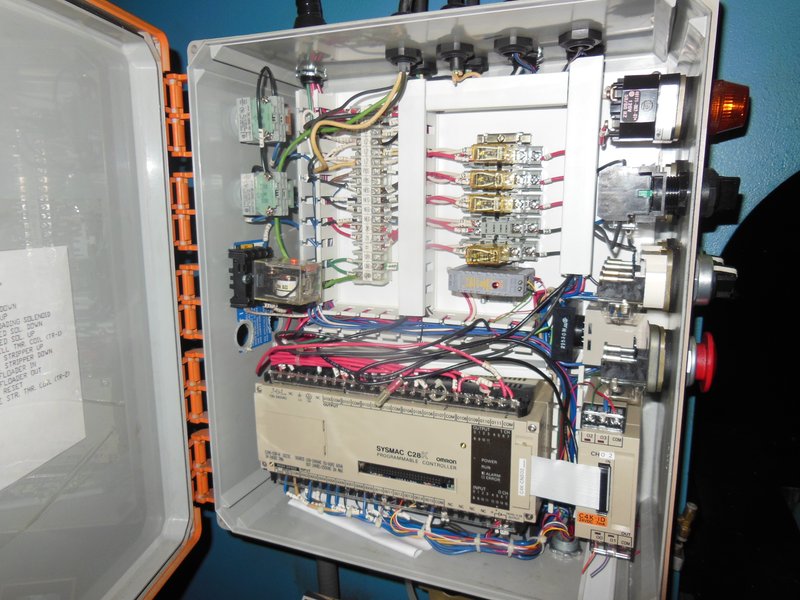

OMRON SYSMAC C28K PROGRAMMABLE CONTROLLER
OPERATOR PALM CONTROLS
6" DIA. CYLINDER
LINCOLN LUBE PUMP SYSTEM
15 HP MOTOR
60 GALLON RESERVOIR CAPACITY
OIL COOLER BY AIR

DIMENSIONS
PRESS APPROX. 48" W X 60" L X 90" H, EST. WEIGHT 3,000 LBS
HYDRAULIC TANK APPROX. 30" W X 60" L X 65" H, EST. WEIGHT 1,500 LBS

WELL MAINTAINED PRESS, AVAILABLE FOR INSPECTION & IMMEDIATE DELIVERY, ALSO AVAILABLE 25 TON, & 40 TON NEFF HYD. PRESSES, CALL!!!

Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this machine, available immediately!
