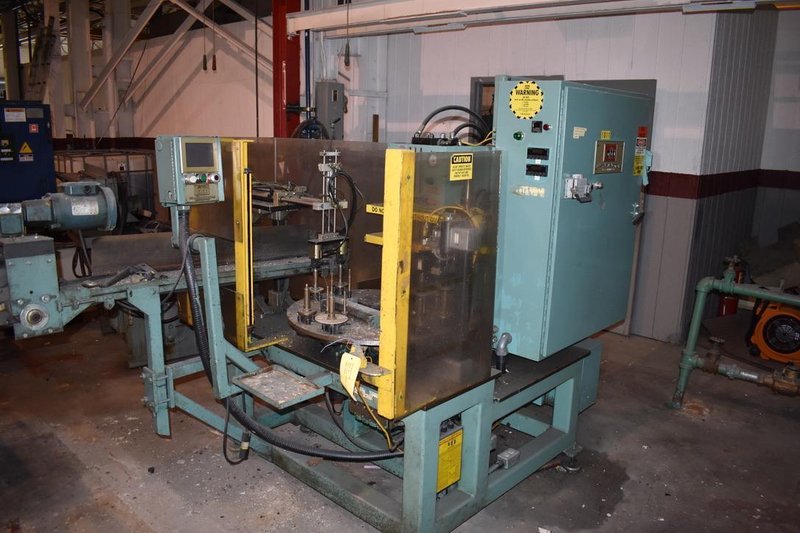

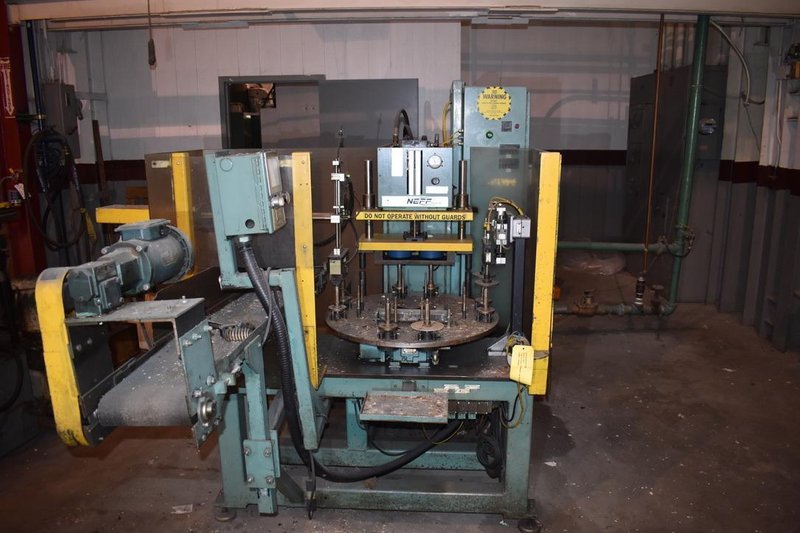

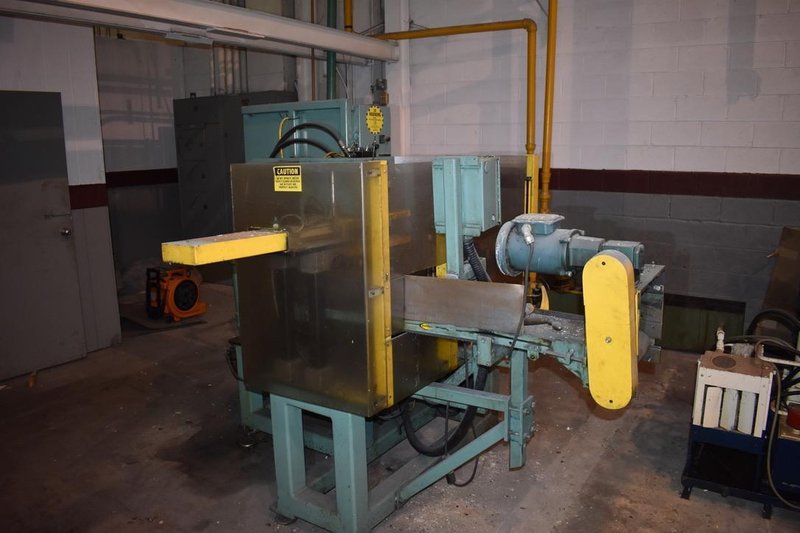

12 Ton NEFF C-Frame Hydraulic Press Model D12-5M, 7" STR, 18" DLO, 7" Throat, Rotary Table
Brand
Category
Type
Model
D12-5M
Stock #
5008
Year
1997
Condition
Good
Location
Michigan
|
PRELIMINARY SPECIFICATIONS;
NEFF HYDRAULIC C-FRAME PRESS MODEL D12-5M Year 1997 12 TON CAPACITY 0-7" STROKE 18" DAYLIGHT OPENING 7" THROAT 3.25" RAM DIAMETER 30" FROM FLOOR TO BED 10" X 21" RAM 30" DIAMETER ROTARY TABLE SPEEDS 240 IPM ADVANCE 90 IPM PRESS 146 IPM RETURN VOLTAGE: 575V / 3PHASE / 50/60 CYCLES EQUIPPED WITH MOTOR AND CONTROLS 5 HP MOTOR ATC CONTROLS ATC 4-STATION ROTARY INDEX TABLE 30" DIAMETER UNLOAD CONVEYOR MOTORIZED STi LIGHT CURTAINS 12 GALLON HYDRAULIC TANK MAIN RAM CYLINDER WITH 2 GUIDES Estimated Weight 3,500LBS Approx. Dimensions 80" LR x 110" FB x 76" H The Rotary Dial Table & Belt Conveyor is Removable to use press as standard C Frame Gap Hyd Press! Available For Inspection, Available Immediately! Specifications Subject To Verification; Subject To Prior Sale & Price Change |
