PRELIMINARY SPECIFICATIONS

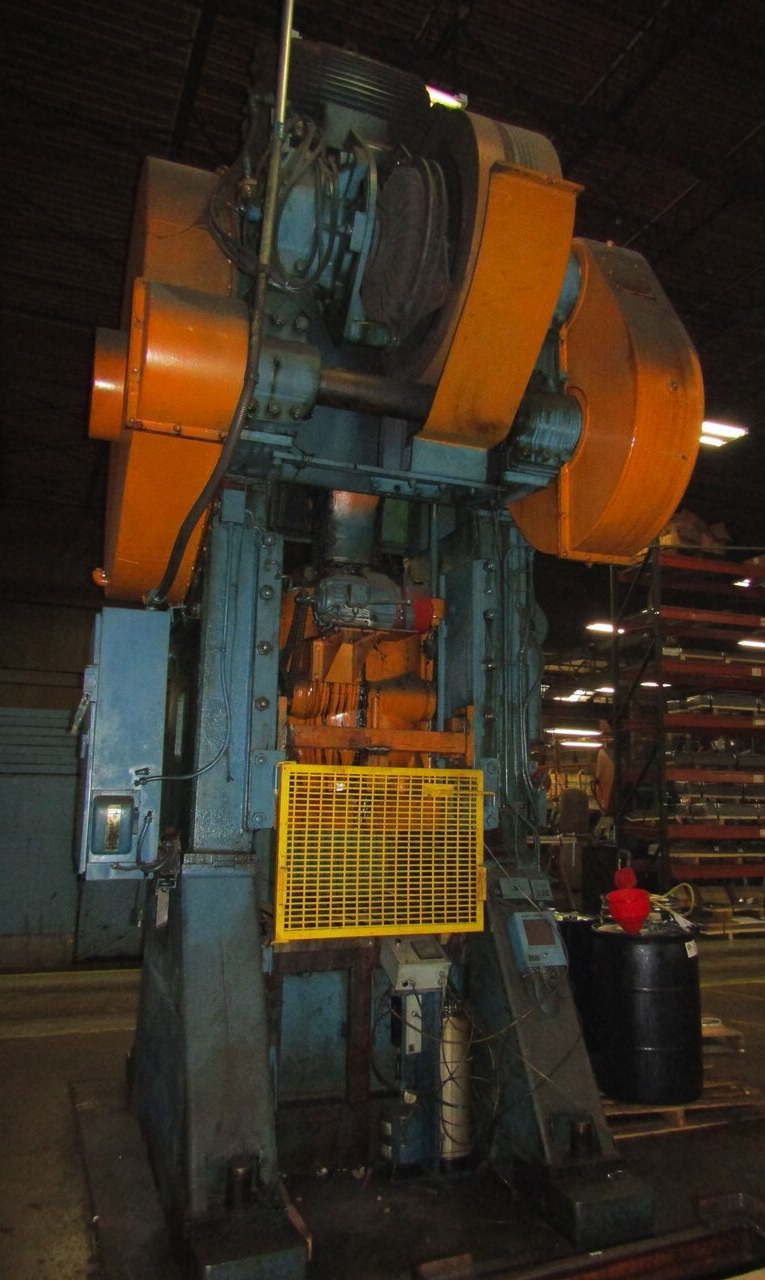

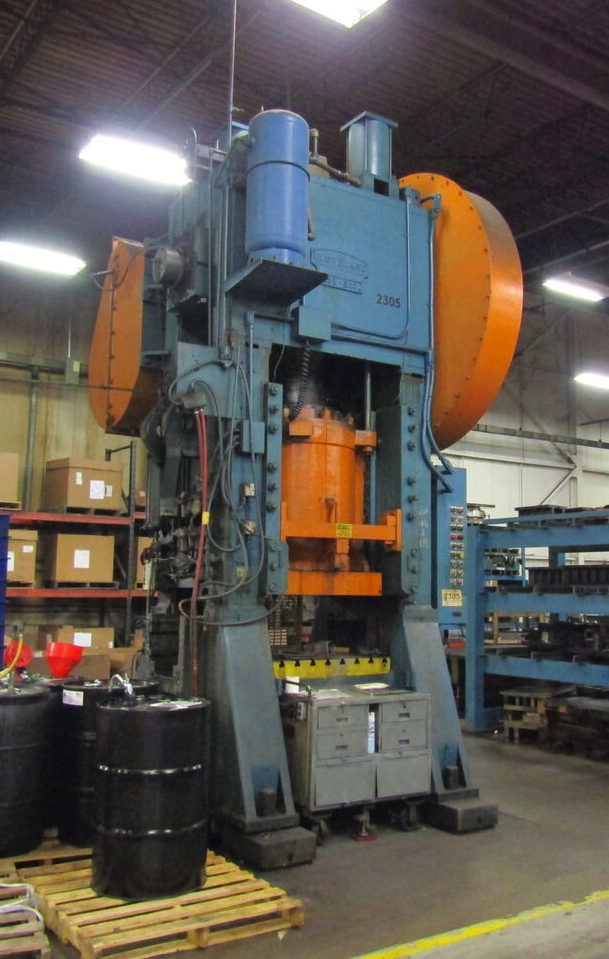

CLEVELAND STRAIGHT SIDE SINGLE CRANK PRESS
TIE ROD FRAME, SINGLE END DRIVEN DOUBLE BACK GEARED (Updated Clutch/Brake)
MODEL 20E
YEAR 1969

500 TON CAPACITY
8" STROKE
22" SHUT HEIGHT (S.D.A.U.)
6" SLIDE ADJUSTMENT (MOTORIZED)
44" L-R X 36" F-B X 3-3/4"  BOLSTER AREA
36" L-R X 36" F-B SLIDE AREA
37" DIST. BETWEEN GIBS
18" WINDOW
20 SPM

EQUIPPED WITH
UPDATED CLUTCH/BRAKE PACKAGE
 - WICHITA CCB-675 COMB. CLUTCH/BRAKE SYSTEM, SHRINK DISC MOUNT
AIR COUNTERBALANCED RAM
MOTORIZED RAM ADJUSTMENT

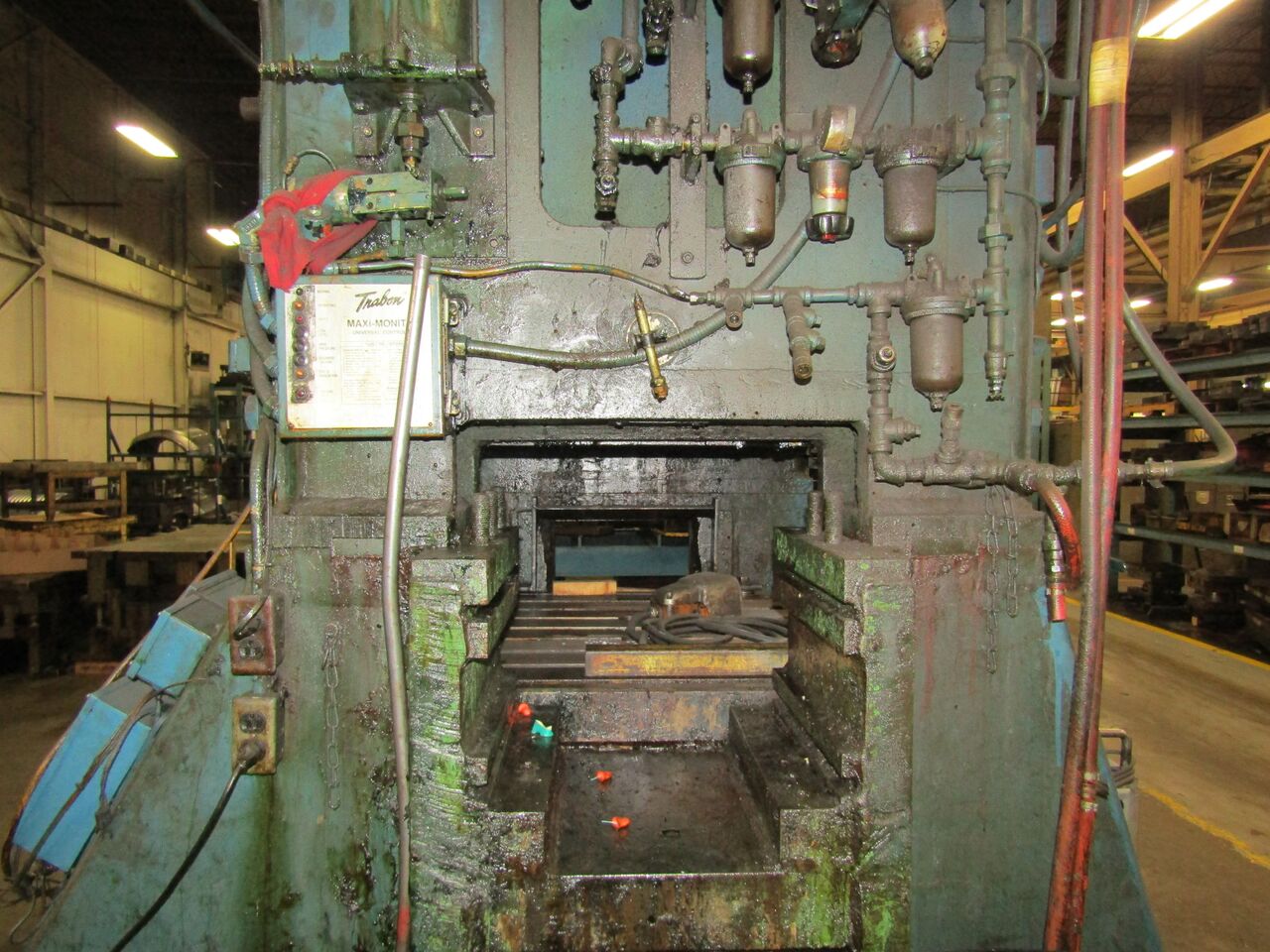

T-SLOTTED BOLSTER

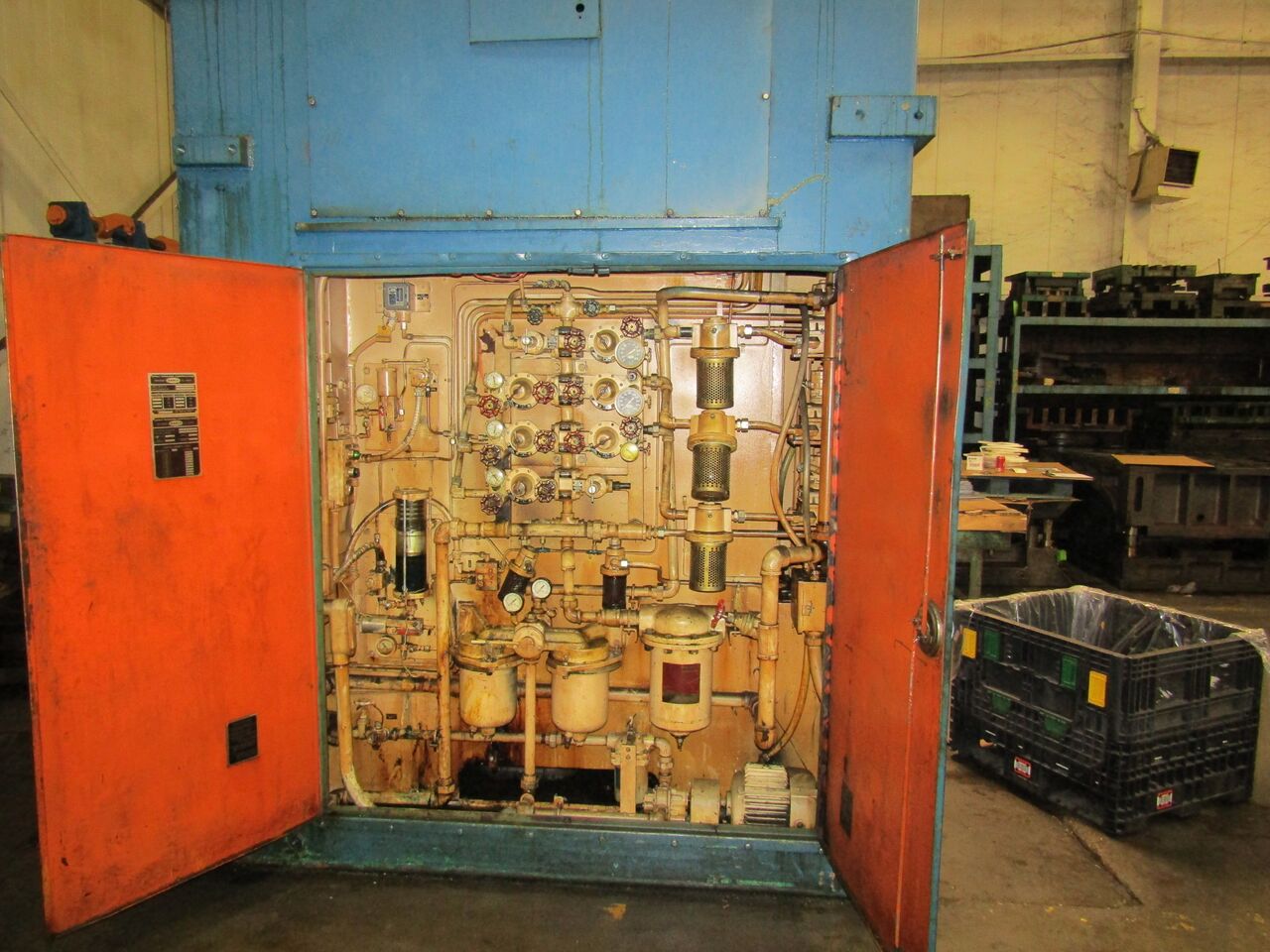

TRABON AUTOMATIC LUBE MAXI-MONITOR
60 HP MOTOR, 440, 3 PH, 60 HZ

APPROX. O.A. DIMENSIONS
APPROX. 132" LR X 114" FB X 204" H

AVAILABLE IMMEDIATELY, CALL FOR DETAILS!!!

Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this machine, available immediately!
