PRELIMINARY SPECIFICATIONS

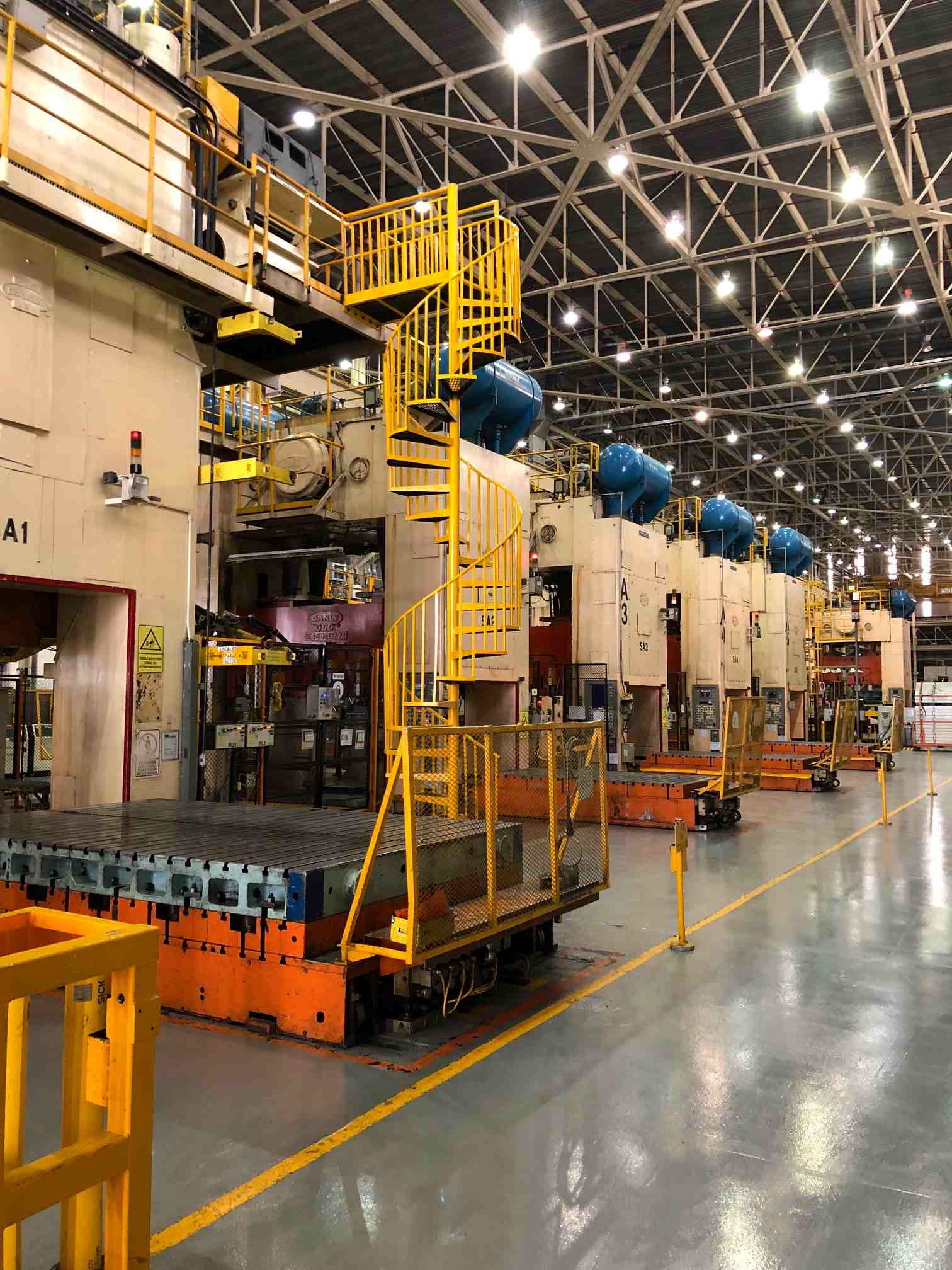

DANLY TRANDEM PRESS LINE CONSISTING OF

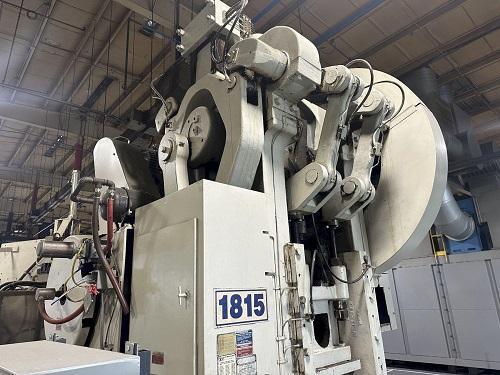

(1) 2500/1300 TON DANLY STRAIGHT SIDE DOUBLE ACTION PRESS # 1 IN LINE
(1) 500 TON DANLY STRAIGHT SIDE DOUBLE CRANK PRESS # 2 IN LINE
(2) 300 TON DANLY STRAIGHT SIDE DOUBLE CRANK PRESSES # 3 & 4 IN LINE
(1) 500 TON DANLY STRAIGHT SIDE DOUBLE CRANK PRESS # 5 IN LINE

(1) 2500/1300 TON DANLY DOUBLE ACTION STRAIGHT SIDE PRESS
MODEL D4-2500/1300-156 X 102 QDC

2500 TON INNER SLIDE
1300 TON BLANK HOLDER
44" INNER SLIDE STROKE
33" BLANK HOLDER STROKE
12" INNER SLIDE ADJUSTMENT
12" BLANK HOLDER ADJUSTMENT
96" INNER SLIDE SHUT HEIGHT
86" BLANK HOLDER SHUT HEIGHT
156" LR X 102" FB BED AREA (ROLLING BOLSTER L-R)
138" LR X 84" FB INNER SLIDE AREA
156" LR X 102" FB BLANK HOLDER AREA
143" LR X 75" FB BED OPENING
108" LR X 126" FB UPRIGHT OPENING
7-1/2 TO 15 STROKES PER MINUTE (2 SPEED CLUTCH)

EQUIPPED WITH

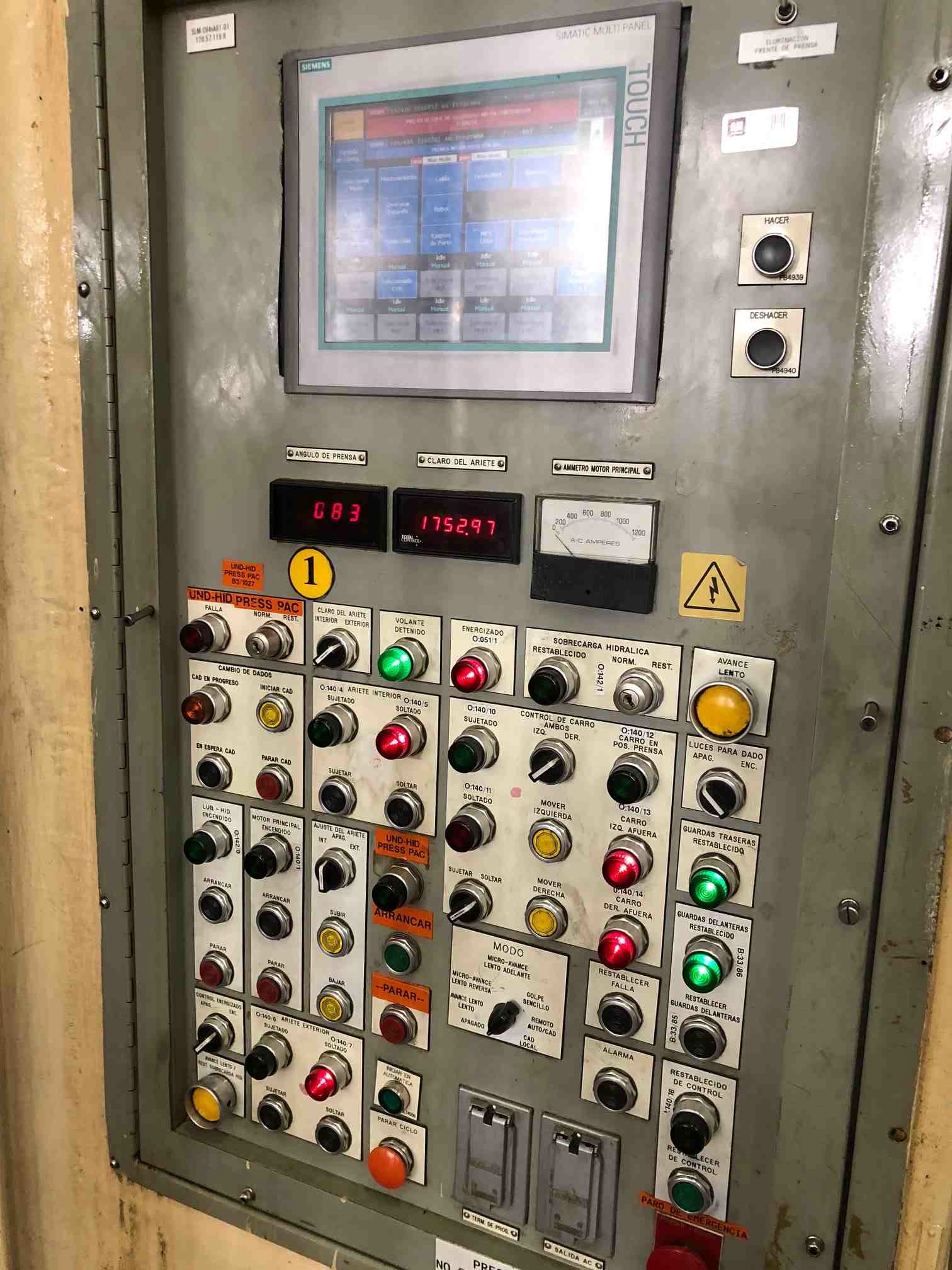

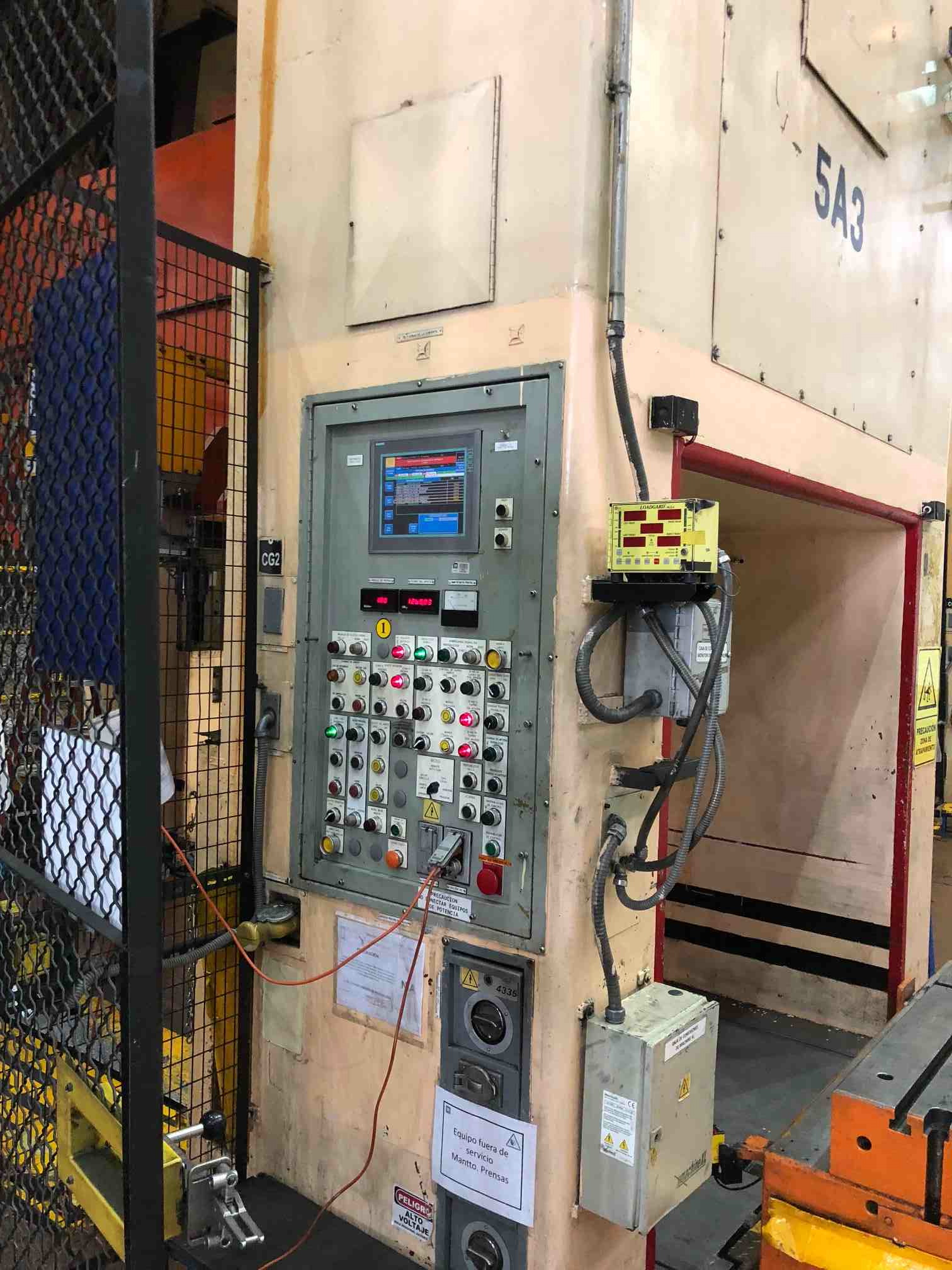

CONTROL PANEL
SIEMENS MULTI PANEL TOUCH SCREEN

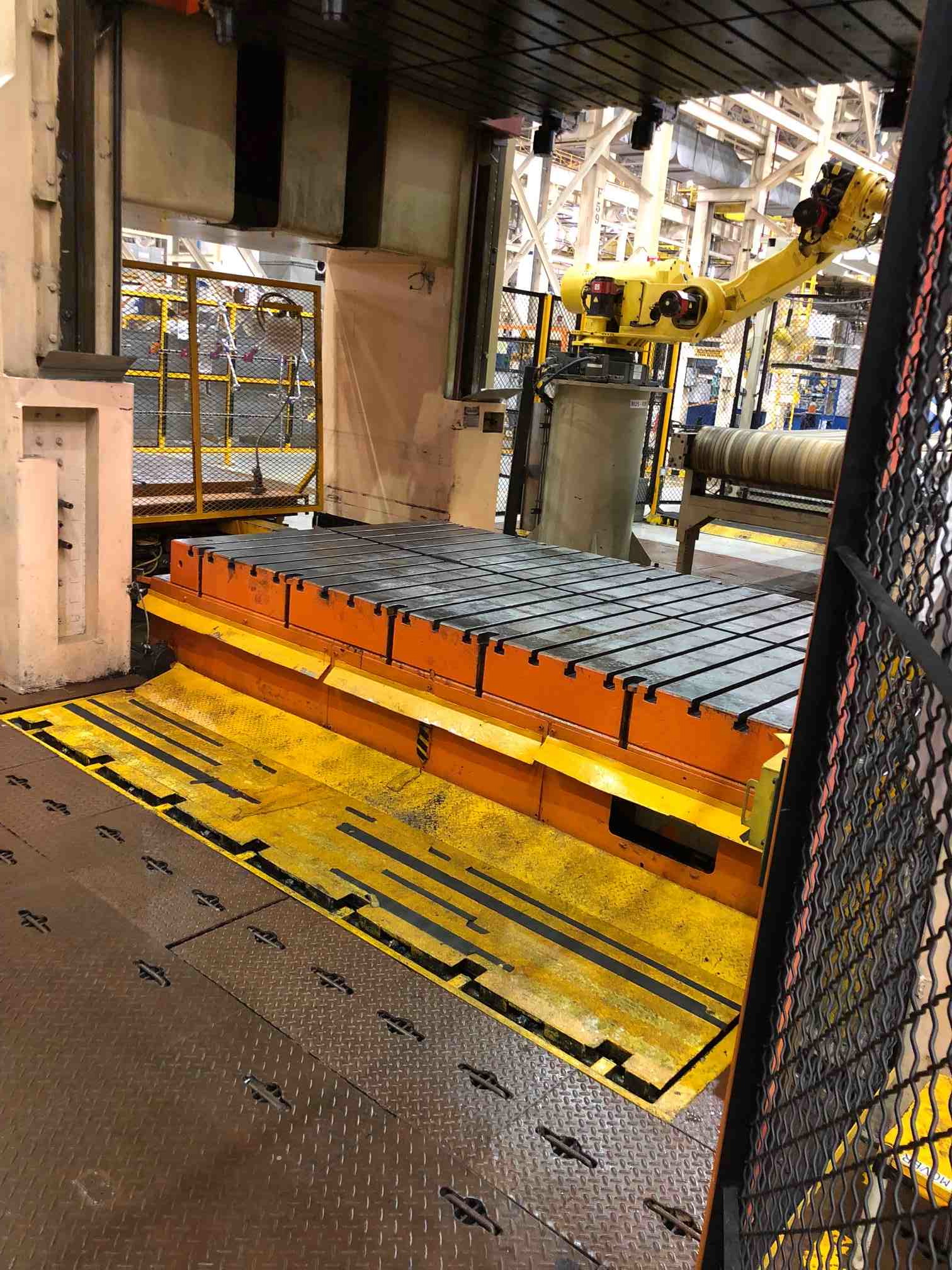

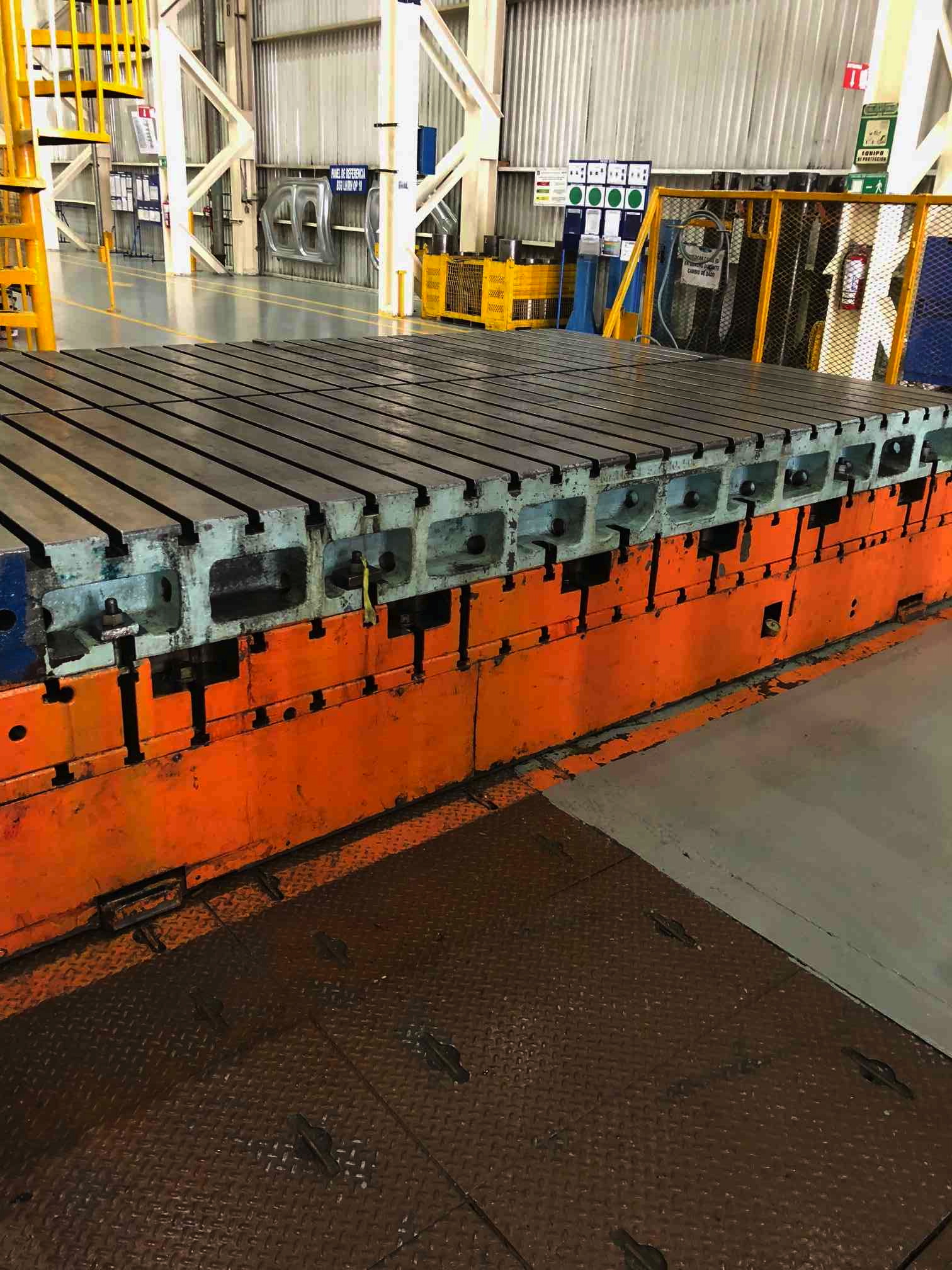

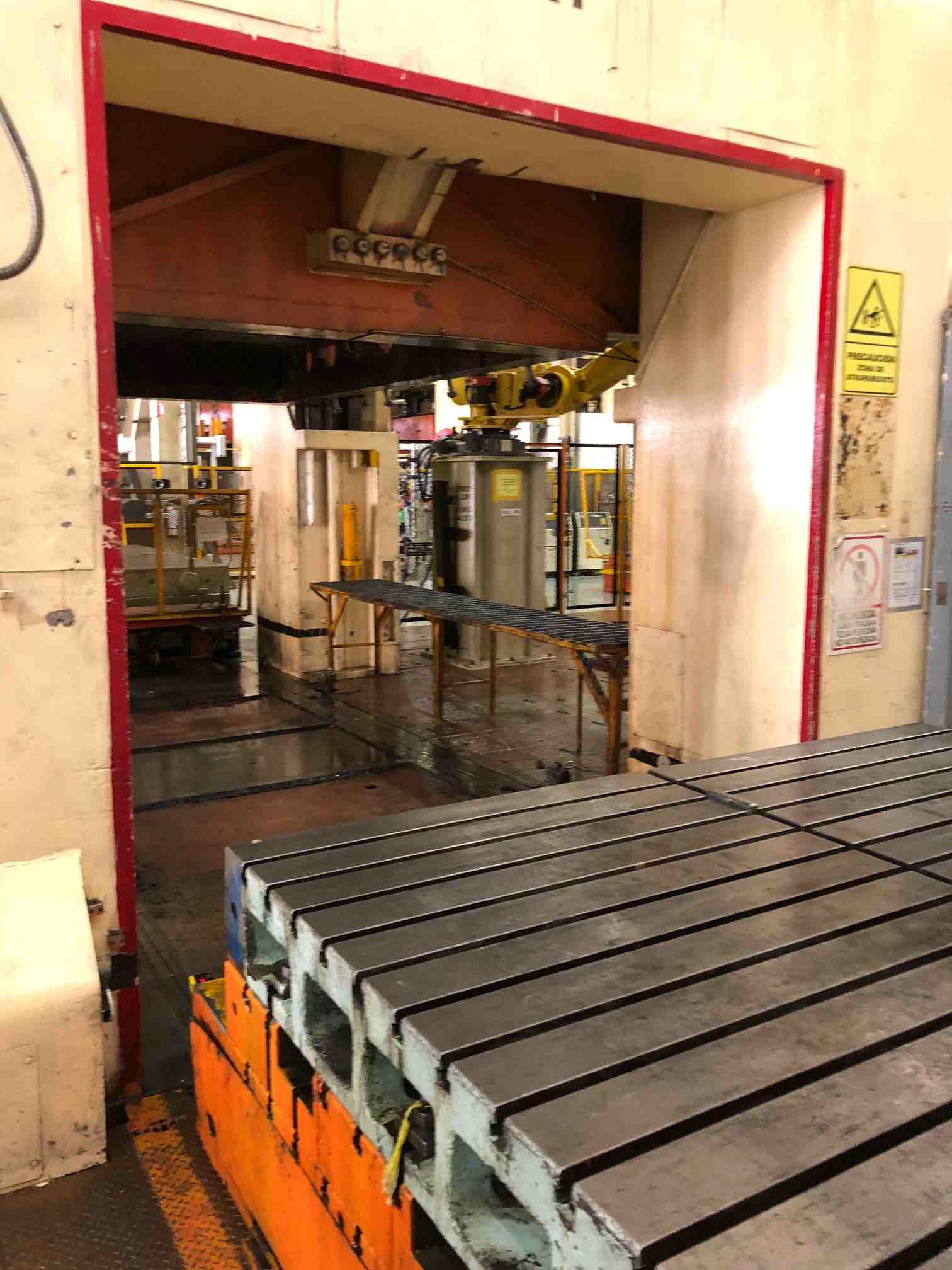

T-SLOTTED BOLSTER (ROLLING BOLSTER L-R)

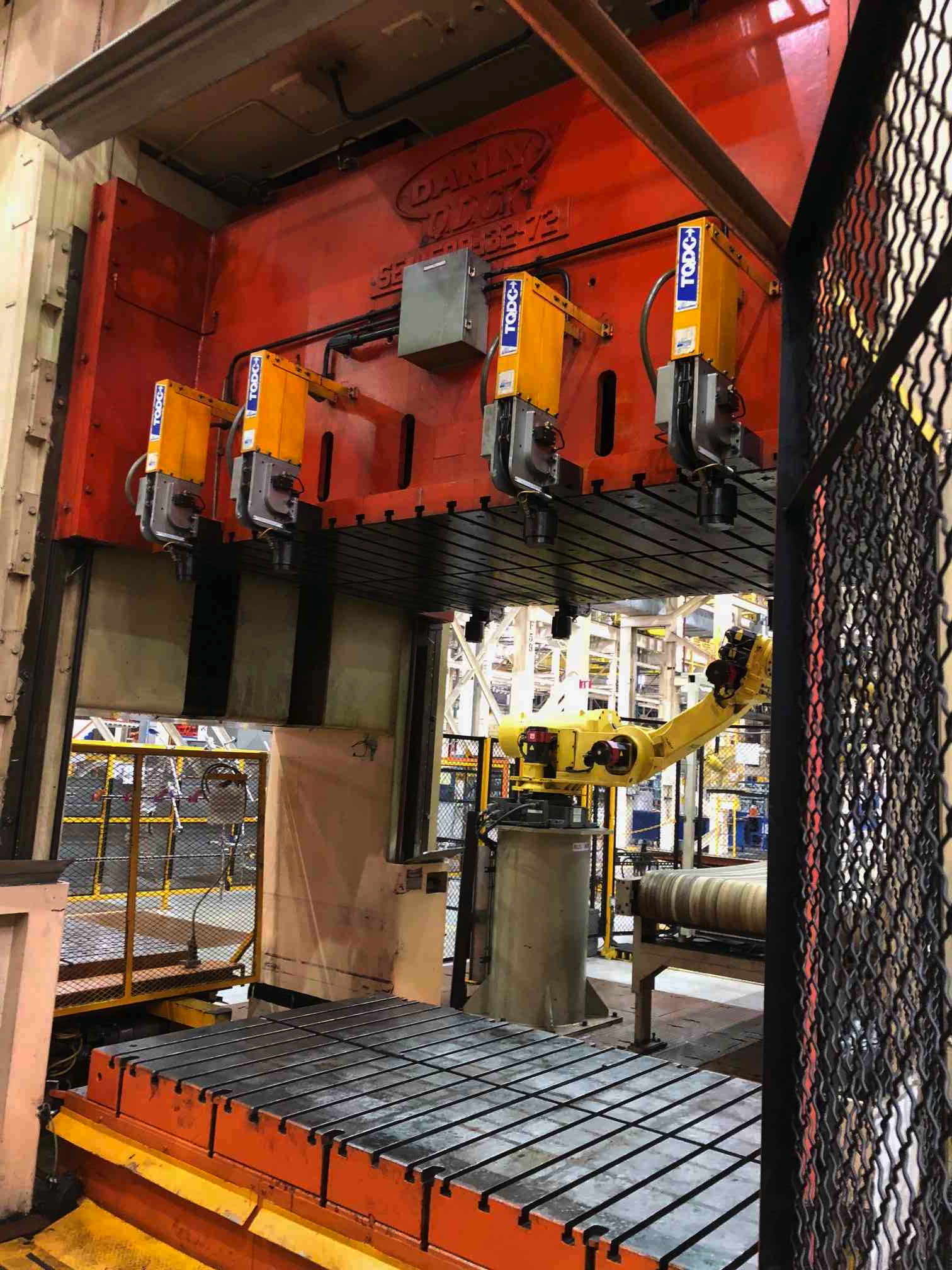

T-SLOTTED SLIDE
MOTOR & ELECTRICS

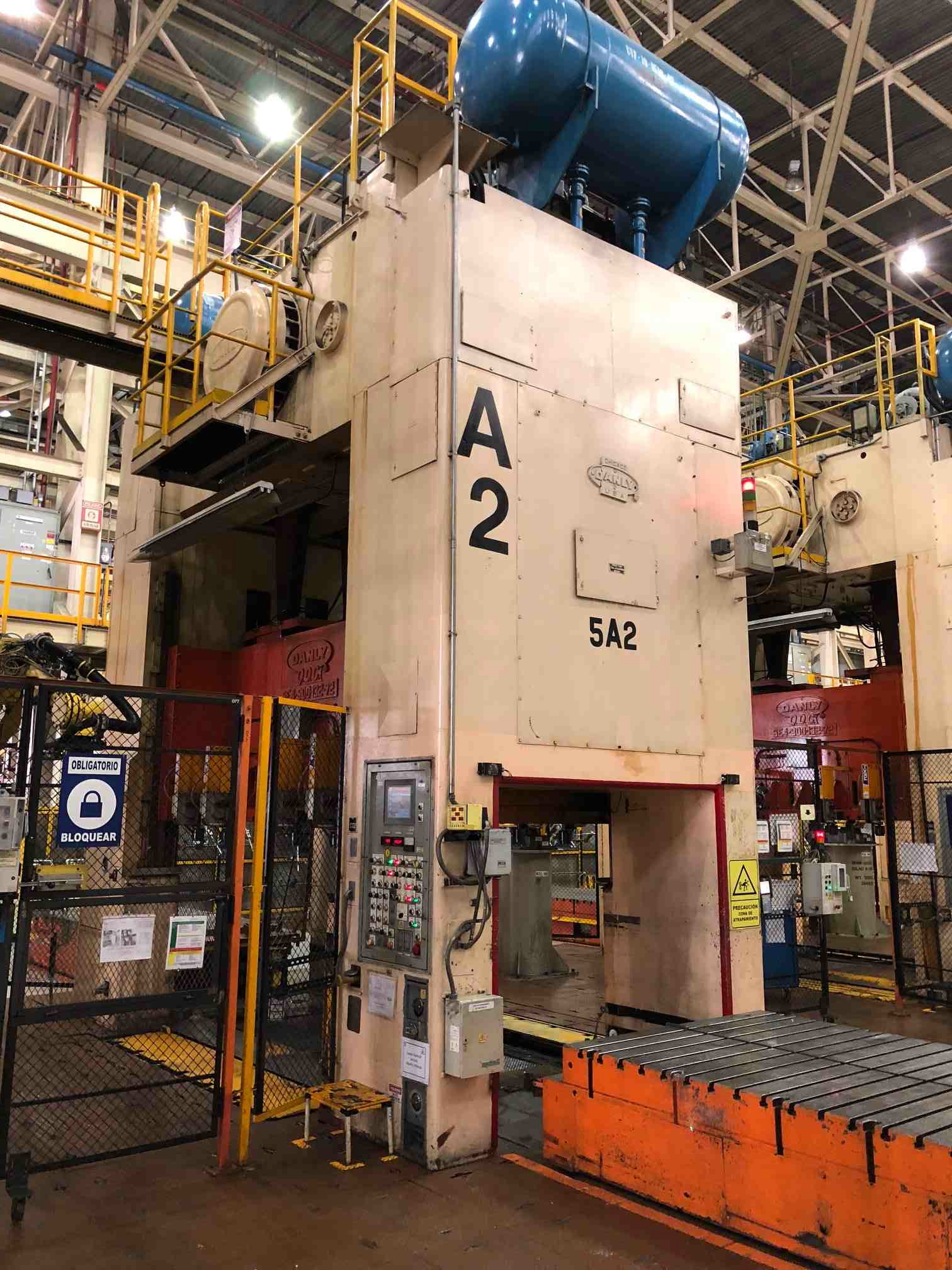

(2) 500 TON DANLY STRAIGHT SIDE DOUBLE CRANK MECHANICAL PRESSES
MODEL SE4-500-132 X 72 QDC
PRESS # 2 & # 5 IN LINE

500 TON CAPACITY
36" STROKE
24" SLIDE ADJUSTMENT
64" SHUT HEIGHT
132" LR X 72" FB BED AREA (ROLLING BOLSTER L-R)
132" LR X 72" FB SLIDE AREA
117" LR X 51" FB BED OPENING
84" LR X 83" FB UPRIGHT OPENING
20 STROKES PER MINUTE

EQUIPPED WITH
CONTROL PANEL
SIEMENS MULTI PANEL TOUCH SCREEN
T-SLOTTED BOLSTER (ROLLING BOLSTER L-R)
T-SLOTTED SLIDE
MOTOR & ELECTRICS

(2) 300 TON DANLY STRAIGHT SIDE DOUBLE CRANK MECHANICAL PRESSES
MODEL SE4-300-132 X 72 QDC
PRESS # 3 & # 4 IN LINE

300 TON CAPACITY
36" STROKE
24" SLIDE ADJUSTMENT
64" SHUT HEIGHT
132" LR X 72" FB BED AREA (ROLLING BOLSTER L-R)
132" LR X 72" FB SLIDE AREA
117" LR X 51" FB BED OPENING
84" LR X 83" FB UPRIGHT OPENING
20 STROKES PER MINUTE

EQUIPPED WITH
CONTROL PANEL
SIEMENS MULTI PANEL TOUCH SCREEN
T-SLOTTED BOLSTER (ROLLING BOLSTER L-R)
T-SLOTTED SLIDE
MOTOR & ELECTRICS

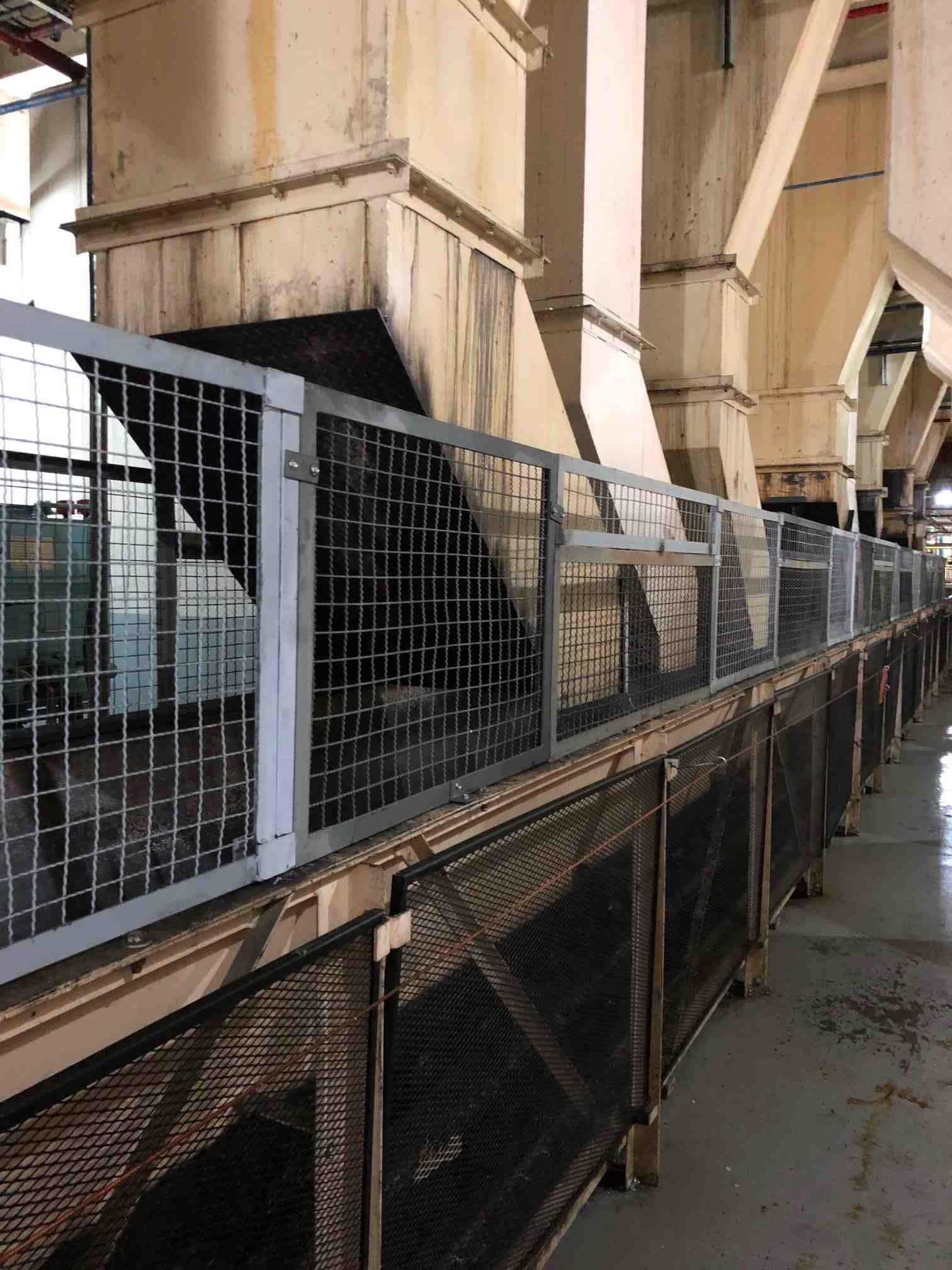

SCRAP CHUTE & CONVEYOR SYSTEM AVAILABLE (INQUIRE FOR DETAILS)

UNDER POWER IN PLANT AVAILABLE FOR INSPECTION BY APPOINTMENT!!
COMPLETE TANDEM LINE, CALL FOR EARLY INSPECTION!!

Specifications Subject To Verification; Subject To Prior Sale and Price Change
We encourage your personal inspection of this press line!
