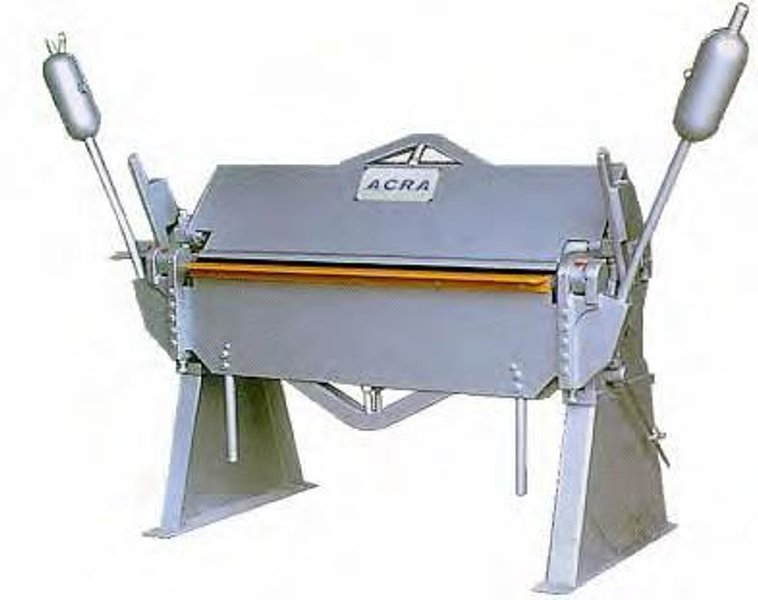

16 GA. X 96” ACRA MODEL FK-S9616 HEAVY DUTY MANUAL (APRON LEAF) FLOOR TYPE BRAKE • Built of Heavy all welded construction for maximum strength and minimum deflection.• Built to be long lasting and for accurate bending and forming operations. • The leveling screw and lock nuts on the pedestals, jack screw, shims, and upper leaf provides numerous adjustments. • Removable Apron is supported by large pins in free floating bearings, and the Upper Leaf adjustment screws feature METALEX exclusive roller type bearings to prevent left creep. • Cast steel handle, Heavy Counter Weights, and an apron stop rod compliment the many other features of this Heavy Duty Brake. Specifications: Capacity: 16 Ga. X 96” Mild Steel: 16 Ga. Stainless Steel: 20 Ga. Max. Bending Length: 96” Max. Lift of Bend: 2-1/4″ Max. Depth of Box: 4-1/4″ Minimum Reverse Bend: 1/4″ Minimum Flange: 2″ Weight 2640 lb Standard Equipment: Removable Bottom Bar Insert Bar 2 ea. Counter Weights Stop Gauge Adjustment Handle Angle Bar |
