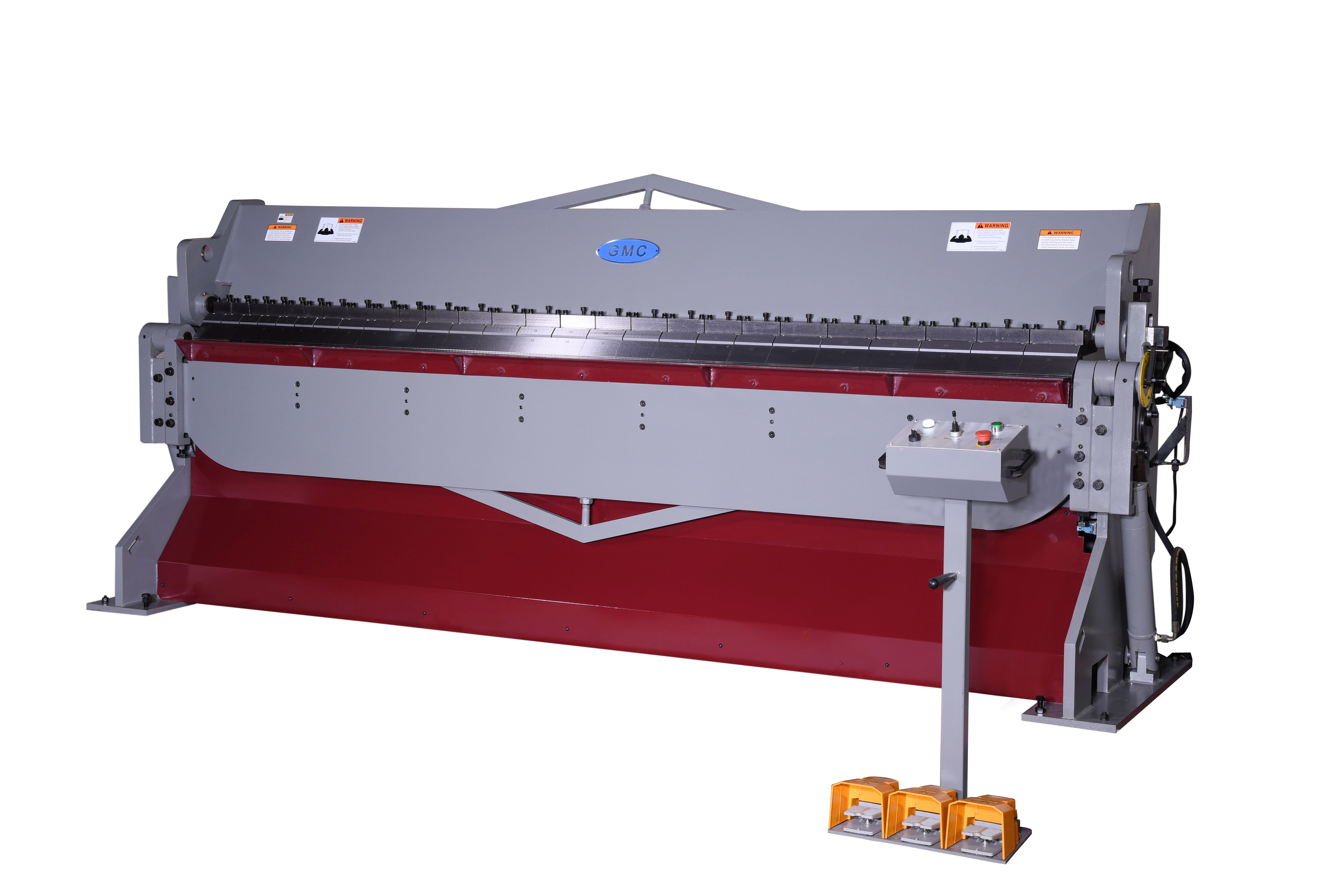

10 ft 14 Ga. Hydraulic Straight Apron Brake
Brand
Category
Type
Model
HSB-1014
Stock #
HSB-1014
Year
Not specified
Condition
New
Location
Not specified
|
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Comes with one 10’ straight finger installed
One set of assorted fingers 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs (boxed)
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
Specifications
26” manual back gauge with one side handwheel operation
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
For more complete information: https://www.gmcmachinetools.com/catalog
|
