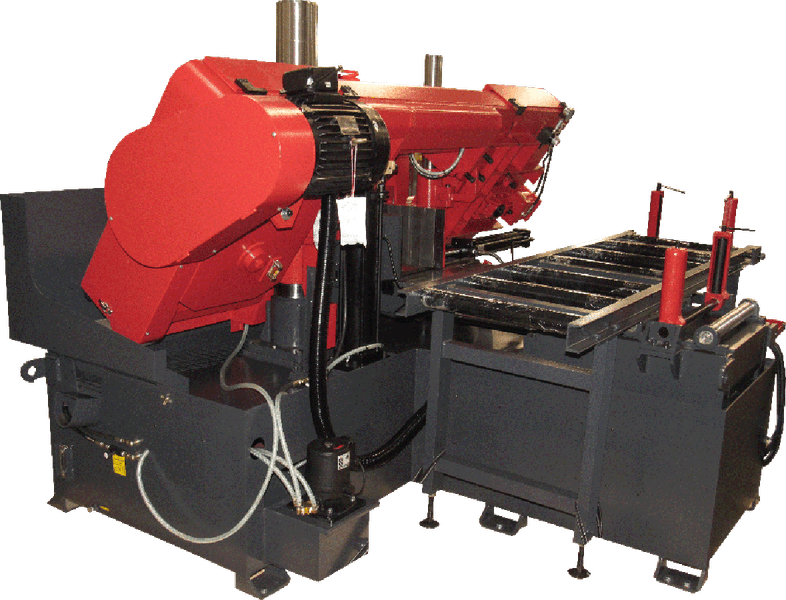

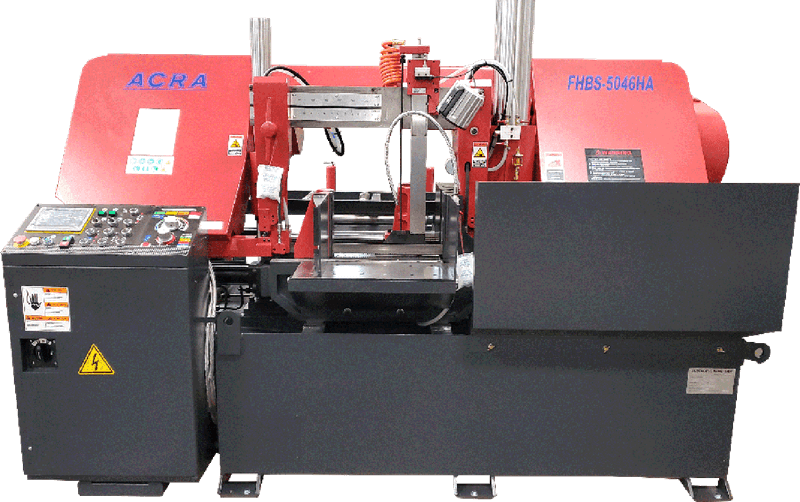

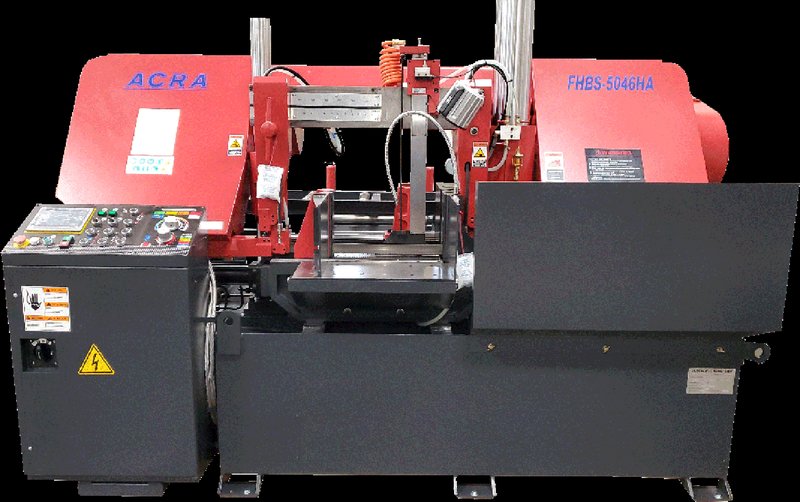

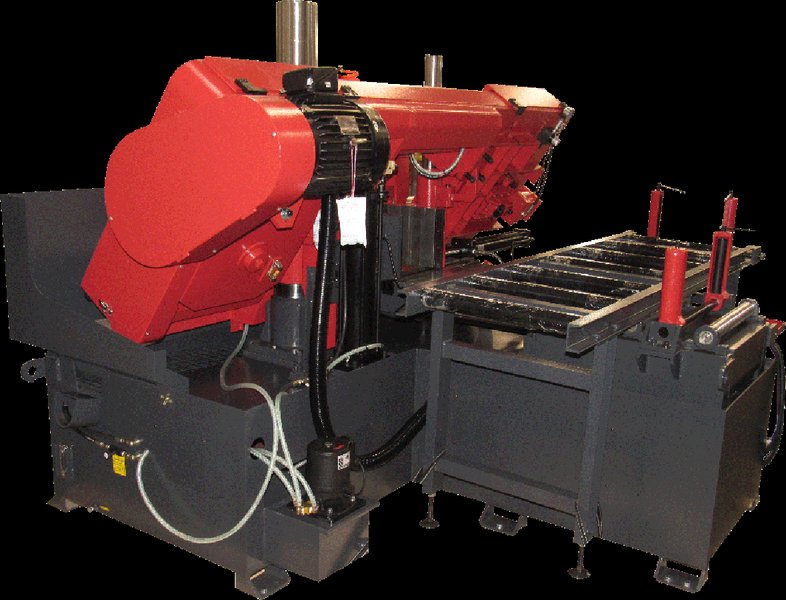

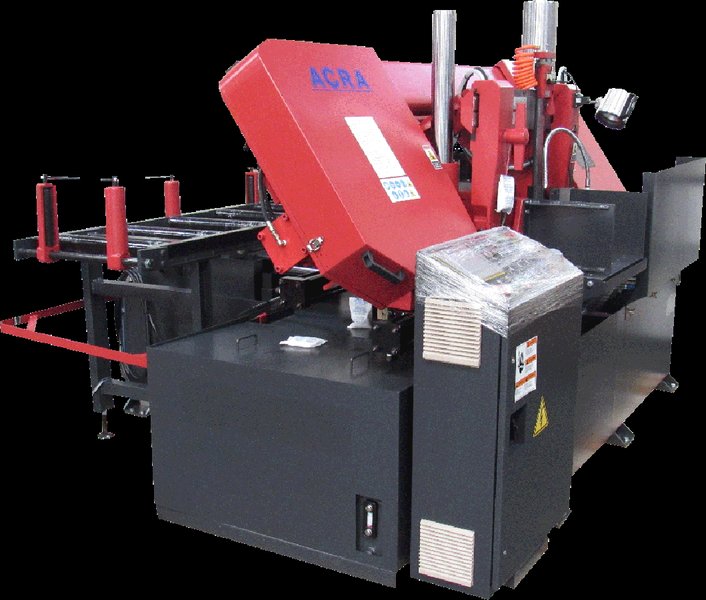

18.11” X 19.68” ACRA MODEL 5046HA FULLY AUTOMATIC DOUBLE COLUMN HYDRAULIC BANDSAW

Brand
Category
Model
5046HA
Stock #
15551
Year
Not specified
Condition
New

Location

Not specified

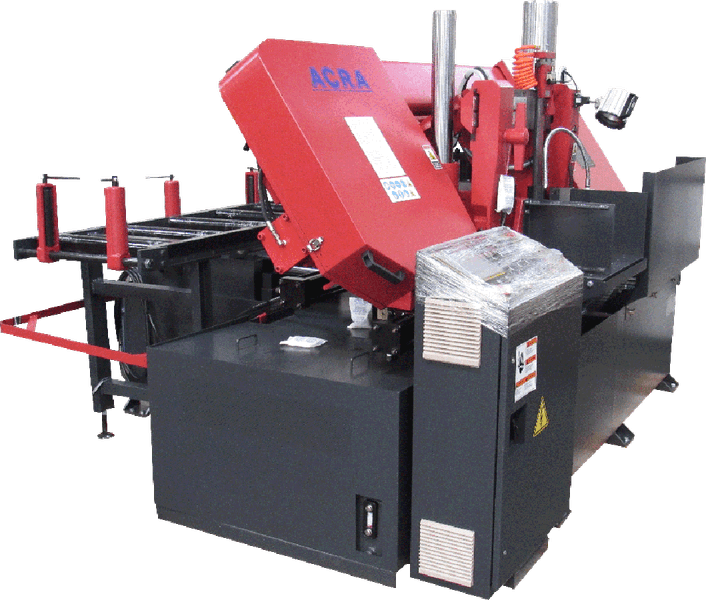

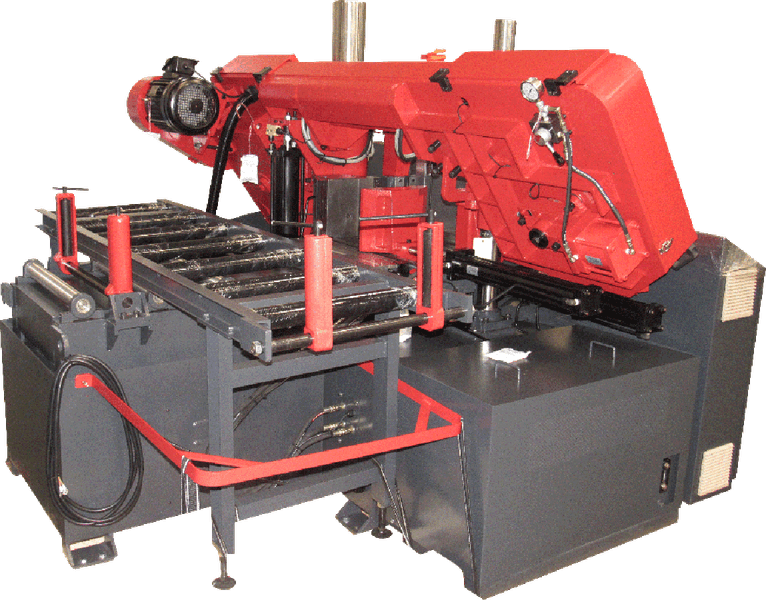

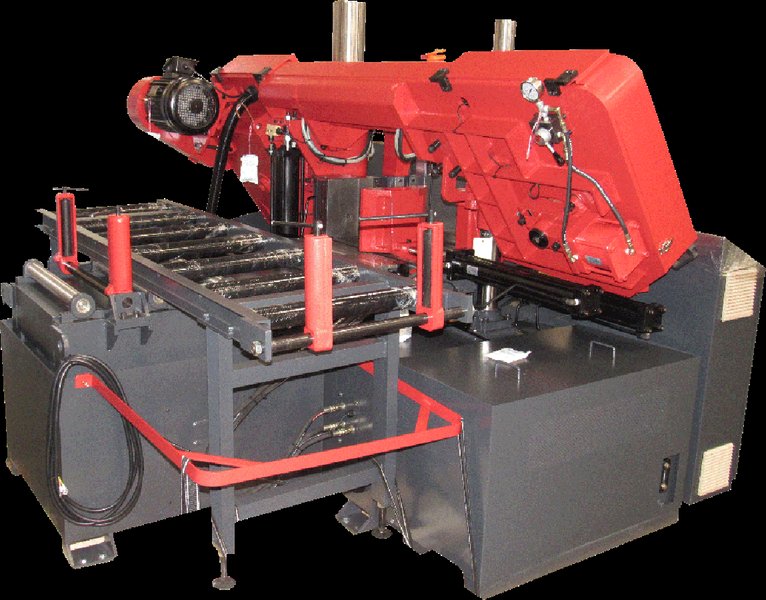

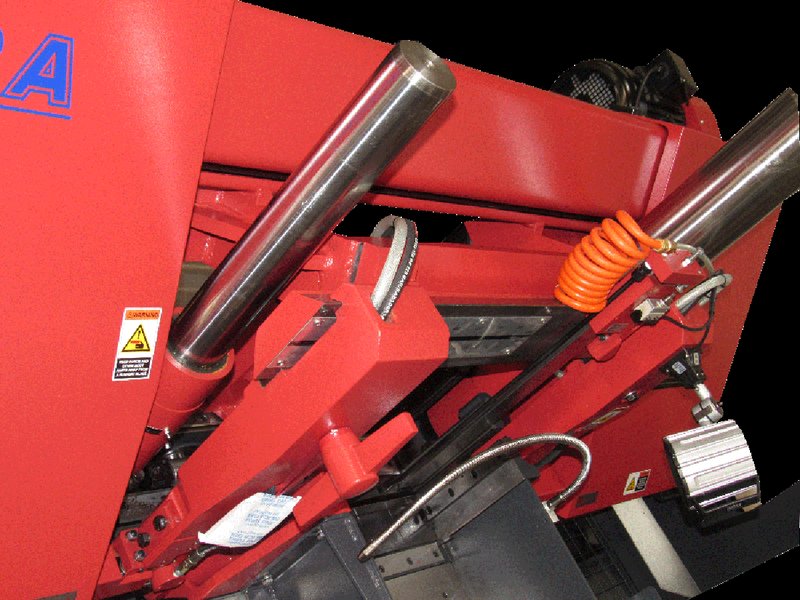

18.11” X 19.68” ACRA MODEL 5046HA FULLY AUTOMATIC DOUBLE COLUMN HYDRAULIC BANDSAW

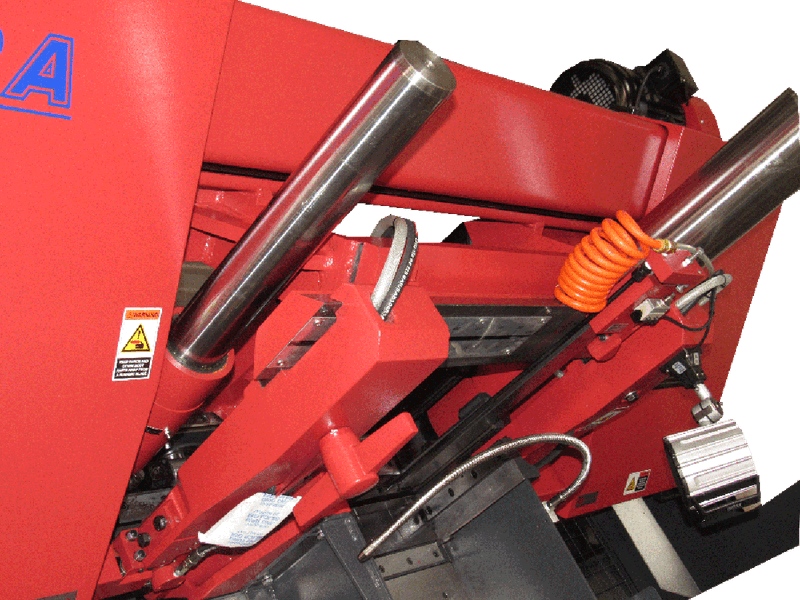

Acra’s FHBS-5046HA Fully Automatic Double Column Hydraulic Band Saw features the following:

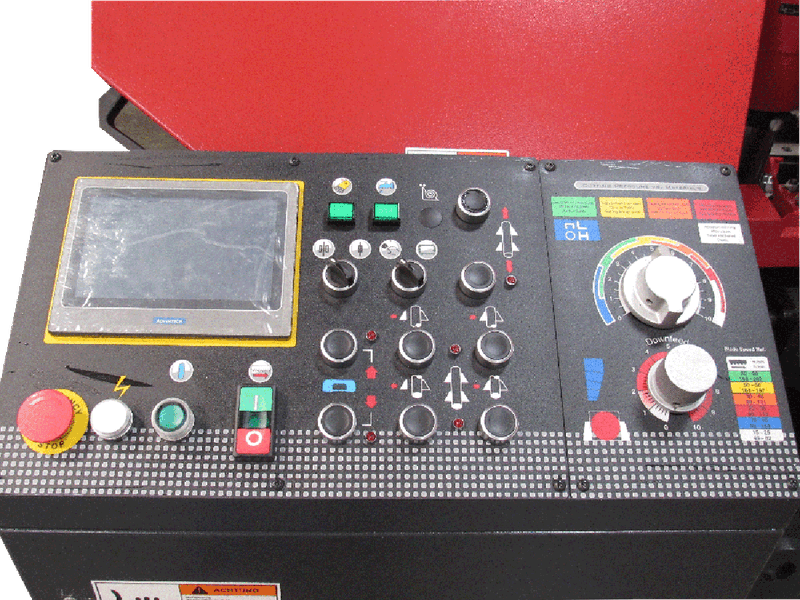

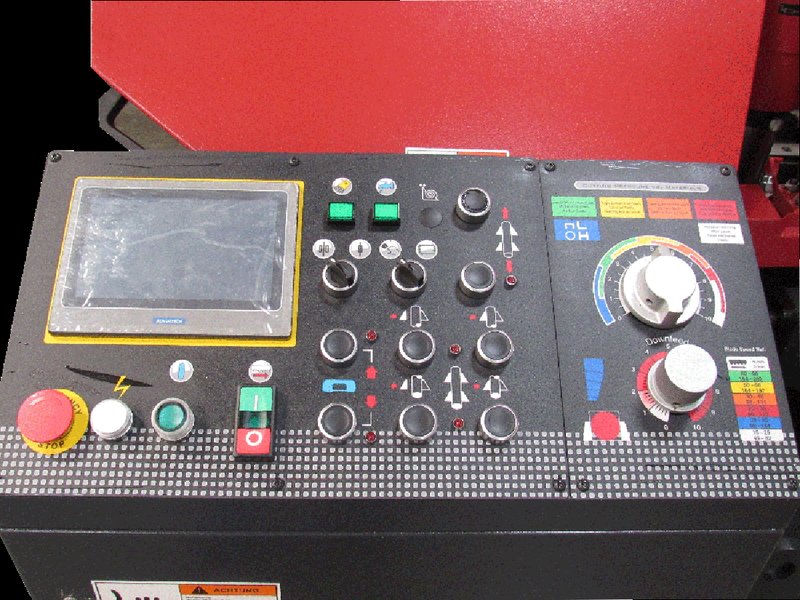

Color touchscreen.
Material detector.
Hydraulic blade tension device.
Multi-language interface control panel.

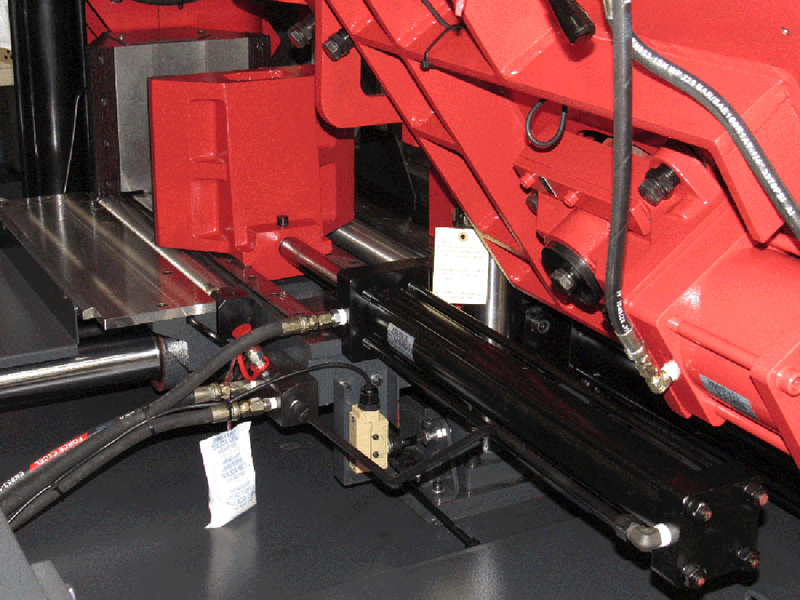

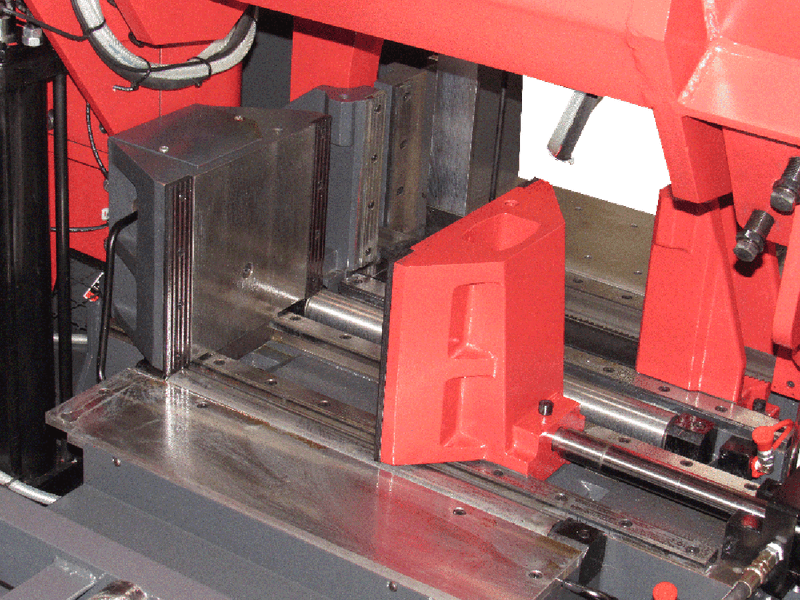

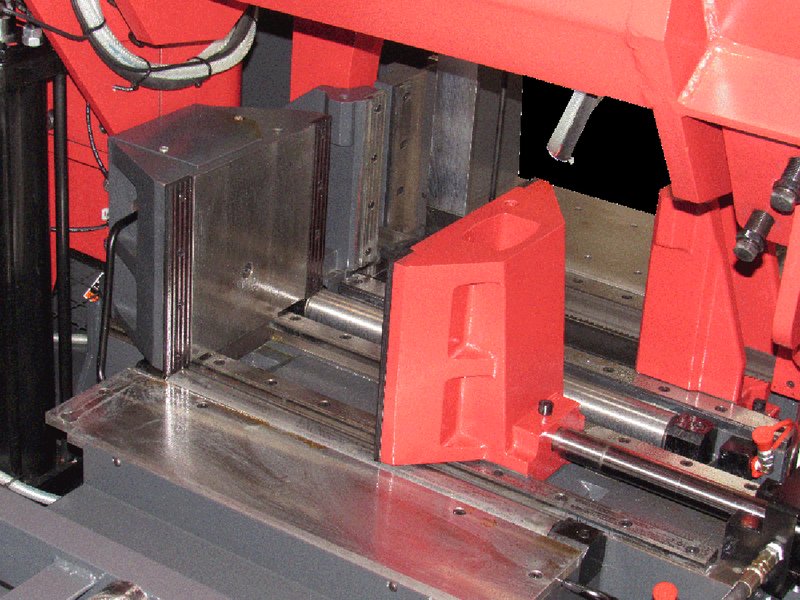

Full stroke hydraulic vises.
Vise pressure regulator. (Optional)
Rotary encoder for accurate material feeding.
Motor inverter controlled variable blade speed.
Nesting fixture for bundle cutting. (Optional)
Hydraulic carbide blade guide.
Can save 10 cutting presets.

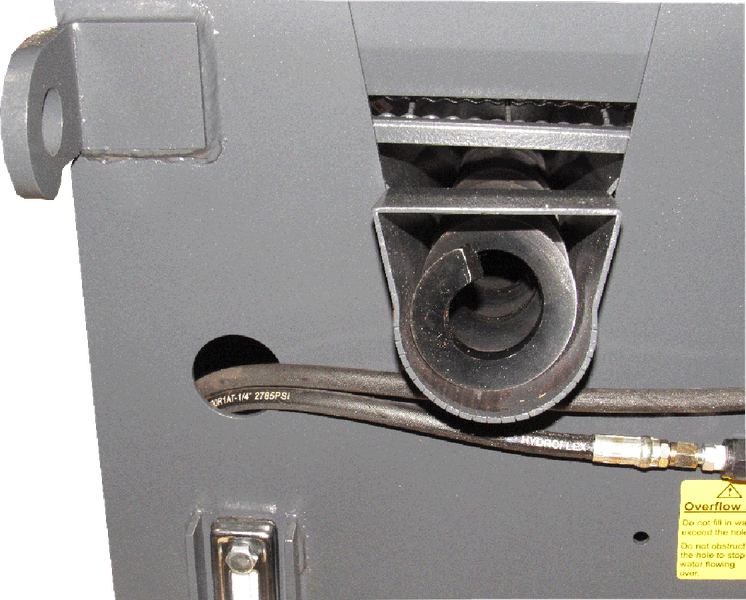

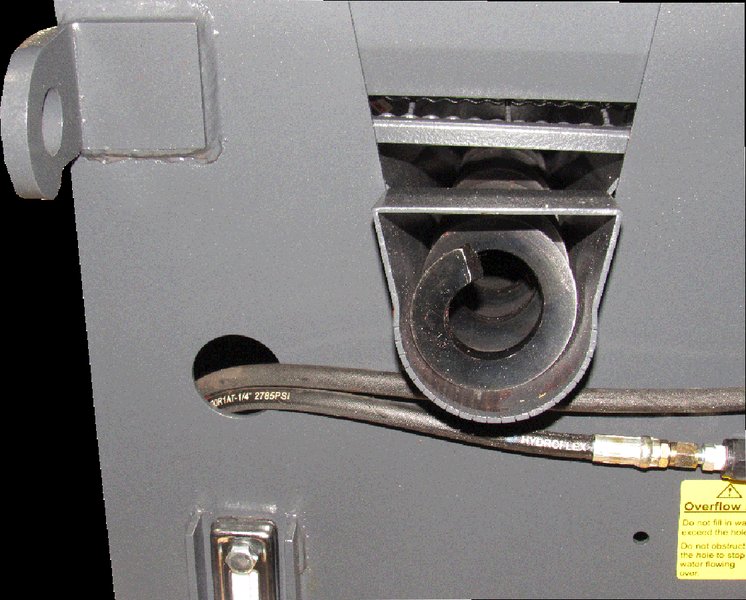

Hydraulic Automatic Chip Conveyor.
Power driven wire brush.
Broken blade detection sensor.

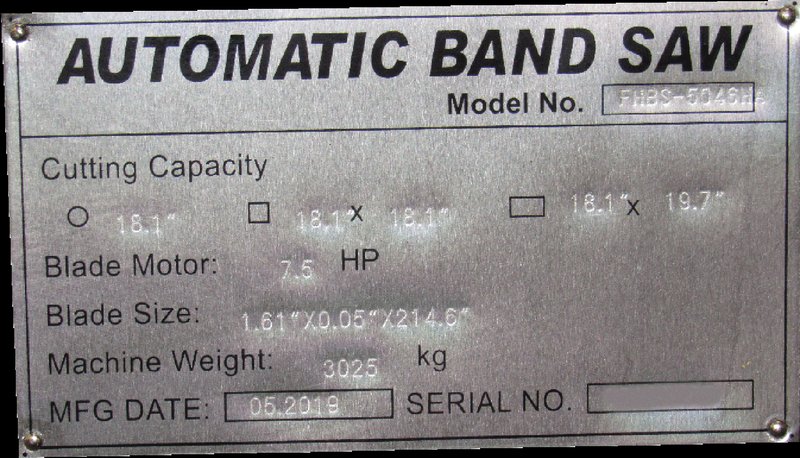

Specifications:
Cutting Capacity:
     Round:                                    18.11”
     Rectangle:                               18.11” x 19.68”
Blade Size:                                    1.61″x .051″x 214.5″
Blade Speed (m/min):                   30 ~ 85

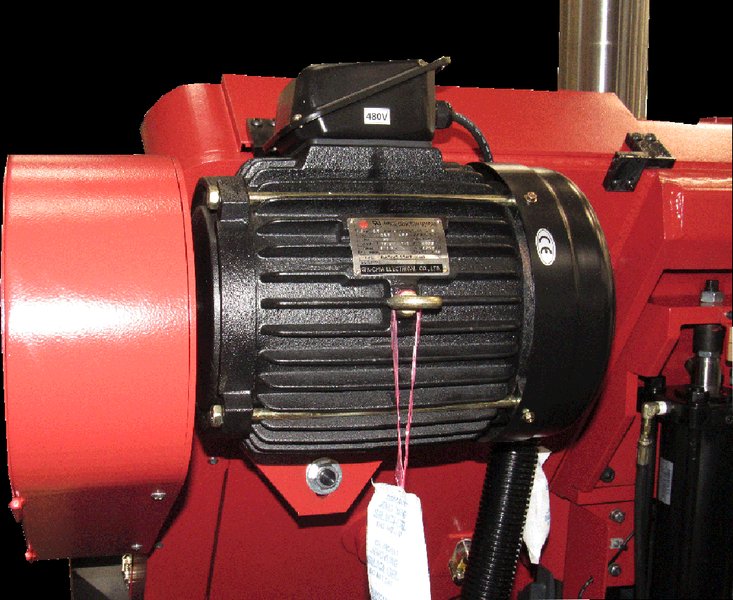

Blade Motor:                                 7.5 HP
Hydraulic Motor:                           2 HP

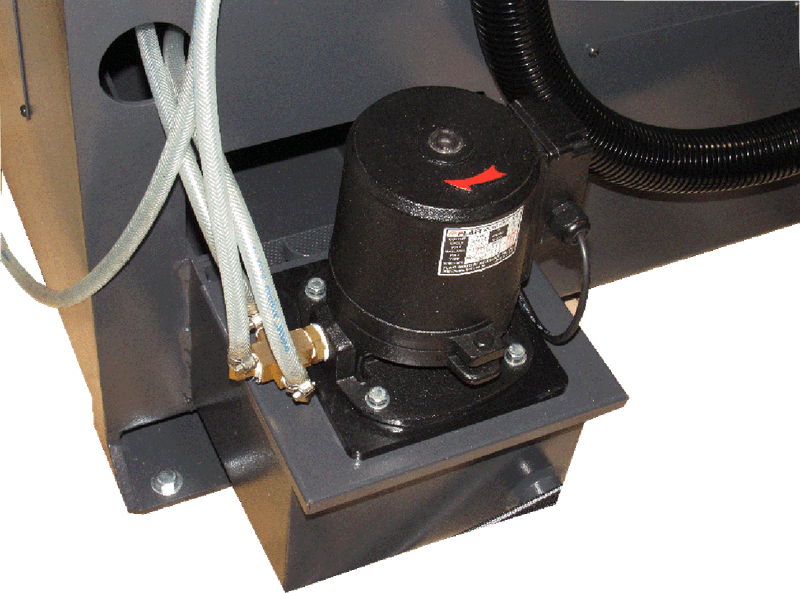

Coolant Motor:                             1/4 HP
Hydraulic Tank:                              60 L
Coolant Tank:                                100 L
Feeding Stroke:                             19.6″
Bundle Cutting:                             7.6″~12.2″ x 4.72″~9″
Cut Off Length:                             Over .39″
Cutting Amount Setting:               1 ~ 9999
Minimum No Material Detection: 1.25″
Table Height:                                  33.4″
Weight                                           7400 lbs
Dimensions                                    112 × 90 × 89 in


Standard Equipment:
• Color Touchscreen
• Hydraulic Blade Tension Device
• Multiple Language Interface
• Full Stroke Hydraulic Vises
• Infinitely Variable Blade Speed Controlled by Inverter
• Hydraulic Carbide Blade Guide
• Automatic Chip Conveyor
• Power Driven Wire Brush
• Rotary Encoder for Accurate Material Feeding
• 10 Cutting Presents
• PLC Control for all Electric and Hydraulic Functions
