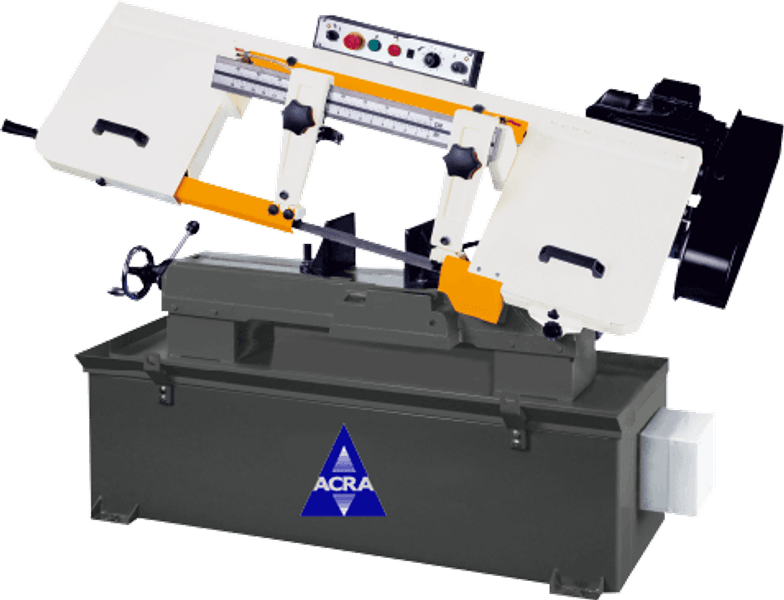

10" X 18" ACRA MODEL RF-1018S STEP PULLEY HORIZONTAL BANDSAW

10" X 18" ACRA MODEL RF-1018S STEP PULLEY HORIZONTAL BANDSAW

• Centralized control panel on top of saw bow.
• One-piece saw bow.
• Deluxe blade tension hand wheel.
• The patented quick lock vise (patented no. 142715) helps to clamp and loosen the work piece efficiently.
• Easy speed changes.
• Adjustable hydraulic down feed; just dial your feed rate on the control panel.
• Worm gear box has hardened and ground gears.
• Miter cutting ability.
• Blade wheels have heavy-duty ball bearings.
• Magnetic safety switch.
• Automatic shut off.
• Adjustable blade guide system.
• Casting base and blade wheel jointed with heavy gauge steel saw bow performs excellently with economic cost.
• Bearing carbide guide enhances cutting stability and extends the blade life.
• Cutting angles from 0 to +45 Degrees.
• Single piece floor and chip stand provides internal coolant system.
• Coolant system for wet cutting.
• With Bi-metal blade, chip brush and length stop set.
• Optional selection includes laser indicator and hydraulic tension.
• Made in Taiwan.


Specifications:
Capacity Round:                     10”
Capacity Rectangle:                10″ x 18-7/16″
Capacity Square:                     5″ x 18-3/8″
Capacity Round (45°):             6″
Capacity Square (45°):             7″ x 9-3/8″
Blade Speed:                          114,196,288,377 FPM
Blade Size:                              1.06″ x 0.035″ x 121.65″
Main Motor:                           2 HP
Voltage:                                  230/460V AC~ 3 Phase
Weight                                   920 lbs
Standard Equipment:
• Coolant System
• Adjustable Hydraulic Down Feed
• Auto Shut Off
• Mitering
• Emergency Stop
