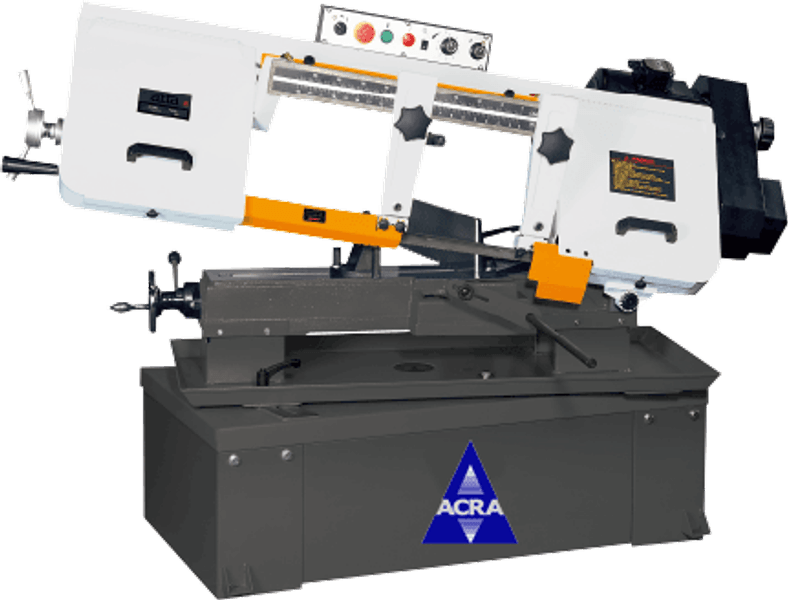

10" X 18" ACRA MODEL RF-1018SRV VARIABLE SPEED HORIZONTAL BANDSAW WITH SWIVEL HEAD

10" X 18" ACRA MODEL RF-1018SRV VARIABLE SPEED HORIZONTAL BANDSAW WITH SWIVEL HEAD

• Casting Base and Blade Wheel jointed with heavy gauge steel saw bow performs excellently with economic cost.
• The Chip Tray stand jointed with saw base. It can be swivel with saw bow, and the work piece stay still without turning.
• Fully Adjustable Hydraulic Down Feed controls the rate of descent.
• Control panel installed on top of saw bow for more convenient operation.
• High Efficiency Gear Drive System cooperated to variable step pulley provides fast changing speed.
• Bearing Carbide Guide enhances cutting stability and extends the blade life.
• Cutting Angle from 0 degree to 45 degree.
• Stand jointed with water pan for collecting chip and water.
• Coolant System for Wet Cutting.
• With Bi-Metal Blade, Chip Brush and Length Stop Set.
• Optional selection includes Laser Indicator and Hydraulic Tension Meter.


Specifications:
Capacity Round:                          10”
Capacity Rectangle:                     10″ x 16-15/16″
Capacity Square:                          5″ x 18-3/8″
Capacity Round (45°):                  6″
Capacity Square (45°):                 7″ x 9-3/8″
Blade Speed:                                114 ~ 377 FPM
Blade Size:                                    1.06″ x 0.035″ x 121.65″
Main Motor:                                 2 HP
Voltage:                                        230/460V AC~ 3 Phase
Weight                                         1150 lbs

Standard Equipment:
• Coolant System
• Adjustable Hydraulic Down Feed
• Auto Shut Off
• Mitering
• Emergency Stop
