NEW, TVAN HS36-300 SIMPLE CNC HOLLOW SPINDLE LATHE WITH 14" BORE
Brand
Not specified
Category
Model
HS36-300
Stock #
15551
Year
Not specified
Condition
Used
Location
Texas
|
SWING OVER BED: 39.3"

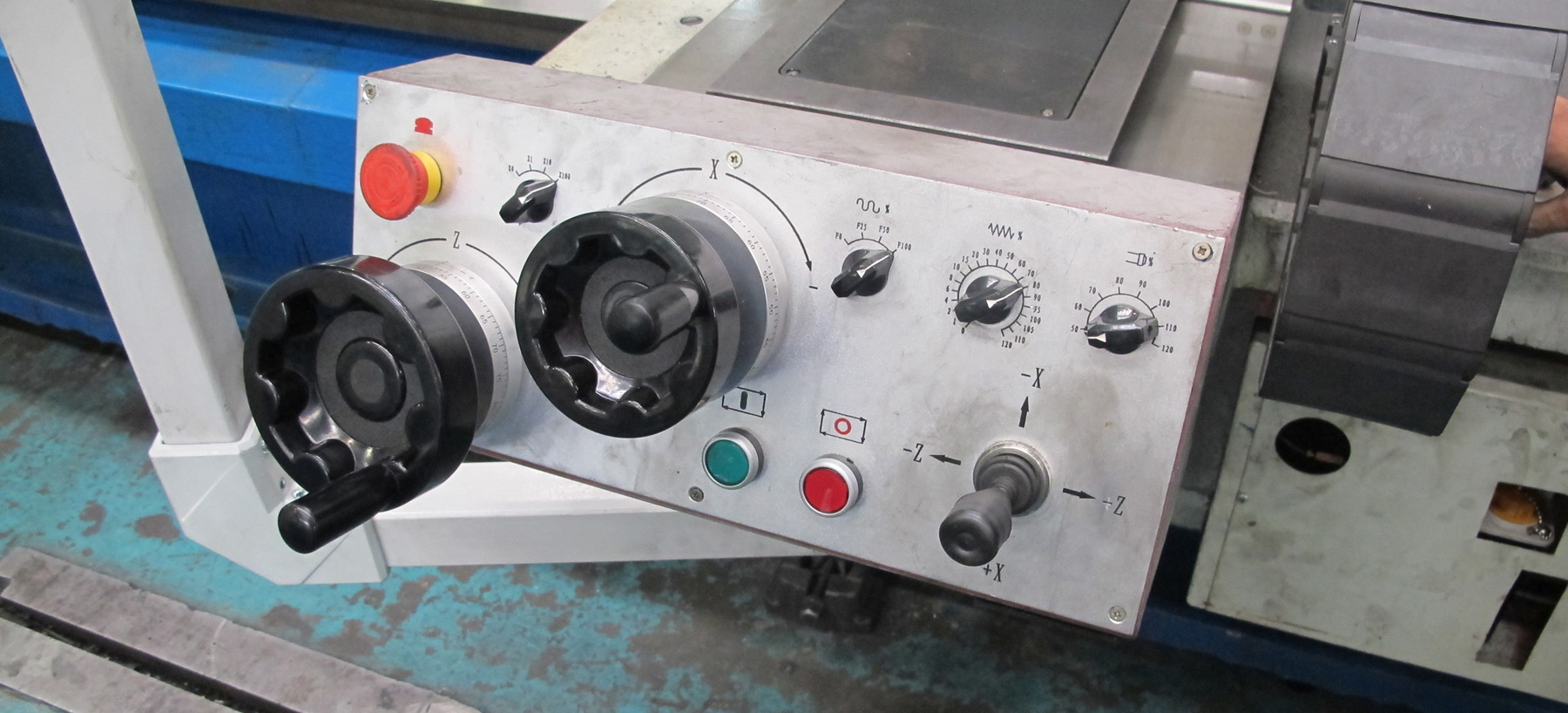

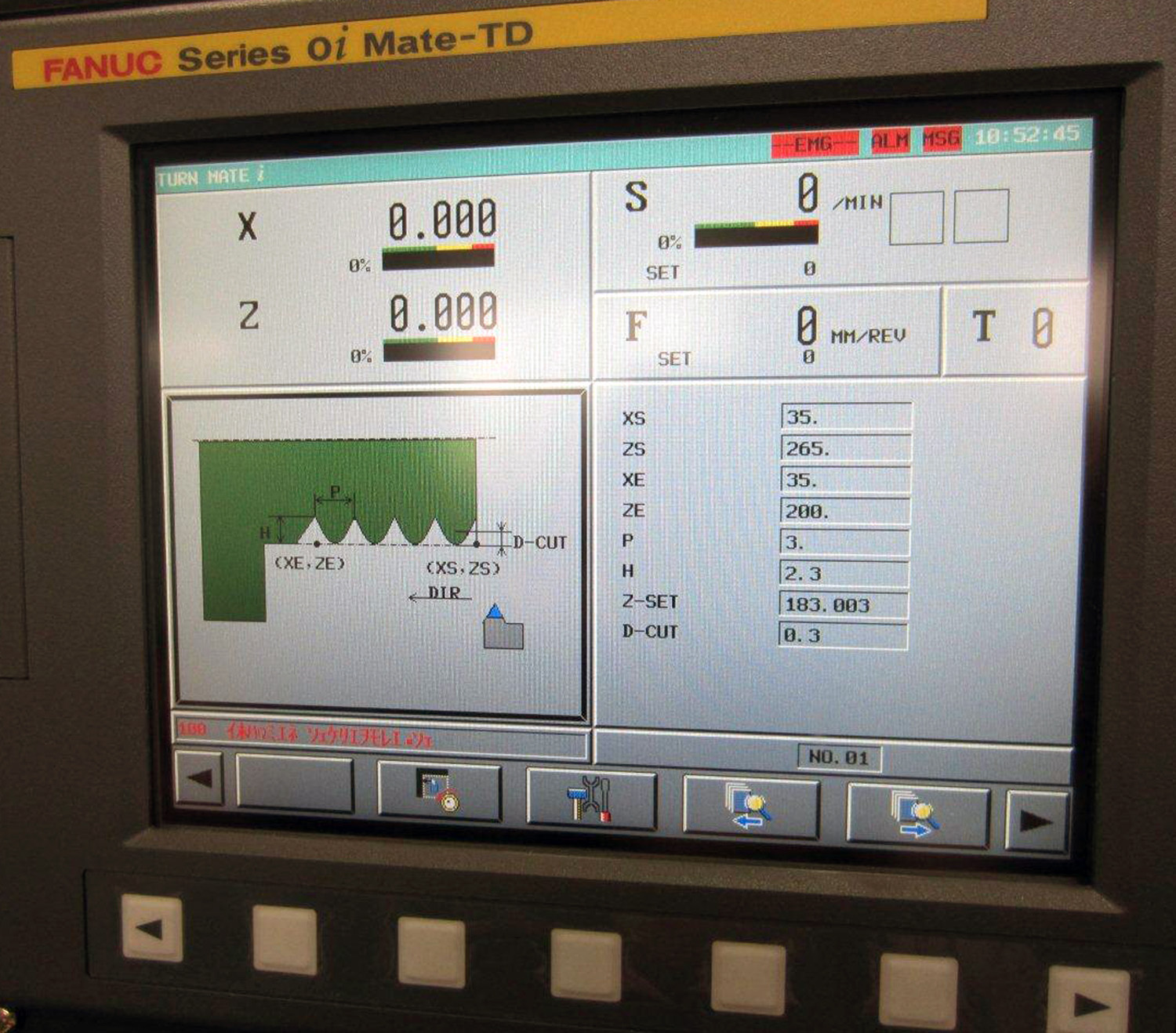

SWING OVER CROSS SLIDE: 25.2" MAXIMUM WORK PIECE LENGTH: 118.1" MAXIMUM WORK PIECE WEIGHT: 13,200 LBS. BED WIDTH: 29.7" SPINDLE BORE: 14.17" FRONT / REAR CHUCK DIA.: 31.5" SPINDLE SPEED RANGES: 2 (STEPLESS) SPINDLE SPEEDS: 3 - 315 RPM SPINDLE MOTOR: 40 HP TOOL SECTION SIZE: 1.25" X 1.25" X AXIS TRAVEL: 24" Z AXIS TRAVEL: 110.2" RAPID TRAVERSE (X, Z): 236 IPM FEED RANGE (X, Z): 0.00039 - 78.7 IPM TURNING RANGE: 0.00039" - 7.87" PER THREAD SERVO MOTORS TORQUE (X, Z): 20 FT-LBS. MIN. SETTING UNIT (X, Z): 0.000039" TAILSTOCK SLEEVE DIA.: 6.3" TAILSTOCK SLEEVE STROKE: 11.8" TAILSTOCK SLEEVE TAPER: METRIC 80 COOLANT PUMP MOTOR: 1.5 HP COOLANT PUMP FLOW RATE: 21 GPM LUBRICATION MOTOR: 1 HP EQUIPPED WITH: FANUC 0i-MATE TC CNC CONTROL MANUAL INTERFACE FOR OD/ID TURNING AND FACING OPERATIONS (INC. CONSOLE WITH SPINDLE SPEED CONTROL, HAND WHEELS, AND JOYSTICK CONTROL) FANUC TURN MATE SOFTWARE FOR TEACH-IN MODE QUICK CHANGE "ALORIS" TYPE TOOL TURRET COOLANT SYSTEM HYDRAULIC SYSTEM CENTRALIZED LUBRICATION SYSTEM HARDENED AND GROUND BED WAYS CHIP CONVEYOR AIR CONDITIONED ELECTRICAL CABINET |
