Specifications:
Coil weight capacity: 30,000 Lbs.
Coil width capacity: 48"
Stock thickness capacity: .060" @ 48"
Stock thickness capacity: .187" @ 15"
Expansion range: 20"- 24"
Coil OD capacity: 72"
Serial no.: 89767-89

Equipped With:

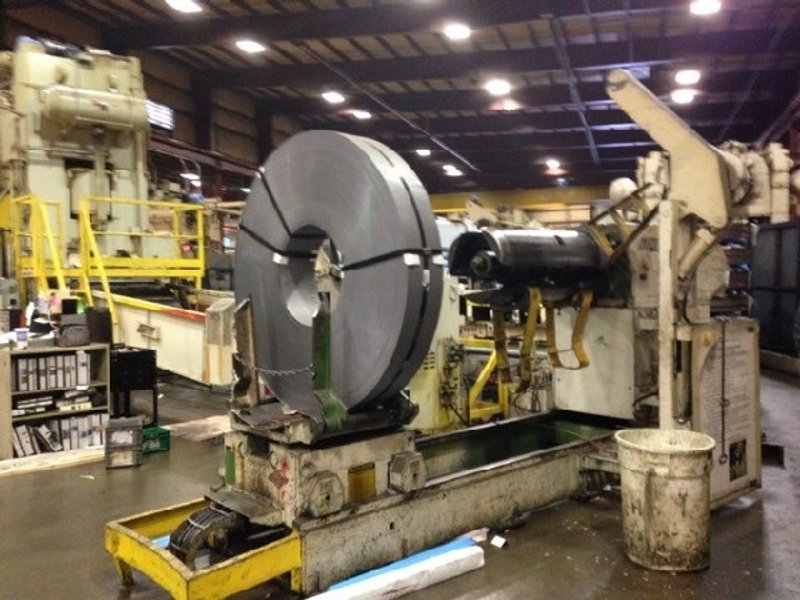

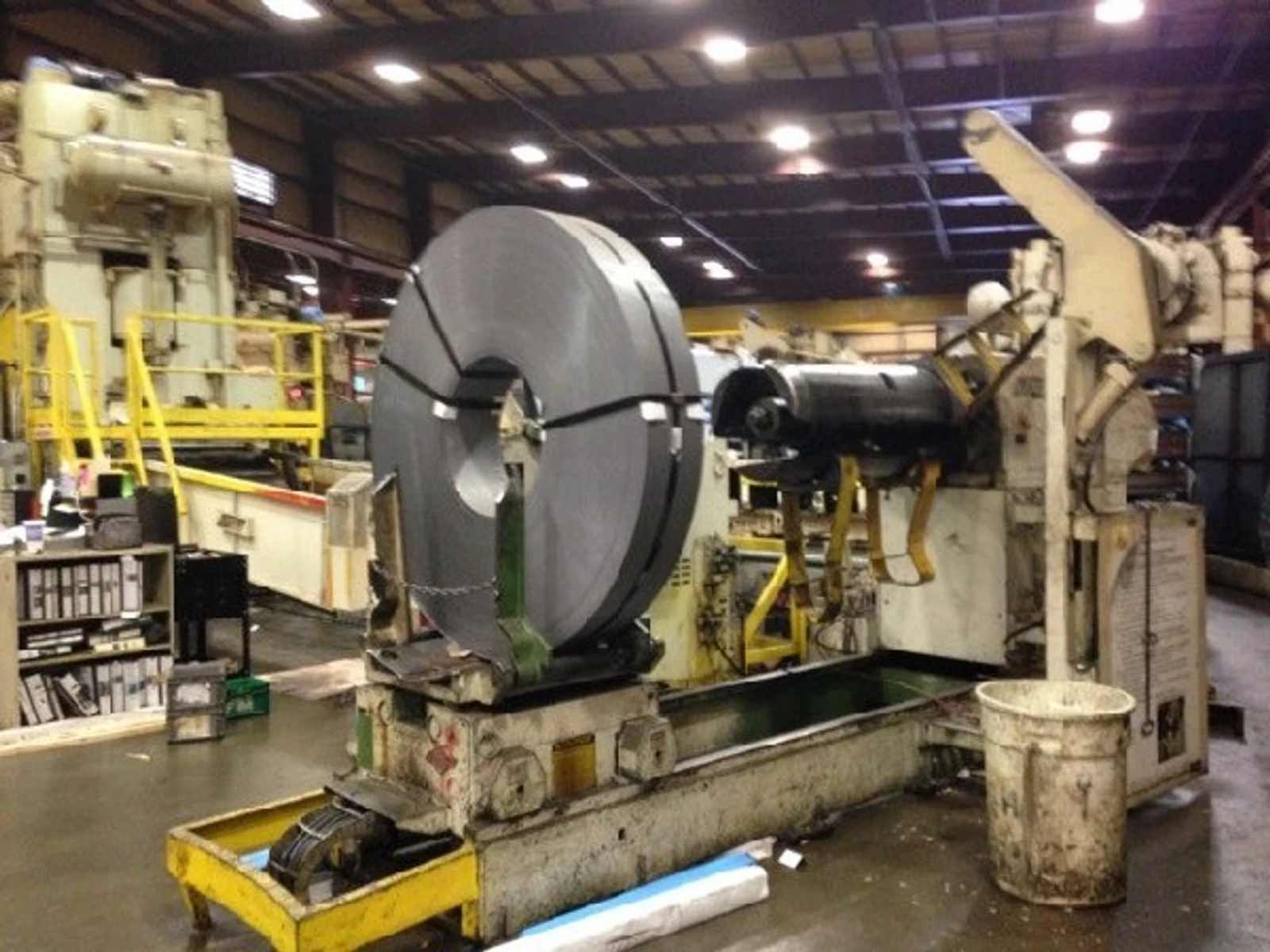

LITTELL Coil Reel - Model S300-48
Three leaf mandrel
Hydraulic mandrel expansion
Heavy duty wedge type expansion
Coil keeper arms
Self contained hydraulic unit
Threading drive
Air brake mounted on main spindle
Adjustable tensioning
Coil hold down arm with motorized end wheel for stock threading
Traveling coil load car
Powered lift and travel
Adjustable narrow coil supports

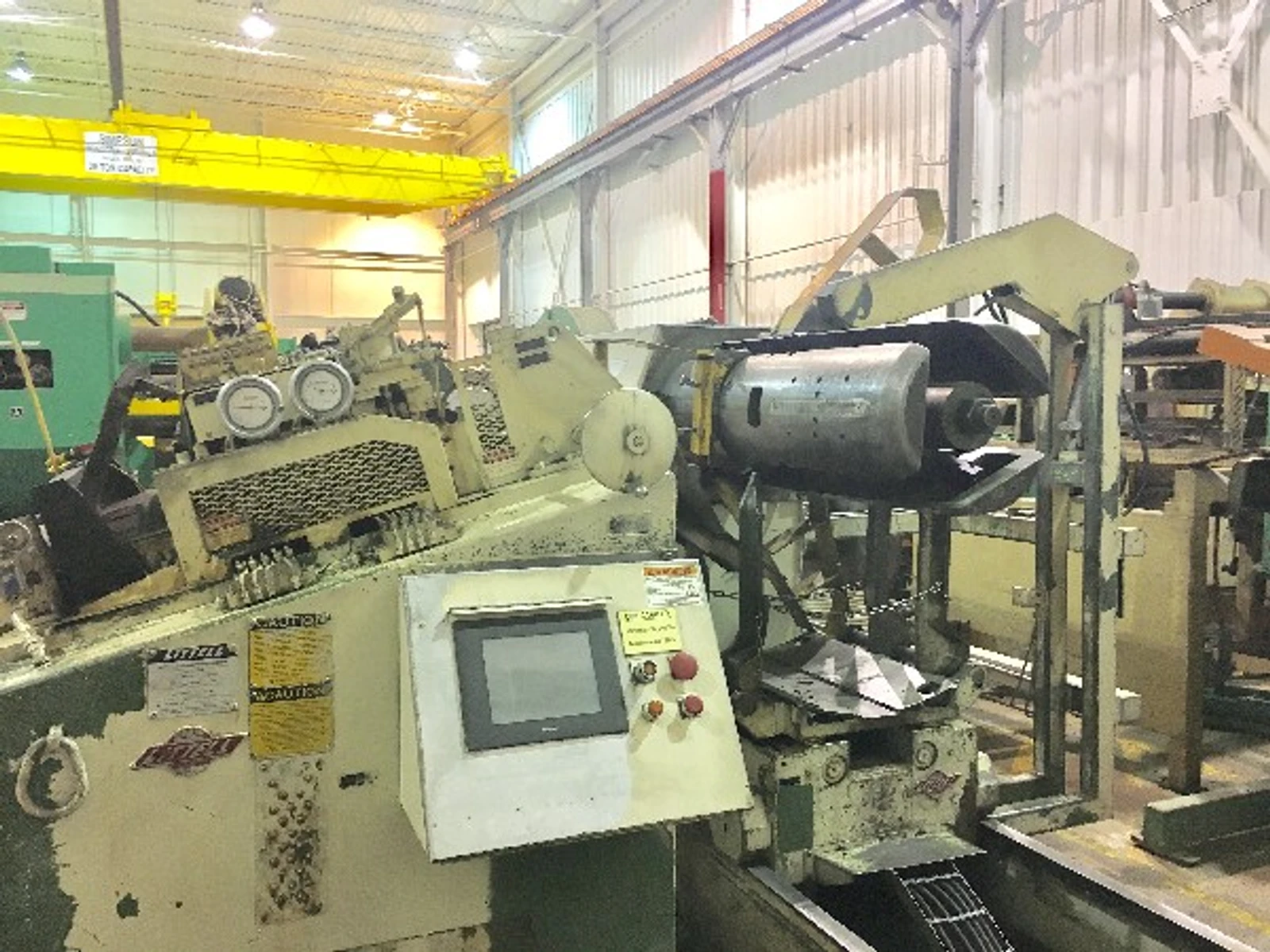

LITTELL Powered Straightener - Model 450-5PD
Entry pinch rolls with air operated adjustments
Five straightening rolls x 3.5 inch diameter
Back-ups of upper and lower straightening rolls
Stock peeler table with extension
Hand crank entrance edge guides
Air operated entrance side pinch rolls
Exit side cascade loop support rolls
Operator's controls Loop control

LITTELL Exit Thread Tables Dual sided Bomb Bay Door style

LITTELL Roll Feed Model 5-50 DLC
Five inch diameter rolls
Air operated upper roll lift Cabinet base mounted Servo drive and control system

"As taken from service"
Warranty: Standard MDNA thirty day return privilege
Terms: 40% Deposit, net prepaid
