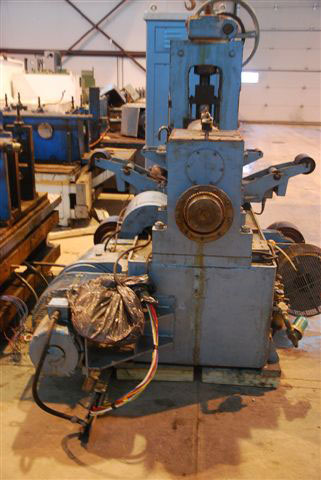

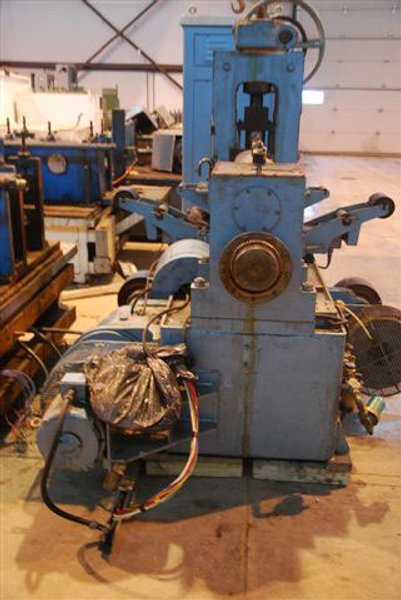

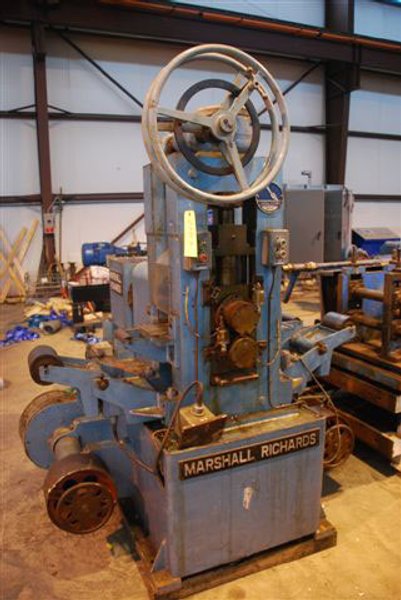

MACHINE # 11983


MANUFACTURER: Marshall Richards

SERIAL NUMBER: 661846

SPECIFICATIONS:
Roll diameter: 5-1/4" ( 135mm)
Roll Width: 6" (150mm)
Rolling Speed : 0 to 65 ft/min (0 to 20 m/min)
Srewdown: Manual with Graduated Hand- Wheels
Strip Tensioning Rolls: Entry and Exit tensioning Bill Rolls

Bearings:
Oil Fed Roller (to be Confirmend)

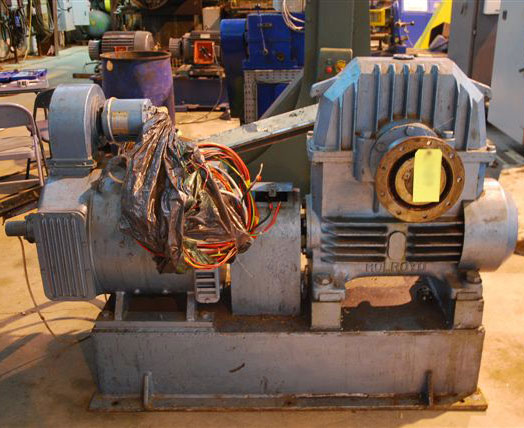

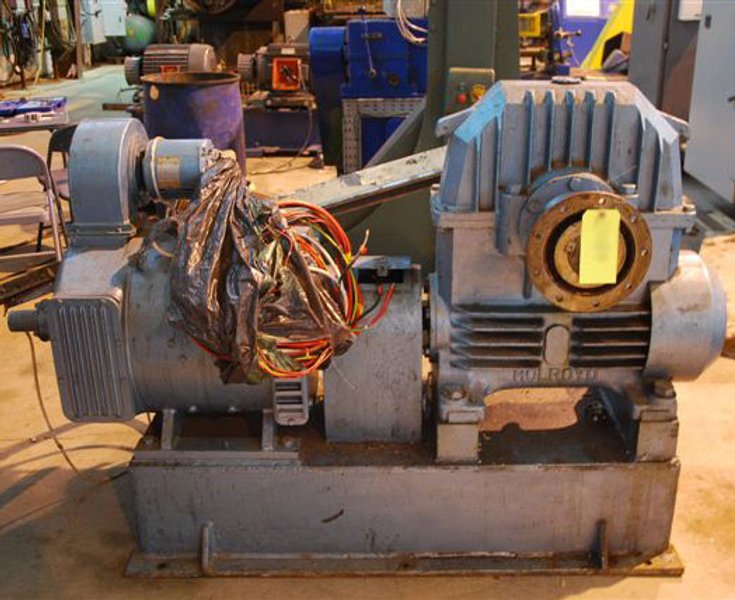

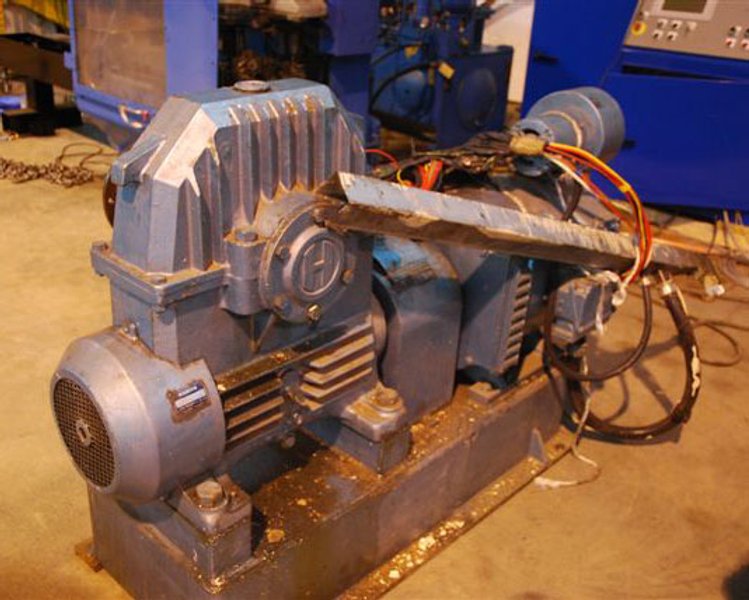

Main Drive:
DC Motor through Renold 40 To 1 worm reduction gearbox
double helical splitter to Roll drive Spindle

Main Drive Motor:
10 Hp DC, 500/ 1500 rpm (Separete Excitation)

EQUIPPED WITH:
Hydraulics (Manual)
Entrance Guide
Emergency Stop
Push button Start/stop controls

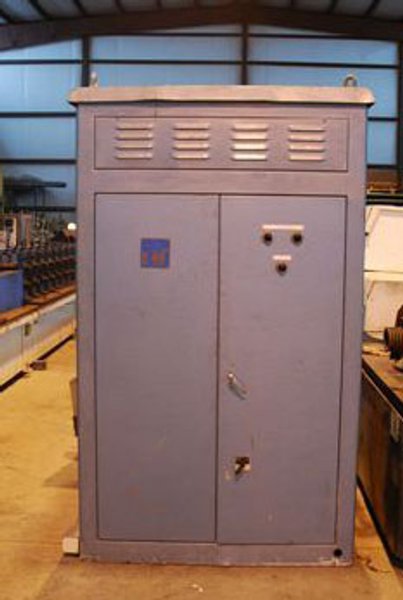

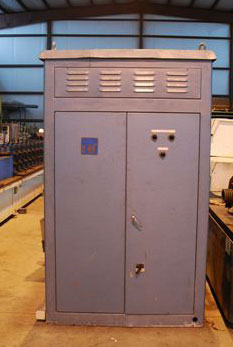

Control Panel

Approximate Overall:
Dimensions: 5' x 4' x 3'
Weight: 2,000 Lbs.

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
