MACHINE 13185


22" x 40" Non-Reversing Cold Mill

Type Mill:                 2 High Non Reversing Rolling Mill

Coil Weight:               30,000 lbs.
Mill Speed:                309 to 618 FPM
Post Size:                 13" x 15.50"
Window Dimension:          2' Wide x 6'-1.25" High
Mill Bearings:             Timken Roller
Main Mill Drive Motor:     200 HP, 575/1150 RPM, 230 V DC

Coil Information:
 Width:  36"
 I.D.:  20"
 O.D.:  60"

Consisting of the following:

-Payoff Reel:
  Mfg: Loopco
  Year:  1973
  Model:  1600
  Mandrel:  15.50" - 20" Dia. x 44" Face
  Tension:  Wichita Water Cooled Brake
  Features:  Holddown Roll, AC Thread Up Motor, Hydraulic Expansion,
              Sliding Base.

-Tension Reel:
  Mfg:  Matteson
  Year:  1976
  Mandrel:  20" Dia. x 44" Face with Hydraulic Expansion and Gripping
  Motor:  100 HP DC, 400/1200 RPM
  Gear Ratio:  9.69:1
  Features:  Coil Stripping with (2) - 4" Dia. x 45.50" Cylinders
  Overhead Holddown
  Motorized Lube Pump
  Sliding Base

-(1) Coil Car:
  Mfg:  Loopco
  Year:  1973
  With 40" Platform
  Hydraulic Coil Lift:  6" Dia. x 20" Cylinder
  Motorized Car Travel through Chain Drive

-(2) Coil Turnstiles:
  Mfg:  Loopco
  Year:  1976
  Power Rotation
  31" Arm Extension into Coil I.D.

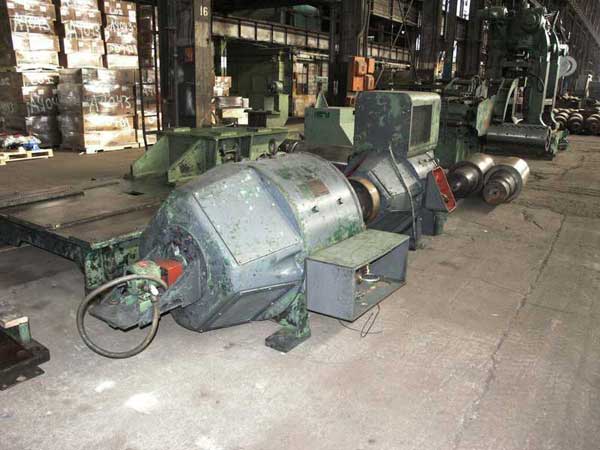

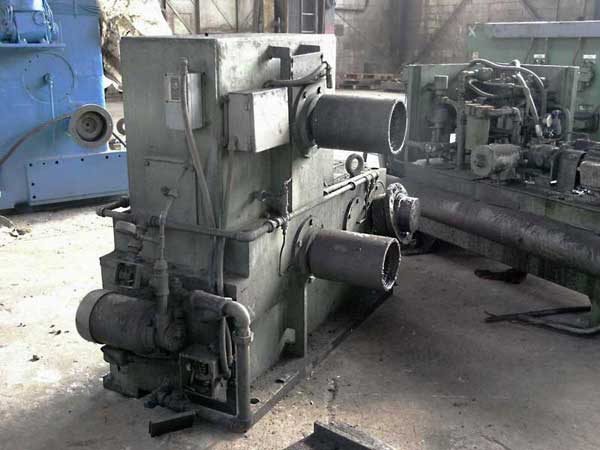

-Combination Gear and Pinion Drive:
  Mfg:  D.O. JAMES, 1976
  Serial:  #255454
  Input Speed:  575/1190 RPM
  Rating:  288 HP at 575 RPM
  Pinion Centers:  22"
  Motorized Lube Pump

-(2) Spindles with Universal Couplings and Carrier

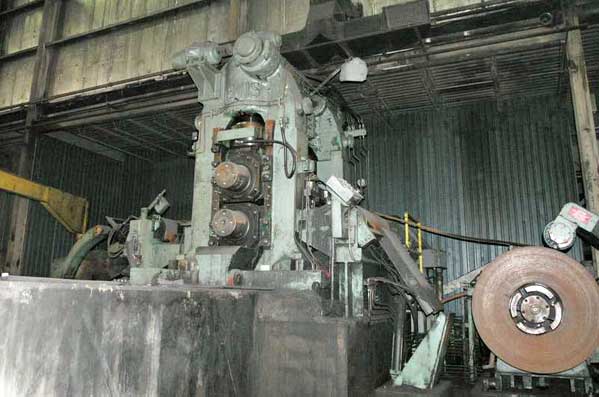

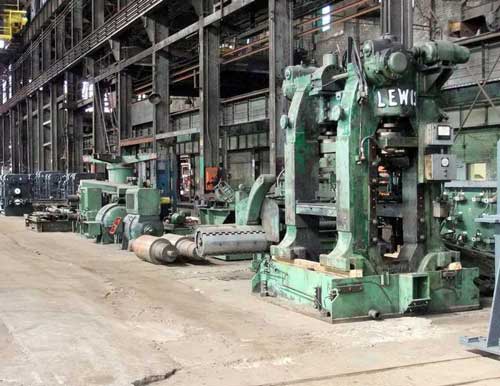

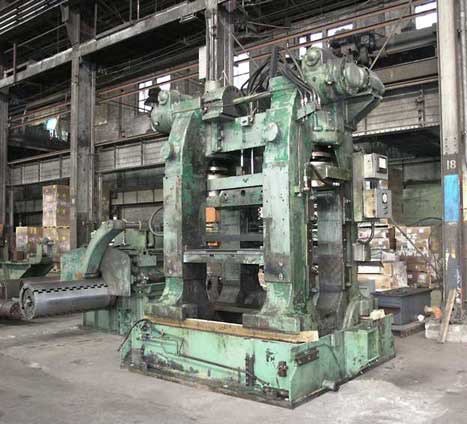

-Mill Stand:
  Mfg:  Original
  Year:  1950, Altered - 1976
  2 Housings jointed by 39.50" Separator
  Electro-Mechanical Screwdowns
   Motors: 2 - 5 HP, 900 RPM, 220/440 V, 3/60 AC
   Screw Speed:  0.083" to 0.208" Per Minute
   Screw Dia.:  7"
  Main Drive:  200 HP DC

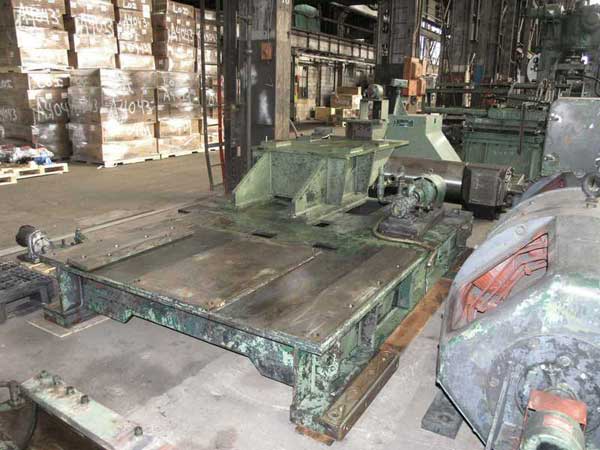

-Mill Base:
  Mfg.:  Waterbury Farrel, 1976
  Welded Steel Construction

-Entry Deflector Roll with Peeler Table

-Exit Deflector Roll, Wiper and Carry Over to Tension Reel.

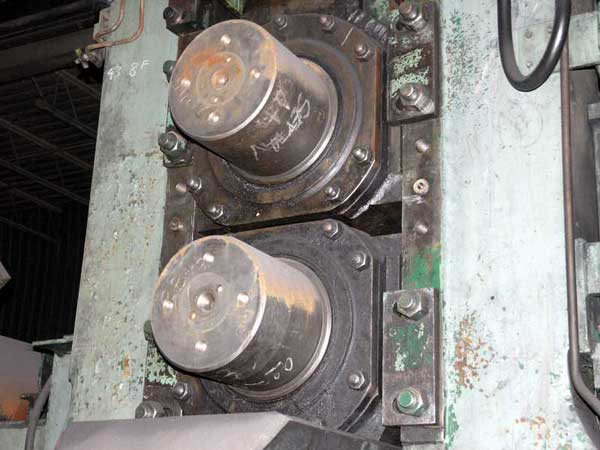

Available with Two Sets of Roll, Chocks and Roller Bearings.

Note:  SCR's and Control not available.

**PLEASE NOTE MACHINE IS DISMANTLED AND LYING IN STORAGE**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
