MACHINE# 13357

GENERAL SPECIFICATIONS:

Make: Sumitomo (Japan)
Year: 1996
Material: SUS304, SUS440, SUS303Cu

Inlet Diameter: Stainless Steel 5.5 mm (0.216")
 (For Tensile Strength: 70kg/mm2 below)

Outlet Diameter: Minimum 1.2mm (0.047")
 (For Tensile Strength: 230kg/mm2 below)

Inlet Speed: Max. 100m/min (328 FPM)
Outlet Speed: Max. 1200m/min (3937 FPM)

Finishing Precision: +/- 0.02mm (0.00078")
Product capacity: Max. 1120kg/hr. (2470 Lbs./Hr.)

Stands:
 Dia. 130mm (5.1") x 13 Stands + Dia. 80mm (3.15") x 19 Stands = 32 Stands

(Equipment specifications):

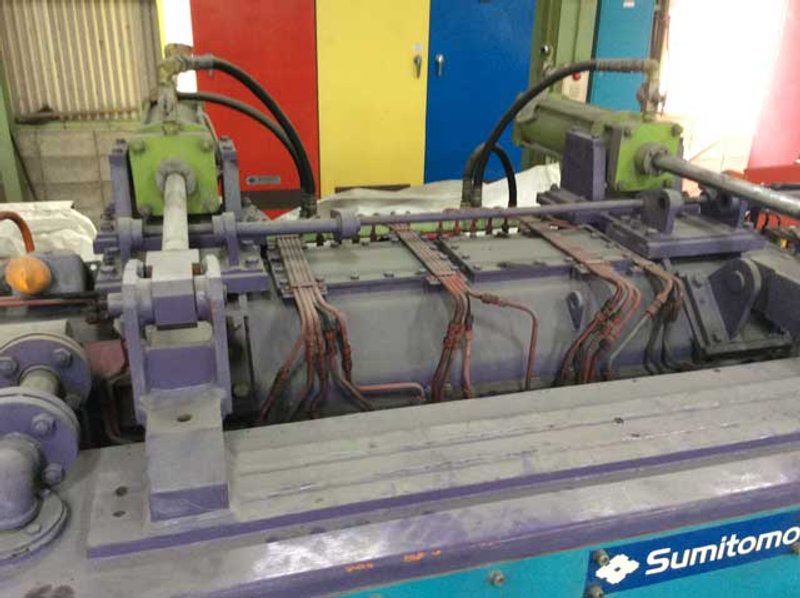

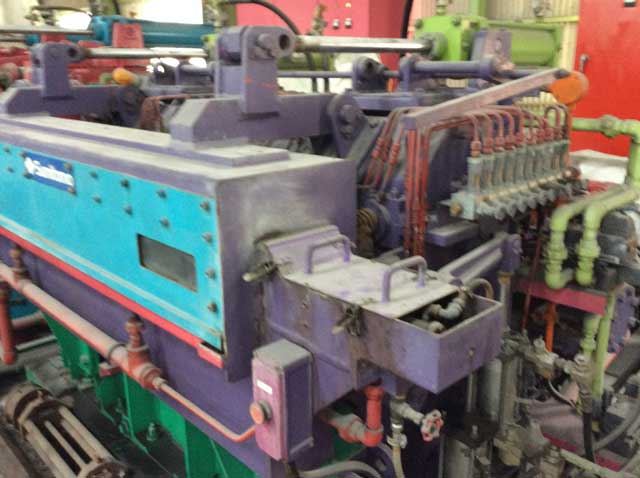

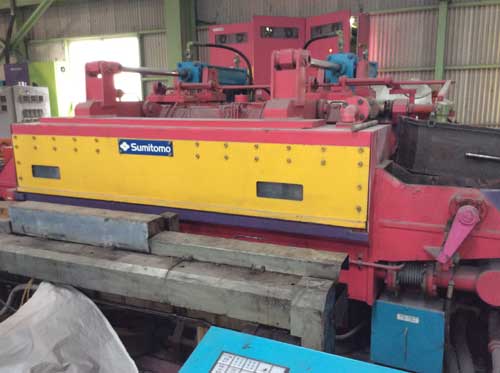

 4-Roll Combined Drive Cold Rolling Mill

1) 130mm (5.1") Diameter Mill:
 - Number of Stands: 13 (H-V type)
 - Stand distance: 140mm (5.5")
 - Roll diameter: 130mm (5.1")
 - Roll material: SKD11
 - Mill motor: AC 120KW x 1150rpm (VVVF) - 1 unit

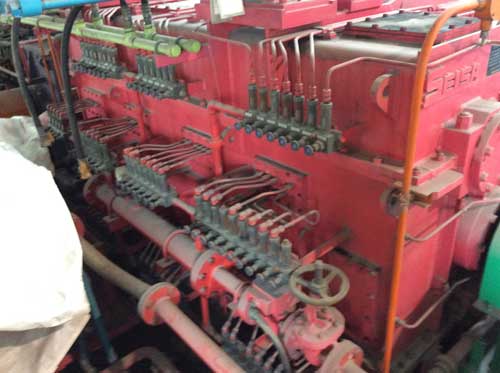

 - Roll HSG Lubrication: Grease, Gear is roll coolant
 - Tension control between the mill units: load cell

2) 80mm (3.15") Diameter Mill:
 - Number of Stands: 19 (H-V type)
 - Stand distance: 80mm (3.15")
 - Roll diameter: 80mm (3.15")
 - Roll material: SKD11
 - Mill motor: AC 190KW x 1150rpm (VVVF) - 1 unit
 - Roll HSG Lubrication: Grease, Gear is roll coolant
 - Tension control in mill outlet: winding type

3) Coolant Circulation Equipment:
 - Tank capacity: 1900 liter (5 Gal.)

Price Includes Dismantling and Loading into Containers.

 ** SPECIFICATIONS SUBJECT TO REVISIONS **

 ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
