MACHINE# 12945

SPECIFICATIONS:

MANUFACTURER:              STANDARD MACHINERY CO. (USA)
SERIAL No.:                524553

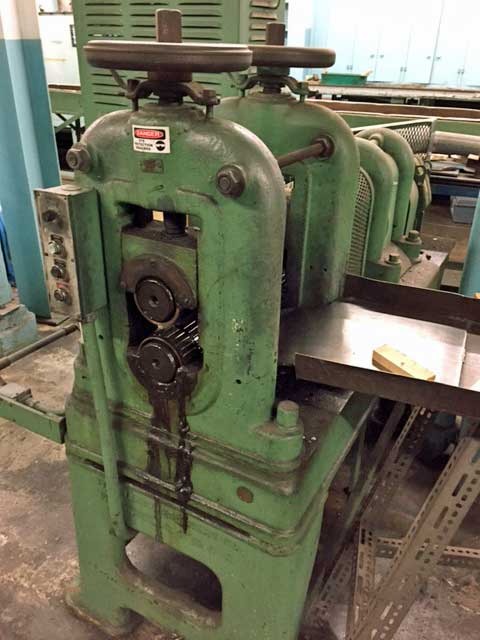

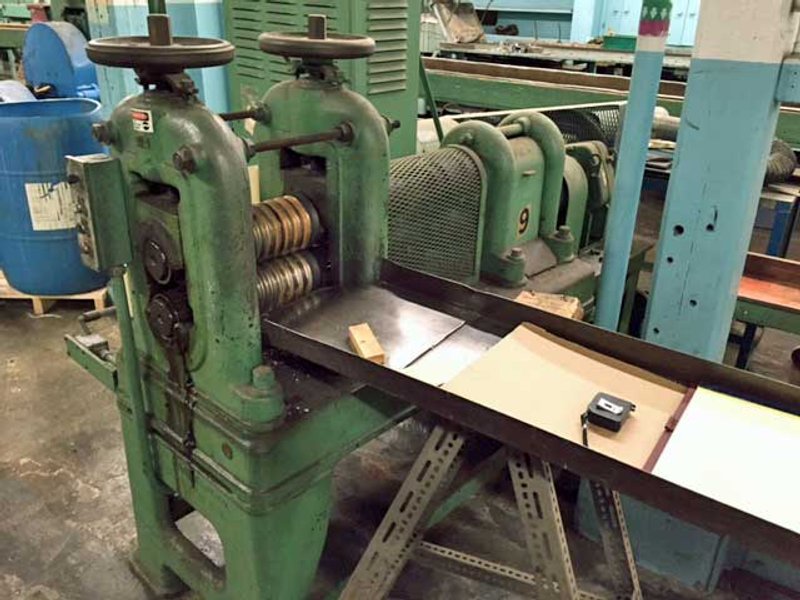

TYPE:                      2-HI REVERSING ROD MILL WITH GROOVED ROLLS
ROLL SIZE:                 5" (127mm) DIA. x 9" (228mm) WIDE
GROOVE SIZE RANGE:         1/2" (12.7mm) TO 3/4" (19mm)
HANDWHEEL SCREWDOWNS
ROLLER BEARINGS
MILL STAND CROSS SECTION:  5 1/2" (140mm) x 3 1/2" (89mm)

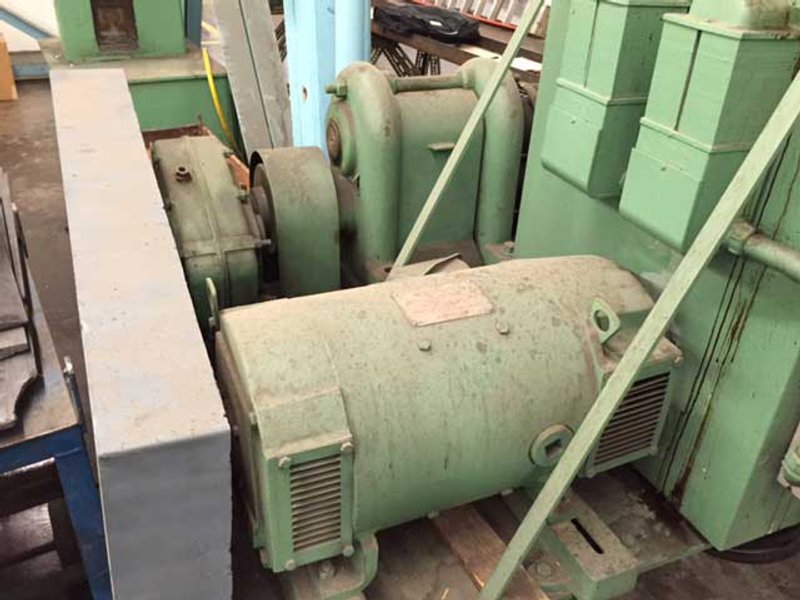

DRIVE MOTOR:               10 HP, 208/240 V, 1750 RPM, 4.64 AMPS, 3 PH, 60 HZ
                           VARIABLE SPEED REVERSING

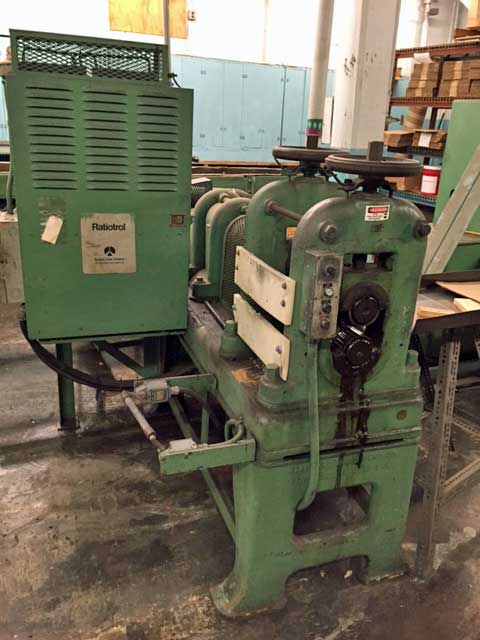

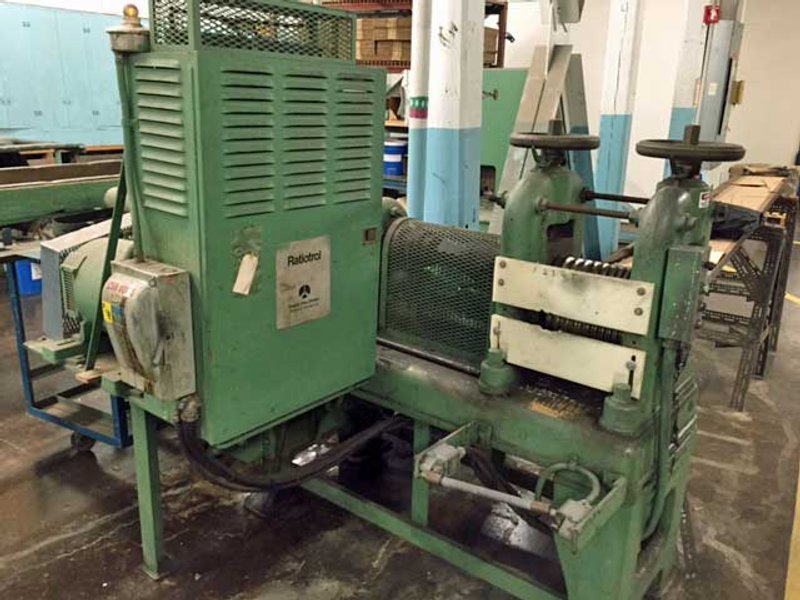

DRIVE CONTROLS:            BOSTON GEAR RATIOTROL
FLOOR SPACE:               4 FT. WIDE x 7 FT. DEEP x 5 FT. HIGH
                           (1220mm) W. x (2134mm) D. x 1524mm) H.

     **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
