MACHINE #13183

SPECIFICATIONS

MANUFACTURER:                FENN MANUFACTURING CO

MODEL:                       125

TYPE                         IMPACT CUTOFF MACHINE WITH BAR FEED

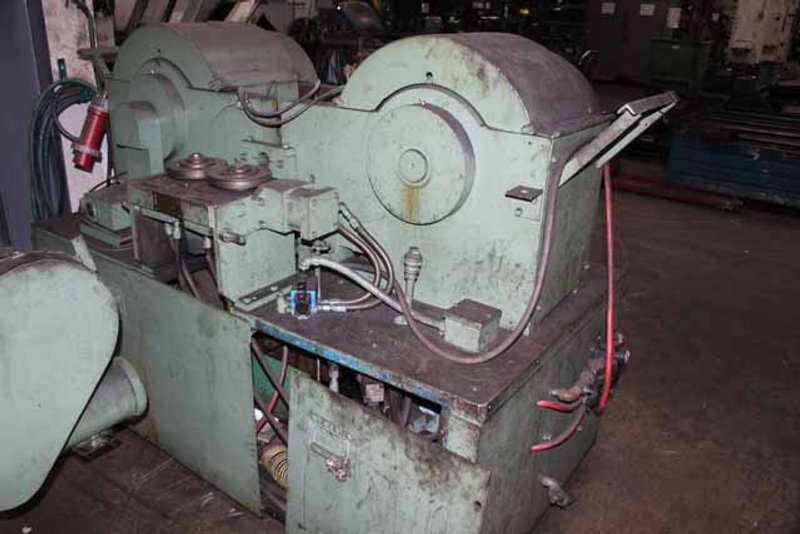

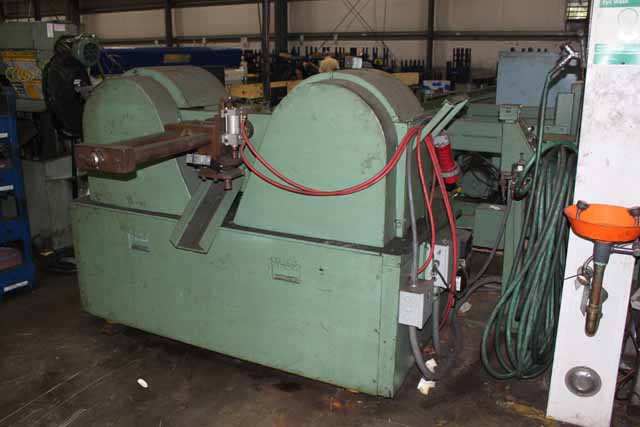

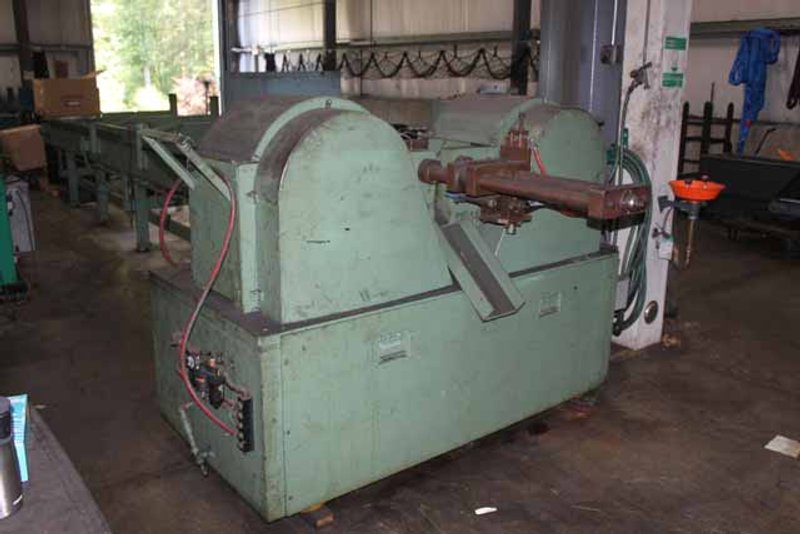

-IMPACT CUTOFF MACHINE:

 -*CAPACITY-SOLID
  -ROUND:                    1 1/4" (31.75 mm)
  -SHAPES:                   EQUIVALENT CROSS-SECTION TO 1 1/4" (31.75mm) DIA
  -MINIMUM:                  3/8" (9.5mm) DIAMETER

*CAPACITIES ARE BASED ON CUTTING SOLID MILD STEEL (65,000 PSI TENSILE).

CAPACITY VARIES INVERSELY WITH THE TENSILE STRENGTH OF THE MATERIAL. FOR

EXAMPLE IF THE TENSILE STRENGTH OF THE MATERIAL TO BE CUT IS 120,000 PSI THE

CAPACITY DROPS TO APPROXIMATELY 7/8" (22.2mm) FOR ROUND STOCK & 3/4" (19.1mm)

FOR SQUARE STOCK.

 -CUT LENGTH
  -MAXIMUM:                  24" (609.6mm)- TO BE VERIFIED WITH POSITIVE STOP
  -MINIMUM:                  1 1/2 X DIAMETER OF MATERIAL BEING CUT (SHORTER

                             LENGTHS CAN BE ACHIEVED WITH A COMPROMISE IN
                             CUT QUALITY

 -CUTOFF TOLERANCE:          +/-.005" (.127mm) PER MANUFACTURER
                             -VARYING WITH LENGTH, MATERIAL AND SPEED

 -RATE OF CUT:               180 CUTS MAXIMUM FOR SHORTEST LENGTH CUT AND MIN.
                             DIAMETER. RATE OF CUT IS LESS FOR LONGER CUT
                             LENGTHS AND LARGER DIAMETERS.

 -MAIN DRIVE MOTOR           15 HP (8.6Kw) AC

 -AIR PRESS REQUIRED:        60 PSI

MACHINE IS EQUIPPED WITH A MICRO-ADJUST POSITIVE STOP ASSEMBLY, MACHINE

MOUNTED ROLL FEED UNIT AND SEMI-AUTOMATIC LUBE SYSTEM.

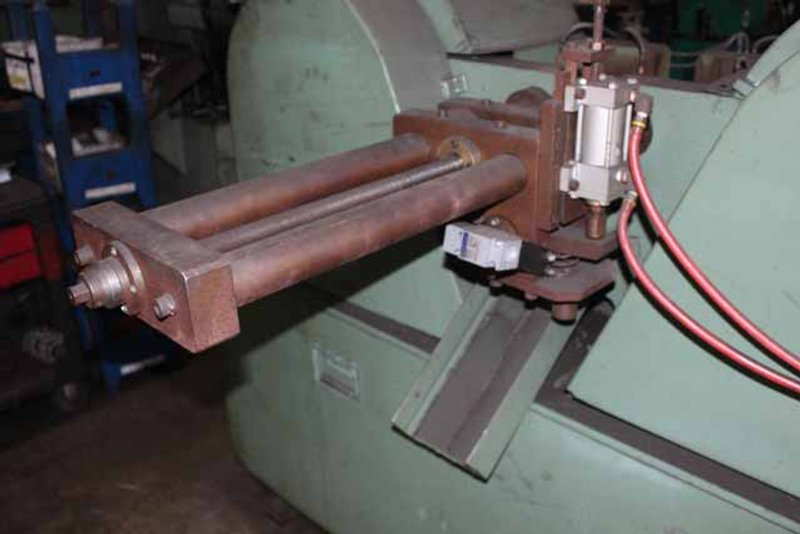

 -POSITIVE STOP:             THE POSITIVE STOP ASSEMBLY CONTROLS THE LENGTH OF
                             CUT. IT IS INFINITELY ADJUSTABLE UP TO THE

                             CUT LENGTH ITS MAXIMUM LENGTH.
                             THE BAR IS FED WITH THE FEED ROLLS THRU THE

                             CUTOFF DIES UNTIL IT MAKES CONTACT WITH THE
                             POSITIVE STOP TARGET WHICH TRIGGERS THE CUT.
                             THE POSITIVE STOP TARGET THEM MOVES UP AND OUT OF
                             THE WAY OF THE CUT PIECE SO IT CAN DROP DOWN THE
                             CHUTE.

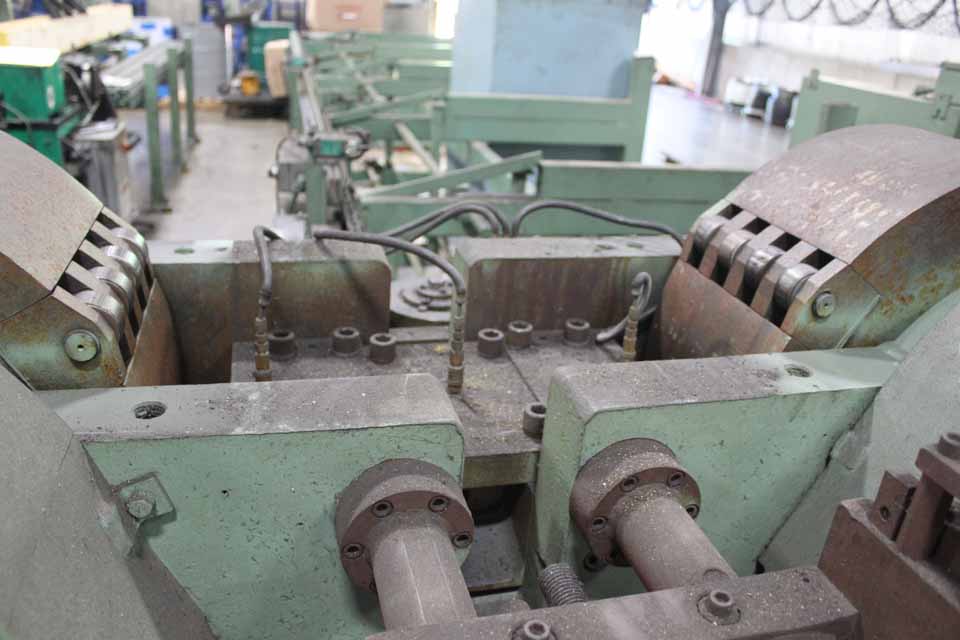

 -ROLL FEED:                 TWO 7" (177.8mm) DIAMETER BRONZE ROLLS EACH

                             POWERED BY ITS OWN HYDRAULIC MOTOR TO TAKE THE
                             BARS FROM THE BAR FEED AND FEED THEM THROUGH
                             THE DIES TO THE POSITIVE STOP TARGET TO TRIGGER
                             THE CUT.

  -HYDRAULIC POWER UNIT:     THE ROLL FEED MOTORS ARE POWERED BY A JAMTEK
                             ENTERPRISES VARIABLE SPEED HYDRAULIC POWER UNIT
                             DRIVEN BY A 5 HP 1735 RPM MOTOR MOUNTED IN THE
                             BASE OF THE MACHINE. THE SPEED IS ADJUSTED  BY

                             THE OPERATOR UTILIZING A ROTATING KNOB LOCATED
                             NEXT TO FEED ROLLS.


-BAR FEED:

 -CAPACITY
  -BAR DIA:                  1 1/4" (31.75mm) DIAMETER
  -BAR LENGTH:               20'-0" (6.1m) APPROXIMATELY

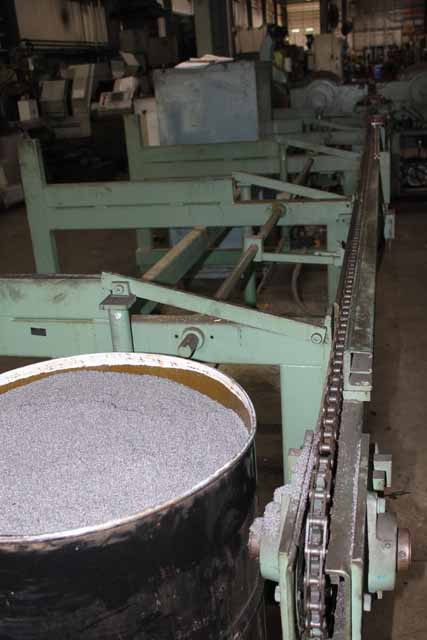

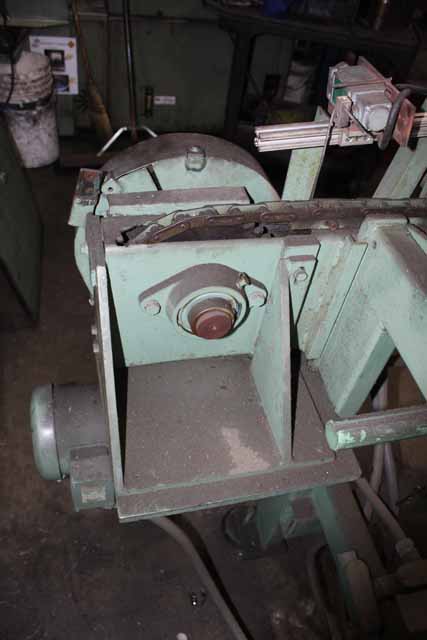

 -FEED TYPE:                 HYDRAULICALLY DRIVEN CHAIN- BAR DROPS ONTO CHAIN
                             AND RIDES TO THE FEED ROLLS ON THE IMPACT CUTOFF

  -HYDRAULIC POWER UNIT:     1 HP 1440 RPM GE MOTOR DRIVING A RACINE PUMP WITH
                             TANK. tHIS IS A SEPARATE STAND ALONE UNIT.


 LINE HEIGHT:                APPROX 40" (1016mm) FROM FLOOR
                             -EQUIPPED WITH ADJUSTMENTS FOR LEVELING

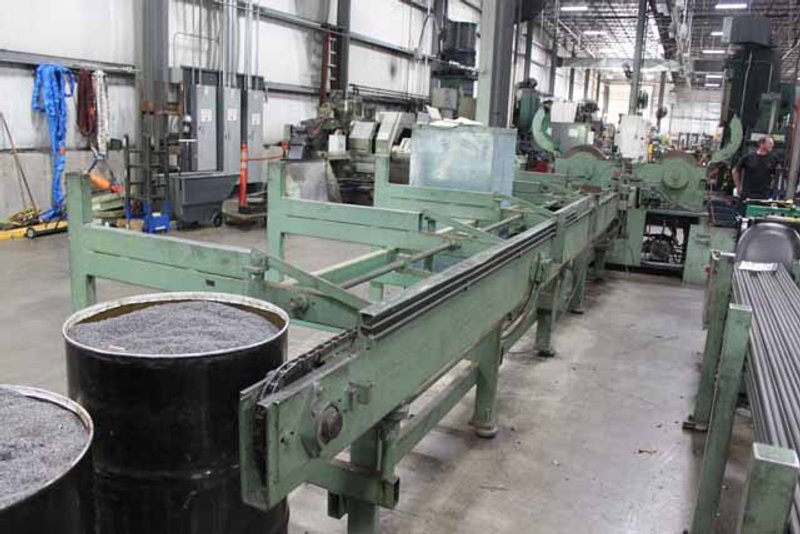

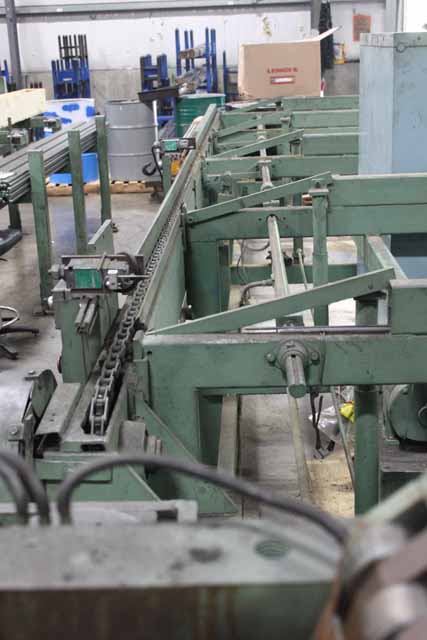

BAR FEED IS DESIGNED WITH LEVEL STORAGE ON TOP AND AN INCLINE RAMP TO FEED

BARS TO MOVING CHAIN. THE CHAIN MOVES THE BAR FORWARD TO MAKE CONTACT WITH THE

FEED ROLLS ON THE IMPACT CUTOFF MACHINE.


 -FLOOR SPACE (APPROX)
  -IMPACT CUTOFF:            8'-0" LONG X 8'-0" WIDE X 5'-0" HIGH
                             (2.4m LONG X 2.4m WIDE X 1.5m HIGH)

  -BAR FEED:                 APPROX 20'-0" LONG X 5'-8" WIDE X 6'-0" HIGH
                             (6.1m LONG X 1.7m WIDE X 1.8m HIGH)

 -WEIGHT (APPROX)
  -IMPACT CUTOFF:            7,800 LBS (3545Kg)

  -BAR FEED:                 2,000 LBS (909Kg)


         **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

    **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
