Manufacturer.......... COILCO
Year.............. 1985

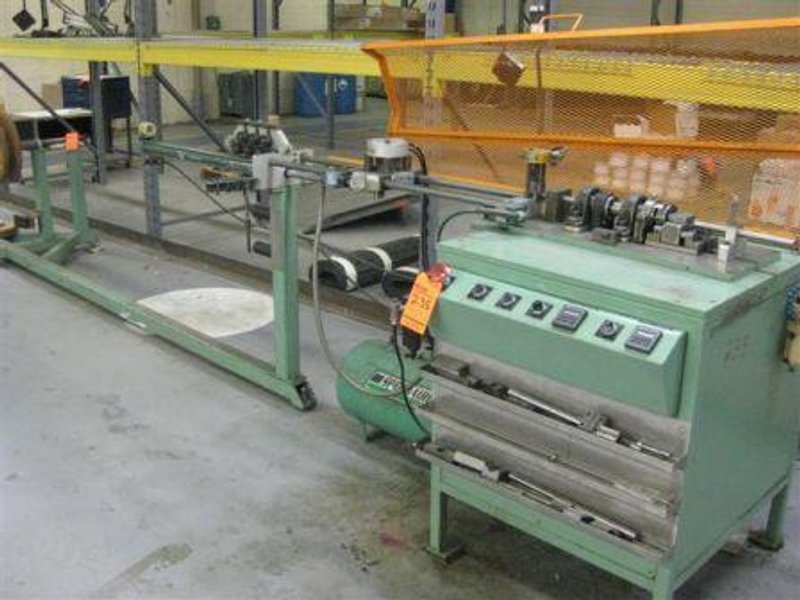

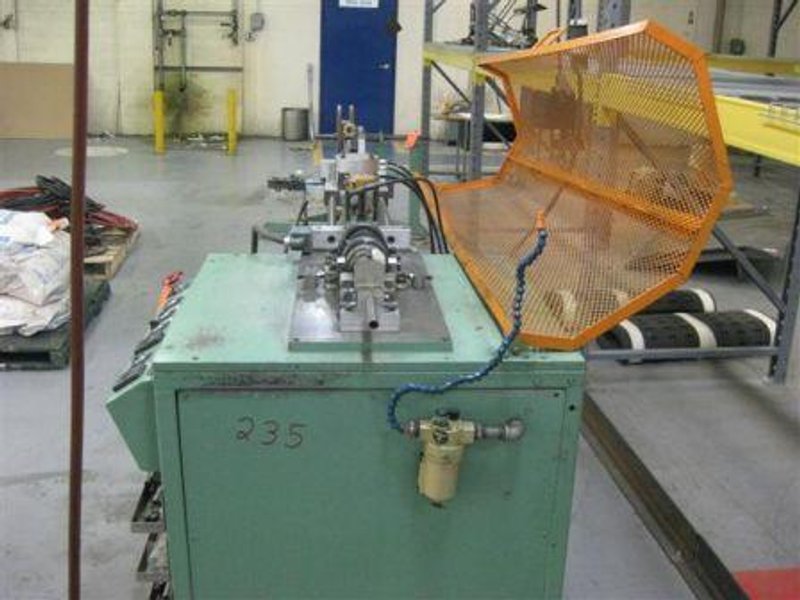

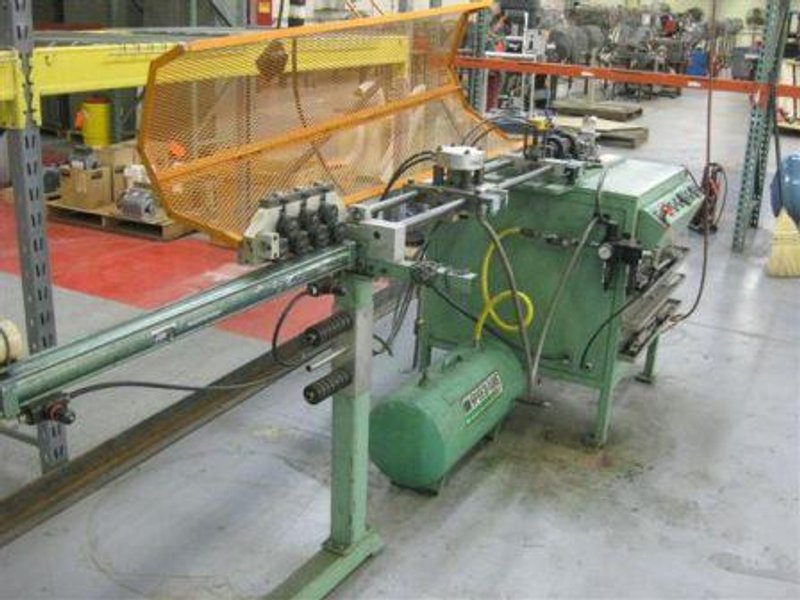

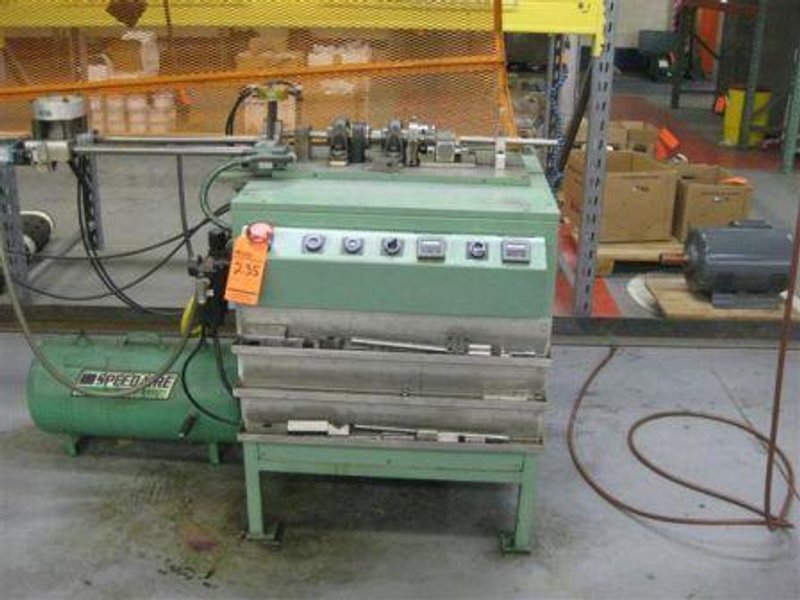

Type.............. Used to straighten & cut copper tubing for hvac industry
Tube capacity .................................. min. 1/4" to max. 7/8"
Max wall thickness...... 0.020"

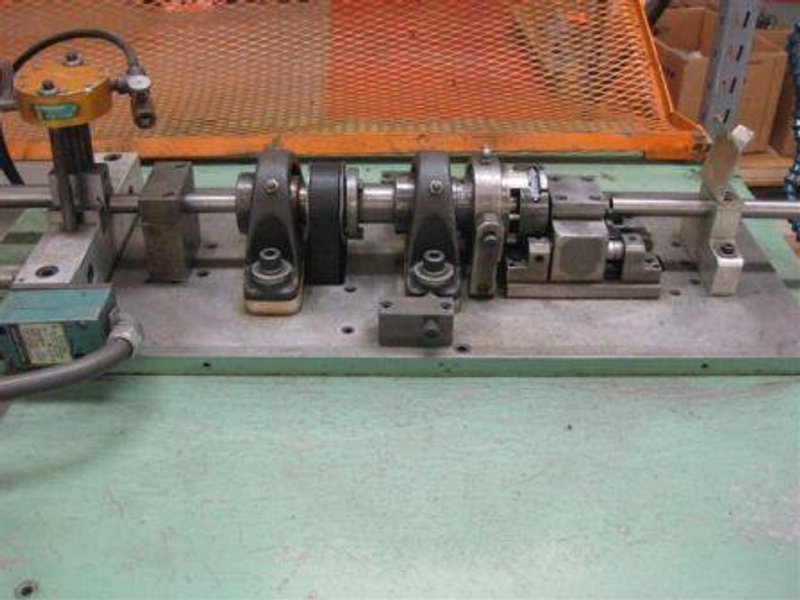

Straightening rolls per plane .................. 7 vertical / 5 horizontal
Maximum feed length per stroke W/pull apart .... 36"
Minimum feed length per stroke W/pull apart .... 2"
Min. feed length per stroke without pull apart . 3/4"
Maximum tube spool diameter .................... 42"
Tube spool i.d. ................................ 5"
Tube spool width ............................... 11"
Air requirement ................................ 80 psi
Air line connection ............................ 3/8 mpt
Electrical requirement standard ................ 220/3/60
Motor .......................................... 1-1/2 hp
Feed rate ...................................... 12" sec.
Type of cutter ................................. rotary

**Temporary Specifications Subject to Revisions**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
