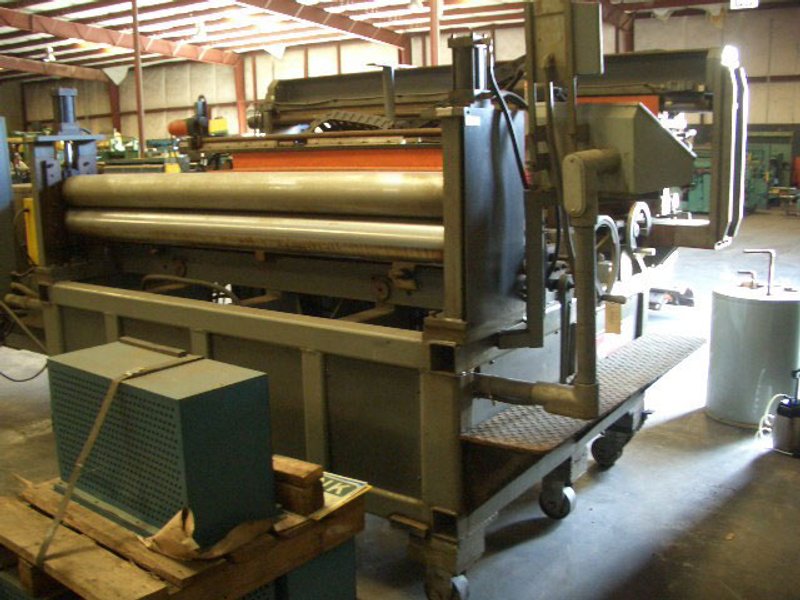

MACHINE# 12264

MANUFACTURER: GUILD INTERNATIONAL (U.S.A.)
MODEL No.: WS 150 72
JOB No.: CS 7881
PURPOSE: WELDING OF COILS OF METAL TOGETHER
MAX. COIL WIDTH: 72" (1828mm)
MIN. COIL WIDTH: 20" (508mm)
ELECTRIC: 460 VOLT, 3 PH., 60 HZ
ENTRY PINCH ROLLS: 6" x 88" WITH HYDRAULIC ADJUST
MANUAL ENTRY SIDE PLATES
HYDRAULIC STRIP CLAMPDOWN

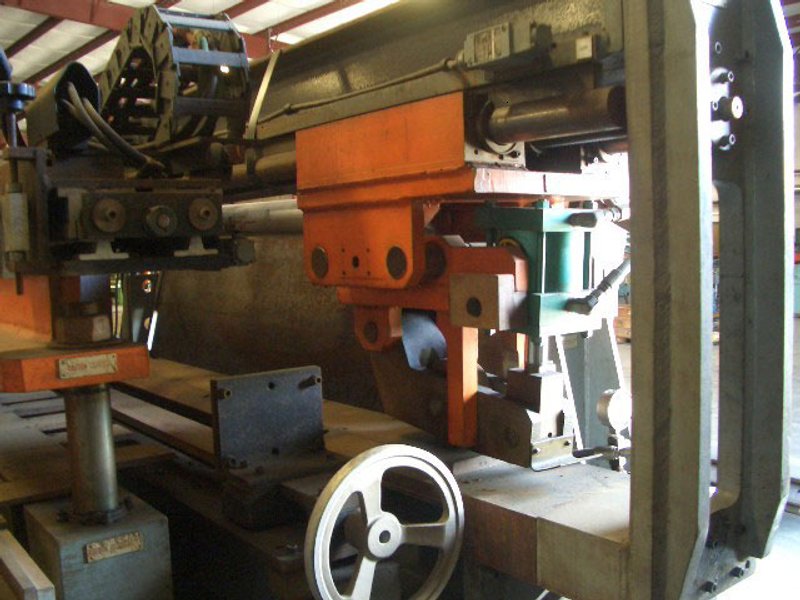

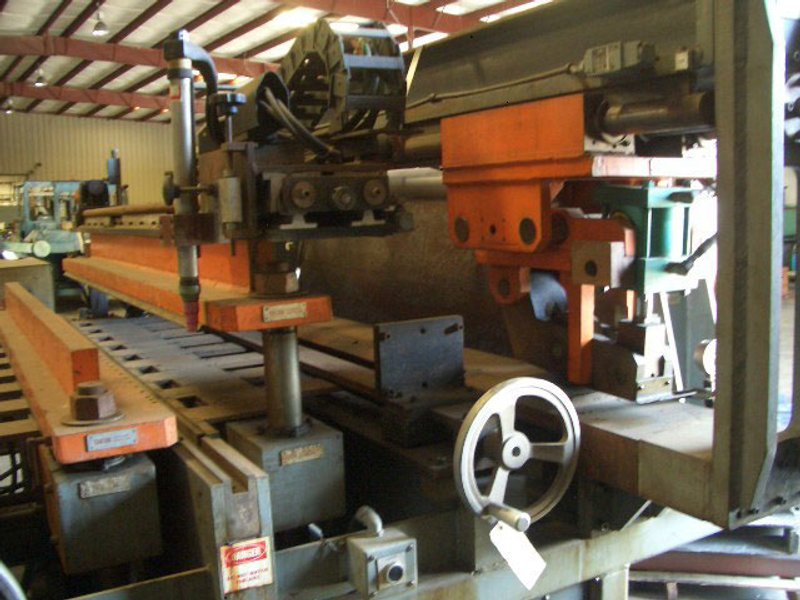

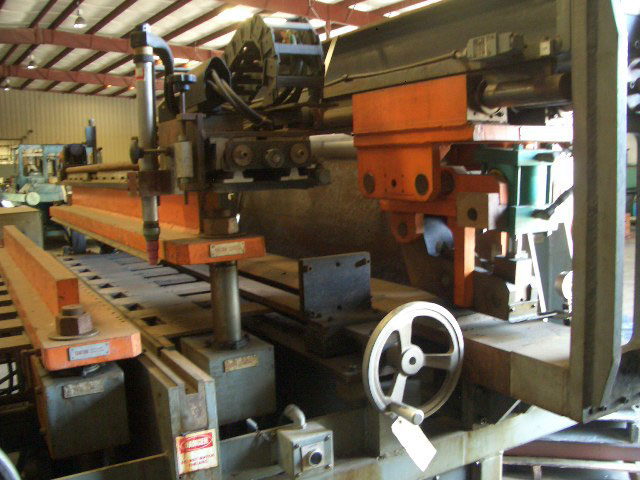

TRAVELING TORCH WELDER
BOSCH HYDRAULICS
HUMP ROLL
PLANISHER
AUTO RESET

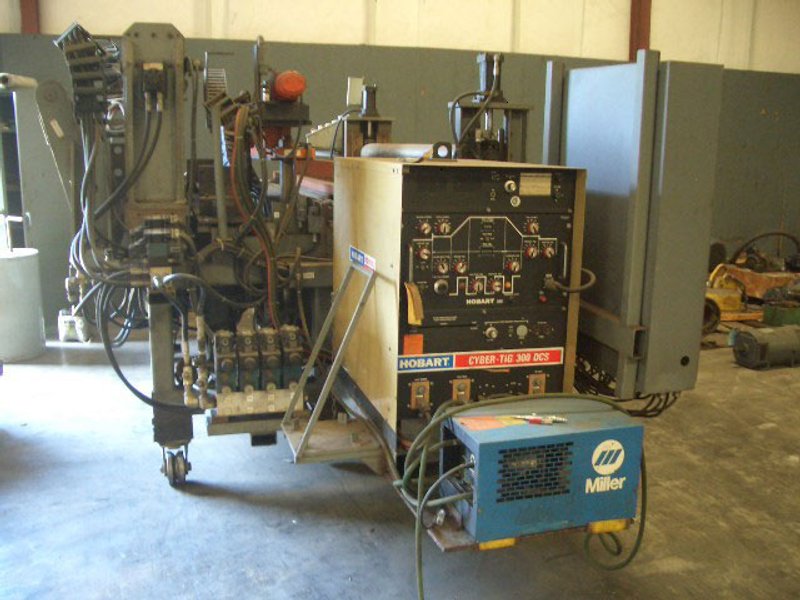

WELDER:

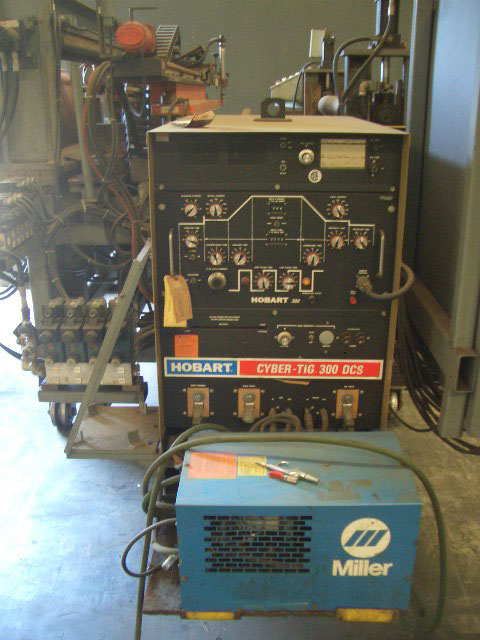

MANUFACTURER: HOBART CYBER-TIG 300DCS
MODEL No.: CT-300-DC-S
SERIAL No.: 87 WS 15716
LINE VOLTS: 230/460
LINE AMPS: 65/33
POWER: 300 AMPS, 32 VOLT, TYPE DC
COOLING: MILLER RADIATOR 1

ENTIRE UNIT IS MOUNTED ON WHEELS AND IS PORTABLE

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
