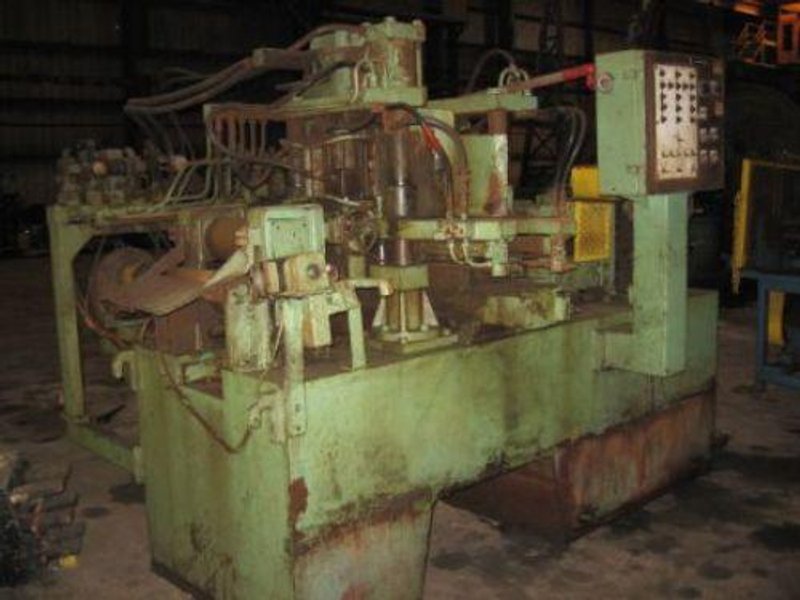

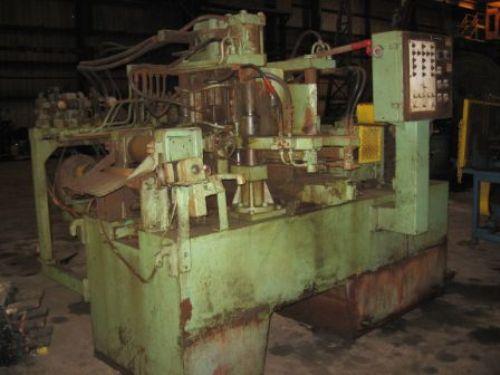

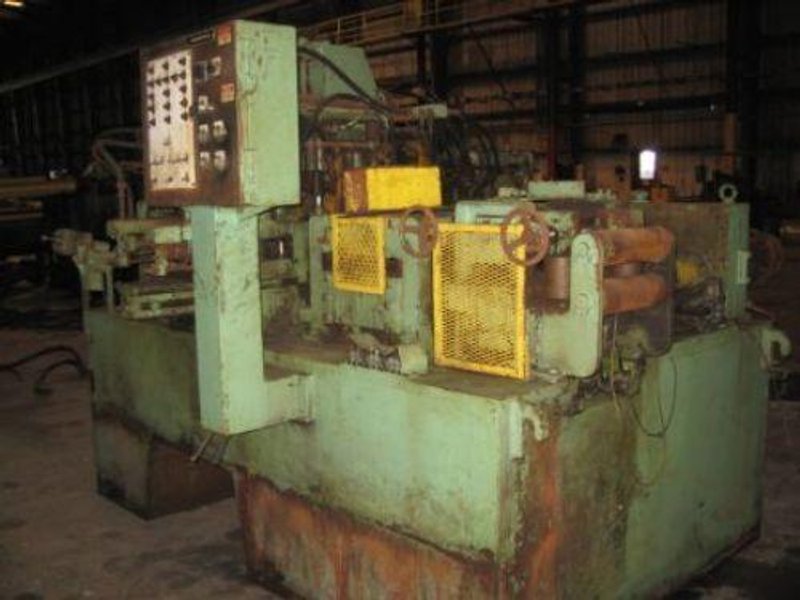

BUTT SHEAR / SEAM WELDER MODEL LSW-2500 Our stock number: 109616
ENTRY EDGE GUIDES
POWERED PINCH ROLLS
5 ROLL POWERED FLATTENER
ENTRY & EXIT CLAMPING UNITS
SHEAR
EXIT PINCH ROLL
PUSH BUTTON STATION
CAPACITY:
STRIP THICKNESS ............... 1.1mm - 3.8mm
STRIP WIDTH ................... 50mm - 250mm
ESTIMATED MILL SPEED .......... 150m/minute MAX
SHEAR AND WELDER COMPONENTS:
ENTRY GUIDE ROLL
SIDE GUIDE ROLL
PINCH ROLL
LEVELLING UNIT
DRIVE UNIT
GUIDE UNIT
CLAMP UNIT
SHEAR
TORCH FEED GUIDE
EXIT GUIDE ROLL
ELECTRICAL UNIT NOT INCLUDED
SPECIFICATIONS TO BE VERIFIED BY PURCHASER |
