56" (1422mm) STAMCO-HUNTER TENSION LEVELER, THICKNESS 0.050" - .003" (13385)

MACHINE # 13385

Tension Level Line, Stamco-Hunter, 56"

Strip Thickness: 0.003" to 0.050" Max. (0.076 mm to 1.27 mm)
Strip Width:     56" Max. (1422 mm)
Coil Size:       I.D. Entry - 10" & 20" I.D. Cores (394 & 508 mm)
                 O.D. - 60" Max. (1524 mm)
                 Weight - 15,000 Lbs. Max. (6.8 MT)

Consisting of:

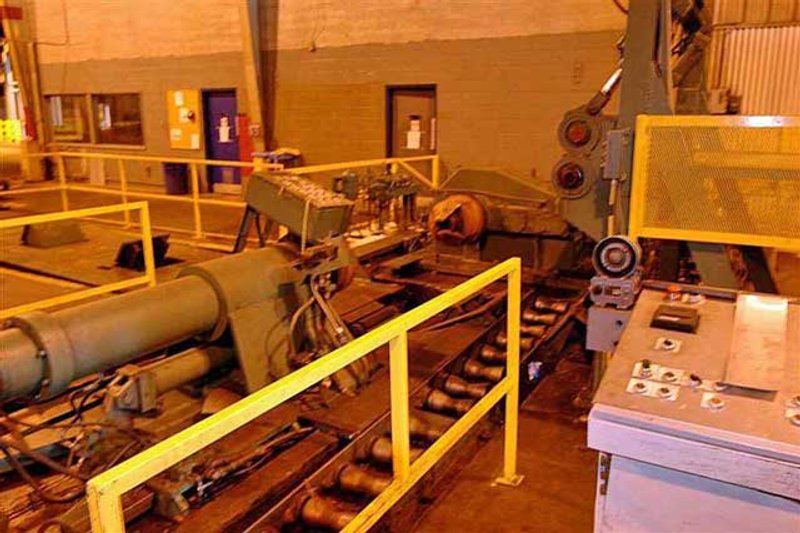

-Uncoiler:
  Double Stub Design
  10" and 20" ID Steel Cores,
  Stepped mandrel with hydraulic expansion
  Sliding Base on both units
  100 HP DC Motor Regen Brake, 300 to 1800 RPM

-Entry Crop Shear:

  0.050" x 62" Capacity
  Hydraulic Operation

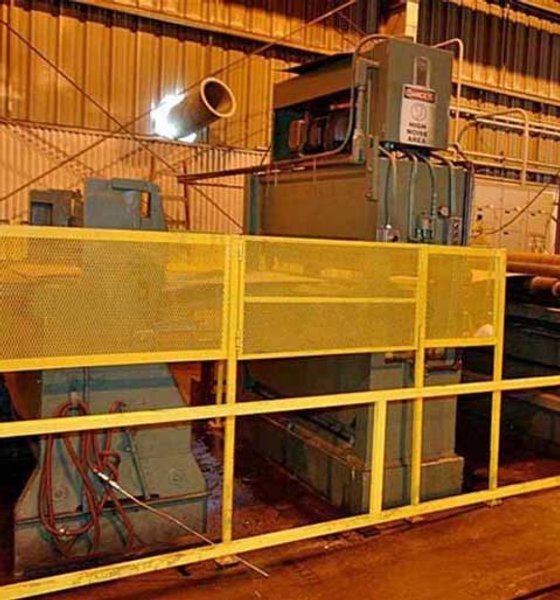

-Joining Press (Stitcher):

  100 Ton Hydraulic Unit
  72" Wide Stitching Die

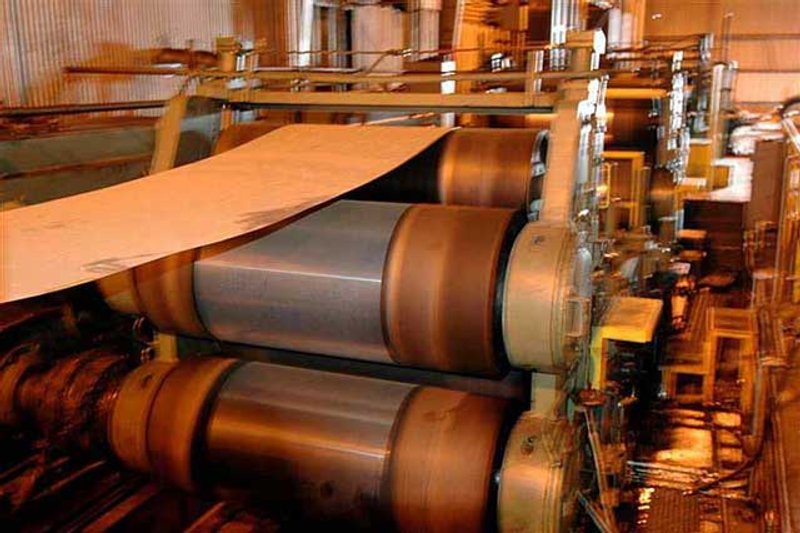

-Entry Leveling Bridle:

  4 Roll Unit
  1 Non Driven Pass Line Roll 21" Dia. x 62" Face
  3 Driven Roll Dia. x 62" Face Rolls

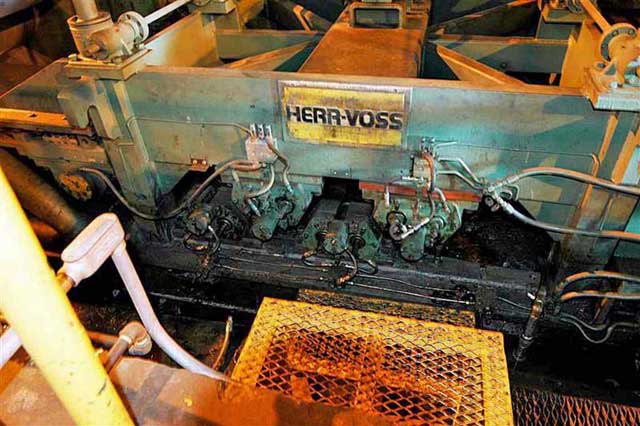

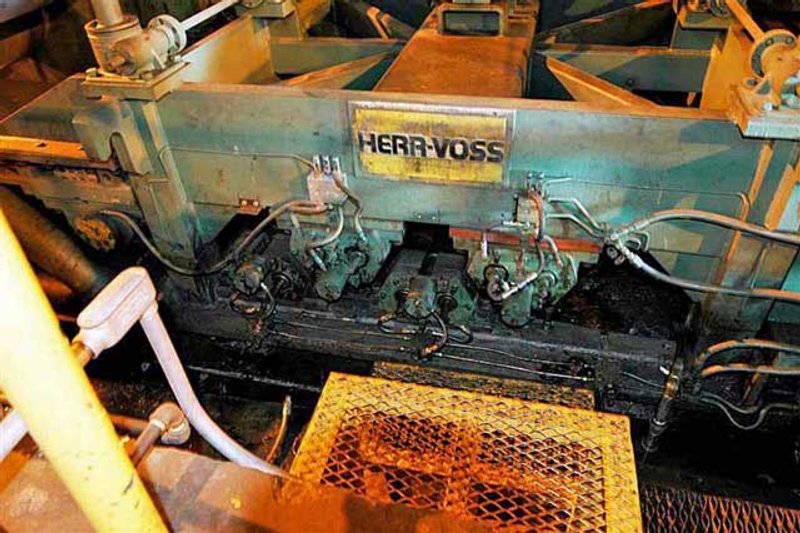

-Herr Voss Flex-Roll Leveler Section:

  Thickness Design Capacity:  0.003" TO 0.100"
  Line Speed 300 to 600 FPM
  5 Roll Cassettes, 2 over 3
  2" Dia. Work Rolls
  5.75" Dia. Backup Rolls
  66" Roll Face
  Entry Pass Line Roll 8" Dia.
  Exit Pinch Rolls 8" Dia.

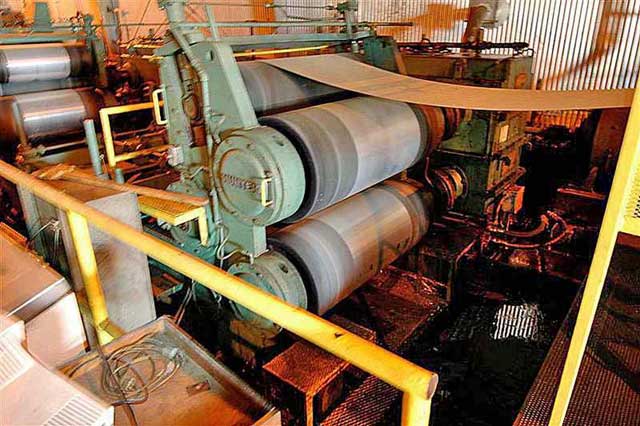

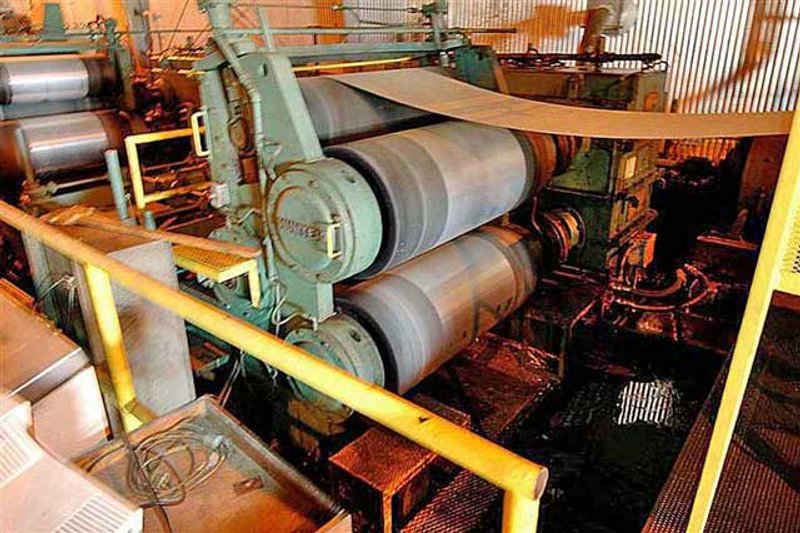

-Exit Leveling Bridle:

  4 Roll Unit
  1 Non Driven Pass Line Roll 21" Dia. x 62" Face
  3 Driven Rolls 24" Dia. x 62" Face Rolls

-Thickness Gauge:  Non-Contact Type Unit

-Exit Crop Shear:

  0.050" x 62" Capacity
  Hydraulic Operation

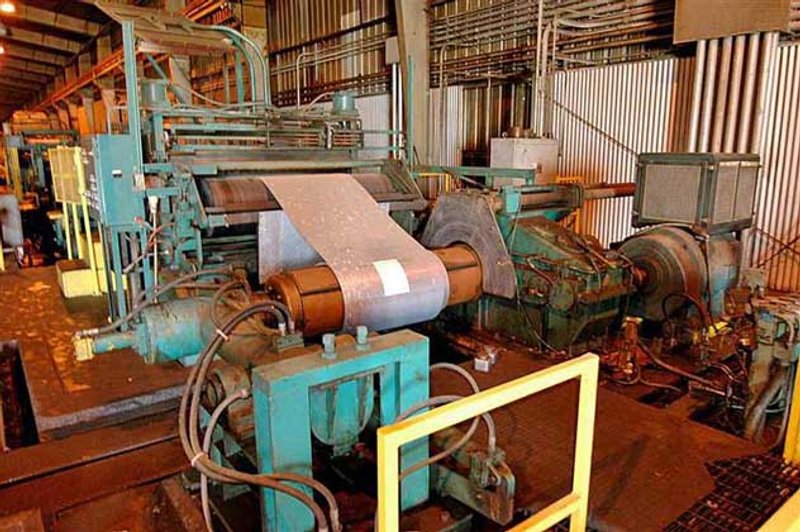

-Recoiler:

  Hydraulic Expanding Mandrel
  Hydraulic Pushoff
  Sliding Base
  Edge Guide
  200 HP DC Drive

**Please Note Machine is Dismantled and Lying in Storage

**TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY BUYER**
