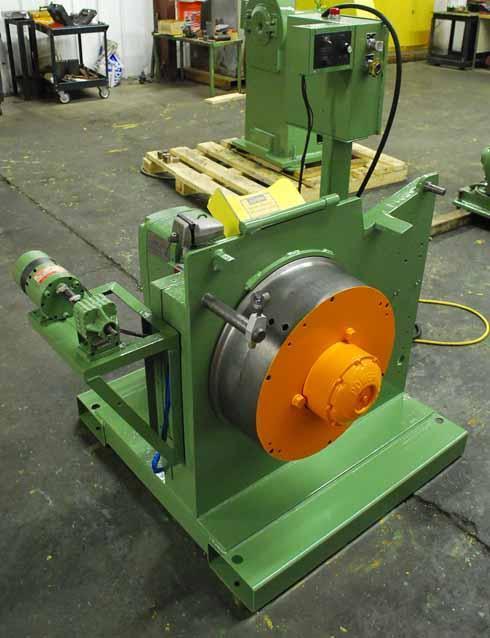

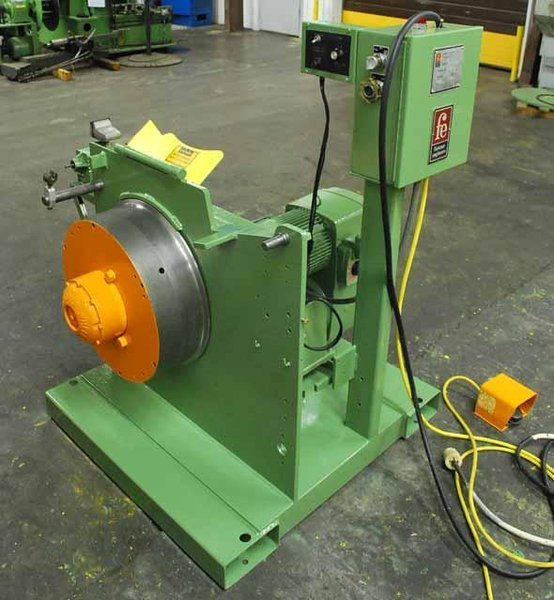

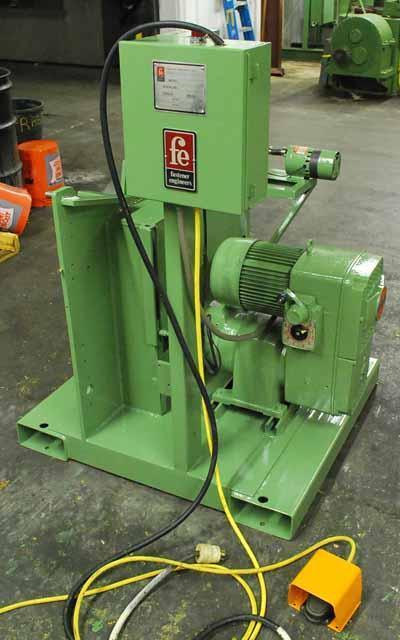

MACHINE# 11934

SPECIFICATIONS:

MANUFACTURER: FASTENER ENGINEERS (NOW RMG)-USA
MODEL No.: DTM-O3-20
SERIAL No.: 886-6144

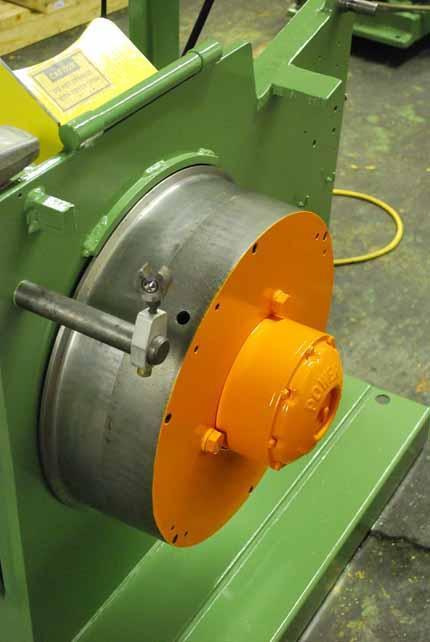

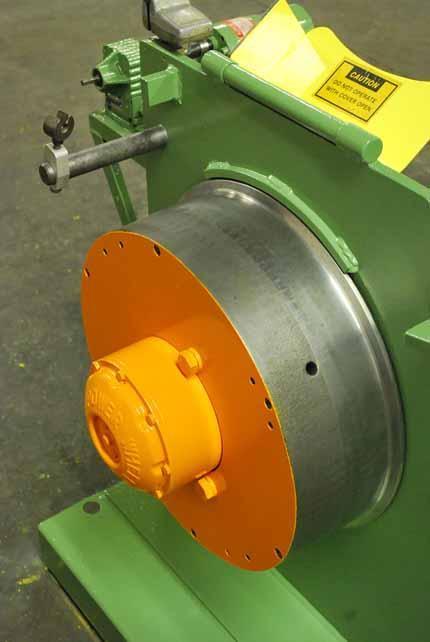

CAPSTAN DIAMETER: 20" (508mm)
TORQUE: 25,000 LBS. (11,340 KG)

SPEED RANGE: 9-80 FPM (2.75-24m/Min.)

TORQUE RANGE: 0-25,000 IN-LBS

APPLICATION: IDEAL FOR SLOW-SPEED WIRE DRAWING OR
IN-LINE WITH A COLD HEADER BETWEEN
PAYOFF AND FEED ROLLS.

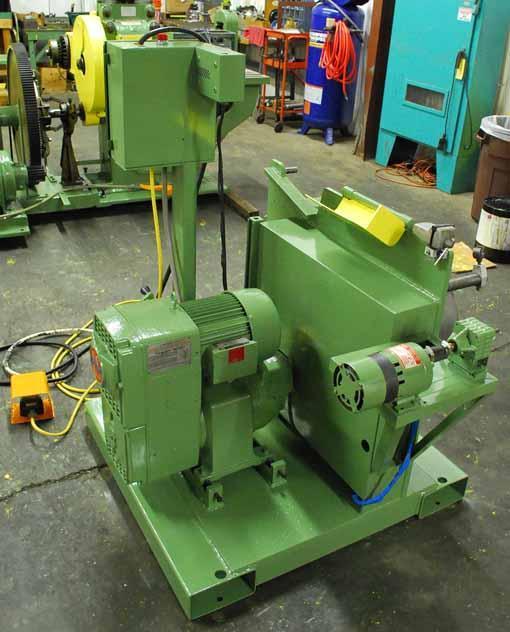

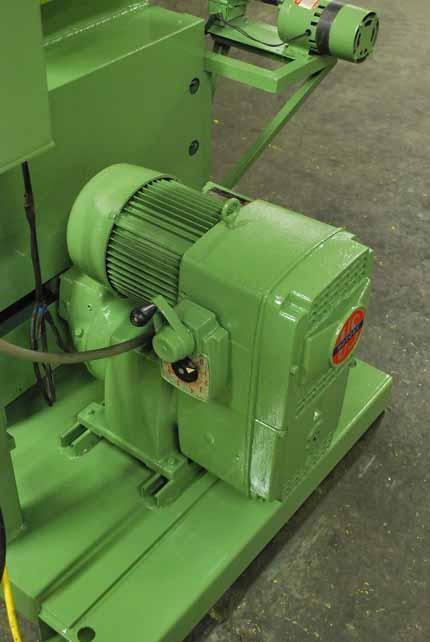

MOTOR: 3 HP, 230/460 VOLTS, 16.4/8.2 AMPS,
3 PH., 60 HZ, U.S. ELECTRIC VARIDRIVE
MOTOR INTO VARISPEED GEAR DRIVE

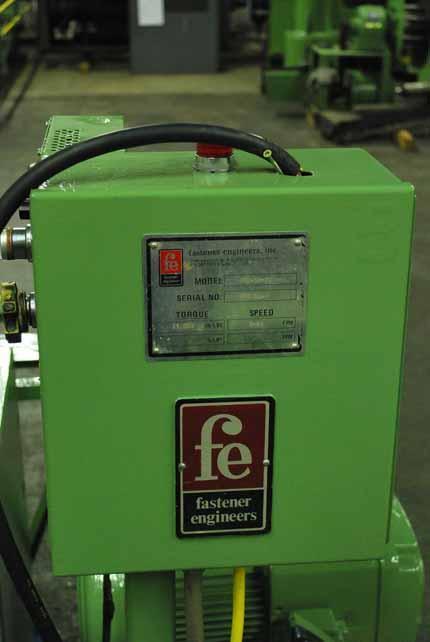

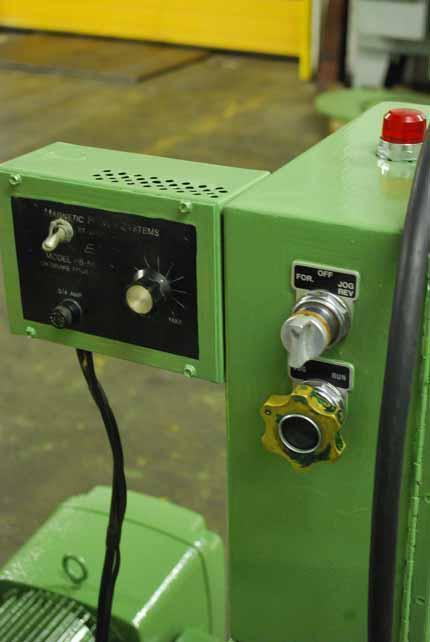

FACTORY-WIRED 110 CONTROL TRANSFORMER
IN CONTROL CENTER USED FOR 220/440 VOLT,
3 PH., 60 HZ ELECTRICS USING PLUG-IN CONNECTION

DIMENSIONS: 32" L x 26" W x 44" H
(812mm L x 660mm W x 1117mm L)

WEIGHT: 1160 LBS. (526 KG)

DRAWBOX: TILT TYPE FOR EITHER WET OR DRY
LUBRICANTS AND PIVOTING ACTION
FOR LINE-UP OF DIE AND CAPSTAN.

- BUYER MUST REPLACE DIE BOX

- EQUIPPED WITH FORK LIFT RAILS AND PLUG-IN ELECTRICAL CONNECTION FOR
EASY RELOCATION

- EQUIPPED W/WIRE TAKE-UP REEL WITH 1/10 HP, 115 VOLT, 1 PH., 60 HZ,
DAYTON GEAR MOTOR

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
