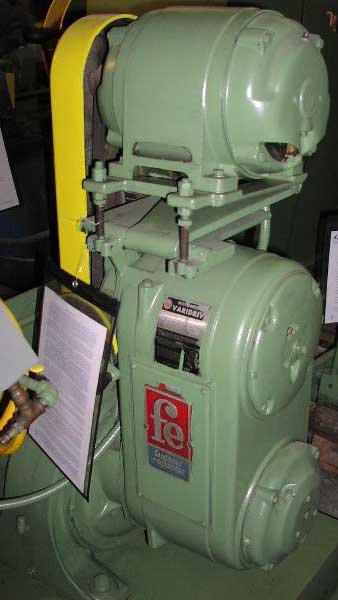

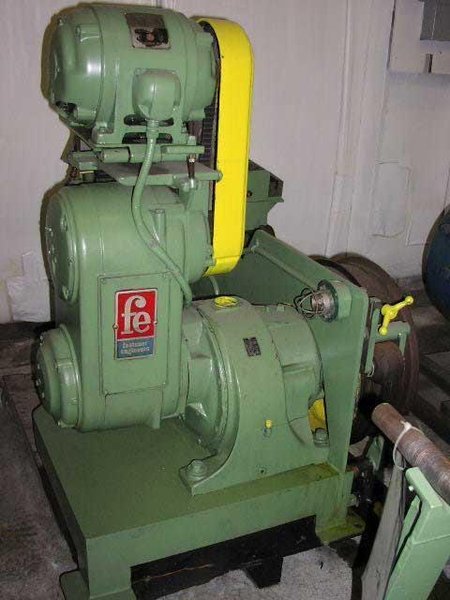

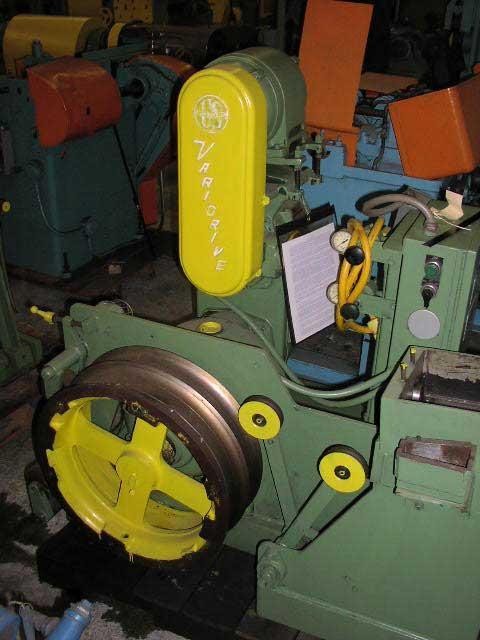

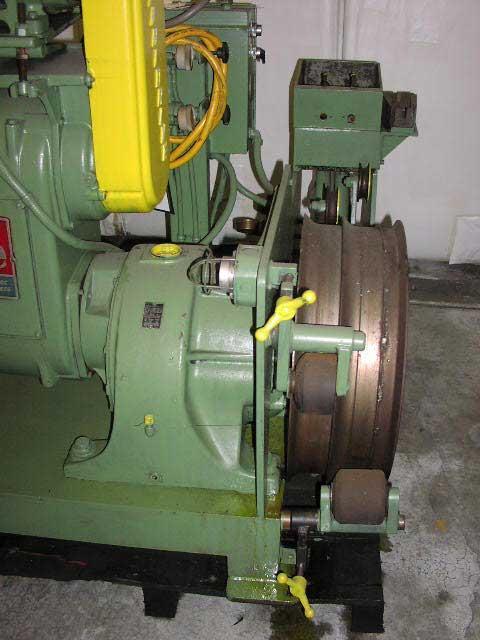

20", No. DA-03-2020, FASTENER ENGINEERING, VARIDRIVE, BLOCK DIA 20" (4989)

Machine # 4989

MANUFACTURER: FASTENER ENGINEERING CO

MODEL: DA-03-2020

CAPSTAN DIAMETER: 20"
-DOUBLE CAPSTAN

REDUCTION CAPABILITY
-60,000 PSI TENSILE .024 SQ/IN MAXIMUM
-80,000 PSI TENSILE .021 SQ/IN MAXIMUM
-100,000 PSI TENSILE .017 SQ/IN MAXIMUM

SPEED
-MINIMUM 4 FPM
-MAXIMUM 35 FPM

DRIVE: US MOTORS VARI-DRIVE
-MOTOR: 3 HP (US MOTORS)
1000/2000 RPM
FRAME 215
-VOLTAGE 208/220/440 VOLTS 3 PHASE 60 HERTZ

-VARI-DRIVE TYPE VEVFI GM (US MOTORS)
GEAR RATIO 209
FRAME 23-41

EQUIPPED WITH MANUALLY OPERATED PRESSURE ROLLS AND CONTROLS FOR
FORWARD/REVERSE/JOG.

NOTE: MACHINE IS CAPABLE OF DRAWING TWO WIRES AT ONE TIME

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

*******ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER*******
