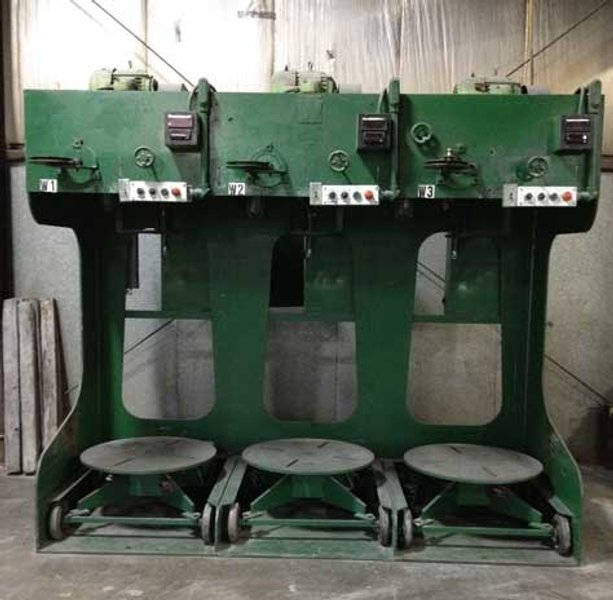

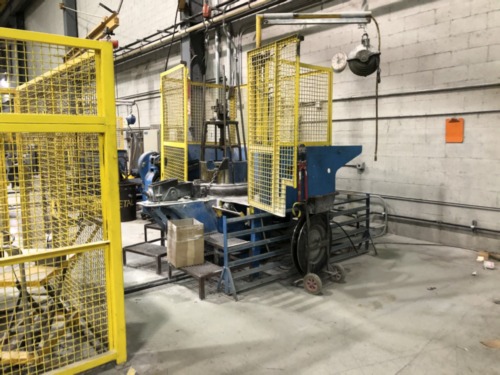

MACHINE# 13443

SPECIFICATIONS:

Manufacturer:              Whitacre Machine Corp. (USA)
Type:                      Vertical Downlayer
No. of Take-Up Stations:   3
 (Independently Driven but mounted on a common base).

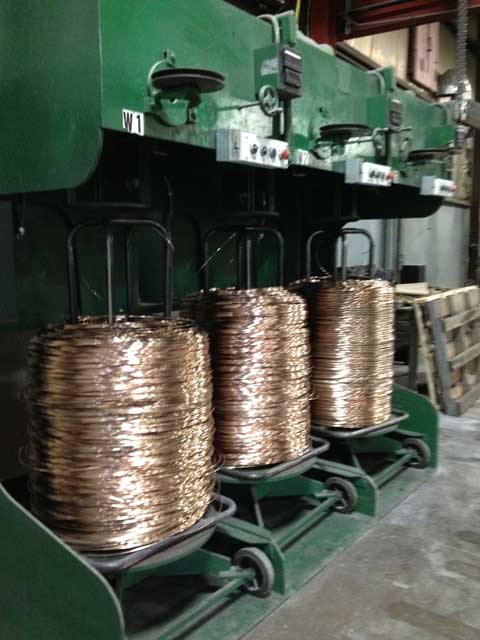

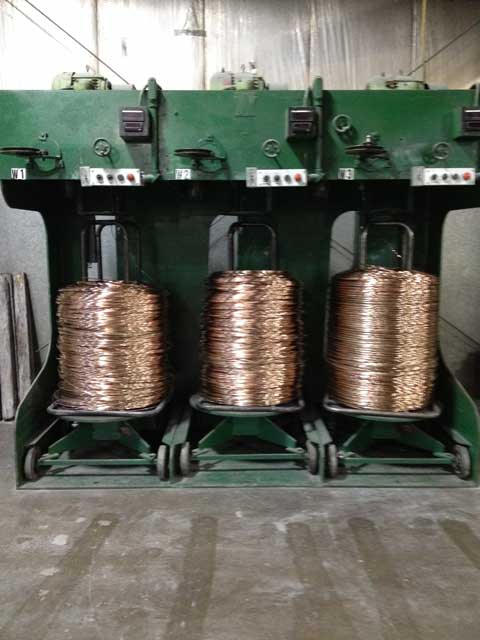

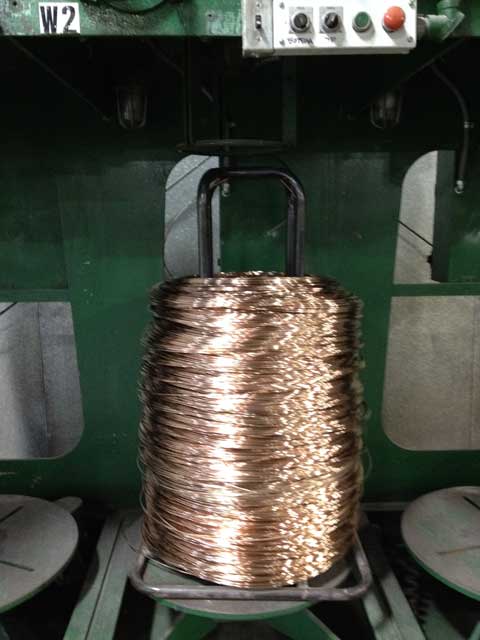

Each Take-Up Consists of:
 16" (406mm) Diameter Driven Capstan
 30" (762mm) Diameter Driven Turntable to Received Wire Coil

Drive Capstan:
 Block Diameter:           16" (406mm)
 Drive Motor:              2 HP, 480 V, 3 Ph., 60 Hz, Belt Driven
 Controls:                 General Electric A.C.
 Cleveland Gear Reducer:   15:1 Gear Ratio
 Quantity:                 3

Powered Turntables:
 Table Diameter:           30" (762mm)
 Drive Motor:              1/3 HP, 480 V, 3 Ph., 60 Hz, Chain Driven
 Controls:                 General Electric A.C. Inverter Drive
 Leeson Gear Reducer:      50:1 Gear Ratio

Capacity (As Used on Copper):
 Minimum Wire Diameter:    .093" (2.3mm)
 Maximum Wire Diameter:    .156" (4mm)
 Maximum Height of Coils:  48" (1219mm)
 Maximum Coil Weight:      1,500 Lbs. (680 Kg)
 Line Speed:               To Be Determined

Each Take-Up/Turntable Set has its own Start/Stop Switches controlling both

Take-Up and Turntable together.

Each Take-Up/Turntable Set has individual Adjustable Speed Controls and FPM

Digital Display Meters.

Each Take-Up has a Wire Run-out Switch which will stop the drive when the end

of the wire passes through it.

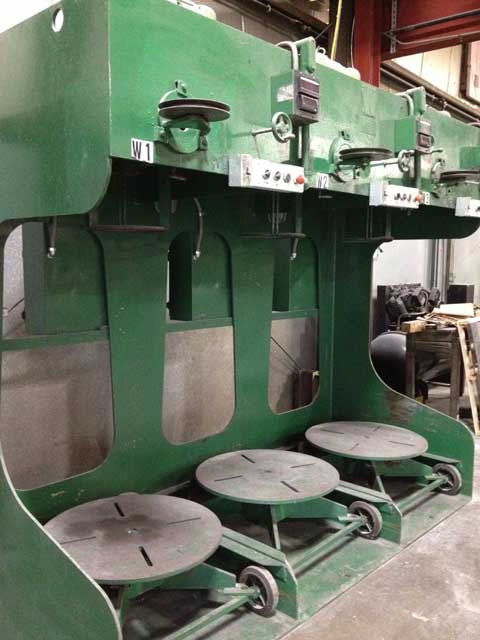

Turntables roll out for product removal.

Overall Dimensions:
 Width:                    4 Ft. (1.2m)
 Length:                   9 Ft. (2.74m)
 Height:                   8 Ft. (2.43m)
