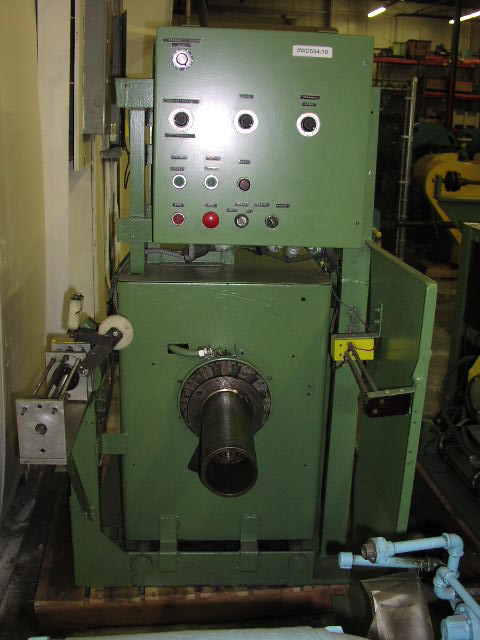

MACHINE # 10779

MANUFACTURER:.................CONNECTICUT WIRE

TYPE MACHINE:.................WIRE TAKE UP-WIRE TRAVERSING TYPE

SPOOL SHAFT SIZE:.............5" (127mm) DIAMETER X 12" (304.8mm) WIDTH
DRIVE SHAFT DIAMETER:.........2" (50.8mm)

SPOOL DRIVE MOTOR:............3 HP 1760 RPM INDUCTION MOTOR W/AN
ADJUSTOSPEDE RATED FOR 3 HP
1675 MAX RPM
100 MIN RPM
..............................550 VOLTS

DRIVE.........................EATON DYNAMATIC

WIRE TRAVERSE DRIVE MOTOR.....90 VOLTS, 1/3 HP, 1725 RPM

TRAVERSE......................12" (304.8mm)

BACK TENSION..................ELECTRIC BRAKE

MACHINE INCLUDES OPERATOR/ELECTRICS PANEL AND IS EQUIPPED WITH FOUR
POTENIOMETERS;
-SPOOLER TENSION
-BRAKE
-TRAVERSE SPEED
-SPOOLER DANCER SPEED

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
