MACHINE #13632

SPECIFICATIONS:

MANUFACTURER:                MACKINTOSH-HEMPHILL CO. (U.S.A.)

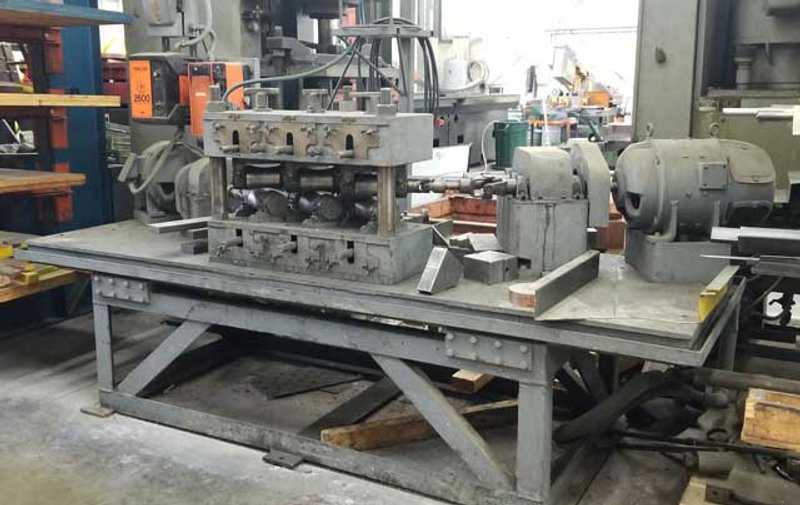

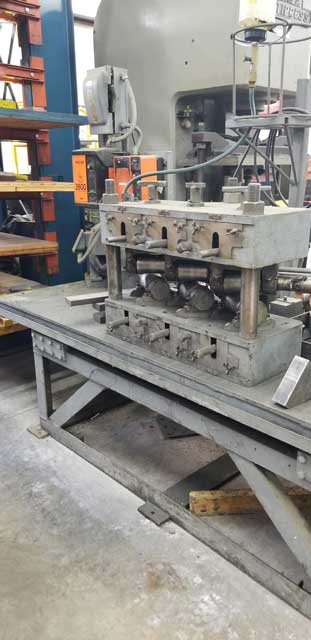

TYPE:                        6 ROLL ROTARY STRAIGHTENER
MODEL:                       AXY
APPLICATION:                 FERROUS OR NON FERROUS TUBE

MINIMUM TUBE O.D.:           1/4" (6.35mm)
MAXIMUM TUBE O.D.:           7/8" (22.225mm)
- NOTE: HAS DONE 1 1/8" (3.175mm) O.D. SOFT COPPER FOR TEMPERING

NORMAL PRODUCTION SPEED:     UP TO 350 FPM (107m/Min.)

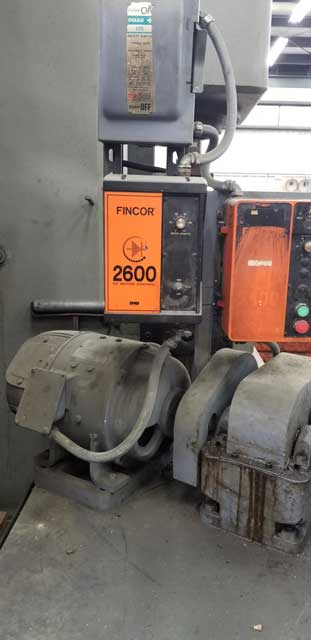

MOTOR
NUMBER OF DRIVEN ROLLS:      6

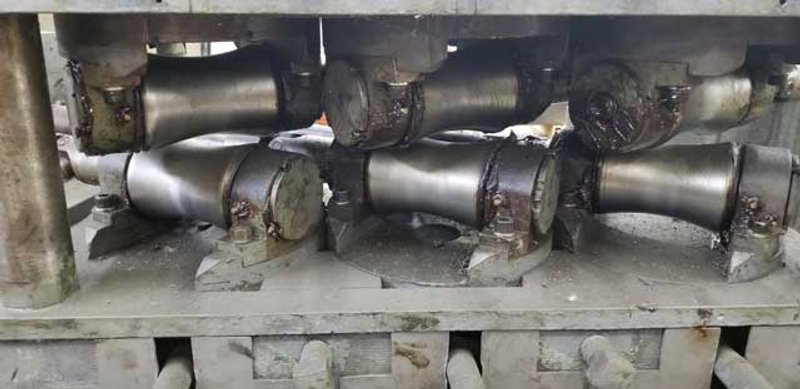

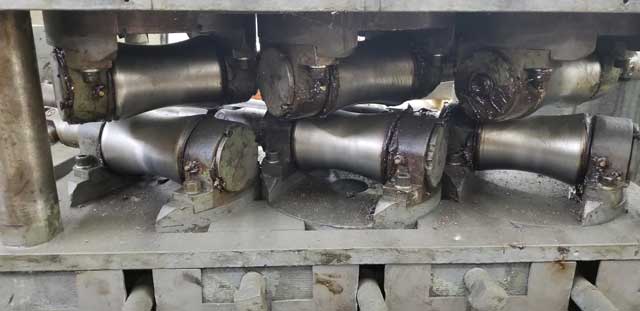

ROLL SIZE:
- LENGTH:                    5" (127mm)
- CENTER DIAMETER:           3" (76mm)
- ROLLS ARE CONCAVE

FLOOR SPACE:
- LENGTH:                    8 FT. 6" (2590mm)
- WIDTH:                     2 FT. 10" (864mm)

WEIGHT (PER CATALOG SPEC.):  3600 LBS. (1633 KG)

BUYER TO SUPPLY ENTRY/EXIT TABLES

 ** SPECIFICATIONS SUBJECT TO REVISIONS **

 ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
