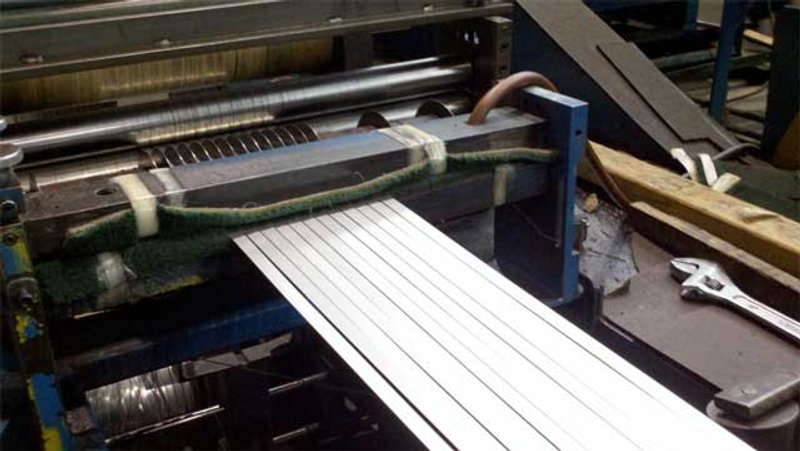

18" (459mm) X 4 1/4" (108mm) STANAT LOOPING PIT SLITTING LINE (12951)

MACHINE# 12951

SPECIFICATIONS:

MANUFACTURER:                 STANAT PRECISION MACHINE CO. (U.S.A.)
ARBOR WIDTH:                  18" (454mm)
ARBOR DIAMETER:               4 1/4" (108mm)
TYPE:                         LOOPING PIT WITH DRIVEN HEAD
MATERIAL USED:                STAINLESS, GALVANIZED, TINPLATE, BRASS
GAUGE RANGE USED:             0.005" (.127mm) TO 0.045" (1.143mm)

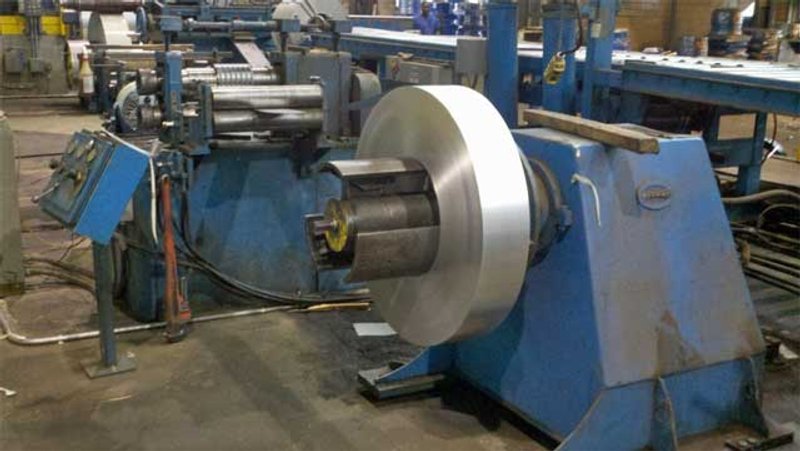

PAYOFF:
 MANUFACTURER:                STANAT PRECISION MACHINE CO. (U.S.A.)
 MODEL:                       7M-24
 TYPE:                        EXPANDING MANDREL
 PAYOFF WIDTH:                24" (610mm)
 PAYOFF I.D. RANGE:           14 1/2" (368mm) TO 18 1/2" (470mm)
 MAXIMUM COIL WEIGHT:         7,000 LBS. (3175 KG)
TENSION STAND:
 TWO ROLL
 DRAW TYPE

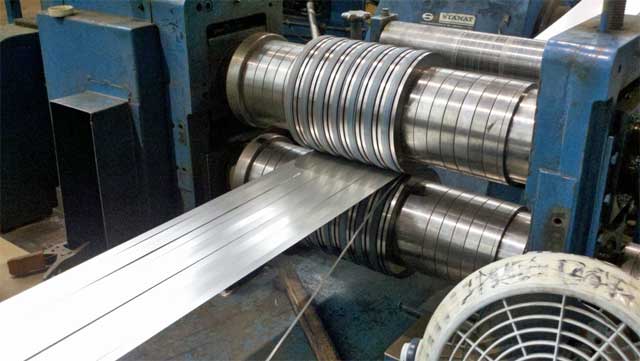

SLITTER HEAD:
 DRIVEN                       40 HP, 650-2000 RPM, 500 V, D.C. VARISPEED
 ARBOR ADJUSTMENT:            HANDWHEEL

SCRAP WINDER

RECOILER:
 I.D. RANGE:                  15 1/2" - 16" (394mm - 406mm)
 DRIVE MOTOR:                 15 HP, 1750-2300 RPM, 240 V, RELIANCE
 OVERARM SEPARATOR
 HYDRAULIC PUSHOFF:          ONTO TWIN ARM TURNSTILE


     **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
