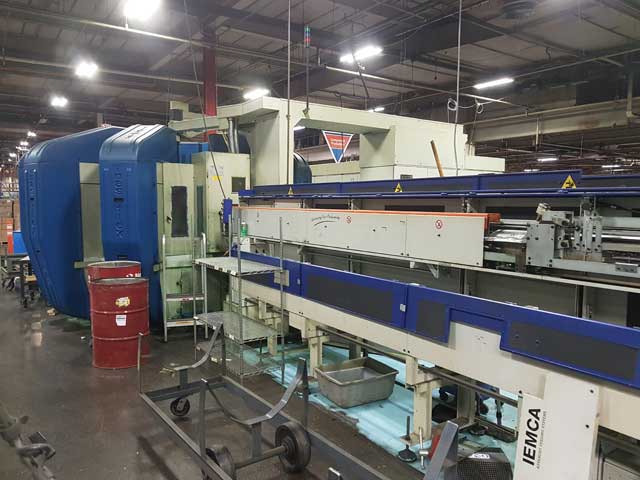

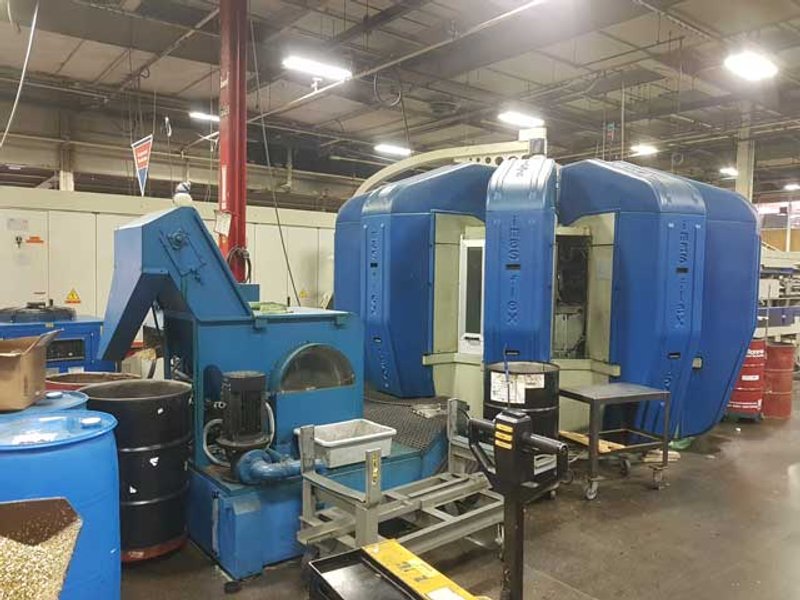

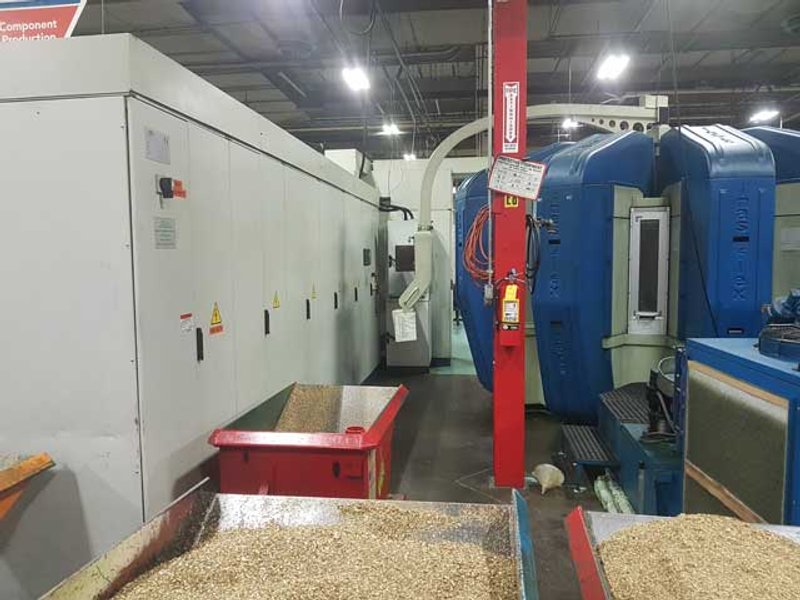

IMASFLEX 150 CNC ROTARY TRANSFER MACHINE (13480)

MACHINE# 13480

SPECIFICATIONS:

MANUFACTURER: IMAS INDUSTRIA MECANICA APPLICAZIONI SPECIALI (ITALY)

SERIES:                           IMASFLEX 150
MODEL No:                         L005-03-1231
YEAR OF MANUFACTURE:              2002

NOTE:  ALL SPECIFICATIONS BELOW ARE GENERAL SPECIFICATIONS FROM THE IMAS

WEBSITE FOR THE MODEL IMASFLEX 150. PURCHASER IS RESPONSIBLE TO CONFIRM

SPECIFICATIONS FOR THIS SPECIFIC MACHINE.

"X" TRAVEL:                       150mm (6")
"Y" AND "Z" TRAVEL:               130mm (5")

SPINDLE SPEED FOR SATELLITES:      4,000 RPM MAXIMUM
ALSO HAS 2 HIGH SPEED SPINDLES:   40,000 RPM MAXIMUM
No. OF JAW CHUCKS:                2

ON BOARD TURNING
LOW CHANGEOVER TIMES
FLEXIBILITY AND CHANGEABILITY
IDEAL FOR SMALL WORKPIECES
No. OF STATIONS - 10
3 AXIS MODULE (X, Y & Z) WITH A OR B AXIS FOR SATELLITE
CNC POSITION-CONTROLLED SPINDLE
ROTATING SATELLITE TO PERFORM TURNING OPERATIONS

3 STAGE CLOSE
USES IMAS INTERCEPTOR SOFTWARE PACKAGE FOR PRODUCTION
--MANAGEMENT, DIAGNOSTICS AND TROUBLESHOOTING

 ** SPECIFICATIONS SUBJECT TO REVISIONS **

 ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
