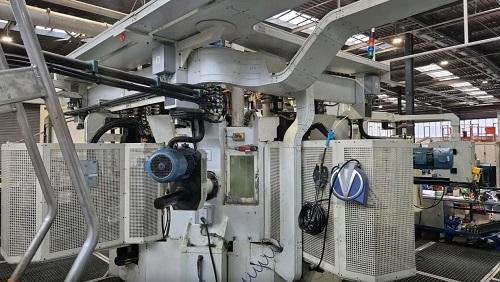

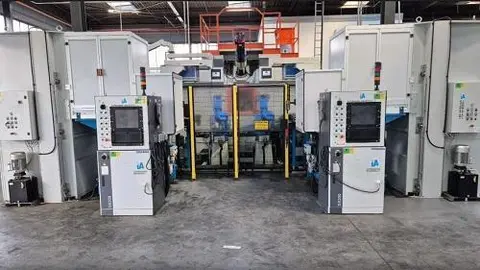

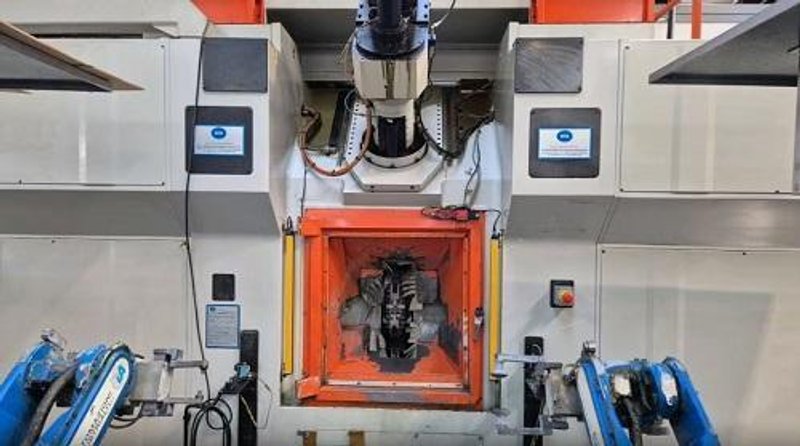

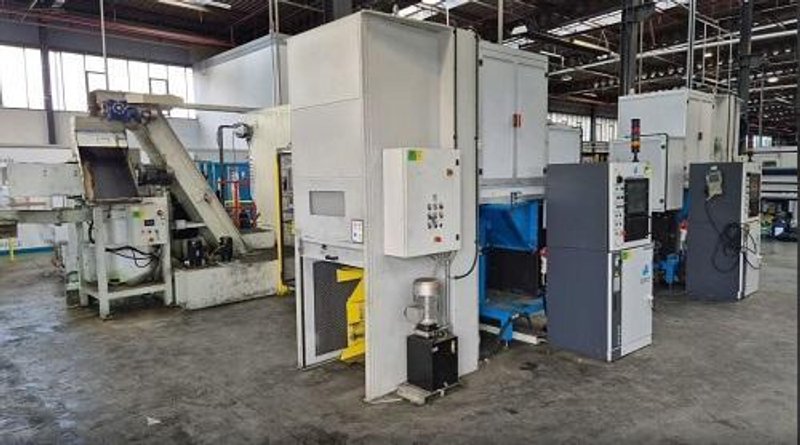

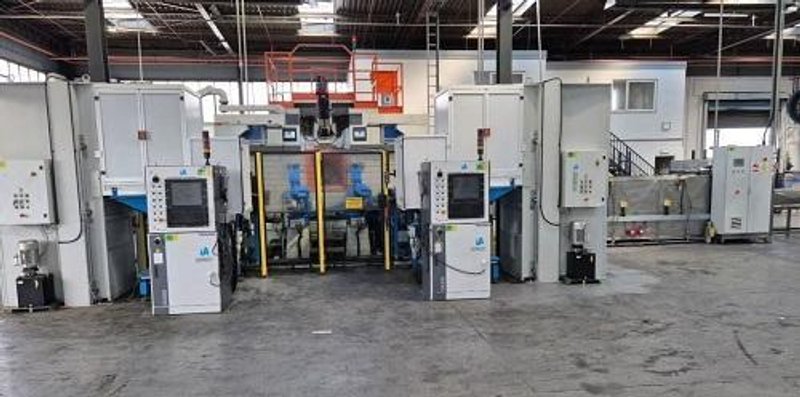

BTB ROTARY TRANSFER MACHINE - MDL. TRO 8S 14U ISO CNEL - NEW 2017

BTB ROTARY TRANSFER MACHINE – MDL. TRO 8S 14U ISO CNEL – NEW 2017

MANUFACTURER – BTB

COUNTRY OF ORIGINE – ITALY

STATUS – INSTALLED

TYPE – ROTARY TRANSFER MACHINE

YEAR – 2017

MODEL – TRO 8S 14U ISO CNEL

WEIGHT – 23,000 KG

NUMBER OF STATIONS – 8 MACHINING STATIONS

UNITS – 14 MACHINING UNITS

CNC CONTROL – FANUC

MACHINE CAPABILITIES – SIMULTANEOUS MULTI-AXIS OPERATIONS INCLUDING DRILLING, MILLING, TAPPING AND TURNING

WORKPIECE HANDLING  - AUTOMATED LOADING AND UNLOADING SYSTEMS

COOLANT SYSTEM – INTEGRATED HIGH-PRESSURE COOLLANT DELIVERY

SPINDLE TAPER SYSTEM – ISO 40 TOOL TAPER

CNEL – EUROPEAN NOISE EMISSION STANDARDS

DIAGNOSTIC SYSTEM EQUIPPED

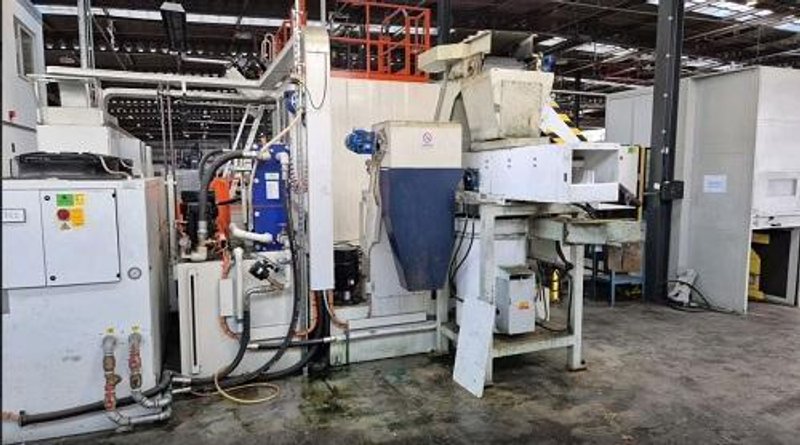

LIFTING/HANDLING UNIT – CASTELLETTO UZZONE ERI-2000 LIFTING UNIT – 2000 KG CAPACITY, 2.2 KW MOTOR

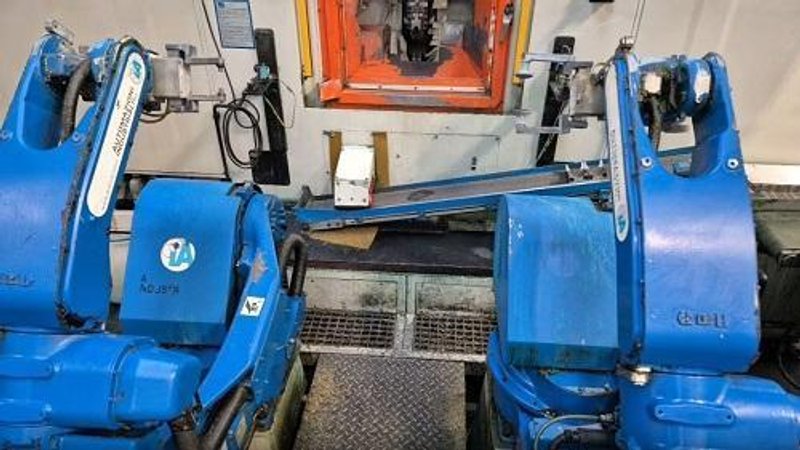

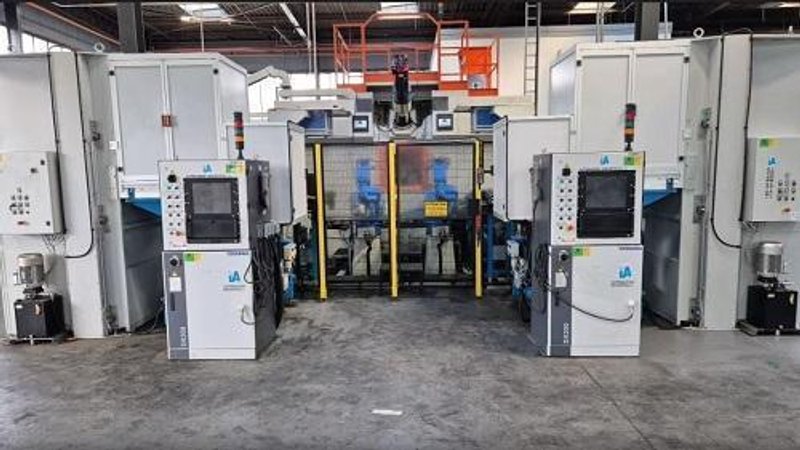

ROBOTS – AUTOAZIONE INDUSTRIALI AUTOMATION

TYPE - R.C.S.T./C.VIS.

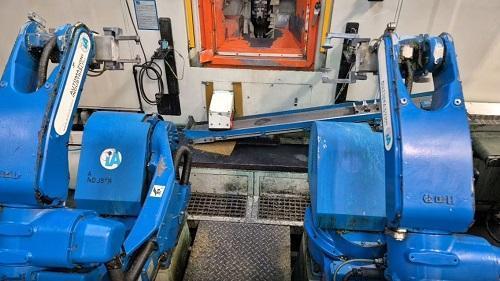

ROBOTS – DUAL MH24 UNITS FROM YASKAWA MOTOMAN

ROBOT PAYLOAD – 24 KG

REACH – 1717MM

REPEATABILITY – 0.08MM (+/-)

AXIES – 6 AXIS ARTICULATED ARM

WEIGHT – APPROX 540 KG PER ROBOT

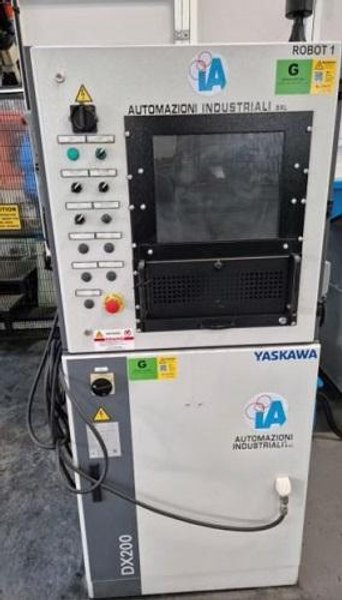

CONTROL – DX200  OR NX100 DEPENDING ON CONFIGURATION

MAXIMUM SPEED

J1 (S-axis): 170°/sec

J2 (L-axis): 170°/sec

J3 (U-axis): 175°/sec
